Panasonic CS-E9DKEW Manual de usuario

1 Features 2

2 Functions 3

2.1. Remote Control 3

2.2. Indoor Unit 4

2.3. Outdoor Unit 6

3 Product Specifications 7

3.1. CS-E9DKEW CU-E9DKE 7

3.2. CS-E12DKEW CU-E12DKE 9

4 Dimensions 11

4.1. Indoor Unit & Remote Control 11

4.2. Outdoor Unit 12

5 Refrigeration Cycle Diagram 13

6 Block Diagram 14

7 Wiring Diagram 15

8 Operation Details 16

8.1. Basic Function 16

and distribution is a violation of law.

CS-E9DKEW CU-E9DKE

CS-E12DKEW CU-E12DKE

8.2. Protection Control Features 35

9 Operating Instructions 44

10 Installation Instructions 50

10.1. Safety Precautions 50

10.2. Indoor Unit 53

10.3. Outdoor Unit 57

11 Installation And Servicing Air Conditioner Using R410A 61

11.1. Outline 61

11.2. Tools For Installing/Servicing Refrigerant Piping 62

11.3. Refrigerant Piping Work 66

11.4. Installation, Transferring, Servicing 68

12 Servicing Information 72

12.1. Troubleshooting 72

12.2. Breakdown Self Diagnosis Function 74

12.3. Remote Control 76

Air Conditioner

CONTENTS

Page Page

Order No: MAC0412064C2

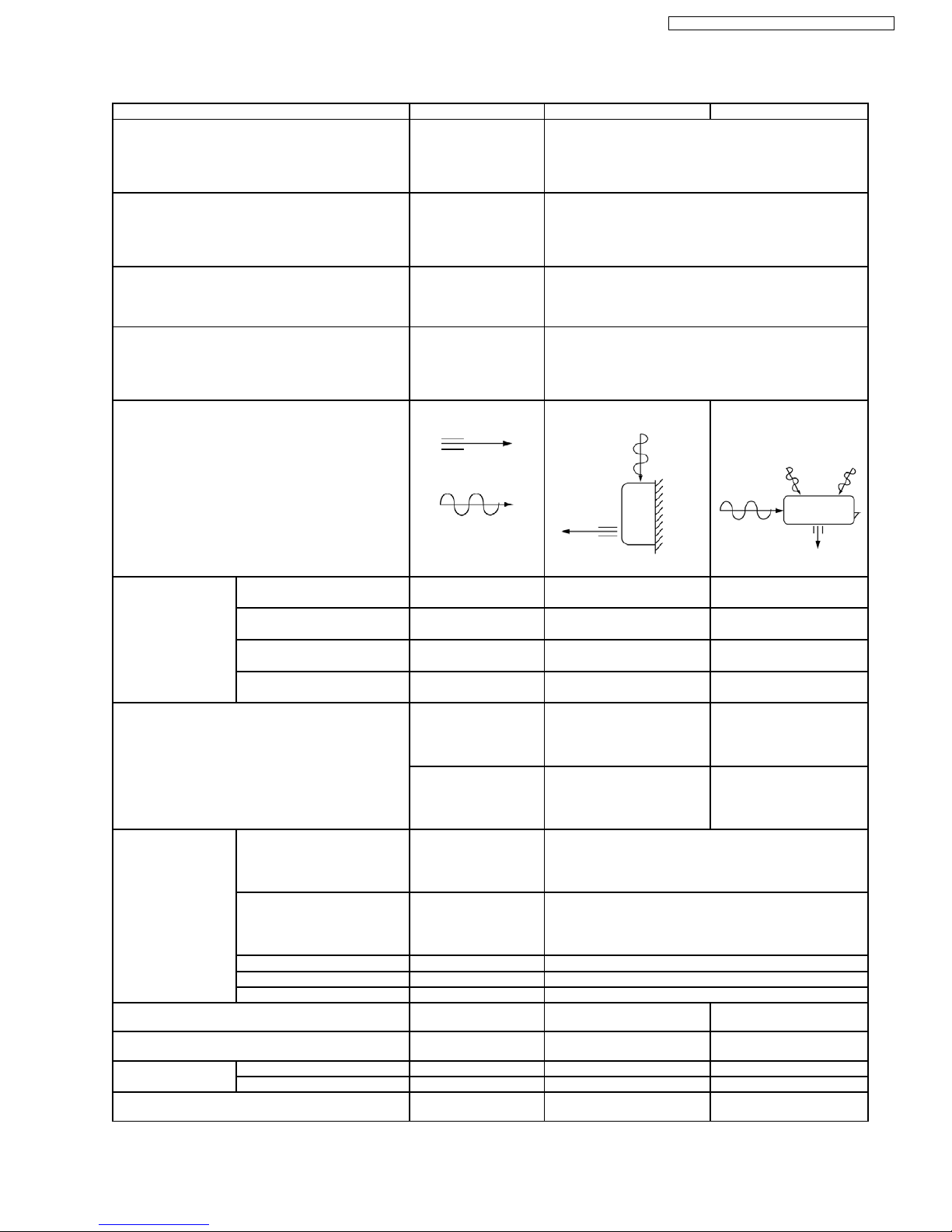

3 Product Specifications

3.1. CS-E9DKEW CU-E9DKE

Unit CS-E9DKEW CU-E9DKE

Cooling Capacity kW

kcal/h

BTU/h

2.6 (0.80 - 3.00)

2,240 (690 - 2,580)

8,870 (2,050 - 10,200)

Heating Capacity kW

kcal/h

BTU/h

3.6 (0.80 - 5.00)

3,100 (690 - 4,300)

12,300 (2,050 - 17,100)

Moisture Removal l/h

Pint/h

1.6

(3.4)

Power Source (Phase, Voltage, Cycle) ø

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 6.2 (220) —

Heating; 6.6 (230)

Me m3/min (cfm) Cooling; 7.9 (280) —

Heating; 8.6 (300)

Hi m3/min (cfm) Cooling; 9.6 (340) Cooling; 29.8 (1,050)

Heating; 10.5 (370)

SHi m3/min (cfm) Cooling; 9.9 (350) —

Heating; 10.8 (380)

dB (A) Cooling; High 39, Low 26 Cooling; 46

Heating; High 40, Low 27 Heating; 47

Noise Level

Power level dB Cooling; High 50 Cooling; High 59

Heating; High 51 Heating; High 60

Electrical Data Input WCooling; 600 (175 - 780)

Heating; 845 (165 - 1,360)

Running Current ACooling; 2.9

Heating; 4.0

EER W/W (kcal/hw), BTU/hw Cooling; 4.33 (3.73), 14.8

COP W/W (kcal/hw), BTU/hw Heating; 4.26 (3.67), 14.6

Starting Current A4.0

Piping Connection Port

(Flare piping)

inch

G ; Half Union 3/8”

L ; Half Union 1/4”

G ; 3-way valve 3/8”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

G (gas side) ; 3/8”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 12 —

Length m0.65 —

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

Unit CS-E9DKEW CU-E9DKE

Power Cord Length

Number of core-wire

—

Dimensions Height inch (mm) 11 - 1/32 (280) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 7 - 7/32 (183) 11 - 3/8 (289)

Net Weight lb (kg) 20 (9.0) 82 (37)

Compressor Type —Hermetic Rotary

Motor Type —Brushless (6-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material ASG20k1 P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 61.3

Rate Output W30 28

Fan Speed Lo (Cool/Heat) rpm 820/880 —

Me (Cool/Heat) rpm 1,050/1,140 —

Hi (Cool/Heat) rpm 1,280/1,400 770

SHi (Cool/Heat) rpm 1,320/1,440 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/24

FPI 21 17

Size (W × H × L) mm 610 × 315 × 25.4 718.4

689.8

× 504 × 36.4

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3) — RB68A (320)

Refrigerant (R410A) g (oz) —965 (34.1)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm —C1, C2 ; 950, C3 ; 411

Capillary Tube Flow Rate l/min —C1, C2 ; 4.1, C3 ; 18.8

Inner Diameter mm —C1, C2 ; 1.1, C3 ; 1.7

Air Filter Material

Style

P.P.

Honeycomb

—

Fan Motor Capacitor µF, VAC —2.0 µF, 440 VAC

Compressor Capacitor µF, VAC —65 µF, 350 VAC

• Specifications are subject to change without notice for further improvement.

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

3.2. CS-E12DKEW CU-E12DKE

Unit CS-E12DKEW CU-E12DKE

Cooling Capacity kW

kcal/h

BTU/h

3.50 (0.80 - 4.00)

3,010 (690 - 3,440)

11,950 (2,730 - 13,600)

Heating Capacity kW

kcal/h

BTU/h

4.80 (0.80 - 6.50)

4,130 (690 - 5,590)

16,400 (2,730 - 22,200)

Moisture Removal l/h

Pint/h

2.0

(4.2)

Power Source (Phase, Voltage, Cycle) ø

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 6.9 (240) —

Heating; 8.1 (290)

Me m3/min (cfm) Cooling; 8.8 (310) —

Heating; 9.7 (340)

Hi m3/min (cfm) Cooling; 10.7 (380) Cooling; 31.0 (1,090)

Heating; 11.2 (400)

SHi m3/min (cfm) Cooling; 11.0 (390) —

Heating; 11.6 (410)

dB (A) Cooling; High 42, Low 29 Cooling; 48

Heating; High 42, Low 33 Heating; 50

Noise Level

Power level dB Cooling; High 53 Cooling; High 61

Heating; High 53 Heating; High 63

Electrical Data Input WCooling; 965 (185 - 1,200)

Heating; 1,260 (175 - 1,890)

Running Current ACooling; 4.5

Heating; 5.8

EER W/W (kcal/hw), BTU/hw Cooling; 3.63 (3.12), 12.4

COP W/W (kcal/hw), BTU/hw Heating; 3.81 (3.28), 13.0

Starting Current A5.8

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 12 —

Length m0.65 —

Power Cord Length

Number of core-wire

—

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

Unit CS-E12DKEW CU-E12DKE

Dimensions Height inch (mm) 11 - 1/32 (280) 21 - 1/4 (540)

Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)

Depth inch (mm) 7 - 7/32 (183) 11 - 3/8 (289)

Net Weight lb (kg) 20 (9.0) 82 (37)

Compressor Type —Hermetic Rotary

Motor Type —Brushless (6-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material ASG20k1 P.P

Motor Type Transistor (8-poles) Induction (6-poles)

Input W — 65.9

Rate Output W30 29

Fan Speed Lo (Cool/Heat) rpm 910/1,080 —

Me (Cool/Heat) rpm 1,165/1,290 —

Hi (Cool/Heat) rpm 1,420/1,500 830

SHi (Cool/Heat) rpm 1,460/1,540 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/24

FPI 21 17

Size (W × H × L) mm 610 × 315 × 25.4 718.4

689.8

× 504 × 36.4

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (cm3) — RB68A (320)

Refrigerant (R410A) g (oz) —980 (34.6)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm —C1, C2 ; 1,120, C3 ; 370

Capillary Tube Flow Rate l/min —C1, C2 ; 4.9, C3 ; 19.6

Inner Diameter mm —C1, C2 ; 1.2, C3 ; 1.7

Air Filter Material

Style

P.P.

Honeycomb

—

Fan Motor Capacitor µF, VAC —2.0 µF, 440 VAC

Compressor Capacitor µF, VAC —65 µF, 350 VAC

• Specifications are subject to change without notice for further improvement.

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

4 Dimensions

4.1. Indoor Unit & Remote Control

4.1.1. CS-E9DKEW CS-E12DKEW

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

4.2. Outdoor Unit

4.2.1. CU-E9DKE CU-E12DKE

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

5 Refrigeration Cycle Diagram

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

6 Block Diagram

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE

7 Wiring Diagram

CS-E9DKEW CU-E9DKE / CS-E12DKEW CU-E12DKE
