CS-E15DKEW CU-E15DKE

CS-E18DKEW CU-E18DKE

CS-E21DKES CU-E21DKE

5 Refrigeration Cycle Diagram 15

6 Block Diagram 16

7 Wiring Diagram 17

8 Operation Details 18

8.1. Basic Function 18

8.2. Protection Control Features 35

9 Operating Instructions 47

9.1. CS-E15DKEW 47

9.2. CS-E18DKEW CS-E21DKES 53

10 Installation And Servicing Air Conditioner Using R410A 59

10.1. Outline 59

10.2. Tools For Installing/Servicing Refrigerant Piping 60

Air Conditioner

CONTENTS

Page Page

Order No. MAC0501012C2

3.1. CS-E15DKEW CU-E15DKE

3 Product Specifications

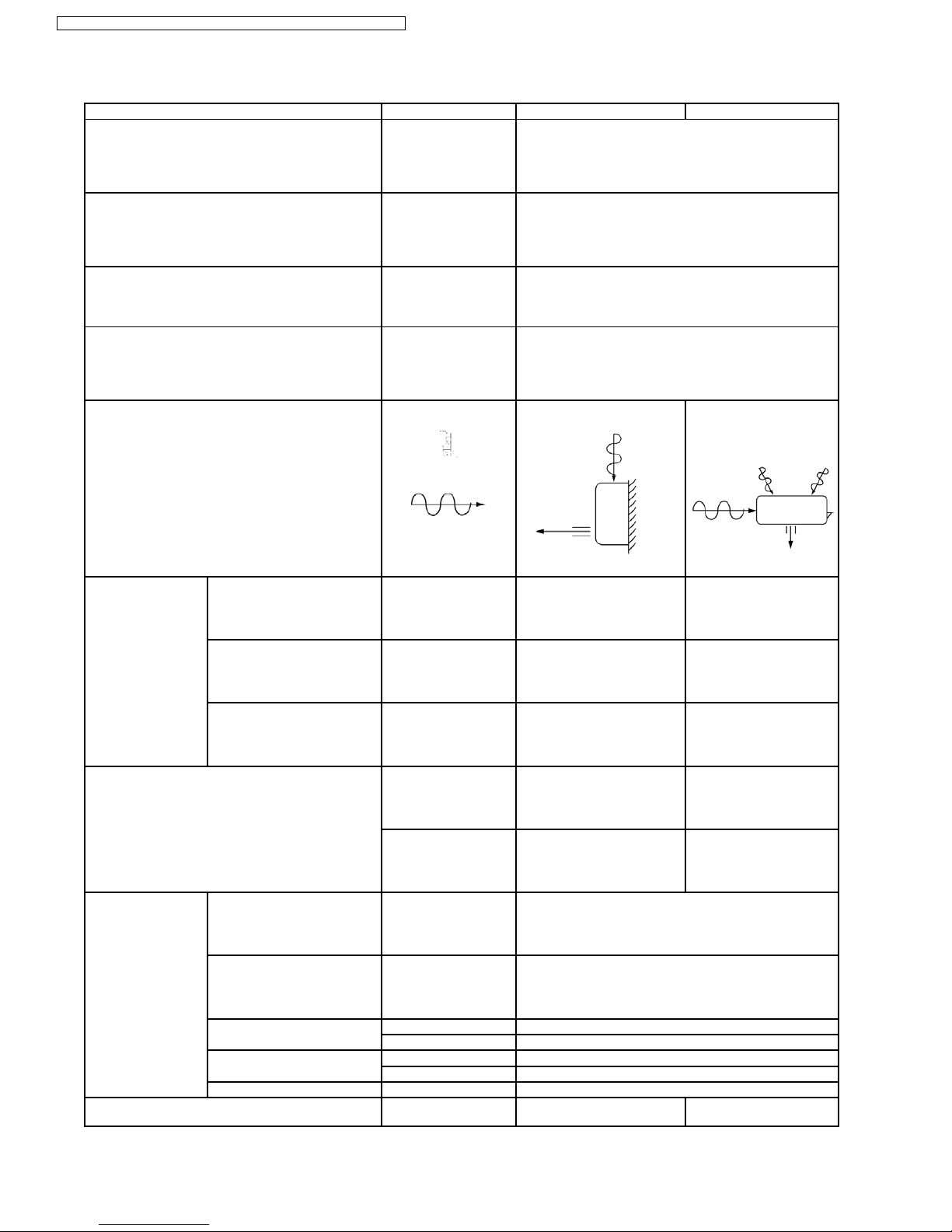

Unit CS-E15DKEW CU-E15DKE

Cooling Capacity kW

kcal/h

BTU/h

4.40 (0.90 - 5.00)

3,780 (770 - 4,300)

15,000 (3,070 - 17,100)

Heating Capacity kW

kcal/h

BTU/h

5.50 (0.90 - 7.10)

4,730 (770 - 6,110)

18,800 (3,070 - 24,200)

Moisture Removal l/h

Pint/h

2.4

(5.1)

Power Source (Phase, Voltage, Cycle) ø

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 7.4 (260) —

Heating; 8.8 (310)

Me m3/min (cfm) Cooling; 9.2 (320) —

Heating; 10.3 (360)

Hi m3/min (cfm) Cooling; 11.0 (390) Cooling; 48.5 (1,710)

Heating; 11.8 (420) Heating; 46.8 (1,650)

dB (A) Cooling; High 43, Low 32 Cooling; 46

Heating; High 43, Low 35 Heating; 46

Noise Level

Power level dB Cooling; High 54 Cooling; High 59

Heating; High 54 Heating; High 59

Electrical Data Input Power W Cooling; 1,370 (215 - 1,600)

Heating; 1,570 (245 - 2,250)

Running Current ACooling; 6.3

Heating; 7.1

EER W/W Cooling; 3.21 (4.19 - 3.13)

BTU/hW Cooling; 10.9 (14.3 - 10.7)

COP W/W Heating; 3.50 (3.67 - 3.16)

BTU/hW Heating; 12.0 (12.5 - 10.8)

Starting Current A7.3

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

Unit CS-E15DKEW CU-E15DKE

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 12 —

Length m0.65 —

Power Cord Length

Number of core-wire

—— —

—

Dimensions Height inch (mm) 11 - 1/32 (280) 29 - 17/32 (750)

Width inch (mm) 31 - 15/32 (799) 34 - 7/16 (875)

Depth inch (mm) 7 - 7/32 (183) 13 - 19/32 (345)

Net Weight lb (kg) 20 (9) 106 (48)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 700

Air Circulation Type Cross-flow Fan Propeller Fan

Material ASHT-18 P.P

Motor Type Transistor (8-poles) Transistor (8-poles)

Rate Output W30 40

Fan Speed Lo (Cool/Heat) rpm 980 / 1,160 —

Me (Cool/Heat) rpm 1,220 / 1,360 —

Hi (Cool/Heat) rpm 1,460 / 1,560 660 / 640

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 1/28

FPI 21 18

Size (W × H × L) mm 610 × 315 × 25.4 871.7 × 711.2 × 22

Refrigerant Control Device —Expansion Valve

Refrigeration Oil (c.c) —RB68A (360)

Refrigerant (R410A) kg (oz) —1.06 (37.4)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm — —

Capillary Tube Flow Rate l/min — —

Inner Diameter mm — —

Air Filter Material

Style

P.P.

Honeycomb

—

• Specifications are subjected to change without notice for further improvement.

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

3.2. CS-E18DKEW CU-E18DKE

Unit CS-E18DKEW CU-E18DKE

Cooling Capacity kW

kcal/h

BTU/h

5.30 (0.90 - 6.00)

4,560 (770 - 5,160)

18,100 (3,070 - 20,500)

Heating Capacity kW

kcal/h

BTU/h

6.60 (0.90 - 8.00)

5,680 (770 - 6,880)

22,500 (3,070 - 27,300)

Moisture Removal l/h

Pint/h

2.9

(6.1)

Power Source (Phase, Voltage, Cycle) ø

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 12.3 (430) —

Heating; 13.0 (460)

Me m3/min (cfm) Cooling; 13.9 (490) —

Heating; 14.6 (520)

Hi m3/min (cfm) Cooling; 15.2 (540) 40.0 (1,410)

Heating; 16.7 (590)

dB (A) Cooling; High 44, Low 37 Cooling; 47

Heating; High 44, Low 37 Heating; 47

Noise Level

Power level dB Cooling; High 57 Cooling; High 60

Heating; High 57 Heating; High 60

Electrical Data Input Power W Cooling; 1,650 (215 - 2,050)

Heating; 1,790 (245 - 2,650)

Running Current ACooling; 7.5

Heating; 8.1

EER W/W Cooling; 3.21 (4.19 - 2.93)

BTU/hW Cooling; 11.0 (14.3 - 10.0)

COP W/W Heating; 3.69 (3.67 - 3.02)

BTU/hW Heating; 12.6 (12.5 - 10.3)

Starting Current A8.3

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

Unit CS-E18DKEW CU-E18DKE

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 12 —

Length m0.65 —

Power Cord Length

Number of core-wire

—— —

—

Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)

Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)

Depth inch (mm) 9 - 1/16 (230) 13 - 19/32 (345)

Net Weight lb (kg) 24 (11) 108 (49)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 900

Air Circulation Type Cross-flow Fan Propeller Fan

Material ASHT-18 P.P

Motor Type Transistor (8-poles) Transistor (8-poles)

Rate Output W30 40

Fan Speed Lo (Cool/Heat) rpm 1,170 / 1,240 —

Me (Cool/Heat) rpm 1,330 / 1,395 —

Hi (Cool/Heat) rpm 1,450 / 1,580 660 / 640

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/34

FPI 21 16

Size (W × H × L) mm 810 × 315 × 25.4 849.3

878

× 714 × 36.4

Refrigerant Control Device —Expansion Valve

Refrigeration Oil (c.c) —RB68A (360)

Refrigerant (R410A) kg (oz) —1.18 (41.7)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm — —

Capillary Tube Flow Rate l/min — —

Inner Diameter mm — —

Air Filter Material

Style

P.P.

Honeycomb

—

• Specifications are subjected to change without notice for further improvement.

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

3.3. CS-E21DKES CU-E21DKE

Unit CS-E21DKES CU-E21DKE

Cooling Capacity kW

kcal/h

BTU/h

6.30 (0.90 - 7.10)

5,420 (770 - 6,110)

21,500 (3,070 - 24,200)

Heating Capacity kW

kcal/h

BTU/h

7.20 (0.90 - 8.50)

6,190 (770 - 7,310)

24,600 (3,070 - 29,000)

Moisture Removal l/h

Pint/h

3.5

(7.4)

Power Source (Phase, Voltage, Cycle) ø

Single

230

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Lo m3/min (cfm) Cooling; 12.5 (440) —

Heating; 13.5 (480)

Me m3/min (cfm) Cooling; 14.4 (510) —

Heating; 14.9 (530)

Hi m3/min (cfm) Cooling; 16.2 (570) Cooling; 42.8 (1,510)

Heating; 17.3 (610) Heating; 41.5 (1,460)

dB (A) Cooling; High 45, Low 37 Cooling; 48

Heating; High 45, Low 37 Heating; 49

Noise Level

Power level dB Cooling; High 58 Cooling; High 61

Heating; High 58 Heating; High 62

Electrical Data Input Power W Cooling; 2,210 (215 - 2,540)

Heating; 2,100 (245 - 2,750)

Running Current ACooling; 9.9

Heating; 9.3

EER W/W Cooling; 2.85 (4.19 - 2.80)

BTU/hW Cooling; 9.7 (14.3 - 9.5)

COP W/W Heating; 3.43 (3.67 - 3.09)

BTU/hW Heating; 11.7 (12.5 - 10.5)

Starting Current A9.7

Piping Connection Port

(Flare piping)

inch

G ; Half Union 1/2”

L ; Half Union 1/4”

G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

Unit CS-E21DKES CU-E21DKE

Pipe Size

(Flare piping)

inch

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose

Inner diameter mm 12 —

Length m0.65 —

Power Cord Length

Number of core-wire

—— —

—

Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)

Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)

Depth inch (mm) 9 - 1/16 (230) 13 - 19/32 (345)

Net Weight lb (kg) 24 (11) 112 (51)

Compressor Type —Involute scroll

Motor Type —Brushless (4-pole)

Rated Output W — 900

Air Circulation Type Cross-flow Fan Propeller Fan

Material ASHT-18 P.P

Motor Type Transistor (8-poles) Transistor (8-poles)

Rate Output W30 40

Fan Speed Lo (Cool/Heat) rpm 1,170 / 1,270 —

Me (Cool/Heat) rpm 1,355 / 1,400 —

Hi (Cool/Heat) rpm 1,520 / 1,610 700 / 680

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2/15 2/34

FPI 19 18

Size (W × H × L) mm 810 × 315 × 25.4 839.5

868

× 714 × 36.4

Refrigerant Control Device —Expansion Valve

Refrigeration Oil (c.c) —RB68A (360)

Refrigerant (R410A) kg (oz) —1.29 (45.5)

Thermostat Electronic Control —

Protection Device Electronic Control Electronic Control

Length mm — —

Capillary Tube Flow Rate l/min — —

Inner Diameter mm — —

Air Filter Material

Style

P.P.

Honeycomb

—

• Specifications are subjected to change without notice for further improvement.

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

4 Dimensions

4.1. Indoor Unit & Remote Control

4.1.1. CS-E15DKEW

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

4.1.2. CS-E18DKEW CS-E21DKES

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

4.2. Outdoor Unit

4.2.1. CU-E15DKE CU-E18DKE CU-E21DKE

CS-E15DKEW CU-E15DKE / CS-E18DKEW CU-E18DKE / CS-E21DKES CU-E21DKE

Otros manuales para CS-E15DKEW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CW-A170KR Manual de usuario

Panasonic

Panasonic CU-PC9CKV Manual de usuario

Panasonic

Panasonic CW-XC145HU Manual de usuario

Panasonic

Panasonic CS-S9RKV Hoja de instrucciones

Panasonic

Panasonic CSC12BKP - SPLIT A/C SYSTEM Manual de usuario

Panasonic

Panasonic CS-NE7GKE Manual de usuario

Panasonic

Panasonic CS-KU18WKYF1 Series Manual de usuario

Panasonic

Panasonic CS-XE9CKE Manual de usuario

Panasonic

Panasonic CW-HZ70YA Manual de usuario

Panasonic

Panasonic CS-RE9RKA Manual de usuario

Panasonic

Panasonic CSC9CKPG - SPLIT A/C IN DOOR Manual de usuario

Panasonic

Panasonic CS-NZ25TKE Manual de usuario

Panasonic

Panasonic U-72ME2U9 Manual de usuario

Panasonic

Panasonic RS-V18RK Manual de usuario

Panasonic

Panasonic CS-F24DB4E5 Manual de usuario

Panasonic

Panasonic CS-W7DKR Manual de usuario

Panasonic

Panasonic WH-MDC05F3E5 Manual de usuario

Panasonic

Panasonic U-8ME2R8E Manual de usuario

Panasonic

Panasonic HBE5 Series Manual de usuario

Panasonic

Panasonic CSC18BKP - SPLIT A/C SYSTEM Manual de usuario

Panasonic

Panasonic CU-4E27PBE Manual de usuario

Panasonic

Panasonic CS-CE9PKE Manual de usuario

Panasonic

Panasonic TZ71ZKE Series Manual de usuario

Panasonic

Panasonic CS-E9PB4EA Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
