Order No. PAPAMY1208039SE

Air Conditioner

Indoor Unit Outdoor Unit

Subject :Additional technical data

CS-E10JD3EA

CS-E15JD3EA

CS-E18JD3EA

CU-E10HBEA

CU-E15HBEA

CU-E18HBEA

Please file and use this supplement manual together with the service manual for Model No. CS-E10JD3EA/CU-E10HBEA,

CS-E15JD3EA/CU-E15HBEA, CS-E18JD3EA/CU-E18HBEA, Order No. PHAAM0901093C8.

TABLE OF CONTENTS

PAGE PAGE

1. Technical Data....................................................2

1.1 Ducted Model Cooling Low Temperature

Performance..................................................2

1.2 Static Pressure ..............................................4

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to

service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

1. Technical Data

1.1 Ducted Model Cooling Low Temperature Performance

With Connect To Single

E18JD3EA (5.0kW) Outdoor Temp.

Indoor Temp.

oC 5 10 20 25 35 40

Total Capacity W 6008 6033 5787 5600 5100 4639

27/19oC Sensible Capacity W 4103 4121 3953 3825 3483 3169

Total Capacity W 4004 3937 3641 3611 5166 4753

23/15oC Sensible Capacity W 3327 3272 3026 3001 4293 3950

Total Capacity W 2219 2071 1964 2055 5085 4825

19/12oC Sensible Capacity W 2170 2025 1920 2010 4973 4718

E15JD3EA (4.0kW) Outdoor Temp.

Indoor Temp.

oC 5 10 20 25 35 40

Total Capacity W 4567 4617 4481 4440 4100 3730

27/19oC Sensible Capacity W 3120 3153 3061 3033 2800 2547

Total Capacity W 3079 3001 2796 2862 4162 3797

23/15oC Sensible Capacity W 2559 2494 2324 2378 3458 3155

Total Capacity W 1800 1706 1554 1648 3879 3887

19/12oC Sensible Capacity W 1760 1668 1520 1612 3793 3801

E10JD3EA (2.5kW) Outdoor Temp.

Indoor Temp.

oC 5 10 20 25 35 40

Total Capacity W 2703 2738 2831 2740 2500 2334

27/19oC Sensible Capacity W 1846 1870 1933 1871 1708 1594

Total Capacity W 1783 1660 1428 1556 2558 2370

23/15oC Sensible Capacity W 1481 1379 1186 1293 2125 1969

Total Capacity W 1120 1052 1010 1039 2613 2440

19/12oC Sensible Capacity W 1095 1029 988 1016 2555 2386

With Connect to Multi (with Annual Cooling feature)

E18JD3EA (5.0kW) Outdoor Temp.

Indoor Temp.

oC 5 10 20 25 35 40

Total Capacity W 5890 5915 5674 5490 5000 4548

27/19oC Sensible Capacity W 4023 4040 3875 3750 3415 3106

Total Capacity W 3925 3860 3570 3540 5065 4660

23/15oC Sensible Capacity W 3262 3208 2967 2942 4209 3872

Total Capacity W 2175 2030 1925 2015 4985 4730

19/12oC Sensible Capacity W 2127 1985 1883 1971 4875 4626

E15JD3EA (4.0kW) Outdoor Temp.

Indoor Temp.

oC 5 10 20 25 35 40

Total Capacity W 4456 4504 4372 4332 4000 3639

27/19oC Sensible Capacity W 3043 3076 2986 2959 2732 2485

Total Capacity W 3004 2928 2728 2792 4060 3704

23/15oC Sensible Capacity W 2496 2433 2267 2320 3374 3078

Total Capacity W 1756 1664 1516 1608 3784 3792

19/12oC Sensible Capacity W 1717 1627 1483 1573 3701 3709

E10JD3EA (2.5kW) Outdoor Temp.

Indoor Temp.

oC 5 10 20 25 35 40

Total Capacity W 2703 2738 2831 2740 2500 2334

27/19oC Sensible Capacity W 1846 1870 1933 1871 1708 1594

Total Capacity W 1783 1660 1428 1556 2558 2370

23/15oC Sensible Capacity W 1481 1379 1186 1293 2125 1969

Total Capacity W 1120 1052 1010 1039 2613 2440

19/12oC Sensible Capacity W 1095 1029 988 1016 2555 2386

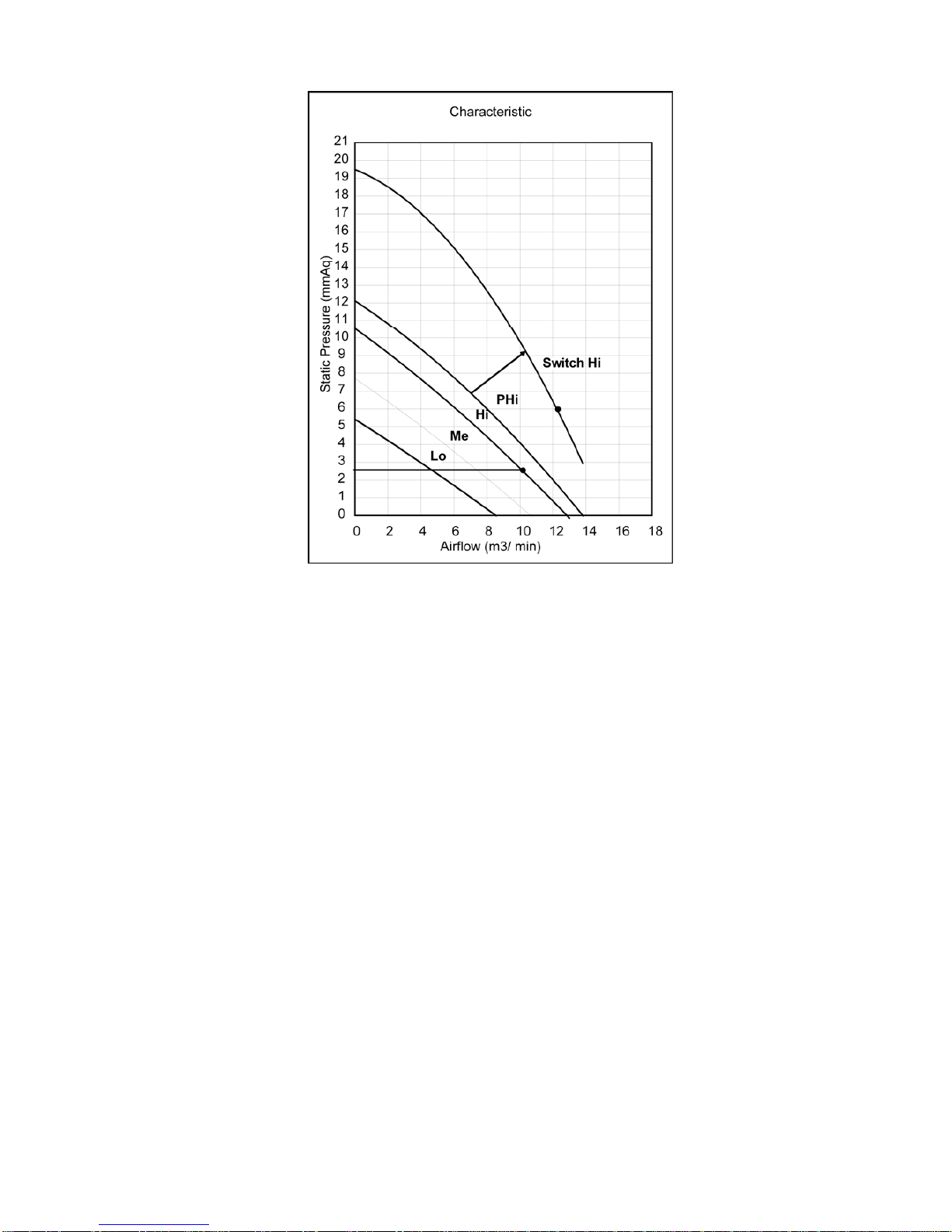

1.2 Static Pressure

1.2.1 CS-E10JD3EA

1.2.2 CS-E15JD3EA

1.2.3 CS-E18JD3EA

Printed in Malaysia

SB0812-0
