Order No. MAC0706002A2

Air Conditioner

CS-CE7GKEW CU-CE7GKE

CS-CE9GKEW CU-CE9GKE

CS-CE12GKEW CU-CE12GKE

TABLE OF CONTENTS PAGE PAGE

1 Specifications ----------------------------------------------------- 2

1.1. CS-CE7GKEW CU-CE7GKE-------------------------- 2

1.2. CS-CE9GKEW CU-CE9GKE-------------------------- 4

1.3. CS-CE12GKEW CU-CE12GKE----------------------- 6

2 Technical Data----------------------------------------------------- 8

2.1. Operation Characteristics--------------------------------8

2.2. Sensible Capacity Chart--------------------------------20

3 Exploded View and Replacement Parts List-----------21

3.1. Indoor Unit------------------------------------------------- 21

3.2. Outdoor Unit----------------------------------------------- 23

Please file and use this manual together with the service manual for Model No. CS-E9GKEW-5 / CU-

E9GKE-5, CS-E12GKEW-5 / CU-E12GKE-5, Order No. MAC0612063C2.

1 Specifications

1.1. CS-CE7GKEW CU-CE7GKE

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Performance Test Condition EUROVENT

Capacity kW 2.05 (0.70 ~ 2.40)

kCal/h 1760 (600 ~ 2060)

EER W/W 4.27 (4.12 ~ 4.07)

kCal/hW 3.67 (3.53 ~ 3.49)

Noise Level dB (A) High 37, Low 24, Q-Lo 21 High 45

Power level dB High 48, Low 35, Q-Lo 32 58

Capacity kW 2.80 (0.70 ~ 4.00)

kCal/h 2410 (600 ~ 3440)

COP W/W 4.31 (4.38 ~ 3.92)

kCal/hW 3.71 (3.75 ~ 3.37)

Noise Level dB (A) High 38, Low 25, Q-Lo 22 High 46

Power level dB High 49, Low 36, Q-Lo 33 59

Moisture Removal l/h 1.3

pt/h 2.7

Air Volume

Q-Lo m3/min (ft3/min) Cooling; 4.6 (160) —

Heating; 5.1 (180)

Lo m3/min (ft3/min) Cooling; 6.3 (220) —

Heating; 6.5 (230)

Me m3/min (ft3/min) Cooling; 7.2 (250) —

Heating; 7.7 (270)

Hi m3/min (ft3/min) Cooling; 9.8 (350) Cooling; 28.8 (1020)

Heating; 10.3 (360)

SHi m3/min (ft3/min) Cooling; 10.1 (360) —

Heating; 10.7 (380)

Refrigeration Control Device — Check Valve & Capillary Tube

Refrigeration Oil cm3— RB68A or Freol Alpha68M (320)

Refrigerant (R410A) g (oz) — 790 (27.9)

Dimension Height mm (inch) 280 (11-1/32) 540 (21-1/4)

Width mm (inch) 799 (31-15/32) 780 (30-23/32)

Depth mm (inch) 183 (7-7/32) 289 (11-3/8)

Net Weight kg (lbs) 9 (20) 33 (73)

Pipe Diameter Gas mm (inch) 9.52 (3/8)

Liquid mm (inch) 6.35 (1/4)

Standard Length m (ft) 7.5 (24.6)

Pipe Length Range m (ft) 3 (9.8) ~ 15 (49.2)

Height Difference m (ft) 15 (49.2)

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Refrigeration Charge Less m (ft) 7.5 (24.6)

Drain Hose Inner Diameter mm 16 —

Length mm 650 —

Compressor Type — Hermetic Motor

Motor Type — Brushless (6-pole)

Rated Output W — 650

1. Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air

temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)

2. Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F

D.B.), 6°C W.B. (42.8°F W.B.)

Note

• Specifications are subject to change without notice for further improvement.

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Fan

Type Cross-Flow Fan Propeller Fan

Material ASG20K1 PP

Motor Type Transistor (8-pole) Induction (6-pole)

Input Power W — 62

Output Power W 30 25

Fan Speed

Q-Lo (Cool/Heat) rpm 740 / 790 —

Lo (Cool/Heat) rpm 790 / 840 —

Me (Cool/Heat) rpm 1010 / 1070 —

Hi (Cool/Heat) rpm 1230 / 1300 750 / -

SHi (Cool/Heat) rpm 1270 /1340 —

Heat Exchanger

Fin Material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row x Stage x FPI 2 x 15 x 19 2 x 24 x 17

Size (W x H x L) mm 610 x 315 x 25.4 36.4 x 504 x 713

684

Air Filter Material Polypropelene —

Type One-Touch —

Item Unit

Power Source (Phase, Voltage, Cycle) ø Single

V 230

Hz 50

Input Power W Cooling; 480 (170 ~ 590)

Heating; 650 (160 ~ 1020)

Starting Current A 3.1

Running Current A Cooling; 2.3

Heating; 3.1

Power Factor % Cooling; 91

Heating; 91

Power factor means total figure of compressor, indoor fan motor and outdoor fan motor.

*Maximum over current protection A 4.8

Power Cord Number of core —

Length m —

Thermostat Electronic Control

Protection Device Electronic Control

1.2. CS-CE9GKEW CU-CE9GKE

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Performance Test Condition EUROVENT

Capacity kW 2.60 (0.80 ~ 3.00)

kCal/h 2240 (690 ~ 2580)

EER W/W 4.41 (4.57 ~ 4.00)

kCal/hW 3.80 (3.94 ~ 3.44)

Noise Level dB (A) High 39, Low 25, Q-Lo 21 High 46

Power level dB High 50, Low 36, Q-Lo 32 59

Capacity kW 3.60 (0.80 ~ 5.00)

kCal/h 3100 (690 ~ 4300)

COP W/W 4.31 (4.85 ~ 3.73)

kCal/hW 3.71 (4.18 ~ 3.21)

Noise Level dB (A) High 40, Low 27, Q-Lo 24 High 47

Power level dB High 51, Low 38, Q-Lo 35 60

Moisture Removal l/h 1.6

pt/h 3.4

Air Volume

Q-Lo m3/min (ft3/min) Cooling; 4.9 (170) —

Heating; 6.1 (220)

Lo m3/min (ft3/min) Cooling; 6.6 (230) —

Heating; 7.1 (250)

Me m3/min (ft3/min) Cooling; 7.8 (280) —

Heating; 8.6 (300)

Hi m3/min (ft3/min) Cooling; 10.4 (370) Cooling; 29.8 (1050)

Heating; 11.0 (390)

SHi m3/min (ft3/min) Cooling; 10.7 (380) —

Heating; 11.4 (400)

Refrigeration Control Device — Check Valve & Capillary Tube

Refrigeration Oil cm3— RB68A or Freol Alpha68M (320)

Refrigerant (R410A) g (oz) — 965 (34.1)

Dimension Height mm (inch) 280 (11-1/32) 540 (21-1/4)

Width mm (inch) 799 (31-15/32) 780 (30-23/32)

Depth mm (inch) 183 (7-7/32) 289 (11-3/8)

Net Weight kg (lbs) 9 (20) 34 (75)

Pipe Diameter Gas mm (inch) 9.52 (3/8)

Liquid mm (inch) 6.35 (1/4)

Standard Length m (ft) 7.5 (24.6)

Pipe Length Range m (ft) 3 (9.8) ~ 15 (49.2)

Height Difference m (ft) 15 (49.2)

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Refrigeration Charge Less m (ft) 7.5 (24.6)

Drain Hose Inner Diameter mm 16 —

Length mm 650 —

Compressor Type — Hermetic Motor

Motor Type — Brushless (6-pole)

Rated Output W — 700

1. Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air

temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)

2. Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F

D.B.), 6°C W.B. (42.8°F W.B.)

Note

• Specifications are subject to change without notice for further improvement.

Fan

Type Cross-Flow Fan Propeller Fan

Material ASG20K1 PP

Motor Type Transistor (8-pole) Induction (6-pole)

Input Power W — 65

Output Power W 30 25

Fan Speed

Q-Lo (Cool/Heat) rpm 770 / 890 —

Lo (Cool/Heat) rpm 830 / 940 —

Me (Cool/Heat) rpm 1070 / 1170 —

Hi (Cool/Heat) rpm 1310 / 1420 770 / —

SHi (Cool/Heat) rpm 1350 / 1460 —

Heat Exchanger

Fin Material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row x Stage x FPI 2 x 15 x 19 2 x 24 x 17

Size (W x H x L) mm 610 x 315 x 25.4 36.4 x 504 x 713

684

Air Filter Material Polypropelene —

Type One-Touch —

Item Unit

Power Source (Phase, Voltage, Cycle) ø Single

V 230

Hz 50

Input Power W Cooling; 590 (175 ~ 750)

Heating; 835 (165 ~ 1340)

Starting Current A 3.9

Running Current A Cooling; 2.8

Heating; 3.9

Power Factor % Cooling; 92

Heating; 93

Power factor means total figure of compressor, indoor fan motor and outdoor fan motor.

*Maximum over current protection A 5.9

Power Cord Number of core —

Length m —

Thermostat Electronic Control

Protection Device Electronic Control

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

1.3. CS-CE12GKEW CU-CE12GKE

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

Performance Test Condition EUROVENT

Capacity kW 3.50 (0.80 ~ 4.00)

kCal/h 3010 (690 ~ 3440)

EER W/W 3.83 (4.32 ~ 3.39)

kCal/hW 3.29 (3.73 ~ 2.92)

Noise Level dB (A) High 42, Low 28, Q-Lo 21 High 48

Power level dB High 53, Low 39, Q-Lo 32 61

Capacity kW 4.80 (0.80 ~ 6.50)

kCal/h 4130 (690 ~ 5590)

COP W/W 3.81 (4.57 ~ 3.44)

kCal/hW 3.28 (3.94 ~ 2.96)

Noise Level dB (A) High 42, Low 33, Q-Lo 30 High 50

Power level dB High 53, Low 44, Q-Lo 41 63

Moisture Removal l/h 2.0

pt/h 4.2

Air Volume

Q-Lo m3/min (ft3/min) Cooling; 5.0 (180) —

Heating; 8.0 (280)

Lo m3/min (ft3/min) Cooling; 7.0 (250) —

Heating; 8.5 (300)

Me m3/min (ft3/min) Cooling; 8.7 (310) —

Heating; 9.9 (350)

Hi m3/min (ft3/min) Cooling; 11.2 (400) Cooling; 31.0 (1090)

Heating; 11.7 (410)

SHi m3/min (ft3/min) Cooling; 11.5 (410) —

Heating; 12.1 (430)

Refrigeration Control Device — Check Valve & Capillary Tube

Refrigeration Oil cm3— RB68A or Freol Alpha68M (320)

Refrigerant (R410A) g (oz) — 980 (34.6)

Dimension Height mm (inch) 280 (11-1/32) 540 (21-1/4)

Width mm (inch) 799 (31-15/32) 780 (30-23/32)

Depth mm (inch) 183 (7-7/32) 289 (11-3/8)

Net Weight kg (lbs) 9 (20) 35 (77)

Pipe Diameter Gas mm (inch) 12.7 (1/2)

Liquid mm (inch) 6.35 (1/4)

Standard Length m (ft) 7.5 (24.6)

Pipe Length Range m (ft) 3 (9.8) ~ 15 (49.2)

Height Difference m (ft) 15 (49.2)

Additional Gas Amount g/m (oz/ft) 20 (0.2)

Refrigeration Charge Less m (ft) 7.5 (24.6)

Drain Hose Inner Diameter mm 16 —

Length mm 650 —

Compressor Type — Hermetic Motor

Motor Type — Brushless (6-pole)

Rated Output W — 700

1. Cooling capacities are based on indoor temperature of 27°C D.B. (80.6°F D.B.), 19.0°C W.B. (66.2°F W.B.) and outdoor air

temperature of 35°C D.B. (95°F D.B.), 24°C W.B. (75.2°F W.B.)

2. Heating capacities are based on indoor temperature of 20°C D.B. (68°F D.B.) and outdoor air temperature of 7°C D.B. (44.6°F

D.B.), 6°C W.B. (42.8°F W.B.)

Note

• Specifications are subject to change without notice for further improvement.

Fan

Type Cross-Flow Fan Propeller Fan

Material ASG20K1 PP

Motor Type Transistor (8-pole) Induction (6-pole)

Input Power W — 70

Output Power W 30 30

Fan Speed

Q-Lo (Cool/Heat) rpm 780 / 1090 —

Lo (Cool/Heat) rpm 920 / 1150 —

Me (Cool/Heat) rpm 1175 / 1325 —

Hi (Cool/Heat) rpm 1430 / 1500 830 / —

SHi (Cool/Heat) rpm 1470 / 1540 —

Heat Exchanger

Fin Material Aluminium (Pre Coat) Aluminium

Fin Type Slit Fin Corrugated Fin

Row x Stage x FPI 2 x 15 x 21 2 x 24 x 17

Size (W x H x L) mm 610 x 315 x 25.4 36.4 x 504 x 713

684

Air Filter Material Polypropelene —

Type One-Touch —

Item Unit

Power Source (Phase, Voltage, Cycle)

ø Single

V 230

Hz 50

Input Power W Cooling; 915 (185 ~ 1180)

Heating; 1260 (175 ~ 1890)

Starting Current A 5.8

Running Current A Cooling; 4.2

Heating; 5.8

Power Factor % Cooling; 95

Heating; 95

Power factor means total figure of compressor, indoor fan motor and outdoor fan motor.

*Maximum over current protection A 8.7

Power Cord Number of core —

Length m —

Thermostat Electronic Control

Protection Device Electronic Control

ITEM UNIT INDOOR UNIT OUTDOOR UNIT

2 Technical Data

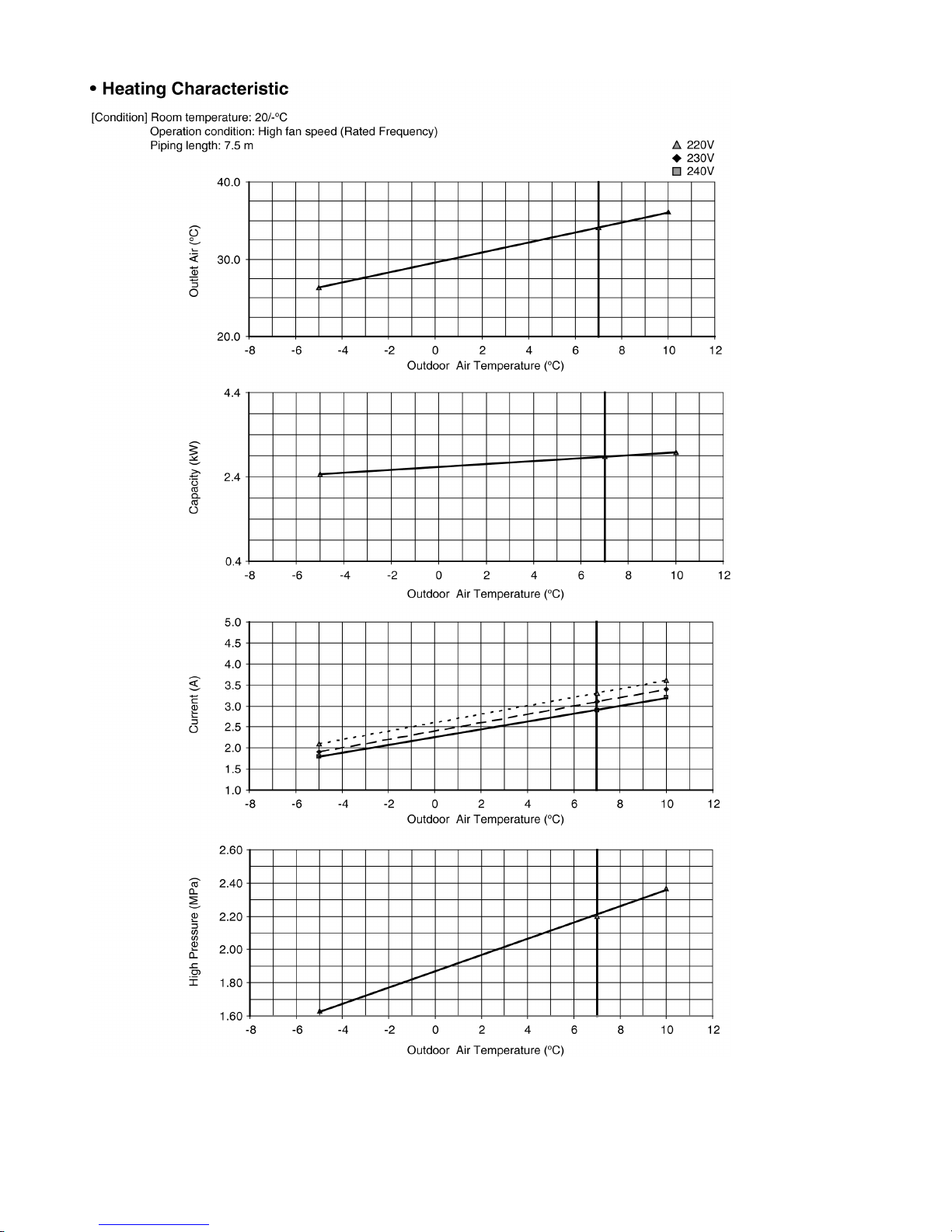

2.1. Operation Characteristics

2.1.1. CS-CE7GKEW CU-CE7GKE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CW-XN181AM Series Manual de usuario

Panasonic

Panasonic CS-ME5RKUA Manual de usuario

Panasonic

Panasonic CS-KU18WKYF1 Series Manual de usuario

Panasonic

Panasonic CS-A120TE Manual de usuario

Panasonic

Panasonic CS-F18DTE5 Manual de usuario

Panasonic

Panasonic CW-C51GU Manual de usuario

Panasonic

Panasonic CS-E9DKDW Manual de usuario

Panasonic

Panasonic S-UM4JPQ Manual de instrucciones

Panasonic

Panasonic CS-KS24NKU Manual de usuario

Panasonic

Panasonic CS-ZC15MKY-3 Manual de usuario

Panasonic

Panasonic CS-PC30EKF Manual de usuario

Panasonic

Panasonic U-71PZH3E5 Manual de usuario

Panasonic

Panasonic CS-W12CTP Manual

Panasonic

Panasonic CS-YU9ZKA Manual de usuario

Panasonic

Panasonic CS-UW9GKE Instrucciones de construcción

Panasonic

Panasonic CU-S9NKV-7 Manual de usuario

Panasonic

Panasonic CS-RE9SKUA Manual de usuario

Panasonic

Panasonic CS-E7NKR Manual de usuario

Panasonic

Panasonic S-22KA1E5S Manual de usuario

Panasonic

Panasonic S-YE9MKE Manual de usuario

Panasonic

Panasonic CS-W24BD2P Manual de usuario

Panasonic

Panasonic S-125FM3HPQ Manual de usuario

Panasonic

Panasonic GS-G90KE Manual de usuario

Panasonic

Panasonic CS-MKS7NKU Manual de funcionamiento

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
