Panasonic CS-C12BKPG Manual de usuario

1 Features 2

2 Functions 3

3 Product Specifications 6

4 Dimensions 10

5 Refrigeration Cycle Diagram 12

6 Block Diagram 13

7 Wiring Diagram 15

8 Operation Details 17

9 Operating Instructions 25

10 Installation Instructions 30

and distribution is a violation of law.

CS-C12BKPG CU-2C24BKP5G

CS-C14BKPG CU-2C23BKP5G

CS-C9BKPG

11 3-way Valve 40

12 Servicing Information 47

13 Troubleshooting Guide 51

14 Technical Data 53

15 Exploded View 55

16 Replacement Parts List 56

17 Exploded View 57

18 Replacement Parts List 58

19 Electronic Parts List 60

20 Electronic Circuit Diagram 61

Multi-Split Air Conditioner

CONTENTS

Page Page

Order No. MAC0201007C2

• High Efficiency

• Compact Design

• Comfort Improvement

− Longer hours of sleep mode operation

− Air filter with function to reduce dust and smoke

− Wider range of horizontal discharge air

• Auto Restart

− Random auto restart after power failure for safety restart

operation

• Removable and Washable Front Panel

• Remote Control Self-illuminating Button

• Catechin Air Purifying Filter

− Trap dust, tobacco smoke and tiny particles

− Prevent the growth of bacteria and viruses trapped

• Solar Refreshing Deodorizing Filter

− Remove unpleasant odour from the air

• Quality Improvement

− Gas leakage protection

− Prevent compressor reverse cycle

− Low voltage protection

• Operation Improvement

− Economy mode to reduce electrical power consumption

− Powerful mode to reach the desired room temperature

quickly

• Installation Work Improvement

− Long piping up to 15 meter

• 24-hour Timer Setting

• Service Improvement

− Easy fan motor replacement procedure

1 Features

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

2 Functions

Remote Control

Operation OFF / ON

OFF / ON IRoom Temperature Setting

TEMP.

Operation Mode Selection

•AUTO Automatic Operation Mode

•COOL Cooling Operation Mode

•DRY Soft Dry Operation Mode

•FAN Air Circulation Mode

MODE

TIME Time / Timer Setting

• Hours and minutes setting.

Clock Setting

• Current time setting.

Sleep Mode Operation OFF / ON

SLEEP

Indoor Fan Speed Selection

FAN SPEED

•FAN Low Fan Speed

•FAN Medium Fan Speed

•FAN High Fan Speed

•AUTO Automatic Fan Speed

FAN

• 24-hour, OFF / ON Real Timer Setting.

ON-TIMER

OFF-TIMER Timer Operation Selection

SET

CANCEL Timer Operation Set / Cancel

• ON Timer and OFF Timer setting and

cancellation.

CLOCK

AIR SWING

•AUTO Automatic Vertical Airflow

Direction Control

•MANUAL Vertical Airflow Direction

Manual Control (5 stages of

adjustment)

Powerful Mode Operation OFF/ON

POWERFUL

Economy Mode Operation OFF/ON

ECONOMY

Cooling, Soft Dry, Air Circulation Operation.

• Temperature Setting (16°C to 30°C)

Automatic Operation

•Operation with 2°C higher than

standard temperature.

• Operation with standard temperature.

•Operation with 2°C lower than

standard temperature.

Self illuminating

button

Vertical Airflow Direction Control

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Indoor Unit

Random Auto Restart Control

•Operation is restarted randomly after

power failure at previous setting mode.

Anti-Freezing Control

•Anti-Freezing control for indoor heat

exchanger. (Cooling and Soft Dry)

Sleep Mode Auto Control

•Indoor Fan operates at Low speed.

•Operation stops after 8 hours.

Indoor Fan Speed Control

•High, Medium and Low.

•Automatic Fan Speed Mode

–Cooling : Fan rotates at Hi, Me and

SLo speed. Deodorizing

control is available.

–Soft Dry: Fan rotates at SLo speed.

Deodorizing control

is available.

•Automatic air swing and manual adjusted

by remote control for vertical airflow.

•

Manually adjusted by hand for horizontal airflow.

Airflow Direction Control

Automatic Operation Button

•Press for < 5s to operate Automatic

operation mode.

(Used when the remote control cannot be used.)

•Press continuously for 5s or < 10s to

operate Test Run/Pump down. “Beep”

sound will be heard at the 5th second.

(Used when test running or servicing.)

•Press continuously for 10s and above to

omit or resume the remote control signal

receiving sound. “Beep, beep”sound will

be heard at the 10th second.

AUTO

OFF / ON

Operation Indication Lamps (LED)

•

POWER

(Green) ........Lights up in operation,

blinks in Automatic

Operation Mode

judging.

•

SLEEP

(Orange)........Lights up in Sleep

Mode Operation.

•

TIMER

(Orange) .......Lights up in Timer

Setting.

•

POWERFUL

(Orange)..Lights up in Powerful

Mode Operation.

•

ECONOMY

(Green) .....Lights up in Economy

Mode Operation.

Operation Mode

•Cooling, Soft Dry, Air Circulation and

Automatic Mode.

Powerful Operation

•Reaches the desired room temperature

quickly. Time Delay Safety Control

•

Restarting is inhibited for appro. 3 minutes.

Starting Current Control

Economy Operation

•To reduce electrical power consumption. 7 Minutes Time Save Control

•Cooling Operation only.

Anti-Dew Formation Control

•Anti-Dew Formation Control for indoor

unit discharge area.

•Fan motor is delayed for 1.6 seconds

when compressor starts simultaneously.

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Outdoor Unit

•To protect compressor from reverse

rotation when there is a instantaneous

power failure.

60 Secs. Forced Operation Control

•Once the compressor is activated, it

does not stop within the first 60 secs.

However, it stops immediately with

remote control stop signal.

Overload Protector for Compressor

•Inner protector (For 2C24BK only).

•Overload Protector will trip when

–High temperature or high current flows

to compressor.

(Refer circuit diagram for OLP

characteristic)

Compressor Reverse Rotation

Protection Control

Overload Protector for Fan Motor

•Inner protector.

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

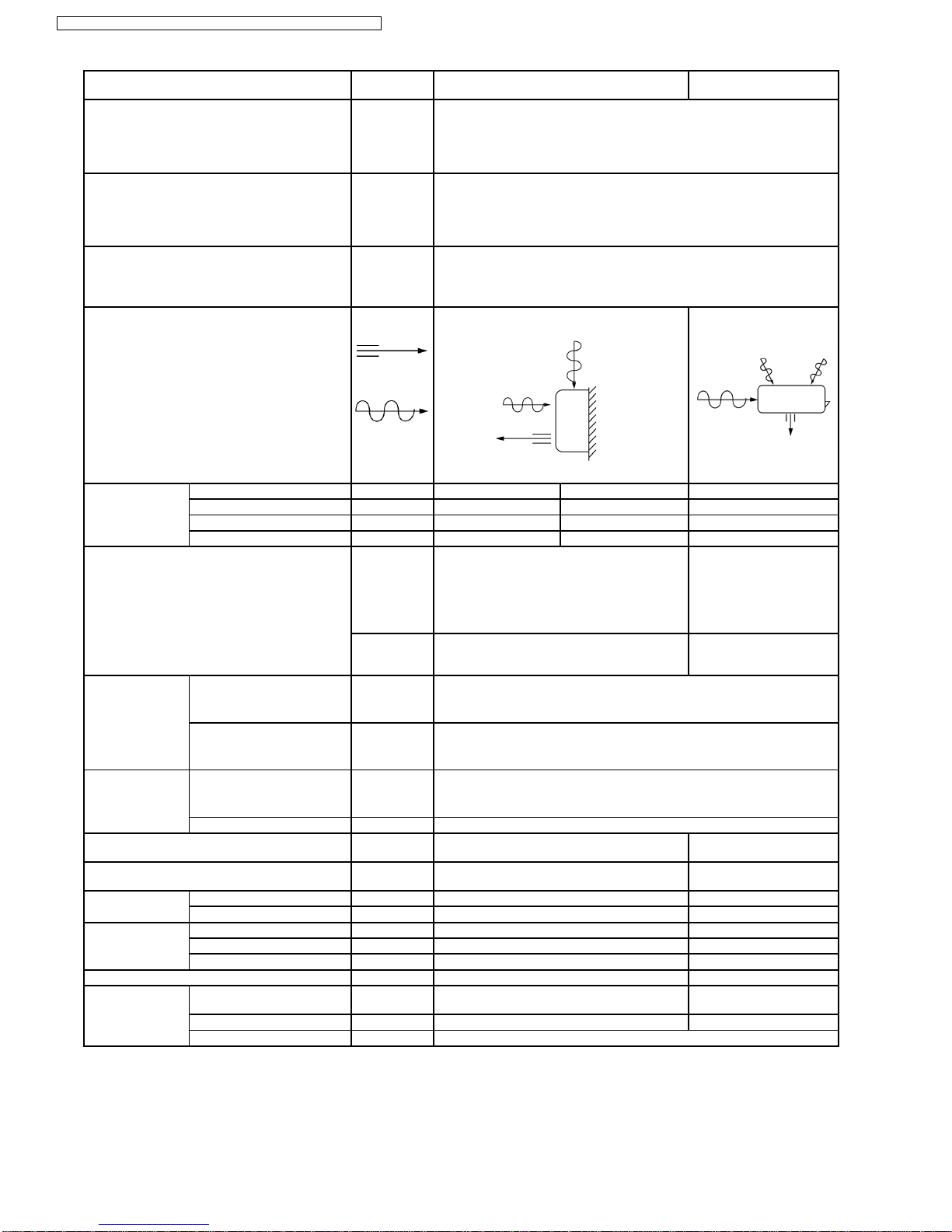

3 Product Specifications

Unit CS-C12BKPG CU-2C24BKP5G

Power Source Phase

Cycle

Single

230 - 220

Cooling Capacity kW

kcal/h (1 unit) 3.52 - 3.46

3,023 - 2,975.5 (2 units) 7.03 - 6.92

6,046 - 5,951

Moisture Removal l/h

Pint/h (1 unit) 2.0

4.2 (2 units) 4.0

8.4

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) 7.3 (260) - 7.3 (260) —

Indoor Air (Me) m3/min (cfm) 8.7 (310) - 8.7 (310) —

Indoor Air (Hi) m3/min (cfm) 10.2 (360) - 10.2 (360) —

Indoor Air (SHi) m3/min (cfm) 10.5 (370) - 10.5 (370) —

Noise Level dB (A) High 39 - 39, Low 29 - 29 High 55 - 54

Power level dB High 52 - 52 High 68 - 67

Electrical Data Input W(1 unit)

1,180 - 1,180 (2 units)

2,360 - 2,350

Running Current A(1 unit)

5.35 - 5.45 (2 units)

10.7 - 10.9

COP W/W (1 unit) 2.98 - 2.93 (2 units) 2.98 - 2.94

Starting Current A(1 unit) 27 (2 unit) 54

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 1/2”

L ; Half Union 1/4”G ; 3-way valve 1/2”

L ; 3-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G (gas side) ; 1/2”

L (liquid side) ; 1/4”G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose Inner diameter mm 12 —

Length m0.7 —

Dimensions Height inch (mm) 10 - 13/16 (275) 26 - 31/32 (685)

Width inch (mm) 31 - 15/32 (799) 34 - 21/32 (880)

Depth inch (mm) 8 - 9/32 (210) 13 - 19/32 (345)

Net Weight lb (kg) 20 (9.0) 159 (72)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—A: 950 B: 950

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% AS + Glass Fiber 20%

Motor Type Induction (4-poles) Induction (6-poles)

Input W29.3 - 26.3 87

Rated Output W15 50

Fan Speed Low rpm 900 - 900 —

Medium rpm 1,080 - 1,080 —

High rpm 1,260 - 1,260 870

SuperHigh rpm 1,300 - 1,300 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2×15 2×26

FPI 21 16

Size (W × H × L) mm 610 × 315 × 25.4 826 × 663.9 × 44

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60

(410 × 2)

Refrigerant (R-22) g (oz) —930 × 2 (32.8 × 2)

Thermostat Electronic Control —

Protection Device —Internal Overload Protector

Capillary Tube Length mm —500

Flow Rate l/min —15.2

Inner Diameter mm —1.5

Air Filter Material

Style (c.c) P.P.

Honeycomb —

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —35 µF, 370 VAC

Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC 3.0 µF, 450 VAC

• Specifications are subject to change without notice for further improvement.

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Unit One Unit (A)

CS-C14BKPG One Unit (B)

CS-C9BKPG CU-2C23BKP5G

Power Source Phase

Cycle

Single

230 - 220

Cooling Capacity kW

kcal/h (A) 4.11 - 4.06

3,533 - 3,491 (B) 2.64 - 2.61

2,272 -

2,245

(A+B) 6.75 - 6.67

5,805 - 5,736

Moisture Removal l/h

Pint/h (A) 2.3

4.9 (B) 1.6

3.4 (A+B) 3.8

8.0

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) 7.3 - 7.3 (260 - 260) 6.8 - 6.8 (240 - 240) —

Indoor Air (Me) m3/min (cfm) 8.7 - 8.7 (310 - 310) 8.0 - 8.0 (280 - 280) —

Indoor Air (Hi) m3/min (cfm) 10.2 - 10.2 (360 - 360) 9.9 - 9.9 (350 - 350) —

Indoor Air (SHi) m3/min (cfm) 10.5 - 10.5 (370 - 370) 10.9 - 10.9 (380 - 380) —

Noise Level dB (A) (A)

(A+B)

High 39 - 39

Low 29 - 29

High 39 - 39

Low 29 - 29

(B) High 36 -

Low 26 -

(A)

(B)

(A+B)

High 55 - 54

Power level

dB (A)

(A+B) High 52 - 52

High 50 - 50 (B) High 49 -

49 (A)

(B)

(A+B)

High 68 - 67

Electrical Data Input W(A) 1,410 - 1,380 (B) 900 - 890 (A+B) 2,310 - 2,270

Running Current A(A) 6.33 - 6.45 (B) 4.07 - 4.15 (A+B) 10.4 - 10.6

COP W/W (A) 2.91 - 2.94 (B) 2.93 - 2.93 (A+B) 2.92 - 2.94

Starting Current A(A) 31.1 (B) 18.8 (A+B) 49.9

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 1/2”,3/8”

L ; Half Union 1/4”,1/4”G ; 3-way valve 1/2”,3/8”

L ; 3-way valve 1/4”,1/4”

Pipe Size

(Flare piping) inch

inch G (gas side) ; 1/2”, 3/8”

L (liquid side) ; 1/4”,1/4”G (gas side) ; 1/2”,3/8”

L (liquid side) ; 1/4”,1/4”

Drain

Hose Inner diameter mm 12 —

Length m0.7 —

Dimensions Height inch (mm) 10 - 13/16 (275) 26 - 31/32 (685)

Width inch (mm) 31 - 15/32 (799) 34 - 21/32 (880)

Depth inch (mm) 8 - 9/32 (210) 13 - 19/32 (345)

Net Weight lb (kg) 20 (9.0) 146 (66)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W(A) 1,200 (B) 700 (A+B) 1,900

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Air Circulation Type Cross-flow Fan Propeller Fan

Material AS + Glass Fiber 20% AS + Glass Fiber 12%

Motor Type Induction (4-poles) Induction (6-poles)

Input W(A) 28.7 - 27.1 (B) 20.6 - 19.1 87

Rated Output W(A) 15 (B) 15 50

Fan Speed Low rpm (A) 900 - 900 (B) 780 - 780 —

Medium rpm (A) 1,080 - 1,080 (B) 920 - 920 —

High rpm (A) 1,260 - 1,260 (B) 1,140 - 1,140 870

SuperHigh rpm (A) 1,300 - 1,300 (B) 1,250 - 1,250 —

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Slit Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

(A) 2 ×15 (B) 2 ×15 2×26

FPI 21 19 16

Size (W ×H×L) mm 610 ×315 ×25.4 826 ×663.9 ×44

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS

M60 (A) 410, (B) 270

Refrigerant (R-22) g (oz) —(A) 1,060 (37.4)

(B) 640 (22.6)

Thermostat Electronic Control —

Protection Device —Overload Protector

Capillary Tube Length mm —(A) 430 (B) 370

Flow Rate l/min —(A) 19.5 (B) 12.8

Inner Diameter mm —(A) 1.7 (B) 1.4

Air Filter Material

Style (c.c) P.P.

Honeycomb —

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —30 µF, 370 VAC

Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC 3.0 µF, 450 VAC

• Specifications are subject to change without notice for further improvement.

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

4 Dimensions

CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Panasonic

Panasonic

Panasonic CS-PW9MKD-2 Manual de usuario

Panasonic

Panasonic CS-PS9VKV-2 Manual de usuario

Panasonic

Panasonic CS-LS9WKA Manual de usuario

Panasonic

Panasonic S-26PU2U6 Manual de usuario

Panasonic

Panasonic CS-KV30UKF-5 Series CU-KV30UKF-5 Series Manual de usuario

Panasonic

Panasonic CS-PW9GKX Manual de usuario

Panasonic

Panasonic U-8MS3H7 Manual de usuario

Panasonic

Panasonic CSC24BKP - SPLIT A/C SYSTEM Manual de usuario

Panasonic

Panasonic S-36PN1E5 Manual de usuario

Panasonic

Panasonic CS-A28JKD Manual de usuario

Panasonic

Panasonic CS-MZ16ZKE Manual de usuario

Panasonic

Panasonic CU-E18GFE-1 Manual de usuario

Panasonic

Panasonic S-TE9HKE Manual de usuario

Panasonic

Panasonic CS-SU12WKYW Series Manual de usuario

Panasonic

Panasonic CW-A90VE Manual de usuario

Panasonic

Panasonic CU-PW9DKE Manual de usuario

Panasonic

Panasonic CS-NU12VKYW Series Manual de usuario

Panasonic

Panasonic CS-A73KR Manual de usuario

Panasonic

Panasonic PE1 Series Manual de usuario

Panasonic

Panasonic CS-S9KKQ Manual de usuario

Panasonic

Panasonic CW-C180EN Manual de usuario

Panasonic

Panasonic CW-C50RU Manual de usuario

Panasonic

Panasonic CS-NE7GKE Manual de usuario

Panasonic

Panasonic S-12MY2U6 Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
