Model AG- G
XLR Microphone Adapter
Before operating this product, please read the instructions carefully and
save this manual for future use.
– 2 (E) –
Features
The model AG-MYA30G is an XLR microphone adapter which supports a phantom
microphone and which was developed to be used with the AG-DVC30 (and AG-
DVC32) digital video camera-recorder.
Mounting the adapter on the AG-DVC30 (or AG-DVC32) makes it possible to input
sound from an XLR microphone and record sound with a high quality.
Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessories . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . 4
Attaching the microphone . . . . . . . . . 4
Mounting the adapter on the
AG-DVC30 (or AG-DVC32) . . . . . . . . 5
Parts and their functions . . . . . . . . . . 6
Specifications . . . . . . . . . . . . . . . . . . . 7
indicates safety information.
$DO NOT REMOVE COVER BY UNSCREWING.
To reduce the risk of electric shock, do not remove cover. No user
serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING:
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, KEEP THIS
EQUIPMENT AWAY FROM ALL LIQUIDS-USE AND STORE ONLY IN
LOCATIONS WHICH ARE NOT EXPOSED TO THE RISK OF
DRIPPING OR SPLASHING LIQUIDS, AND DO NOT PLACE ANY
LIQUID CONTAINERS ON TOP OF THE EQUIPMENT.
– 3 (E) –
ENGLISH

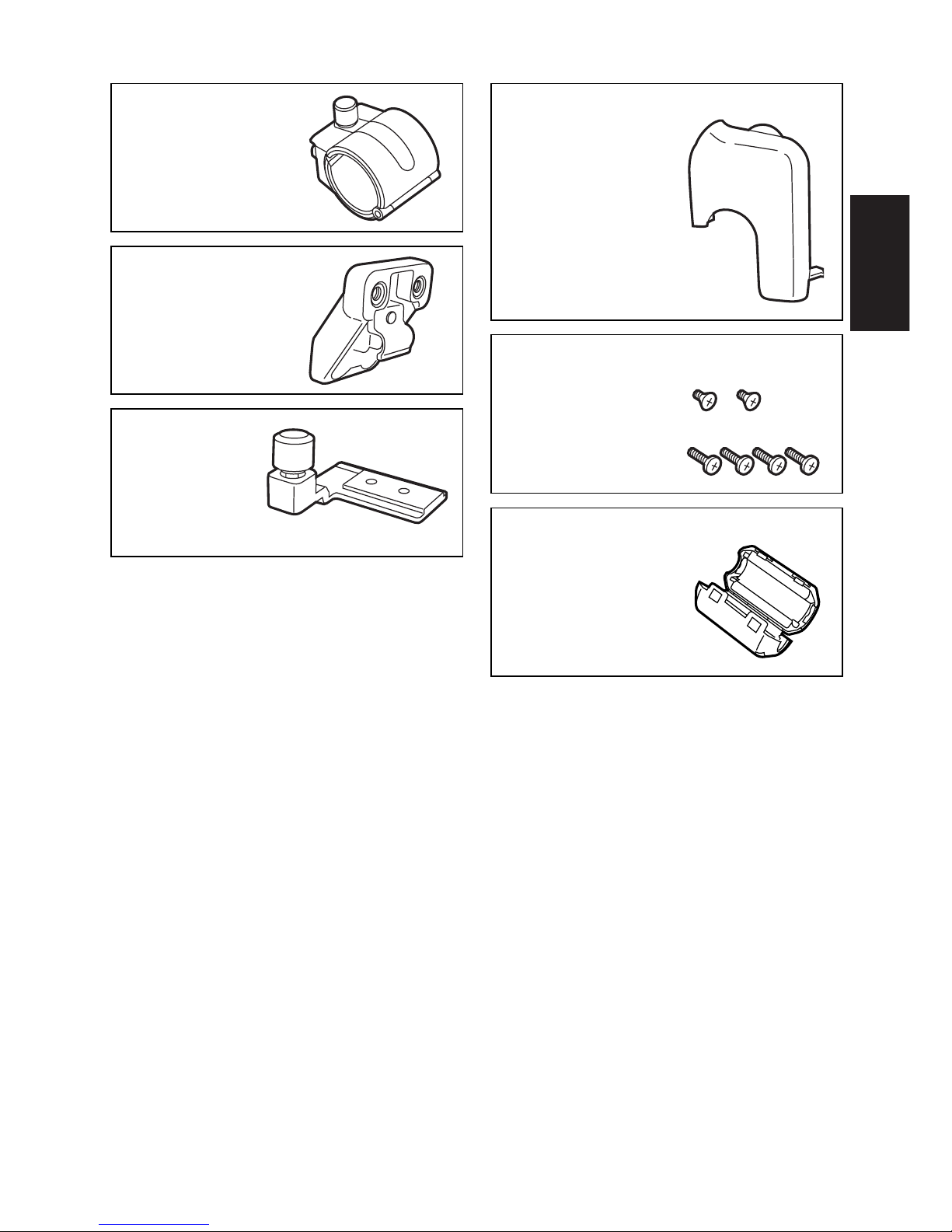

Accessories
Microphone holder
(VYC0870)
Screws
6 mm length (flush head type)
XSS3+6FZ (k2)
12 mm length
XSB4+12FZ (k4)
Mounting arm
(VYC0920)
Metal fitting
(VYQ3157)
Connector cover
(VJF1497)
Ferrite core for the microphone
(J0KG00000046)
– 4 (E) –
12 mm
(XSB4+12FZ)
12 mm
(XSB4+12FZ)
Microphone holder
Hook
3Mount the microphone on the
microphone holder, and secure it by
tightening the anchoring screws.
5Connect the microphone’s cable to the
XLR connector on the adapter.
4Fit the microphone’s cable into the
hook on the mounting arm.
Assembly
Attaching the microphone
Mounting arm
1Attach the mounting arm to the adapter using the 12 mm long screws
(XSB4+12FZ).
2Attach the microphone holder to the
mounting arm using the 12 mm long
screws (XSB4+12FZ).
XLR connector
Ferrite core for the
microphone
6Install the accessory ferrite core for
the microphone on the XLR connector
side of the microphone’s cable.
Anchoring screws
–5 (E) –
ENGLISH
Assembly
Connector cover
Connector cover
(provided)
XLR ADAPTER
connector
4Remove the connector cover of the
AG-DVC30 (or AG-DVC32), and pull it
out in the direction indicated by the
arrow.
5Attach the connector cover supplied
with the adapter to the AG-DVC30 (or
AG-DVC32) so that the connectors are
covered.
OAttach the connector cover by using
a thin round-tipped implement to
push it into place.
When doing this, take care not to
damage the AG-DVC30 (or AG-
DVC32).
6Connect the adapter’s cable to the
XLR ADAPTER connector on the AG-
DVC30 (or AG-DVC32).
Mounting the adapter on the AG-DVC30 (or AG-DVC32)
3Insert the shoe of the adapter into the
metal fitting, and secure the adapter
by tightening the anchoring screws.
2Install the handle on the AG-DVC30
(or AG-DVC32).
1Mount the metal fitting on the handle provided with the AG-DVC30 (or AG-DVC32)
using the 6 mm long flush-head screws (XSS3+6FZ).
Metal fittingAnchoring screws
6 mm flush head screws (XSS3+6FZ)
– 6 (E) –
Parts and their functions
1Level control
Turn one or both of these controls to
adjust the input level of the sound.
The input levels of the CH1 (left
channel) and CH2 (right channel)
sound can be adjusted separately.
Normally, it is recommended that the
controls be kept at the center position.
2XLR connectors (INPUT1, INPUT2)
Connect a microphone or audio unit
here.
3MIC/LINE switch
Set the switch to the position
corresponding to the unit connected to
the XLR connector (INPUT1 or
INPUT2).
LINE:
Set the switch to LINE when an
audio unit has been connected to
the XLR connector.
The input level is 0 dBu.
At this point, set the wind noise
reduction function of the AG-DVC30
(or AG-DVC32) to OFF.
MIC:
Set the switch to MIC when a
microphone has been connected to
the XLR connector.
The input level can be switched
using the ATT switch 4.
4ATT switch
Use this to switch the audio input level.
ON: –50 dBu, OFF: –60 dBu
The switch setting takes effect when
the MIC/LINE switch 3has been set
to the MIC position.
5+48V switch
When the switch is set to the ON
position, +48V power (power supply for
a phantom microphone) is supplied to
the corresponding XLR connector
(INPUT1 or INPUT2).
When connecting a unit that is not
compatible with the +48V power, set
the switch to the OFF position.
Connecting a non-compatible unit
when the switch is set to the ON
position may cause the unit to
malfunction.
Maximum
Minimum
3
1
54 6
2
OOnce the unit is mounted on the AG-
DVC30, the audio levels of the mic
input signals can no longer be adjusted
using the controls on the AG-DVC30
(or AG-DVC32).
–7 (E) –
ENGLISH
Specifications
Ambient operating temperature:
32°F to 104°F (0°C to +40°C)
Ambient operating humidity:
10% to 85% (no condensation)
Weight:
0.407 lb (185 g)
Excluding microphone holder
Dimensions (WkHkD):
2 3/4k1 1/2k3 inches
(69.6k36.6k75 mm)
Excluding microphone holder
XLR connector (INPUT1, INPUT2):
XLR (3 pins) k2 (CH1, CH2)
LINE/MIC switching, high impedance
LINE : 0 dBu
MIC : –50 dBu/–60 dBu (setting selected using ATT switch)
OCorrelation between CH SELECT switch positions and input signals which are
recorded on the audio tracks
CH SELECT switch
position
Audio track of the tape on which signals are recorded
CH1 CH2
CH1•2 Signals from INPUT2 connector
CH2
Signals from INPUT1 connector Signals from INPUT2 connector
6CH SELECT switch
Use this switch to select the audio
track on which to record the audio
signals that are supplied from the unit
connected to the INPUT2 connector.
OAdjusting the input level
Use the level controls 1and ATT switch 4to adjust the audio input level.
Adjust the level to suit the recording conditions.
– 2 (G) –
Merkmale
Beim Modell AG-MYA30G handelt es sich um einen XLR-Mikrofonadapter, der
phantomgespeiste Mikrofone unterstützt und für den Einsatz mit dem digitalen Video-
Kamerarecorder AG-DVC30 entwickelt wurde.
Durch die Befestigung des Adapters am AG-DVC30 ist es möglich, den Ton von
einem XLR-Mikrofon einzugeben und Ton von hoher Qualität aufzuzeichnen.
Inhalt
Merkmale . . . . . . . . . . . . . . . . . . . . . . . 2
Zubehör . . . . . . . . . . . . . . . . . . . . . . . . 3
Montage . . . . . . . . . . . . . . . . . . . . . . . . 4
Anbringen des Mikrofons . . . . . . . . . . 4
Befestigen des Adapters am
AG-DVC30 . . . . . . . . . . . . . . . . . . . . . 5
Teile und ihre Funktionen . . . . . . . . . . 6
Technische Daten . . . . . . . . . . . . . . . . 7
ist die Sicherheitsinformation.
$NICHT DIE ABDECKUNG ABSCHRAUBEN.
Zur Vermeidung von elektrischem Schlag darf das Gehäuse nicht
geöffnet werden. Im Geräteinneren befinden sich keine Teile, die
vom Benutzer gewartet werden können.
Wartungs- und Reparaturarbeiten grundsätzlich autorisiertem
Kundendienstpersonal überlassen.
WARNUNG:
UM BRAND- ODER STROMSCHLAGGEFAHR ZU REDUZIEREN,
MUSS DIESES GERÄT VON ALLEN FLÜSSIGKEITEN
FERNGEHALTEN WERDEN. VERMEIDEN SIE GEBRAUCH UND
LAGERUNG DES GERÄTES AN ORTEN, AN DENEN DIE GEFAHR
BESTEHT, DASS ES MIT FLÜSSIGKEITEN BETROPFT ODER
BESPRITZT WIRD, UND STELLEN SIE KEINE
FLÜSSIGKEITSBEHÄLTER AUF DAS GERÄT.
– 3 (G) –
DEUTSCH
Zubehör
Mikrofonhalter
(VYC0870)
Schrauben
6 mm Länge (Senkschraube)
XSS3+6FZ (k2)
12 mm Länge
XSB4+12FZ (k4)
Montagearm
(VYC0920)
Metallbeschlag
(VYQ3157)
Anschlussabdeckung
(VJF1497)
Ferritkern für das Mikrofon
(J0KG00000046)
– 4 (G) –
12 mm
(XSB4+12FZ)
12 mm
(XSB4+12FZ)
Mikrofonhalter
Haken
3Montieren Sie das Mikrofon am
Mikrofonhalter, und sichern Sie es
durch Anziehen der Klemmschraube.
5Schließen Sie das Mikrofonkabel an
den XLR-Anschluss des Adapters an.
4Drücken Sie das Mikrofonkabel in den
Haken am Montagearm.
Montage
Anbringen des Mikrofons
Montagearm
1Befestigen Sie den Montagearm mit den 12 mm langen Schrauben (XSB4+12FZ)
am Adapter.
2Befestigen Sie den Mikrofonhalter mit
den 12 mm langen Schrauben
(XSB4+12FZ) am Montagearm.
XLR-Anschluss
Ferritkern für das Mikrofon
Klemmschraube
6Bringen Sie den mitgelieferten
Ferritkern für das Mikrofon in der Nähe
des XLR-Anschlusses am
Mikrofonkabel an.
