Panasonic KX-HNS104C Manual de usuario

Installation Guide

Home Network System

Glass Break Sensor

Model No. KX-HNS104C

Thank you for purchasing a Panasonic product.

This document explains how to install the glass break sensor properly.

For details about how to use the system, refer to the User’s Guide

(page 16).

Please read this document before using the unit and save it for future

reference.

For assistance, please visit our Support page:

www.panasonic.ca/english/support

In order to use this device:

RDownload the latest version of the [Home Network] app.

RUpdate your hub to the latest firmware version (version 5.55 or later).

For more information, refer to the User’s Guide (page 16).

Printed in China

PNQX7289YA_(en-en)_0907_ver.200.pdf 1 2015/09/07 16:13:53

Introduction
Accessory information ...............3
Important Information
Disclaimer ..................................4
About this system ......................4
For your safety ...........................4
Important safety instructions ......5
For best performance ................5
Other information .......................6
Setup
Part names and functions ..........8
LED indicator .............................8
Setup overview ..........................8
Inserting the batteries ................9
Registering the sensor ...............9
Confirming the usage area ......10
Information about sensor
features ....................................12
Wall mounting ..........................14
Appendix
Adjusting the sensor
sensitivity .................................16
Features available when using the
[Home Network] app ................16
Accessing the User’s Guide ....16
Specifications ..........................17
Industry Canada Notices and
other information ......................18
Warranty ..................................19
2
Table of Contents
PNQX7289YA_(en-en)_0907_ver.200.pdf 2 2015/09/07 16:13:54

Accessory information

Supplied accessories

No. Accessory item/Part number Quantity

ABatteries*1 2

BWall mounting adaptor*2 1

CWall mounting screws (25 mm (1 inch)) 2

*1 When replacing batteries, see “Power source” of “Specifications”, page 17

for battery information.

*2 The sensor can be wall mounted with or without the wall mounting adaptor

(page 14).

AB C

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

Trademarks

RiPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other

countries.

RAndroid is a trademark of Google Inc.

RMicrosoft, Windows, and Internet Explorer are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

RAll other trademarks identified herein are the property of their respective owners.

For assistance, visit www.panasonic.ca/english/support 3

Introduction

PNQX7289YA_(en-en)_0907_ver.200.pdf 3 2015/09/07 16:13:54

Disclaimer

When properly installed and

maintained, this product is designed to

help provide an added layer of notice in

the case of broken glass. Panasonic

makes no representations or

warranties that it will at all times, or

under all circumstances, or in any

given circumstance, detect broken

glass, or work with all types of glass, or

that it will prevent loss of or damage to

property or persons. Panasonic shall

have no liability for any personal injury,

or damage to property or other loss, of

any kind, should the product fail to

warn or notify.

About this system

RThis system is an auxiliary system; it

is not designed to provide complete

protection from property loss.

Panasonic will not be held

responsible in the event that

property loss occurs while this

system is in operation.

RThe system’s wireless features are

subject to interference, therefore

functionality in all situations cannot

be guaranteed. Panasonic will not

be held responsible for injury or

damage to property that occurs in

the event of wireless communication

error or failure.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RUse only the power source marked

on the product.

RDo not connect non-specified

devices.

Installation

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may cause

such devices to malfunction

resulting in an accident.

RInstall the product only on a vertical

surface. Do not install the product on

a ceiling, as the product may fall,

resulting in damage or injury.

RKeep small parts (screws, etc.) out

of the reach of children. There is a

risk of swallowing. In the event they

are swallowed, seek medical advice

immediately.

Operating safeguards

RDo not disassemble the product.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

4For assistance, visit www.panasonic.ca/english/support

Important Information

PNQX7289YA_(en-en)_0907_ver.200.pdf 4 2015/09/07 16:13:54

operate between 1.92 GHz and

1.93 GHz with a peak transmission

power of 115 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CAUTION

Battery

RThe batteries should be used

correctly, otherwise the product may

be damaged due to battery leakage.

RDo not charge, short-circuit,

disassemble, or heat the batteries.

RDo not dispose of batteries in a fire.

RRemove all the batteries when

replacing.

RDo not mix old, new or different

types of batteries.

RIt is recommended that batteries are

replaced annually.

RKeep out of the reach of small

children. There is a risk of

swallowing. If the battery is

swallowed, seek medical attention

immediately.

RRemove the battery if it becomes

unusable. There is a risk of leakage,

overheating, and rupture. Do not

attempt to use a battery if it is

leaking.

RDo not intentionally pour water on

the battery or allow it to get wet.

There is a risk of fire and smoke. If

the battery becomes wet, remove it

immediately and contact an

authorized service centre.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

2. Use only the batteries indicated in

this document. Do not dispose of

batteries in a fire. They may

explode. Check with local codes for

possible special disposal

instructions.

SAVE THESE INSTRUCTIONS

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

For assistance, visit www.panasonic.ca/english/support 5

Important Information

PNQX7289YA_(en-en)_0907_ver.200.pdf 5 2015/09/07 16:13:55

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RThe product should be kept free

from excessive smoke, dust, high

temperature, and vibration.

RThe product should not be exposed

to direct sunlight.

RDo not place heavy objects on top of

the product.

RThe product should be kept away

from heat sources such as heaters,

kitchen stoves, etc. It should not be

placed in rooms where the

temperature is less than 0 °C (32 °F)

or greater than 40 °C (104 °F).

Damp basements should also be

avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

RThe sensor may make false

detections in noisy locations, such

as where there is noise from metallic

blinds opening and closing, or

metallic bells of alarm clocks. Avoid

installing the sensor in these

locations.

RThe sounds of doors opening and

closing may cause false detections.

Do not install the sensor near doors.

RDo not place screens or shielding

(such as sound blocking curtains)

between the glass and sensor. This

may prevent the sensor from being

able to detect the sound of glass

breaking.

RThe product may not be able to

detect the sound of glass breaking

depending on the noise conditions of

the surrounding area.

RTo avoid false detections, do not

install the product in areas where

loud noises occur or near devices

that produce loud noise.

RRefer to “Sensor detection range” on

page 13 and install the product

within the wireless communication

range of the hub.

Other information

CAUTION: Risk of explosion if battery

is replaced by an incorrect type.

Dispose of used batteries according to

the instructions.

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

Information on Disposal in other

Countries outside the European

Union

These symbols are only valid in the

European Union. If you wish to discard

these items, please contact your local

6For assistance, visit www.panasonic.ca/english/support

Important Information

PNQX7289YA_(en-en)_0907_ver.200.pdf 6 2015/09/07 16:13:55

authorities or dealer and ask for the

correct method of disposal.

Note for the battery removal

procedure

Refer to “Inserting the batteries” on

page 9.

For assistance, visit www.panasonic.ca/english/support 7

Important Information

PNQX7289YA_(en-en)_0907_ver.200.pdf 7 2015/09/07 16:13:55

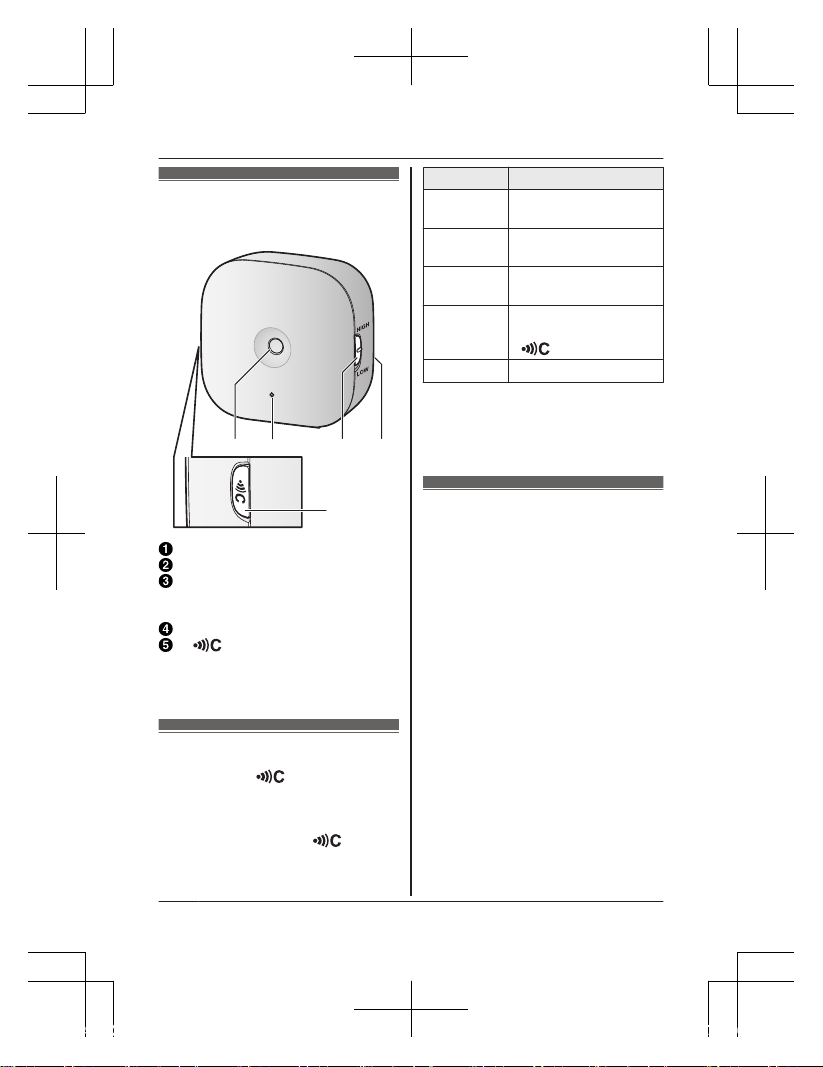

Part names and

functions

ABCD

Microphone

LED indicator

MHIGHN/MLOWN

Used to change the sensor

sensitivity (page 16).

Rear cover

M N

Used to confirm the status of the

sensor or register the sensor to

the hub.

LED indicator

You can press MN and check the

LED indicator to confirm the sensor’s

status. After confirming the sensor’s

status, we recommend turning the LED

indicator off by pressing MN again

as soon as possible, otherwise battery

life may be reduced.

Indicator Status

Green, lit No glass break

detected

Red, lit Glass break was

detected

Red,

blinking

Sensor is out of range

of the hub

Green,

blinking

slowly

Registration mode

(You pressed and held

MN)

Off No battery power

Note:

RThe LED indicator does not indicate

sensor status if the sensor has not

been registered (page 9).

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Insert the batteries

The sensor is battery powered.

3Registration

Required only if the sensor was

purchased separately (i.e., not as

part of a bundle).

4Confirm the installation area

Read the information in this

document to confirm that the

desired installation area is suitable

to proper operation.

5Installation

Install the sensor in the desired

location.

8For assistance, visit www.panasonic.ca/english/support

Setup

PNQX7289YA_(en-en)_0907_ver.200.pdf 8 2015/09/07 16:13:55

Inserting the

batteries

RUSE ONLY Alkaline batteries AA

(LR6) size.

RDo NOT use Manganese/Ni-Cd/

Ni-MH batteries.

RConfirm the polarities ( , ).

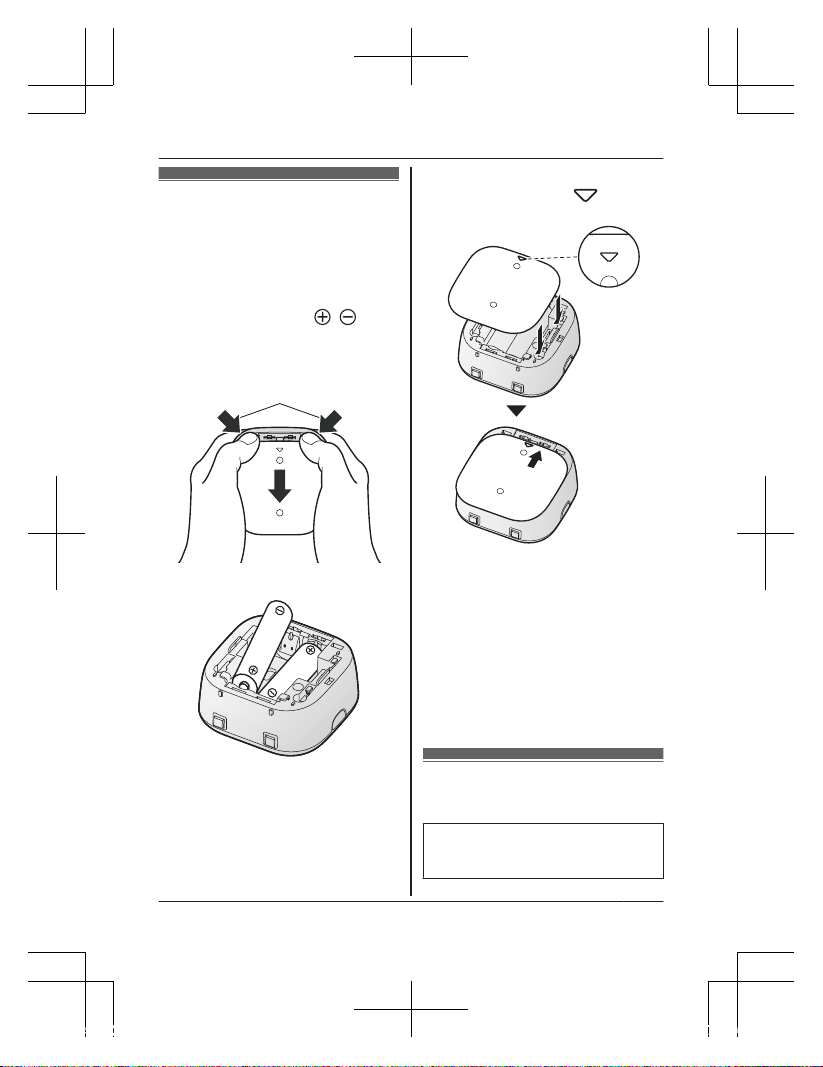

1Remove the rear cover by

pressing the upper sides of the

cover (A) and sliding it down (B).

2Insert the batteries.

3Install the rear cover.

RPlace it with the “ ” mark

facing upwards and slide it.

Note:

RIf the sensor’s battery power is low,

a message will be displayed on the

[Sensor] screen of the [Home

Network] app. We recommend you

check this screen periodically to

ensure that the battery does not

become fully discharged. For more

information, refer to the User’s

Guide (page 16).

Registering the

sensor

This procedure is not required for

devices that were included as part of

a bundle.

For assistance, visit www.panasonic.ca/english/support 9

Setup

PNQX7289YA_(en-en)_0907_ver.200.pdf 9 2015/09/07 16:13:55

Before you can use the sensor, it must

be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Note:

RFor information about deregistering

devices, refer to the User’s Guide

(page 16).

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks slowly in green.

2Sensor:

Press and hold M N until the

LED indicator blinks slowly in

green (page 8).

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel without registering the

sensor, press MN on the hub and

on the sensor again.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the sensor by using

the [Home Network] app, you can

assign a name to your devices and

group them by location. For more

information, refer to the User’s Guide

(page 16).

Confirming the

usage area

Wireless communication

range

The wireless communication range of

each device in the system from the hub

is approximately 50 m (160 feet)

indoors and approximately 300 m

(1,000 feet) outdoors. Wireless

communication may be unreliable

when the following obstacles are

located between the hub and other

devices.

RMetal doors or screens

RWalls containing aluminum-sheet

insulation

RWalls made of concrete or

corrugated iron

RDouble-pane glass windows

RMultiple walls

RWhen using each device on

separate floors or in different

buildings

Note:

RYou can check the sensor’s

communication status by pressing

MN. If the LED indicator is lit in

green or red, the sensor is

communicating properly with the

hub. If the LED indicator blinks in

red, it is out of range of the hub.

Usage area cautions

Using the sensor in the following areas

may cause deformation, malfunction, or

operational failure.

RIn direct sunlight

RAreas exposed to grease or steam,

such as kitchens

10 For assistance, visit www.panasonic.ca/english/support

Setup

PNQX7289YA_(en-en)_0907_ver.200.pdf 10 2015/09/07 16:13:55

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios de Panasonic

Panasonic

Panasonic MA24D58 Manual de usuario

Panasonic

Panasonic CF-VNP011AU Manual de usuario

Panasonic

Panasonic Light Emitting Diodes LNG0A8CYBZ Manual de usuario

Panasonic

Panasonic HL-C203B Manual de usuario

Panasonic

Panasonic MALS068G Manual de usuario

Panasonic

Panasonic MA2DF31 Manual de usuario

Panasonic

Panasonic EX-Z Series Manual de usuario

Panasonic

Panasonic MN34120PAJ Manual de usuario

Panasonic

Panasonic MKG1301913 Manual de usuario

Panasonic

Panasonic MA3S1370G Manual de usuario

Panasonic

Panasonic HL-C235CE-W Series Manual de usuario

Panasonic

Panasonic CY-111 Series Manual de usuario

Panasonic

Panasonic Light Emitting Diodes LNJ414K8YRA Manual de usuario

Panasonic

Panasonic KX-TGA20 Manual de usuario

Panasonic

Panasonic GP-X SERIES Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

Panasonic

Panasonic DP-0 Series Manual de usuario

Panasonic

Panasonic MA3J142A Manual de usuario

Panasonic

Panasonic MA24D52 Manual de usuario

Panasonic

Panasonic GP-X SERIES Manual de usuario

Panasonic

Panasonic HL-C1 Series Manual de usuario

Panasonic

Panasonic EX-F60 SERIES Manual de usuario

Panasonic

Panasonic KX-HNS104 Manual de usuario

Panasonic

Panasonic MA2S7840G Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manual de usuario
