Installation Guide

Home Network System

Window/Door Sensor

Model No. KX-HNS101AZ

Thank you for purchasing a Panasonic product.

This document explains how to install the window/door sensor

properly.

For details about how to use the system, refer to the User’s Guide

(page 17).

Please read this document before using the unit and save it for future

reference.

HNS101AZ_(en_en)_0325_ver.031.pdf 1 2015/03/25 14:20:39

Introduction

Accessory information ...............3

Important Information

About this system ......................4

For your safety ...........................4

Important safety instructions ......5

For best performance ................5

Other information .......................6

Setup

Part names and functions ..........7

LED indicator .............................7

Setup overview ..........................7

Inserting the battery ...................8

Registering the window/door

sensor ........................................8

Changing the sensor type ..........9

Wireless communication

range .........................................9

Temporary placement ..............10

Installation ...............................13

Appendix

Testing the window/door

sensor ......................................16

Features available when using the

[Home Network] app ................16

Accessing the User’s Guide ....17

Specifications ..........................17

Warranty (for New Zealand) ....18

Table of Contents

HNS101AZ_(en_en)_0325_ver.031.pdf 2 2015/03/25 14:20:39

Accessory information

Supplied accessories

No. Accessory item/Part number Quantity

ABattery*11

BMounting screws (20 mm)*24

CMounting double-sided tapes*33

*1 When replacing the battery, see “Power source” of “Specifications”, page 17

for battery information.

*2 2 screws for the sensor unit and 2 screws for the magnet unit

*3 2 pieces of tape for the sensor unit

1 piece of tape for the magnet unit

AB C

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

Trademarks

RiPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other

countries.

RAndroid is a trademark of Google Inc.

RMicrosoft, Windows, and Internet Explorer are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

RAll other trademarks identified herein are the property of their respective owners.

Introduction

HNS101AZ_(en_en)_0325_ver.031.pdf 3 2015/03/25 14:20:39

About this system

RThis system is an auxiliary system; it

is not designed to provide complete

protection from property loss.

Panasonic will not be held

responsible in the event that

property loss occurs while this

system is in operation.

RThe system’s wireless features are

subject to interference, therefore

functionality in all situations cannot

be guaranteed. Panasonic will not

be held responsible for injury or

damage to property that occurs in

the event of wireless communication

error or failure.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RUse only the power source marked

on the product.

RDo not connect non-specified

devices.

Installation

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may cause

such devices to malfunction

resulting in an accident.

RKeep small parts (magnet unit,

magnet unit cover, screws, etc.) out

of the reach of children. There is a

risk of swallowing. In the event they

are swallowed, seek medical advice

immediately.

RIt is advised not to use the

equipment at a refuelling point.

Users are reminded to observe

restrictions on the use of radio

equipment in fuel depots, chemical

plants or where blasting operations

are in progress.

Operating safeguards

RDo not disassemble the product.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

operate between 1.88 GHz and

1.90 GHz with a peak transmission

power of 250 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CR Lithium battery

RDo not recharge, disassemble,

remodel, heat or throw it into fire.

Important Information

HNS101AZ_(en_en)_0325_ver.031.pdf 4 2015/03/25 14:20:39

RDo not touch the terminals and

with metal objects.

RRisk of explosion if battery is

replaced by an incorrect type.

Dispose of used battery according to

local regulations.

RIf any electrolyte should come into

contact with your hands or clothes,

wash it off thoroughly with water.

RIf any electrolyte should come into

contact with your eyes, never rub

your eyes. Rinse your eyes

thoroughly with water, and then

consult a doctor.

CAUTION

General information

RDo not place magnetic cards or

similar objects near the sensor unit

and magnet unit. Magnetic data on

the cards, etc. may be deleted.

CR Lithium battery

RUse only the battery noted on

page 3.

RInsert the battery correctly.

RDo not leave the battery in an

automobile exposed to direct

sunlight for a long period of time with

the doors and windows closed.

RRemove the battery if you do not

use the product for a long period of

time. Keep it in a cool, dark area.

RDo not replace a battery with wet

hands.

RKeep out of the reach of small

children. There is a risk of

swallowing. If the battery is

swallowed, seek medical attention

immediately.

RRemove the battery if it becomes

unusable. There is a risk of leakage,

overheating, and rupture. Do not

attempt to use a battery if it is

leaking.

RExercise care when handling the

batteries. Do not allow conductive

materials such as rings, bracelets, or

keys to touch the batteries,

otherwise a short circuit may cause

the batteries and/or the conductive

material to overheat and cause

burns.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

2. Use only the batteries indicated in

this document. Do not dispose of

batteries in a fire. They may

explode. Check with local codes for

possible special disposal

instructions.

SAVE THESE INSTRUCTIONS

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

Important Information

HNS101AZ_(en_en)_0325_ver.031.pdf 5 2015/03/25 14:20:39

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RThe product should be kept free

from excessive smoke, dust, high

temperature, and vibration.

RThe product should not be exposed

to direct sunlight.

RDo not place heavy objects on top of

the product.

RThe product should be kept away

from heat sources such as radiators,

cookers, etc. It should not be placed

in rooms where the temperature is

less than -10 °C or greater than

40 °C. Damp basements should also

be avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

Other information

CAUTION: Risk of explosion if battery

is replaced by an incorrect type.

Dispose of used batteries according to

the instructions.

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

Information on Disposal in other

Countries outside the European

Union

These symbols are only valid in the

European Union. If you wish to discard

these items, please contact your local

authorities or dealer and ask for the

correct method of disposal.

Note for the battery removal

procedure

Refer to “Inserting the battery” on

page 8.

Important Information

HNS101AZ_(en_en)_0325_ver.031.pdf 6 2015/03/25 14:20:39

Part names and

functions

n Sensor unit

n Magnet unit

Sensor unit cover

M N

Used to confirm the status of the

sensor or register the sensor to

the hub.

LED indicator

Magnet unit cover

LED indicator

You can press MN and check the

LED indicator to confirm the sensor’s

status.

Indicator Status

Green, lit Window/door is closed

Red, lit Window/door is open

Indicator Status

Red,

blinking

Sensor is out of range

of the hub

Green,

blinking

Registration mode

(You pressed and held

M N)

Off No battery power

Note:

RThe LED indicator does not indicate

sensor status if the sensor has not

been registered (page 8).

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Insert the battery

The window/door sensor is battery

powered.

3Registration

Required only if the window/door

sensor was purchased separately

(i.e., not as part of a bundle).

4Confirm the installation area

Read the information in this

document to confirm that the

desired installation area is suitable

to proper operation.

5Temporary placement

Temporarily place the window/

door sensor in the desired location

and confirm that it operates

properly (page 10).

6Installation

Install the window/door sensor on

the same position where proper

Setup

HNS101AZ_(en_en)_0325_ver.031.pdf 7 2015/03/25 14:20:39

operation was confirmed

(page 13).

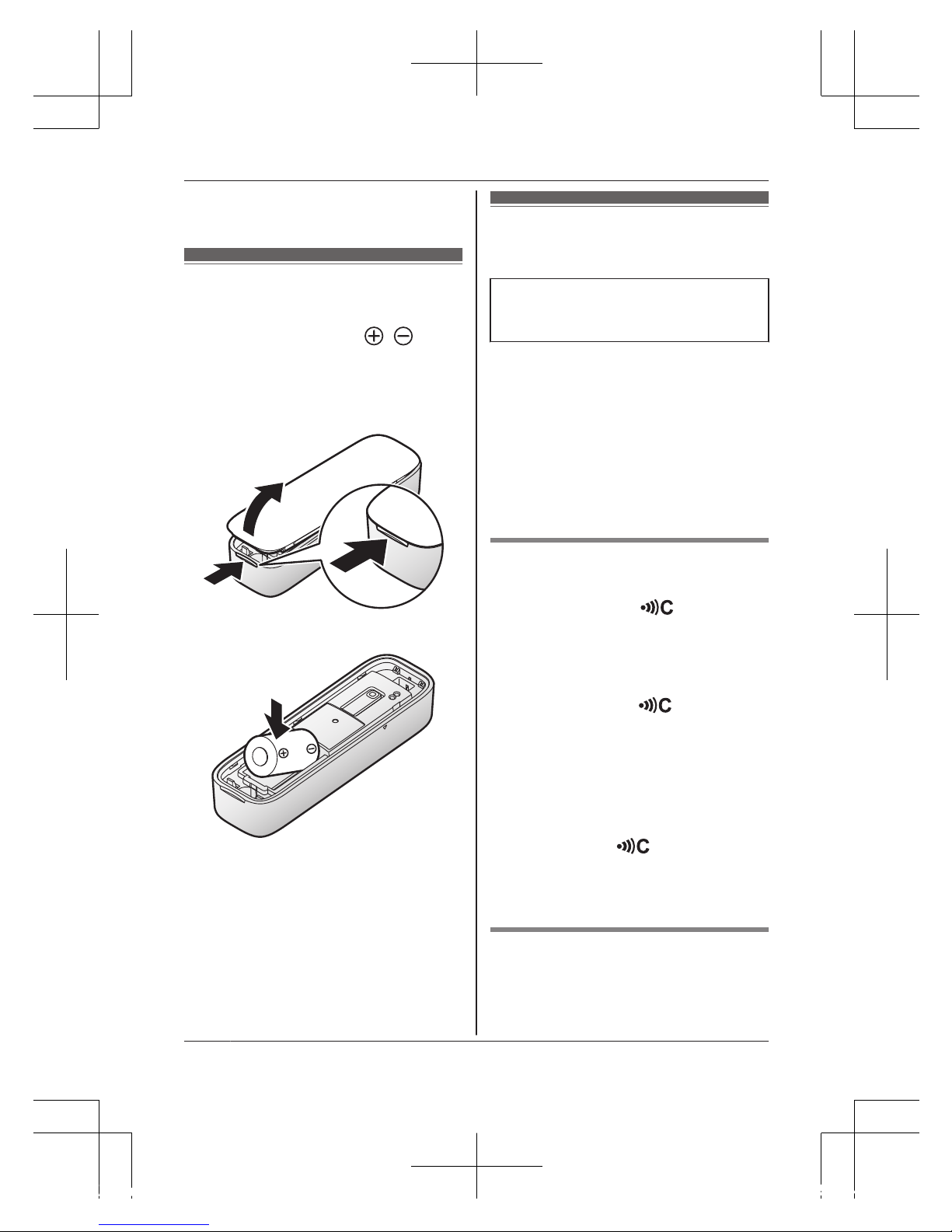

Inserting the battery

RUSE ONLY a CR2 Lithium battery.

RConfirm the polarities ( , ).

1Remove the sensor unit cover.

RLift from the indented area (A)

and open the sensor unit cover

(B).

2Insert the battery.

3Attach the sensor unit cover.

Registering the

window/door sensor

This procedure is not required for

devices that were included as part of

a bundle.

Before you can use the window/door

sensor, it must be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks in green.

2Window/door sensor:

Remove the sensor unit cover and

press and hold MN until the

LED indicator blinks in green

(page 7).

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel without registering the

sensor, press MN on the hub and

on the sensor again.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the window/door

sensor by using the [Home Network]

app, you can assign a name to your

Setup

HNS101AZ_(en_en)_0325_ver.031.pdf 8 2015/03/25 14:20:39

devices and group them by location.

For more information, refer to the

User’s Guide (page 17).

Changing the sensor

type

You can select whether a window/door

sensor functions as a window sensor or

as a door sensor. For more

information, refer to the User’s Guide

(page 17).

Wireless

communication

range

The wireless communication range of

each device in the system from the hub

is approximately 50 m indoors and

approximately 300 m outdoors.

Wireless communication may be

unreliable when the following obstacles

are located between the hub and other

devices.

RMetal doors or screens

RWalls containing aluminium-sheet

insulation

RWalls made of concrete or

corrugated iron

RDouble-pane glass windows

RMultiple walls

RWhen using each device on

separate floors or in different

buildings

Note:

RYou can check the window/door

sensor’s communication status by

pressing M N. If the LED indicator

is lit in green or red, the sensor is

communicating properly with the

hub. If the LED indicator blinks in

red, it is out of range of the hub.

Setup

HNS101AZ_(en_en)_0325_ver.031.pdf 9 2015/03/25 14:20:39

Temporary placement

Before installing the window/door sensor, temporarily place it in the desired

location and confirm that it operates properly by pressing M N.

Important:

RAttach the sensor unit to the window frame or door frame, and attach the

magnet unit to the window or door.

RThe window/door sensor will not operate properly if the “ ” marks are too far

apart or are not pointing toward each other.

RAttach both units so that the “ ” marks point toward each other and are within

25.4 mm of each other.

Confirming proper operation

After temporarily placing the window/door sensor in the desired location, press

MN while the window or door is closed. The window/door sensor’s LED indicator

lights as follows.

Indicator Status

Green, lit The installation position is correct.

Red, lit The “ ” marks on the sensor unit and the magnet unit

are too far from each other. Re-attach the sensor unit

and the magnet unit so that they point directly at each

other and are no more than 25.4 mm apart.

Red, blinking The sensor unit is out of range of the hub. Refer to the

information on page 9.

Note:

RDepending on the condition and material of the surface where the sensor unit

and magnet unit are installed, the LED indicator may light in red even if the “ ”

marks point directly at each other and are no more than 25.4 mm apart.

Setup

HNS101AZ_(en_en)_0325_ver.031.pdf 10 2015/03/25 14:20:39

Tabla de contenidos

Otros manuales de Accesorios de Panasonic

Panasonic

Panasonic MA4X160A Manual de usuario

Panasonic

Panasonic MA2SD300G Manual de usuario

Panasonic

Panasonic LNJ0F1C5FRA4 Manual de usuario

Panasonic

Panasonic MA4ZD03 Manual de usuario

Panasonic

Panasonic DP-100 series Manual de usuario

Panasonic

Panasonic MA3J7000G Manual de usuario

Panasonic

Panasonic MA3S1370G Manual de usuario

Panasonic

Panasonic MA3S781D Manual de usuario

Panasonic

Panasonic CZ-CGLSC1 Manual de usuario

Panasonic

Panasonic MA27D30 Manual de usuario

Panasonic

Panasonic WX-LA20 Manual de usuario

Panasonic

Panasonic PD50 Manual de usuario

Panasonic

Panasonic WX-LA20 Manual de referencia

Panasonic

Panasonic PIMITES GS1 Manual de usuario

Panasonic

Panasonic LS-H Series Manual de usuario

Panasonic

Panasonic MA24D52 Manual de usuario

Panasonic

Panasonic MA21D382G Manual de usuario

Panasonic

Panasonic Light Emitting Diodes LNG992CFB Manual de usuario

Panasonic

Panasonic ADP5100 Manual de usuario

Panasonic

Panasonic MA2YD15 Manual de usuario

Panasonic

Panasonic HL-D3 Series Manual de usuario

Panasonic

Panasonic HL-G1 Series Manual de usuario

Panasonic

Panasonic WJ-PB85L32 Manual de usuario

Panasonic

Panasonic KX-HNA101 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manual de usuario
