34CM CORDLESS REMOTE COLOUR TELEVISION

MODEL: 3410

OWNER'S MANUAL

Type Tested

Electrical

Safety

AS/NZS 3250 Lic 4163

Standards Australia

APP No: N15957

Congratulations on your purchase of this Palsonic colour television receiver.

We recommend that you thoroughly read this manual before use to fully enjoy the

many functions and excellent effects of this receiver.

Retain is manual in an easily accessible location for future reference.

Contents

Main features .............................................................................................................

Notes for operation ....................................................................................................

Cautions for safety.....................................................................................................................................

Installation and appearance .....................................................................................

Antenna connection ..................................................................................................................................

Battery installation ....................................................................................................................................

Appearance .................................................................................................................................................

The remote controller ...............................................................................................................................

Operation ...................................................................................................................

Turning the power on/off ..........................................................................................................................

Menu operation .........................................................................................................................................

Picture menu ..............................................................................................................................................

Preset menu ...............................................................................................................................................

Function menu ..........................................................................................................................................

Channel selection ......................................................................................................................................

Picture and volume adjustment .................................................................................................................

Picture mode selection ..............................................................................................................................

Other functions ............................................................................................................................................

External equipment connections ..............................................................................

Trouble shooting ........................................................................................................

Specifications .............................................................................................................

Main features

Hyperband.

Auto/manual search.

Voltage synthesised system

100 preset channels.

TV system: PAL-B/G, NTSC-4.43/3.58 (AV).

Full function remote control & English on screen menu display

No-signal blue background display and AUTO-POWER-OFF function.

Four picture mode settings.

Sound mute function.

Sleep timer.

AV IN/OUT S-VHS operation function.

NOTES FOR OPERATION

* Do not let the TV set be in standby condition for a long period of time. When it is not in use,

please turn off the power supply and remove the power plug. When it is to be left for a

prolonged period of time, it is recommended to disconnect the connection to the outdoor

aerial, to avoid thunder strike.

* Please follow cautions for safety in the TV set instructions, and all warnings and descriptions denoted

on the TV set.

Cautions For Safety

Note: This TV set can be operated on an AC power of 240V, 50Hz. You should not use power

supply of the other type.

When an unusual situation

occurs, turn off the power

switch at once and remove the

plug from the wall outlet.

Contact a qualified service

department in your local area.

Do not expose the TV set to

rain or excessive moisture, to

prevent tire disaster or

electric shock. Avoid using

the set in very warm or damp

places. Never use it in a

bathroom.

There exists High Voltage in

this TV set. Do not remove

the cover to avoid danger.

The TV set should be placed

on an adequate place without

exposing it to direct sunlight

and other sources of heat to

prevent the deformation of the

cabinet or damage to

components.

When the TV set is to be left

unattended, please turn off the

power switch and remove the

plug from the wall outlet.

In order to wipe dust off the

picture tube or off the cabinet,

you should remove the power

plug from the wall outlet first.

You can wipe lightly with a

piece of dry, clean, soft cloth.

Do not cover the ventilating

holes in the cabinet. Keep a

space of more than 5 cm from

the walls to the TV set, to

guarantee the good ventilation.

When the power cord or the

plug is damaged, please

contact a qualified service

department to get service.

Installation and appearance

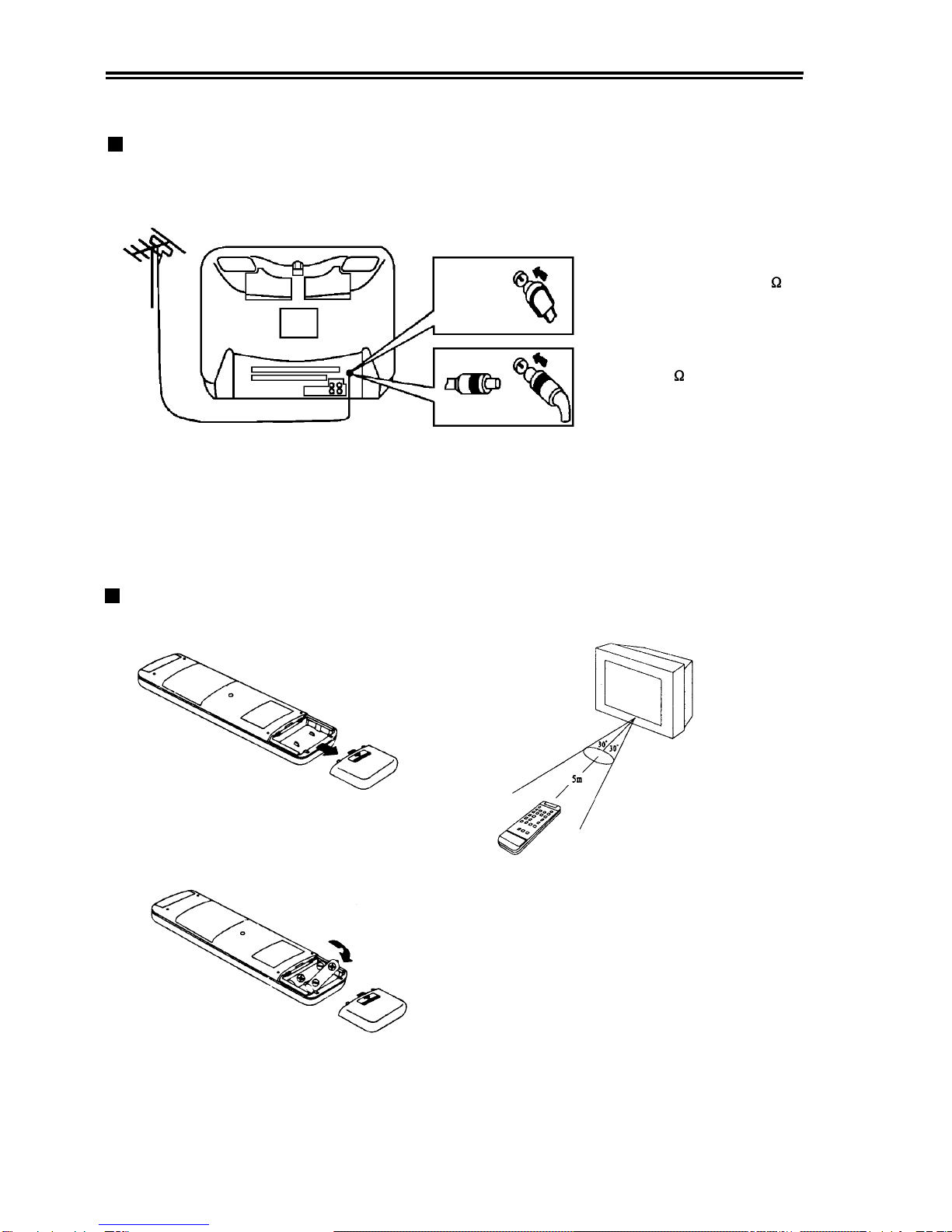

Antenna connection

To ensure a bright-coloured and clear picture, you should use an outdoor aerial or CATV

cable. If the signals are strong enough, you may use an indoor aerial.

Note:

When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off

the power switch on the TV while connecting the antenna lead.

In thunder and lightning, weather, please disconnect the connection to the outdoor aerial to avoid

thunder/lightning strike.

Battery Installation:

1) Remove the back battery cover.

2) Insert two size AAA batteries according to

the polarity indication inside the remote

controller.

Effective range of the remote control

operation

1. When the remote controller is not used for

an extended period of time or the batteries

are worn out, please remove the batteries in

time to avoid battery leakage.

2. Avoid moisture and mechanical shock to the

remote controller.

Note: In case of using the

Twin-lead aerial feeder (300 )

for UHF/VHF aerial, use a 300-75

ohm adaptor (not supplied)

When using the coaxial cable (not

supplied) (75 ) for UHF/VHF

aerial, connect the plug into the

75 ohm aerial socket directly.

Appearance

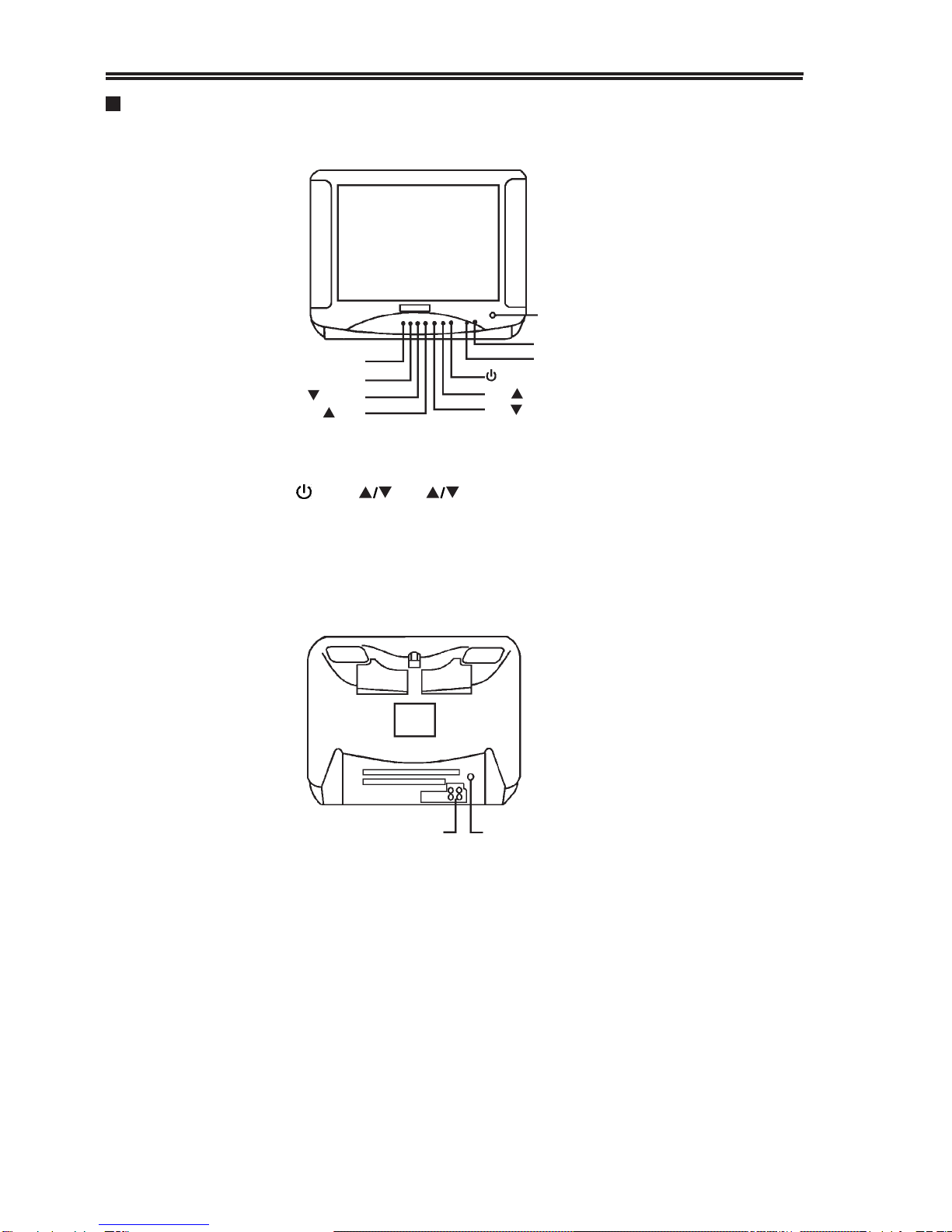

Front view

POWER SWITCH

REMOTE SENSOR

INDICATOR

Note: Functions of MENU, , VOL , CH and TV/AV are also provided to the

remote controller.

Back view

AVIN/OUT ANTENNA INPUT

CH (up)

CH (down)

TV/AV

VOL (down)

VOL (up)

The remote controller

Standby

Channel direct select

Sleep timer

Picture mode selection

*Sound system select

Previous channel

On screen recall

Colour system select

Picture control

Volume control

Channel select

* NOTE: this TV model's RF sound system is BG only. Therefore the SYS1/2 button on the remote

controller is ineffective in sound system selection. Similarly in the Preset and Function

menus the SYS item (sound system selection item) is ineffective.

Sound mute

TV/AV select

Press again

Operation

Turning the power on/off

1. Connect the power, push the main power switch, the red indicator is on, the set is in standby

mode.

2. Push the button on the remote controller to turn on the set when the set is in standby, this

time, the green indicator is on, on the upper right corner of the screen will display channel

number, colour and sound system. Or you can push the CH button to turn on the set

when in standby.

3. You can push the button to switch the set to standby mode when in operation mode, this

time the green indicator is off, the red indicator is on.

4. Push the main power switch to turn off the set completely and confirm that all indicators go

out.

Note: If there are no input signals for the TV when the set is in TV receiving mode, a blue

background will appear on the screen. After 5 minutes if there are still no signals to the TV,

it will enter into standby mode automatically.

Menu operation

You can select adjustment items by making use of the menu. Press the MENU button to display

the main menu:


PRESET

FUNCTION

Press the CH button to select items upward or downward (the selected item is highlighted in

red, while others in green). The item sequence is:

PICTURE PRESET FUNCTION

In stanby mode

Press

Press the main

power switch After 4

seconds

In operation mode In operation mode

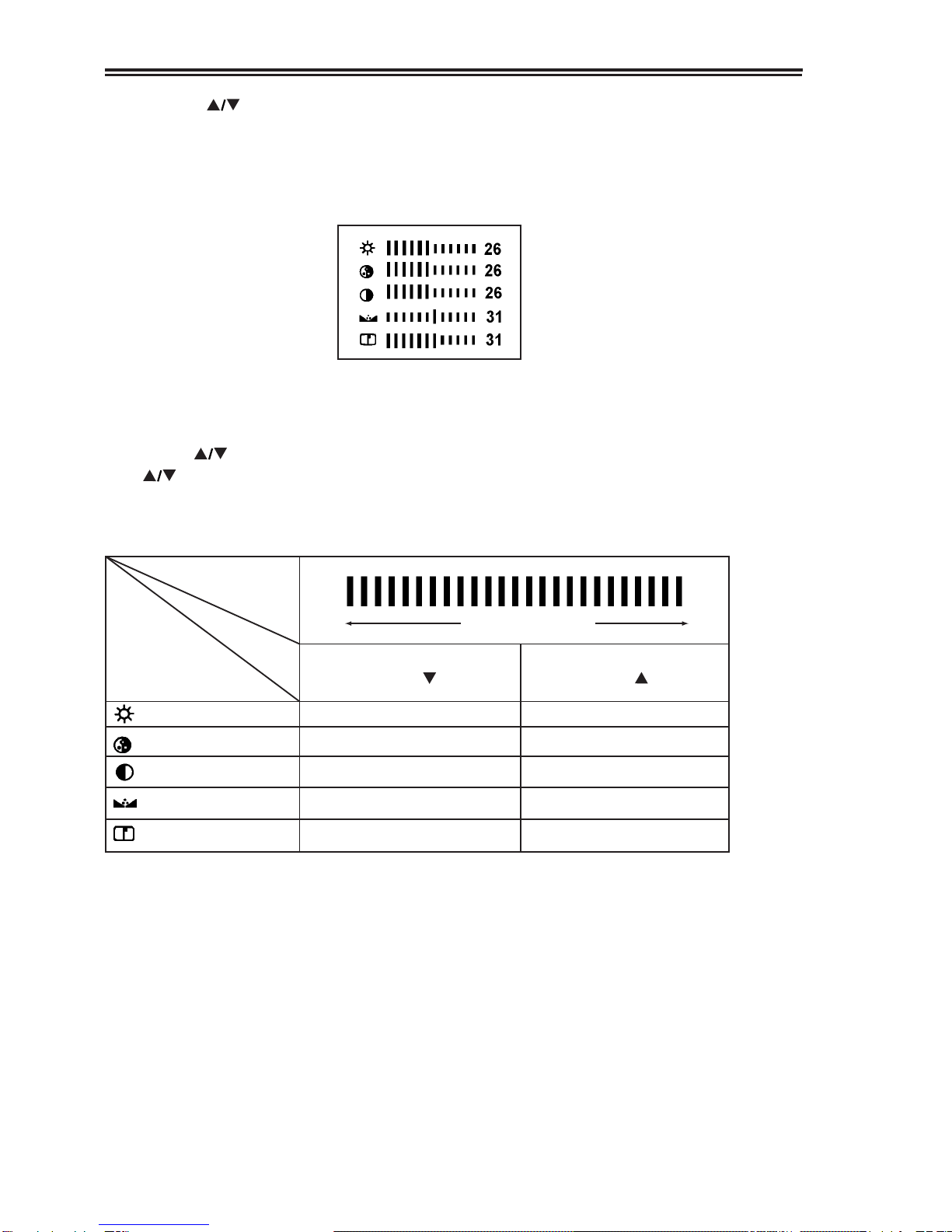

1. PICTURE menu

Making use of the PICTURE menu can adjust the picture effect according to your personal

preference and it will be stored as picture memory mode automatically.

Press the CH button to select the item (the selected item is highlighted in red). Press the

VOL button to adjust it. The range is 0-63.

Press the MENU button to exit to the main menu.

Below are the characteristics of the picture adjustment item.

Item

(BRIGHTNESS) Darker Brighter

Lighter Stronger

Weaker Stronger

Purplish Greenish

Weaker Stronger

Note:

* TINT is effective only in NTSC system.

OSD

Pressing

(COLOUR)

(CONTRAST)

(TINT)

(SHARPNESS)

VOL VOL

Green bar moving 63

Press the VOL button to enter into the sub-menu. To exit the menu press the MENU

button.

Note: the menu displayed on the screen will disappear automatically in 10 seconds if not in

operation.

Making use of the PRESET menu can fulfil the function of auto-search, search. manual

search , channel and band selection. AFT and skip on/off.

Press CH button to select the item. (the selected item is highlighted in red). Press the

MENU button to exit to the main menu.

1) PROG (program)

Select the current program number while "PROG" is highlighted. Press VOL button to

increase or decrease the program number progressively.

PROG

2) SKIP-ON/OFF

Press CH button to highlight SKIP ON/OFF. Press VOL button to toggle between

SKIP ON and OFF. When "SKIP ON" is set, the current channel program will be skipped.

Making use of this function can skip some unwanted channel, say 5, 11, next when you press

CH button to select channel, 5, 11 channel will be skipped.

* Press the channel direct select button can select the skipped channel.

3) AFT ON/OFF

Making use of the AFT function can automatically fine tune the channel.

Select and highlight AFT, pressing VOL button it toggles between ON and OFF. When in

AFT ON, it can automatically fine tune the channel. In normal circumstances, please set

AFT ON.

When in the process of manual search, AFT is set "OFF" automatically.

4) Band Selection

Press the CH button to highlight BAND. Press the VOL button to select band. The

change sequence is

VL VH U

014 6 10 12

01299

2. PRESET menu

PROG 28 SYS 1

SKIP OFF AUTO

AFT ON SEARCH

BAND U MANUAL
