HIGAIN LINE UNIT

QUICK INSTALLATION GUIDE

PAIRGAIN TECHNOLOGIES, INC.

ENGINEERING SERVICES

™350-319-153-01(¨

SECTION 350-319-153-01

Model List Number Part Number CLEI Code

HLU-319 5C 150-1140-53 T1L2B27AAA

Using This Manual 350-319-153-01, Revision 01

ii April 30, 1999 HLU-319 List 5C

Revision History of This Practice

USING THIS MANUAL

Two types of messages, identified by icons, appear in the text.

PairGain and HiGain are registered trademarks of PairGain Technologies, Inc.

Information containedin thisdocumentis company private to PairGainTechnologies, Inc.,

and shall not be modified, used, copied, reproduced or disclosed in whole or in part without

the written consent of PairGain.

Other product names mentioned in this practice are used for identification purposes only

and may be trademarks or registered trademarks of their respective companies.

Revision Release Date Revisions Made

01 April 30, 1999 Initial Release

Notes contain information about special circumstances.

Cautions indicate the possibility of equipment damage or the

possibility of personal injury.

350-319-153-01, Revision 01 Table of Contents

HLU-319 List 5C April 30, 1999 iii

TABLE OF CONTENTS

Overview _______________________________________________ 1

Product Description ................................................................. 1

Compatibility ........................................................................... 4

Installation _____________________________________________ 5

Provisioning ____________________________________________ 6

Navigation Keys....................................................................... 6

Selecting an Option.................................................................. 7

Loopbacks ______________________________________________ 8

Specifications ___________________________________________ 9

Product Support________________________________________ 11

Technical Support.................................................................. 11

BBS........................................................................................ 11

World Wide Web................................................................... 12

Documentation....................................................................... 12

Returns................................................................................... 12

Abbreviations __________________________________________ 14

Certification and Warranty_______________________________ 15

List of Figures 350-319-153-01, Revision 01

iv April 30, 1999 HLU-319 List 5C

LIST OF FIGURES

Figure 1. HLU-319 List 5C Front Panel.................................................2

Figure 2. Installing the HLU-319 ...........................................................5

Figure 3. Loopback Functions with Doublers ........................................8

Figure 4. HLU-319 Card-Edge Connector Pinouts ..............................10

LIST OF TABLES

Table 1. Front Panel Features.................................................................3

Table 2. Status LED................................................................................3

Table 3. Navigational Keys on the Maintenance Terminal....................6

350-319-153-01, Revision 01 Overview

HLU-319 List 5C April 30, 1999 1

OVERVIEW

The PairGain®HiGain®Model HLU-319 List 5C is the Central Office (CO)

side of a repeaterless T1 transmission system.It is used in conjunction with a

HiGain Remote Unit (HRU) or HiGain Doubler Unit(s) (HDU) to provide a

complete HiGain High-bit-rate Digital Subscriber Line (HDSL) system.

The CSA includes loops up to 12,000 feet (3658m) of 24 AWG or 9,000 feet

(2743m)of 26AWG, including bridged taps. The HiGain system uses HDSL

transmission technology as recommended by Bellcore TA-TSY-001210.The

HiGain system complies with GR-63-CORE, TR-TSY-000499, and

GR-1089-CORE.

The HLU-319 List 5C supports Digital Data Service (DDS) loopback

commands and has special features as described in the technical practice for

the unit (see “Documentation” on page 12).

PRODUCT DESCRIPTION

The HLU-319 List 5C front panel features are shown in Figure 1 on page 2

and described in Table 1 on page 3.

350-319-153-01, Revision 01 Overview

HLU-319 List 5C April 30, 1999 2

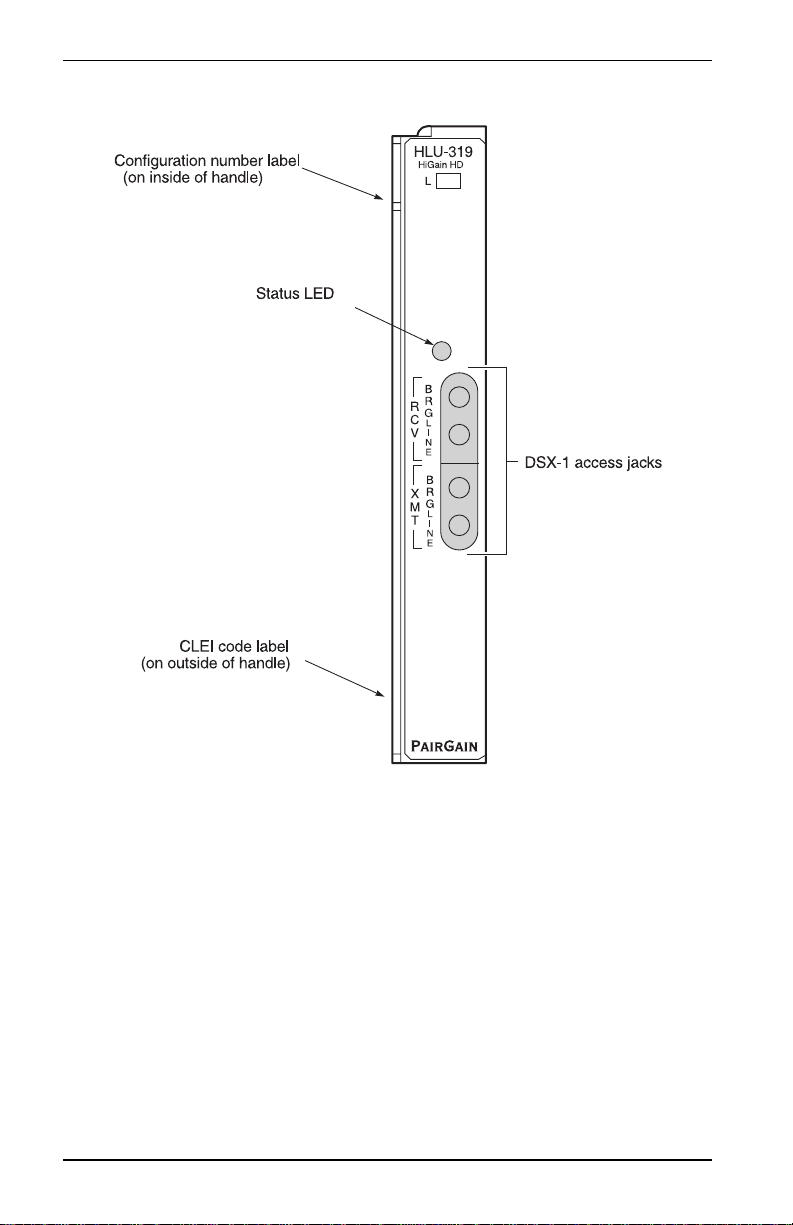

Figure 1. HLU-319 List 5C Front Panel

350-319-153-01, Revision 01 Overview

HLU-319 List 5C April 30, 1999 3

Table 2 describes the status LED.

Table 1. Front Panel Features

Front Panel Feature Function

List number Identifies a specific version of the HLU-319.

Status LED See Table 2 for status descriptions.

DSX-1 access jacks

Line Provides splitting jack access to and from the HDSL line at the

DSX-1 interface. Breaks the Transmit (XMT) and Receive

(RCV) paths to permit test signal insertion and retrieval.

BRG Provides non-intrusive bridging jack access to (XMT) and from

(RCV) the HDSL span at the DSX-1 interface. Allows the two T1

payloads to be monitored.

CLEI and bar code labels

(on the inside of the

handle)

Provides the human-readable Common Language Equipment

Identifier (CLEI) code number and the Equipment Catalog Item

(ECI) bar code number.

Configuration number

(on the outside of the

handle)

Contains either a five or six-digit warranty configuration

number or a stand-alone two or three-digit configuration

number as follows:

Digit 1 - Last digit of shipment year

Digits 2 and 3 - Shipment month

Digits 4, 5, and 6 - Configuration number

The configuration number can also be found on a small bar

label that also contains the Julian date code and part number.

This gummed label may be attached to the PC board or to the

front panel.

Table 2. Status LED

LED Status Description

Green Normal operation

Flashing green HDSL acquisition

Red Fuse Alarm

Flashing red System alarm

Yellow Self Test is in process or an HLU Customer Remote Loopback (CREM)

or a Network Local Loopback (NLOC) is in effect.

Flashing yellow HLU is in an Armed state

350-319-153-01, Revision 01 Overview

HLU-319 List 5C April 30, 1999 4

COMPATIBILITY

The HLU-319 List 5C is compatible with the following T1 repeater shelves

and associated equipment:

•PairGain HMS-357 Wideband 3190 (28-slot, 23-inch shelf)

•PairGain HMS-317 (28-slot, 23-inch shelf)

•PairGain HMS-318 (22-slot, 19-inch shelf)

•PairGain HHS-319 (3-slot, 19-inch horizontal shelf)

•PairGain HMS-308 (8-slot remote enclosure)

•Charles Ind. #3192 (28-slot connectorized)

•Charles Ind. #3192-9F Alarm Card

•Charles Ind. #3192-WR (28-slot wire wrap)

•Charles Ind. #343-00 (12-slot to 14-slot wire wrap)

•Charles Ind. #319-02 (22-slot connectorized)

•Charles Ind. #319-04 (22-slot wire wrap)

•Charles Ind. #340-00 (9-slot to 11-slot wire wrap)

•Larus #1185 (28-slot connectorized)

•Larus #1184 Alarm Card

The Charles Ind. 343-00 and 340-00 shelves do not support

the HLU-319 System Alarm output on pin H. Also, if slots 1

and 2 of these shelves are wired for the 3408 Fault Locate

unit, they must be rewired to accept the HLU-319.

350-319-153-01, Revision 01 Installation

HLU-319 List 5C April 30, 1999 5

INSTALLATION

Figure 2. Installing the HLU-319

1Slide the HLU-319 into the card guides for the desired slot, then push the

unit in until it touches the backplane card-edge connector.

2Place your thumbs on the HLU-319 front panel and push the HLU into

the card guides until the card is properly seated.

3Configure the HLU according to the instructions in “Provisioning”.

Upon receipt of the equipment, visually inspect it for signs of

damage. If the equipment has been damaged in transit,

immediately report the extent of damage to the transportation

company and to PairGain Technologies.

350-319-153-01, Revision 01 Provisioning

HLU-319 List 5C April 30, 1999 6

PROVISIONING

The HLU-319 List 5C contains Non-volatile Random Access Memory

(NVRAM) which stores the system option settings. System settings are

retained if shelf power is lost or if the HLU-319 is unplugged. [No Dual

In-line Package (DIP) switch or jumper settings are required.]

NAVIGATION KEYS

Table 3 lists keys you can use on the maintenance terminal to navigate within

the Maintenance Terminal screens.

The maintenance terminal screens cannot be accessed

through the HLU-319 List 5C, as this model does not provide

a craft port. View these maintenance terminal screens

through the HiGain Management Unit (HMU) or OS port

located on the rear of the HiGain shelf or WBS-3190.

If using the Microsoft Windows terminal emulation program,

deselect

Show Scroll Bars

and

Use Function, Arrow, and Ctrl

Keys for Windows

from

the Settings Terminal Preference

menu.

Table 3. Navigational Keys on the Maintenance Terminal

Key Function

Updates a report.

Clears a report.

Selects the next Span Status screen, or , , , , or

will access span directly (for doubler applications).

Selects the previous page of a report.

Selects the next page of a report.

Exits the current screen.

64567 8

(
