ORTAL 75 Manual de usuario

ORTAL

STAND ALONE FIREPLACES:

SPECIFICATIONS & PRODUCT GUIDE

PAGE 2

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

1. NOTES

The appliance must be installed in accordance with the ORTAL AU/NZ Installation Manual.

The appliance must be properly connected to an approved chimney venting system. Refer to the specific appliance

installation guide to determine vent size and pathway requirements. In addition, adhere to the following pre-

installation guidelines:

• Use an approved DuraVent flue system as specified

• Consult the relevant authority to determine the need for a permit prior to starting the installation.

• It is the responsibility of the installer to ensure that this fireplace is installed in compliance with the

manufacturer’s instructions and all the applicable building codes. Contact your local distributor / dealer for correct

flue and flue termination information.

• Always used a licensed gas fitter / plumber to install the appliance

IMPORTANT:

THIS IS NOT AN INSTALLATION MANUAL. PLEASE

REFER TO THE DETAILED INSTALLATION MANUAL

DELIVERED WITH THE APPLIANCE.

PAGE 3

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

2. SPECIFICATIONS

MODEL BURNER

TYPE

INJECTORS NOMINAL GAS

CONSUMPTION

INLET

PRESSURE

MANIFOLD

PRESSURE

TURNDOWN

PRESSURE

FLUE SIZE

75 B45 Marked 650: with

7x0.950mm orifice

26MJ/h 1.13kPA 0.82kPA 0.23kPA 107/164mm

110 B100 Marked 1200: with

7x1.275mm orifice

37MJ/h 0.69kPA 0.73kPA 0.26kPA 125/205mm

150 B135 Marked 1200: with

7x1.275mm orifice

Marked 1400: with single

3.9mm orifice

55MJ/h 1.13kPA 0.61kPA 0.22kPA 125/205mm

PAGE 4

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

915mm

min 915mm

min

150mm

min

150mm

min 150mm

min

300mm

min 300mm

min

FRONT VIEW

Back wall must be non-combustible.

We recommend 16mm Gypsum or equivalent.

(NOTE: For front facing Stand Alone models, gas cmponents

are located on the right side hidden by the access panel.)

TOP VIEW

SIDE VIEW

150mm

min 1016mm

min

Min 1016mm

in front of fireplace glass

3. CLEARANCE TO COMBUSTIBLE SURFACES

PAGE 5

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

FRONT VIEW

TOP VIEW

FRONT FACE

GAS CONNECTION

SIDE VIEW

MODEL DIMENSIONS

A B C D E F G H

75 745 907 433 650 397 164 107 216

110 1106 1319 344 644 425 200 132 244

150 1502 1694 345 566 397 200 132 181

4. SPECIFICATIONS

PAGE 6

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

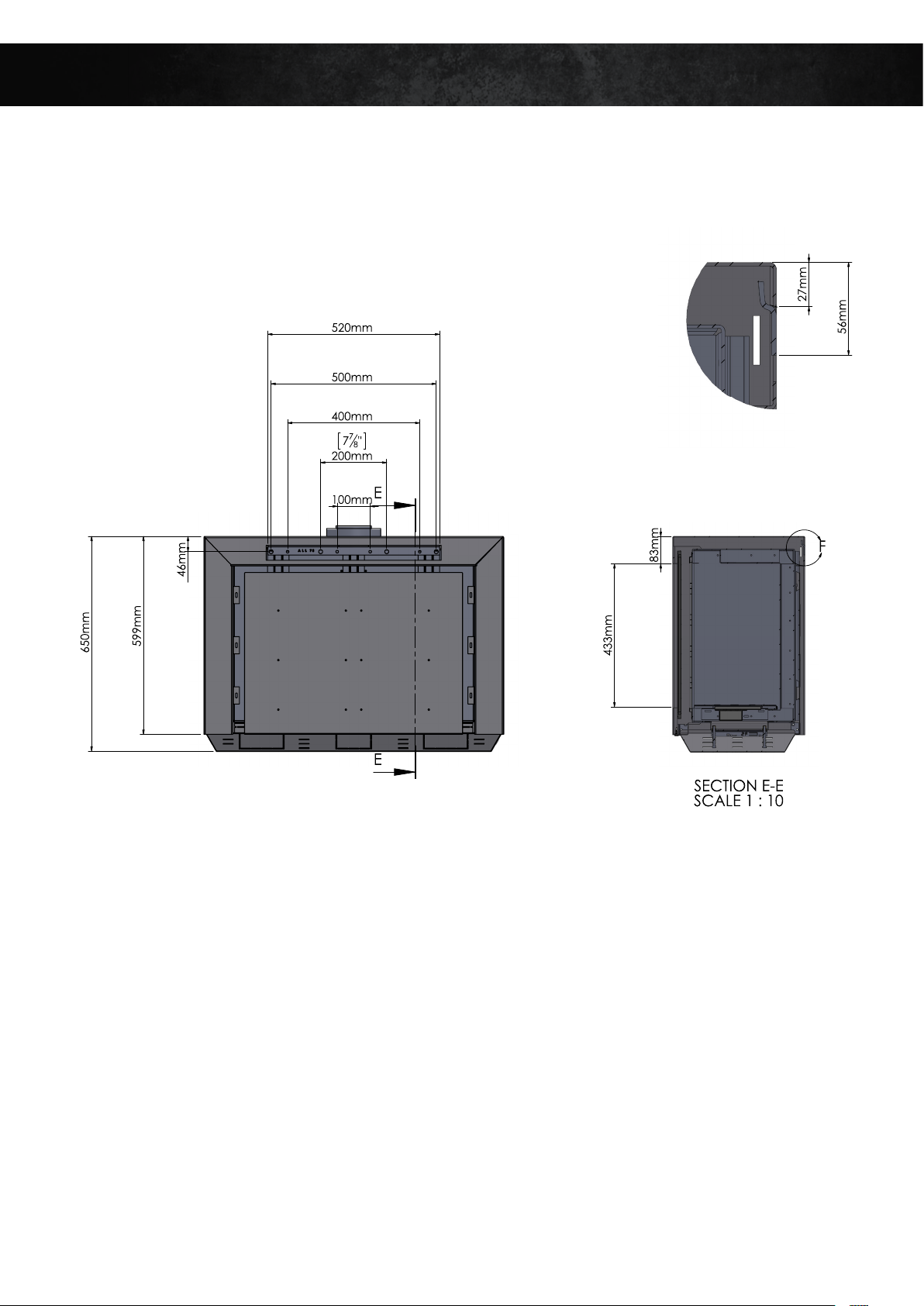

75 STAND ALONE SCREEN

PAGE 7

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

75 STAND ALONE SCREEN

PAGE 8

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

75 STAND ALONE SCREEN

PAGE 9

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

1319

603

425

244

660

504

110 STAND ALONE

PAGE 10

OBLICA | SPECIFICATIONS AND PRODUCT GUIDE

603

554

106 mm

110 STAND ALONE
