Ormesa TROLLINO Manual
USE AND MAINTENANCE HANDBOOK
USA - cod. 220609 - 17-05-23
I
N
T
E
R
N
A
T
I
O
N
A
L
P
A
T
E
N
T
patented
ADJUSTABLE and FOLDING STROLLER
for CHILDREN and TEENS
Pagina 1 di 57
Thank you for choosing TROLLINO, a medical device designed and manufactured by
ORMESA srl – an Italian company certified ISO 13485
We recommends that you read this manual very carefully to fully understand its
contents. In addition to help you become familiar with TROLLINO quickly, it also contains
practical tips for making the best use of it safely and keeping it in good working order.
If, after reading it, you still have questions, contact your retailer, who will be happy to help
you, or call INNOVATION IN MOTION directly at 1.260.665.2769, send a fax to
1.260.665.3047 or send an e-mail to [email protected].
ORMESA TEAM
Pagina 2 di 57
TABLE OF CONTENTS
GENERAL INFORMATIONS. .......................................................................... 4
NORMATIVE REFERENCES AND SAFETY WARNINGS ............................. 4
INTENDED USE, PURPOSE AND FUNCTIONS ............................................ 4
WARNINGS ..................................................................................................... 5
WHAT NOT TO DO WITH TROLLINO ............................................................ 6
BRAKING the STROLLER .............................................................................. 8
HOW TO TILT TROLLINO AND CLIMB UP PAVEMENTS ............................ 9
HOW TO USE TROLLINO FOR TRANSPORT ON A MOVING
VEHICLE (cars, buses, etc.) .......................................................................... 10
LABELS AND PLATES ................................................................................... 14
WARRANTY .................................................................................................... 15
HOW TO STORE AND TRANSPORT THE MEDICAL DEVICE ..................... 15
INITIAL PREPARATION ................................................................................. 16
DESCRIPTION OF THE MEDICAL DEVICE ................................................... 17
WHAT IT IS COMPOSED OF - TECHNICAL FEATURES .............................. 17
DIMENSIONAL FEATURES ............................................................................ 17
HOW TROLLINO WORKS and HOW TO USE IT ........................................... 19
OPENING the STROLLER ...................................................................................... 19
OPENING the FOOTREST ...................................................................................... 20
LOCKING the FOOTRESTS .................................................................................... 21
INVERSION OF THE FOOTRESTS ........................................................................ 22
FOLDING the STROLLER ....................................................................................... 23
WIDE ADJUSTMENT of the FOOTRESTS in HEIGHT ........................................... 25
SHORT ADJUSTMENT of the FOOTRESTS in HEIGHT ........................................ 26
ADJUSTMENT of the SEAT in DEPTH ................................................................... 27
ADJUSTMENT of the BACKREST TILT .................................................................. 28
ADJUSTMENT of the BACKREST in HEIGHT ........................................................ 29
ASSEMBLING THE ADDITIONAL COMPONENTS ....................................... 30
PADDED PELVIC SIDE SUPPORTS 958 ............................................................... 30
SIDE SUPPORTS 838 ............................................................................................. 31
WRAPPABLE AND FLEXIBLE TRUNK SUPPORT 868 ......................................... 33
HANDLEBAR 839 ................................................................................................... 35
Pagina 3 di 57
PADDED HEADREST 865 ...................................................................................... 36
SHAPED and ENVELOPING HEADREST 835 ....................................................... 36
CANOPY 819 .......................................................................................................... 37
RAIN COVER 825 ................................................................................................... 39
BACK PROTECTION CLOTH 825B ....................................................................... 40
THERMIC COVER 818 ........................................................................................... 41
PADDED ABDUCTION BLOCK 834 ....................................................................... 42
4 POINT PELVIC BELT 920 .................................................................................... 42
PELVIC BELT WITH VARIABLE ANGLE(from 45° to 90°) 947 ............................... 43
VEST HARNESS 853 and 853 SLIM ...................................................................... 44
SHOPPING BASKET 858 ........................................................................................ 44
891 TIEDOWN HOOKS (4 RINGS) ......................................................................... 45
HEEL RESTS 960 .................................................................................................... 46
FRONT WHEEL DIRECTION LOCKS 812 ............................................................. 47
FOOTREST ADJUSTABLE IN TILT 956 ................................................................. 48
ADJUSTABLE PUSH HANDLES 951 ...................................................................... 49
PADDED SIDE PROTECTION COVERS 844 ........................................................ 50
CLEANING, DISINFECTION, SANITIZATION ................................................ 51
INFORMATION ........................................................................................................ 51
WARNINGS ............................................................................................................. 51
PROCEDURE .......................................................................................................... 52
MAINTENANCE ............................................................................................... 54
1. ORDINARY MAINTENANCE (monthly) .......................................................... 54
PREVENTIVE MAINTENANCE (biennial) ...................................................... 55
EXTRAORDINARY MAINTENANCE (or corrective) ....................................... 56
DISPOSAL ....................................................................................................... 56
ASSISTANCE AND SPARE PARTS ............................................................... 56
CONDITIONS FOR DURABILITY, REUSE AND REASSIGNMENT
TO A NEW USER ............................................................................................ 57
2.
3.
Pagina 4 di 57
GENERAL INFORMATIONS.
NORMATIVE REFERENCES AND SAFETY WARNINGS
INTENDED USE, PURPOSE AND FUNCTIONS
TROLLINO is an assistive device for children and teens (95 - 140 cm tall) that need a system for
mobility during everyday activities, with different levels of functional and postural needs.
It allows the positioning of the user with disabilities of various complexity in the most
appropriate and functional posture to the different contexts of daily life.
The postural options (padded covers, harnesses, belts) allow to give stability to the pelvis, lower
limbs, trunk and head, and to take different positions thanks to the reclining of the backrest.
It can therefore be also used in medium gravity circumstances, in outdoor environments, for the
transport of those users who are not able to maintain their sitting posture, due to severe
diseases of the nervous system, of the muscular apparatus or relational sphere.
Posture is comfortable and shaping:
-The SEAT is slightly inclined to prevent the user from sliding forwards;
-The DOUBLE CROSS-SHAPED STRUCTURE OF THE FRAME is sturdy and it does
not collapse when the user is seated;
-The SUPPORTING UPHOLSTERY is extremely breathable, fireproof (see page 5),
resistant and easy to wash (although not removable)
When folded it is light and compact and you can lift and hold it with one hand without opening it.
Or it can be pushed like a trolley because it rolls on its rear wheels
When unfolded it is smooth and easy to operate also in small spaces thanks to its tip-up footrests
that turn laterally aligning with the frame. In this way if you want to access your car, the toilet, the
sidewalk, they do not protrude and they do not prevent it from moving.
More sizes in one frame, Trollino grows with the baby!
(see p. 13 "Dimensional Features ")
Backrest: easily adjustable in height, seat: adjustable in width, thanks to the padded side covers (see
size chart) and in depth.
TROLLINO (including the possible insertion of postural components) must be configured and adjusted
exclusively by a Health Professional licensed by the National Health System.
During daily activities the handling of the product is simple and it allows a very easy and safe use
even by other unskilled care givers.
CONTRAINDICATIONS: generally not suitable for patients with severe structured Musculo-skeletal
deformities that require postural aids, or for patients with no head control and who need a posture
system for their head able to ensure a high containment and support.
Pagina 5 di 57
WARNINGS
-Carefully read and understand the instructions in this manual before using the
product because it has been written with the user's safety in mind and it will help the
carer use the product safely and keep it in good working order. The Use and Maintenance
Manual is an integral part of the product and must be carefully preserved for future
reference.
-The manual of the user is intended for technically qualified retailers and users and
their assistants; it provides instructions for its correct use.
-The manual reflects the technical state of the product at the time it was sold. ORMESA
s.r.l. reserves the right to make any changes to the product or manual suggested by
experience, technical considerations or regulatory developments without any obligation to
update its previous production and relevant manual.
-TROLLINO may be used only by persons who have seen the rules and instructions
contained in this manual.
-The use of TROLLINO and its additional components must be checked by a
specialized doctor, in conformity with the laws and standards in force.
-Adjustments only have to be made by qualified personnel .
-TROLLINO is intended for use by people whose size and weight fall within the range
of the "Dimensional Features" on page 13 .
-TROLLINO must be manoeuvred by people with the height and strength to control its
movements.
-Before using it, always check the brake efficiency, the wheel wear, the locking of the
headrest, backrest and footrest.
-Always lock both brakes when stopping, even on flat ground.
-Always LOCK the BRAKES before positioning or transferring the user and before making
any adjustment!
-Climb up and down curbs facing forward and tilting the stroller on its rear wheels (see
page 11).
-The upholstery is flame retardant (FRaccording to EN 1021-1: 1: 2014 - and EN 1021-2:
2014.
Pagina 6 di 57
WHAT NOT TO DO WITH TROLLINO
- DO NOT USE THE STROLLER WITH USERS WHOSE DIMENSIONS AND WEIGHTS ARE
DIFFERENT FROM THE ONES specified on page 18
-DO NOT ALLOW ANYONE TO STAND ON THE FOOTRESTS OR THE BACK
-DO NOT LIFT TROLLINO WITH USER BY THE LEG SUPPORT FRAME OR FOOTRESTS
TO OVERCOME OBSTACLES
-NOT HANG BAGS ON THE REAR HANDLES, they may unbalance the
STROLLER. Use the 858 net basket and the rear pockets positioned on the backrest
for small objects
-NEVER LEAVE THE USER ALONE, ESPECIALLY ON THE BEACH, NEAR A RAVINE,
SWIMMING POOL, SLOPE, OPEN FLAME OR STAIRS
-NEVER LEAVE THE STROLLER PARKED FOR A LONG TIME UNDER DIRECT SUNLIGHT
OR NEAR SOURCES OF HEAT: THIS WILL AVOID OVERHEATING THE DEVICE AND
DISCOLOURING THE UPHOLSTERY
- DO NOT CARRY THE USER OVER ROUGH OR STEEP SURFACES OR STAIRS
-NEVER LEAVE THE STROLLER PARKED ON A SLOPING SURFACE
-DO NOT USE THE STROLLER TO CLIMB OR DESCEND STAIRS: ITS STRUCTURE WAS
NOT DESIGNED FOR THIS PURPOSE (see figure page 11)
-DO NOT CLIMB PAVEMENTS OR STEPS WITH JUST THE STROLLER’S SIDEWHEELS,
front and back ones, because they could tip over (see page 11)
-DO NOT USE THE PRODUCT IF PARTS ARE MISSING OR DAMAGED. INSIST THAT ONLY
ORIGINAL REPLACEMENT PARTS ARE USED BECAUSE ANY OTHER TYPE WILL VOID
THE WARRANTY AND CE MARKING .
Pagina 7 di 57
-TROLLINO IS A MECHANICAL MEDICAL DEVICE:
THE USER has to perform REGULAR
MAINTENANCE and CLEANING following the
instructions shown in the "Maintenance" chapter on
page 51-52-53-54-55-56 and HAVE THE PRODUCT
INSPECTED AT THE INTERVALS INDICATED to
VERIFY that it is WORKING PROPERLY and in
GOOD CONDITION, otherwise warranty will fail and
marking will lapse
PRODUCT REPAIRS other than the regular
maintenance shown on page 51-52-53-54-55-56 of
the manual must be ONLY MADE by a
SPECIALIZED SERVICE CENTER in the
maintenance of mechanical aids for disables,
otherwise warranty and marking will be voided
Any CHANGES in the product and the
REPLACEMENT WITHOUT ORIGINAL PARTS
OR COMPONENTS ARE NOT AUTHORIZED.
REFER ONLY TO ORMESA, otherwise warranty and
marking will be voided
In case of DOUBT about the SAFETY of the product
or DAMAGE to parts or components, you are urged
to IMMEDIATELY DISCONTINUE USE and
CONTACT a SPECIALIZED SERVICE CENTER
in the maintenance of mechanical aids for disables,
or directly ORMESA.
Pagina 8 di 57

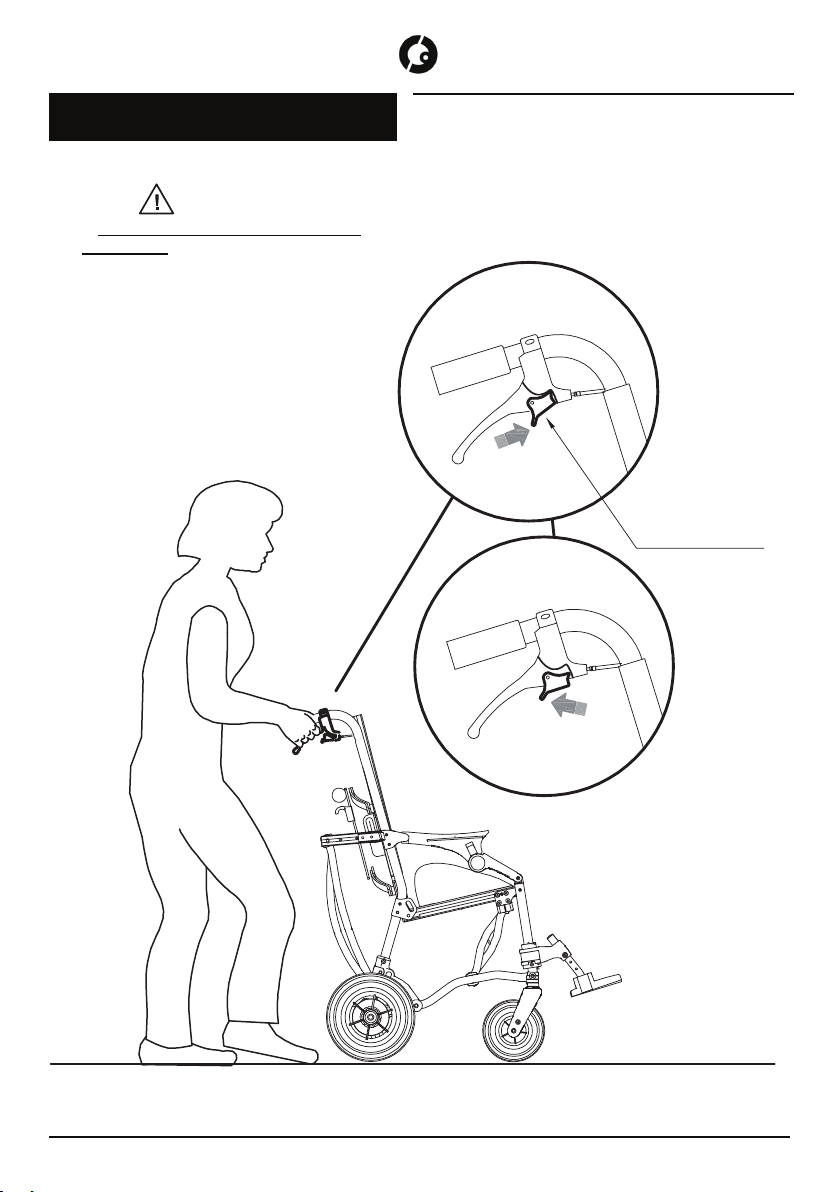

BRAKING the STROLLER
LOCK
UNLOCK
PARKING BRAKE
LOCKING LEVER
BEWARE!
IT IS NECESSARY TO BRAKE THE
STROLLER BEFORE POSITIONING OR
TAKINH THE CHILD OUT OF THE
STROLLER AND BEFORE ANY
POSSIBLE ADJUSTMENT OF THE
PARTS
Tabla de contenidos
Otros manuales de Paseante de Ormesa
