Orion XTREME 600.4 Manual de usuario
XTREME 600.4
OWNER’SMANUAL
H
IGH
P
ERFORMANCE
C
AR
A
UDIO
TABLE OF CONTENTS
INTRODUCTION 3
WARRANTY 6
SPECIFICATIONS 8
TECHNICAL DESIGN FEATURES 10
SYSTEM PLANNING 12
INSTALLATION 18
POWER CONNECTIONS 19
SPEAKER CONNECTIONS 20
OUTPUT CONFIGURATIONS 24
4-CHANNEL INPUT CONFIGURATIONS 24
RCA INPUT / CH 1 & 2 XVR 25
INTERNAL CROSSOVER CONFIGURATION 25
INTELLI Q 28
REMOTE GAIN 31
SIGNAL INPUT AND OUTPUT LEVEL CONTROLS 31
CHOOSING MOUNTING LOCATIONS 32
STEP BY STEP INSTALLATION 33
TESTING THE SYSTEM 35
ADJUSTING THE SOUND OF THE SYSTEM 36
TROUBLESHOOTING TIPS 38
AUTOSOUND 2000 TROUBLESHOOTING TIPS 40
Thank you for your purchase of ORION’s XTREME amplifier. Each ORION amplifier is designed to be the leader in its class offering the
most power, advanced features and ease of use. The ORION XTREME amplifiers are designed as the best car audio amplifier money can
buy. Listed below are the features of the new ORION XTREME amplifiers.
•XTREME 600.4 – 75 watts per channel, 4-channel amplifier with fully variable low-pass crossovers from 45Hz to 5khz. The high-pass
crossover is continuously variable from 10Hz to 10kHz. The XTREME 600.4 has the INTELLiQ subwoofer optimizing circuitry and dual
remote gain capability. The XTREME 600.4 is capable of 6, 5, 4, 3, or 2 channel operation.
NOTE: The installation of all ORION XTREME amplifiers will determine the overall performance result. Improper installation will not
only limit the performance of your ORION system but also potentially compromise the reliability of this digital processor. To ensure
proper sonic results and component reliability, please refer to your Authorized ORION dealer for installation assistance or advice. If you
decide to perform the installation yourself, read the entire installation section of this manual before beginning the installation.
INTRODUCTION
page 3
ABOUT THIS MANUAL
This manual is divided into different sections for different needs. Whether you are the owner, salesperson or installer, we have devoted
sections of this manual to answer your questions. If you just purchased this amplifier and have yet to decide on a system configuration,
refer to the System Planning section of this manual for awesome system ideas.
We, at ORION, strive to give you the latest up to date information about our products. What we cannot give you is personal installation
or technical experience. If you have questions regarding the installation or the setup or tuning of this product, please refer to your
nearest Authorized ORION Dealer for assistance. Additionally, you can call ORION’s Technical Support Hotline at 1-800-315-2052 or 602-
705-5600 for assistance.
PRACTICE SAFE SOUND™
Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered automotive sound systems
can generate sound pressure levels in excess of 130dB. When playing your system at high levels, please use hearing protection and avoid
long term exposure.
RECORD YOUR SERIAL NUMBER AND DATE:
Model: __________________________________________________________
Serial Number: __________________________________________________________
Date of Purchase: __________________________________________________________
Company Purchased From: __________________________________________________________
page 4
(1) XTREMEamplifier
(1) 4gauge power and groundconnector
(1) 12gauge speaker and remote connector
(4) #8 self-tapping black Phillips pan head screws
(1) XTREME installation and operation manual
WHAT’S IN THE BOX
page 5
WARRANTY
ORION Industries Inc. warrants this product to be free from defects in material and workmanship under the following terms:
Parts and Labor are warranted for a period of 3 years IF:
a. The product is purchased from an Authorized ORION Dealer
b. The product is installed by an Authorized ORION Dealer
Parts and Labor are warranted for a period of 1 year IF:
a. The product is purchased from an Authorized ORION Dealer
b. The product is NOT installed by an Authorized ORION Dealer
Parts and Labor are warranted for a period of 90 days IF:
a. The product is NOT purchased from an Authorized ORION Dealer
If you are uncertain as to whether your dealer is authorized, please contact ORION at 1-800-775-7150 or 480-705-5600. In countries other
than the USA, each distributor warrants the ORION product it sells.
The following conditions and situations are NOT covered by this warranty:
Any product on which the serial number has been defaced, modified or removed. Damage or malfunction resulting from:
a. Accident, misuse, abuse, unauthorized modification or failure to follow the instructions provided with this product
b. Repair by anyone NOT authorized by ORION
c. Damage due to shipping (these claims must be presented to the freight carrier)
d. Removal or installation of this product
e. Any failure that has NOT been caused by a defect in material or workmanship
page 6
This warranty is in effect for the original purchaser only. ORION will pay for labor and material expense for covered items. ORION does
not cover removal or installation charges, payment of shipping charges to ORION, payment of OUT-OF-WARRANTY shipping charges, or
damage to other property caused by any defects in this product.
For IN-WARRANTY service, you must include a copy of the original, dated sales receipt, including serial number, from an Authorized
ORION Dealer. Please also provide your name, return street address (No P.O. Boxes) and a detailed description of the problem.
For out-of-warranty products, please include ORION E-Z Repair Form. These are available by contacting ORION Repair at 1-888-362-5283
or480-705-5600 and ask fortheRepair Department.
• If you do not have the original packaging, the product must be packaged to prevent damage during shipment.
ORION Industries Inc.
ATTN.: Repair Department
9235 South McKemy Street
Tempe, Arizona 85284 USA
Exclusion
1. This warranty is in lieu of all other warranties expressed or implied.
2. In no event will ORION be liable for any consequential damages resulting from the use of this product or any defect of this product.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
page 7
Amplifier Section XTREME 600.4 Front Channels XTREME 600.4 Rear Channels
Power output 4 Ω stereo (watts)175 x 2 75 x 2
75 x 2, 300 x 1 75 x 2, 300 x 1
Power output 2 Ωstereo (watts)2150 x 2 150 x 4
Power output 4 Ω mono (watts)1300 x 1 300 x 2
Distortion all channels driven <0.1% THD <0.1% THD
(from 20Hz to 20kHz)
Frequency Response 20Hz to 20kHz ±0.25dB 20Hz to 20kHz ±0.25dB
Linear Bandwidth 6Hz to 50kHz ±3dB 6Hz to 50kHz ±3dB
Signal-to-noise ratio full bandwidth >100dB >100dB
@ rated output power
Damping factor @ output connector >400 at output connector >400 at output connector
@ full bandwidth
Slew Rate >30Vµs >30Vµs
Input Sensitivity3200 mV to 5 Vrms 200 mV to 5 Vrms
Input Impedance 20 k ohm 20 k ohm
Fuse Type (3) 20 Amp ATC (3) 20 Amp ATC
SPECIFICATIONS
page 8
1All channels driven, continuous rated 4Ωload, 20Hz to 20,000Hz, >0.1% THD, per input voltage at 12.0VDC.
2All channels driven, continuous rated 2Ωload, 20Hz to 20,000Hz, >0.1% THD, per input voltage at 12.0VDC.
3XTREME amplifiers are designed to accept full 9 Volts RMS input when set to the minimum gain position.
4All crossovers are with a slope rate of 12dB/octave and a “Q” of .0707.
Crossover Section3XTREME 600.4 Front Channels XTREME 600.4 Rear Channels
Low-Pass Crossover Continuouslyvariable Continuouslyvariable
Low-Pass Frequency Range 45Hz to 5kHz 45Hz to 5kHz
High-Pass Crossover Continuouslyvariable Continuouslyvariable
High-Pass Frequency Range 10Hz to 10kHz 45Hz to 5kHz
High-Pass INTELLiQ Range 0dB to 10dB of Boost n/a
General
Dimensions 18”L x 10.25”W x 2.25”H 18”L x 10.25”W x 2.25”H
(457mm x 260mm x 57mm) (457mm x 260mm x 57mm)
page 9

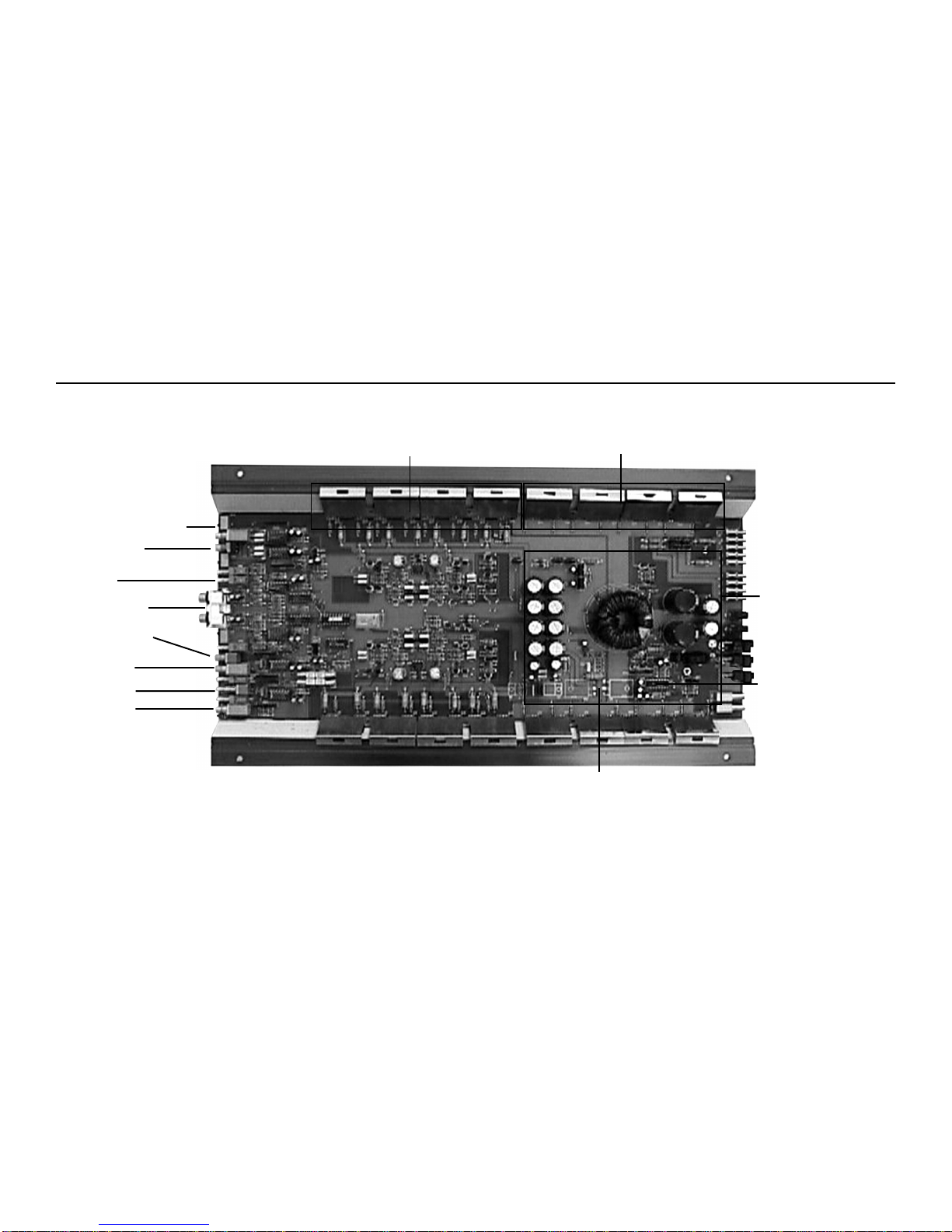

TECHNICAL DESIGN FEATURES
page 10
PRS Power
Supply
12 Gauge
Speaker and
Remote
ATC Fuse
4 Gauge Power
& Ground
Complementary Matched
Bipolar Outputs
Rear Crossover
Front Gain
RCA Input
Power Supply
Controller
PRS Power supply
MOSFET switches
Rectifier
Diodes
XTREME 600.4
Remote Gain
INTELLiQ
Rear Gain
Front HP
Crossover
Front LP
Crossover
2 CH / 4CH
Switch
