INTRODUCTION

Thank you for selecting the Oregon ScientificTM

Wake-up Vibration Alarm (VR101) as your product of

choice. This device is designed to give you many years

of reliable service.

This vibration device can work with the following

Oregon Scientific clocks:

•RM818P

•RM998P

•RMR939P

Keep this manual handy as you use your new

product. It contains practical step-by-step instructions,

safety and care information, technical specifications

and warnings you should know. Read the manual

thoroughly, and keep it in a safe place in case you need

to refer to it.

KEY FEATURES

The vibration device is a wireless wake-up vibrating

device with an 8-minute snooze function.

NOTE

VR101 English R8 OP 7/15/04, 10:05 AM2

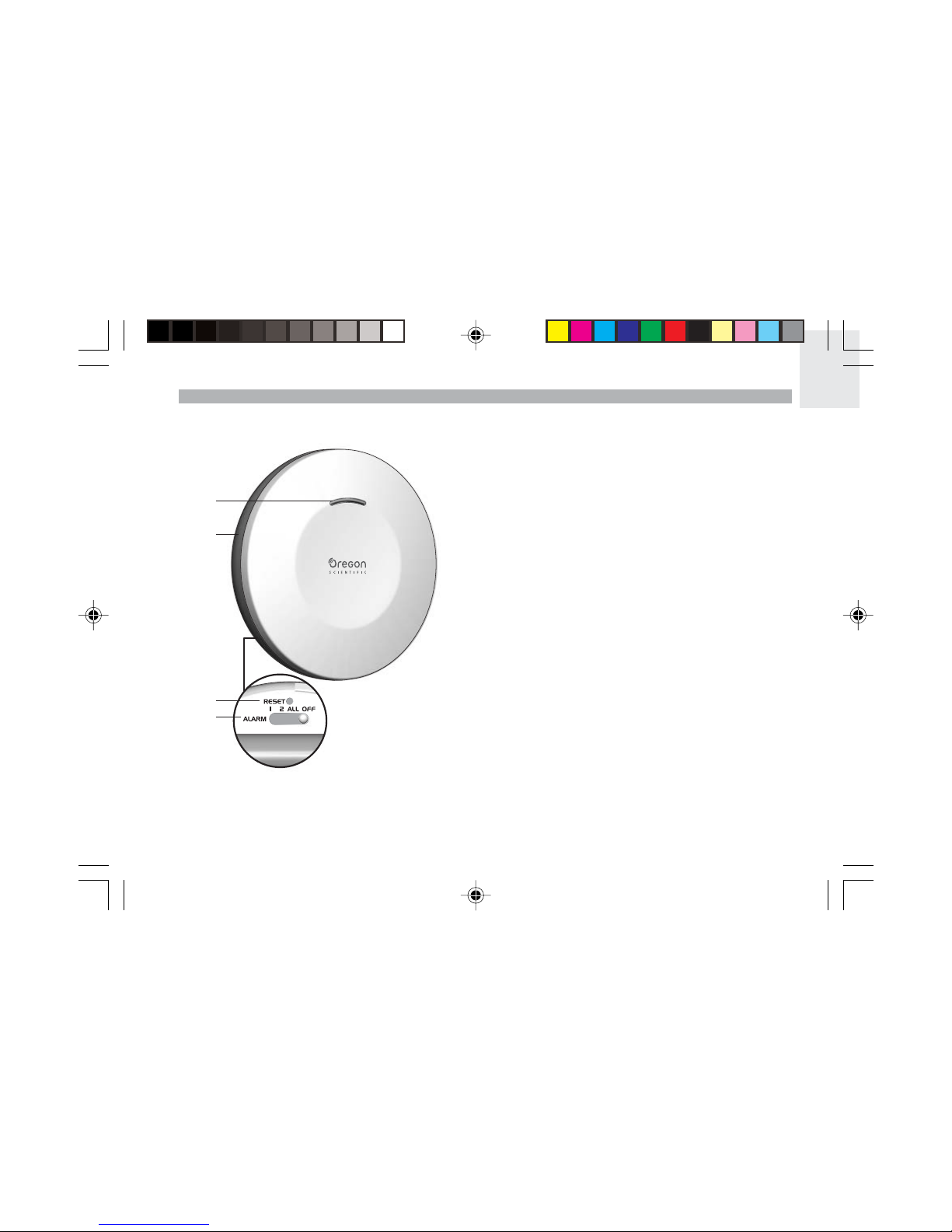

FRONT (AND BACK) VIEW

The VR101 Vibration device features:

1. LED Indicator

•When flashing green it shows data is

transmitting; when flashing red it shows the

battery is low).

2. Back cover

•Remove the back cover by turning

counterclockwise to see the Alarm switch,

Reset hole and battery compartment.

3. Reset hole

•Returns all settings to default values.

4. ALARM 1 / 2 / ALL / OFF button

•Slide to toggle between the following alarm

modes:

• Alarm 1 On

• Alarm 2 On

• Alarm 1 & 2 On

•Alarm 1 & 2 Off

VR101 English R8 OP 7/15/04, 10:05 AM3

•Battery compartment

•To remove the back cover, turn counter-clockwise.

•The unit uses 2 AA / UM-3 1.5V batteries for power.

INSTALLING THE BATTERIES

VR101 English R8 OP 7/15/04, 10:05 AM4

NOTE

GETTING STARTED

UNPACKING THE PRODUCT

When you unpack your clock, make sure to keep all the

packing materials in a safe place, in case you need to

later transport or return it for servicing.

The following items should be included in this package:

•Batteries

•Vibrating device

•User manual

BATTERIES

Please note that the batteries will be packed

separately and not installed in the unit.

To load the batteries:

1. Rotate off the battery cover by turning it counter-

clockwise.

2. Install the batteries by matching the correct

polarity. Always use the correct battery type

(2 UM - 3 AA - sized 1.5V batteries).

3. Replace the battery cover by rotating it in reverse

direction (clockwise).

WARNING Reversing the polarity may damage the

product.

SAFETY & CARE INSTRUCTIONS

SAFETY PRECAUTIONS

Please observe the following safety precautions when

setting up and using this product.

•Heat sources-Keep the product away from

heat sources, such as radiators, stoves,

heaters, and other heat-generating products.

•Water and moisture-Do not use the product

in or near water or in high moisture areas, such

as a bathroom.

CARING FOR YOUR PRODUCT

To ensure you receive the maximum benefit from using

this product, please observe the following guidelines:

•Cleaning-Use a damp cloth. Do not use liquid

cleaning agents, benzene, thinner, or aerosols.

•Ventilation-The vents and other openings are

designed for ventilation, and should not be

blocked or covered.

•Blocking the vents can cause the product to

overheat, and can damage the unit.

•Repair-Do not attempt to repair the product

or modify the circuitry by yourself. Contact the

retailer or a qualified repairman if the product

requires servicing. Only use replacement parts

that are recommended by the manufacturer.

•Do not scratch hard objects against the LCD

display as this may cause damage.

VR101 English R8 OP 7/15/04, 10:05 AM5

NOTE

The vibrating device is powered by two

"AA" 1.5V alkaline batteries, which are included. It is also

compatible with rechargeable batteries (not included).

THE ALARM FUNCTION

BASIC FUNCTIONS

To have the vibration alarm function, remember to

activate the vibration alarm in the main unit, and to match

the settings in the vibration device.

When the alarm in the vibration device goes off, you

can turn the vibration off by pressing any button on the

main unit.

The alarm will automatically stop vibrating after

1.5 minutes.

DISPLAYING THE ALARM TIME

By default, the main unit's LCD screen displays the

current date and month.

To display the alarm time to set the alarm time and to

activate the alarm, please consult the user manual

included with the Oregon Scientific main unit.

NOTE

Replace the batteries whenever the LED

indicator turns to a red color as this color shows that the

batteries are low. Replace all the batteries at the same

time - it is dangerous to mix old and new batteries.

Contact your local waste disposal authority for

instructions on how to dispose of used batteries. Used

batteries can be harmful to the environment, and should

not be thrown out with household trash.

BATTERY DETECTION

If the battery voltage level is low, the LED indicator on

the vibrating device will be flashing in red.

THE VIBRATION WAKE-UP DEVICE

The vibrating wake-up device receives a signal from the

main unit and performs a wake-up function by vibrating.

It is designed to go under your pillow.

The device has a range of roughly 15 meters and has

an LED meter to show data transmission and battery

level.

The switch within the vibrating device can adjust to

alarm 1 or alarm 2, or both. Simply select the alarm time

when you want the device to wake you up.

NOTE

VR101 English R8 OP 7/15/04, 10:05 AM6

If the clock behaves strangely or stops responding, insert

and press a blunt stylus into the vibration device's Reset

Hole. (This is located inside the vibration device. Remove

the back of the vibration device just above the Alarm 1,

Alarm 2, All switch and above the battery compartment).

Simply insert a blunt stylus to reset the unit's settings.

TROUBLESHOOTING GUIDE

BASIC FUNCTIONS

This section includes a list of frequently asked questions

for problems you may encounter. If your device is not

operating as you think it should, check here before

arranging for servicing.

Problem: No alarm.

Symptom: Alarm does not vibrate.

Check this: Alarm is disabled.

Remedy: Turn on the alarm setting.

Problem: Operation is not normal.

Symptom: Certain functions do not perform.

Check this: Device requires reset.

Remedy: Reset the unit with a blunt stylus pressed

against the Reset Hole.

THE SNOOZE FUNCTION

While the alarm goes off, press the SNOOZE / LIGHT

button on the main unit to stop the Alarm and enable

the Snooze function.

When the Snooze function is enabled, the Snooze alarm

will last between 8 and 9 minutes. Also, the snooze

function will be disabled if 1) the clock time is changed;

2) or the alarm ON / OFF button is pressed.

When the Snooze function is enabled, the

Bell Icon will be flashing at 1Hz.

THE RESET HOLE

NOTE

VR101 English R8 OP 7/15/04, 10:05 AM7

•Take precautions when handling all battery types.

They can cause injuries, burns, or property

damage as a result of contact with conducting

materials, heat, corrosive materials or explosives.

Remove the batteries before storing the product

for long periods of time.

•The product is a precision instrument. Never

attempt to take this device apart. There is a

serious danger of powerful electric shocks.

•Do not immerse the device in water.

•Do not, under any circumstances, touch the

exposed electronic circuitry of the device as

there is a danger of electric shock should it

become exposed.

•Do not use or store the device, including the

remote sensor, in locations that may adversely

affect the product such as rain, snow, desert,

and magnetic fields.

SPECIFICATIONS

Dimensions (diameter x height): 90 x 21mm

(3.54 x 0.83 inches).

Weight: 80g (0.18 lbs) without batteries.

Alarm Duration: 1.5 minutes.

Power supply: 2 x UM-3 / AA 1.5V batteries

(compatible with rechargeable batteries -

not included).

Operation temperature: -5ºC to +50ºC (23ºF to122ºF).

RF Frequency: 433 MHz.

Transmission Range: up to 15 meters in open areas.

WARNINGS

To ensure you use your product correctly and safely,

read these warnings and the entire user manual before

using the product.

The warnings given here provide important safety

information and should be observed at all times.

WARNINGS

•Do not attempt to repair the product yourself.

Contact the retailer or our customer service

department if it requires servicing.

VR101 English R8 OP 7/15/04, 10:05 AM8

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn

more about Oregon Scientific products such as digital

cameras; MP3 players; children's electronic learning

products and games; projection clocks; health and

fitness gear; weather stations; and digital and conference

phones. The website also includes contact information

for our customer care department in case you need to

reach us, as well as frequently asked questions and

customer downloads.

We hope you will find all the information you need

on our website, however if you'd like to contact the

Oregon Scientific Customer Care department directly,

please visit www2.oregonscientific.com/service/support

or call 949-608-2848 in the US. For international

enquiries, please visit www2.oregonscientific.com/

about/international/default.asp. Carmelo Cubito

Agrate Brianza (MI) / Italy January 2004

Manufacturer’s EU R&TTE Representative

EC-DECLARATION OF CONFORMITY

This product contains the approved transmitter module that

complies with the essential requirements of Article 3 of the

R&TTE 1999 / 5 / EC Directive, if used as intended and the

following standards have been applied:

Safety of information technology equipment

(Article 3.1.a of the R&TTE Directive)

Applied Standard EN 60950 : 2000

Electromagnetic compatibility

(Article 3.1.b of the R&TTE Directive)

Applied Standards

ETSI EN 301 489-1-3 (Ver.1.4.1) : 2002-08

Efficient use of radio frequency spectrum

(Article 3.2 of the R&TTE Directive)

Applied Standards

ETSI EN 300 220-3 (Ver1.1.1) : 2000-09

Additional information:

The product herewith complies with the requirements of

the Low Voltage Directive 73 / 23 / EC, the EMC Directive

89 / 336 / EC and carries the CE marking accordingly.

COUNTRIES RTTE APPROVAL COMPLIED

All EC countries, Switzerland CH

and Norway N

VR101 English R8 OP 7/15/04, 10:05 AM9

Otros manuales para VR101

Tabla de contenidos

Otros manuales de Despertador de Oregon Scientific

Oregon Scientific

Oregon Scientific AS-688NE Manual de usuario

Oregon Scientific

Oregon Scientific RM510 Manual de usuario

Oregon Scientific

Oregon Scientific RESONANCE CIR600 Manual de usuario

Oregon Scientific

Oregon Scientific EW96 Manual de usuario

Oregon Scientific

Oregon Scientific EW98 Manual de usuario

Oregon Scientific

Oregon Scientific EW98 Manual de usuario

Oregon Scientific

Oregon Scientific RMB383 Manual de usuario

Oregon Scientific

Oregon Scientific EW98 Manual de usuario

Oregon Scientific

Oregon Scientific RM313PNA Manual de usuario

Oregon Scientific

Oregon Scientific RM983A Manual de usuario

Oregon Scientific

Oregon Scientific RM106A Manual de usuario

Oregon Scientific

Oregon Scientific WL201 Manual de usuario

Oregon Scientific

Oregon Scientific WS902 Manual de usuario

Oregon Scientific

Oregon Scientific VR101 Manual de usuario

Oregon Scientific

Oregon Scientific RMR966P Manual de usuario

Oregon Scientific

Oregon Scientific RM981A Manual de usuario

Oregon Scientific

Oregon Scientific AS-688NE Manual de usuario

Oregon Scientific

Oregon Scientific BHM-612A Manual de usuario

Oregon Scientific

Oregon Scientific RM313PNA Manual de usuario

Oregon Scientific

Oregon Scientific RM913TCN Manual de usuario

Oregon Scientific

Oregon Scientific RM106A Manual de usuario

Oregon Scientific

Oregon Scientific RM308P Manual de usuario

Oregon Scientific

Oregon Scientific IWA-80055 Manual de usuario

Oregon Scientific

Oregon Scientific AS-316NE Manual de usuario

Manuales populares de Despertador de otras marcas

Steren

Steren CLK-210 Manual de usuario

COP-USA

COP-USA ALCDVR32-SL Manual de usuario

Philips

Philips HF3505/70 Manual técnico

Casio

Casio PQ-70 Manual de usuario

iHome

iHome IA63 Manual de usuario

Coopers

Coopers 9765 Manual de usuario

ANJANK

ANJANK AC-190 Guía

TFA

TFA 98.1075 Manual de usuario

Sharper Image

Sharper Image 204050 Manual de usuario

Lumie

Lumie Zest Manual de usuario

Dexford

Dexford RCT200 Manual de usuario

Philips

Philips AJL303/37B Manual de usuario

RST

RST Q754 Manual de usuario

iHome

iHome iKT50 Manual de usuario

Sony

Sony dash HID-B7 Manual de usuario

SVINZ

SVINZ SCC009 Manual de usuario

Clas Ohlson

Clas Ohlson 918863 Manual de usuario

IKEA

IKEA FNURRA Manual de usuario
