Orbit OBKB01 Manual de usuario

Owner's manual

OBKB01

CAUTION: 1. Weight on this product should not exceed 150kg

2 Exercise of

strenuous nature, as is customarily done on this equipment,

Should not be undertaken without first consulting a physician.

No specific health claims are made or implied as they relate to the equipment.

Measurements made by the equipment are believed to be accurate, but only the

measurements of your physician should be relied upon.

IMPORTANT: Read all instruction carefully before using this product. Retain this product owner's

manual for future reference.

•

Warranty

•Assembly

•Parts

OBKB01

L-10

L-3

L-6

L-7

E-3

H-1

L-2

M-2

Drawing for Assembly

F-4 F-3

F-2

F-1

F-5

G-11 G-13

Exploded drawing

Parts List

Part No.

Description Spec. QTY

A Computer 1PCS

A-1 Screw 4PCS

B Axle assembly 1SET

B-1 Hex. Bolt 3PCS

B-2 Drive pulley 1PCS

B-3 Sleeve 1PCS

B-4 Axle set 1PCS

C Flywheel assembly 1SET

C-1 Flywheel 1PCS

C-2 Star washer 2PCS

C-3 Nut 3PCS

C-4 Flat washer 1PCS

C-5 Bearing 1PCS

C-6 Bearing 1PCS

C-7 One-way bearing set 1PCS

C-8 Bearing 1PCS

C-9 Bearing 1PCS

C-10 Axle for flywheel 1PCS

C-12 Sleeve for flywheel 1PCS

C-13 Pulley 1PCS

D Idler wheel assembly 1SET

D-1 Idler set 1PCS

D-2 Idler wheel φ24xφ37x20.5mmL

1PCS

D-3 Nut 1PCS

D-4 Flat washer φ8.5xφ25x1t 1PCS

D-5 Hex. Bolt M8xP1.25x20L 1PCS

D-6 Wave washer φ10.5xφ15x0.3t 2PCS

D-7 Flat washer φ6xφ12x1t 1PCS

D-8 Hex. Bolt M6xP1.0x12L 1PCS

E Screws for handlebar post 1SET

E-1 Flat washer φ8xφ19x2t 2PCS

E-2 Allen bolt M8xP1.25x16L 4PCS

E-3 Semi-circular washer φ8xφ19x2t 2PCS

F Magnet set assembly 1SET

F-1 Magnet set 1PCS

F-2 Hex. Bolt M6xP1.0*16L 2PCS

F-3 Spring washer 2PCS

F-4 Flat washer φ6xφ13x1t 2PCS

F-5 Gear box 1PCS

G Main frame assembly 1SET

G-1 Main frame 1PCS

G-2 Resistant screws 2PCS

G-3 Adjustable knob 1PCS

G-4 Screw M4x10L 1PCS

G-5 Wave washer φ17.5xφ25x0.3t 1PCS

G-6 Flat washer φ17.5xφ25x0.3t 1PCS

G-7 C-ring 1PCS

G-8 Crank (Left) 1PCS

G-9 Crank (Right) 1PCS

G-10 Sleeve for seat post 1PCS

G-11 Bearing 2PCS

G-12 Idler spring ODφ16xφ2.0x35T 1PCS

G-13 Sensor box 1PCS

G-14 Sensor holder 1PCS

G-15 DC wire 1PCS

G-16 Belt 1PCS

G-17 Chain cover(left) 1PCS

G-18 Chain cover(right) 1PCS

G-19 Self-tapping screw M4x50L 6PCS

G-20 Self-tapping screw M4x30L 1PCS

G-21 Drilling screws 3/16″（#10）x3/4″

6PCS

G-22 Adapter

230V 50HZ,9VDC

1.5A 1PCS

G-23 Cover for handlebar post 1PCS

G-24 Pedal 1PCS

G-25 Sensor wire (lower) 1PCS

H Handlebar post assembly 1SET

H-1 Handlebar post 1PCS

H-2 Sensor wire (Upper) 1PCS

I Rear stabilizer assembly 1SET

I-1 Drilling screws 4PCS

I-2 End cap (Left) 1PCS

I-3 Adjustable cap 2PCS

I-4 End cap (Right) 1PCS

I-5 Rear stabilizer 50*98*1.5tx400L 1PCS

J Front stabilizer assembly 1SET

J-1 End cap (Left) 1PCS

J-2 Allen bolt M8xP1.25x40L 2PCS

J-3 Transport wheel φ57xφ8x20 2PCS

J-4 Nut 2PCS

J-5 Flat washer φ8*φ19*2T 2PCS

J-6 End cap (Right) 1PCS

J-7 Front stabilizer 1PCS

J-8 Drilling screws 4PCS

K Seat post 1SET

L Seat slider assembly 1SET

L-1 Screw M5xP0.8x12L 2PCS

L-2 Cover for seat slider(R) 1PCS

L-3 Seat slider 1PCS

L-4 Cap for seat slider 1PCS

L-5 Fixing screw bracket 7/16"-14 1PCS

L-6 Flat washer φ14.3xφ25x2.0t 1PCS

L-7 Knob for seat slider 1PCS

L-8 Cover for seat slider (L) 1PCS

L-9 Self-tapping screw M4x15L 1PCS

L-10 Seat 1PCS

M Handlebar assembly 1SET

M-1 Foam grip 550xφ20x5m/m 2PCS

M-2 Handlebar 1PCS

M-3 Hand pulse 2PCS

M-4 Cap for handlebar φ7/8" 2PCS

M-5 Hand pulse wire 1PCS

M-6 Self-tapping screw M4x20L 2PCS

M-7 Cap for wire 1PCS

N Tools 1SET

N-1 Allen bolt M8xP1.25x20L(6m/m)

8PCS

N-2 Flat washer φ8xφ19x2t 8PCS

N-3 Wrench 1PCS

N-4 Allen Key 1PCS

N-5 Box spanner 1PCS

N-6 T-knob for handlebar M8xP1.25x65L 1PCS

N-7 Cover for handlebar post 1PCS

Assembly Stage #1

M8*16L 8*2T

J-7

G-1

I-5

1. Attach the front Stabilizer (J-7) to the main Frame (G-1) using two screws (N-1) and flat

washers (N-2).

2. Attach the rear Stabilizer (I-5) to the main Frame (G-1) using two screws (N-1) and flat

washers (N-2).

Assembly Stage #2

G-24

G-1

G-8

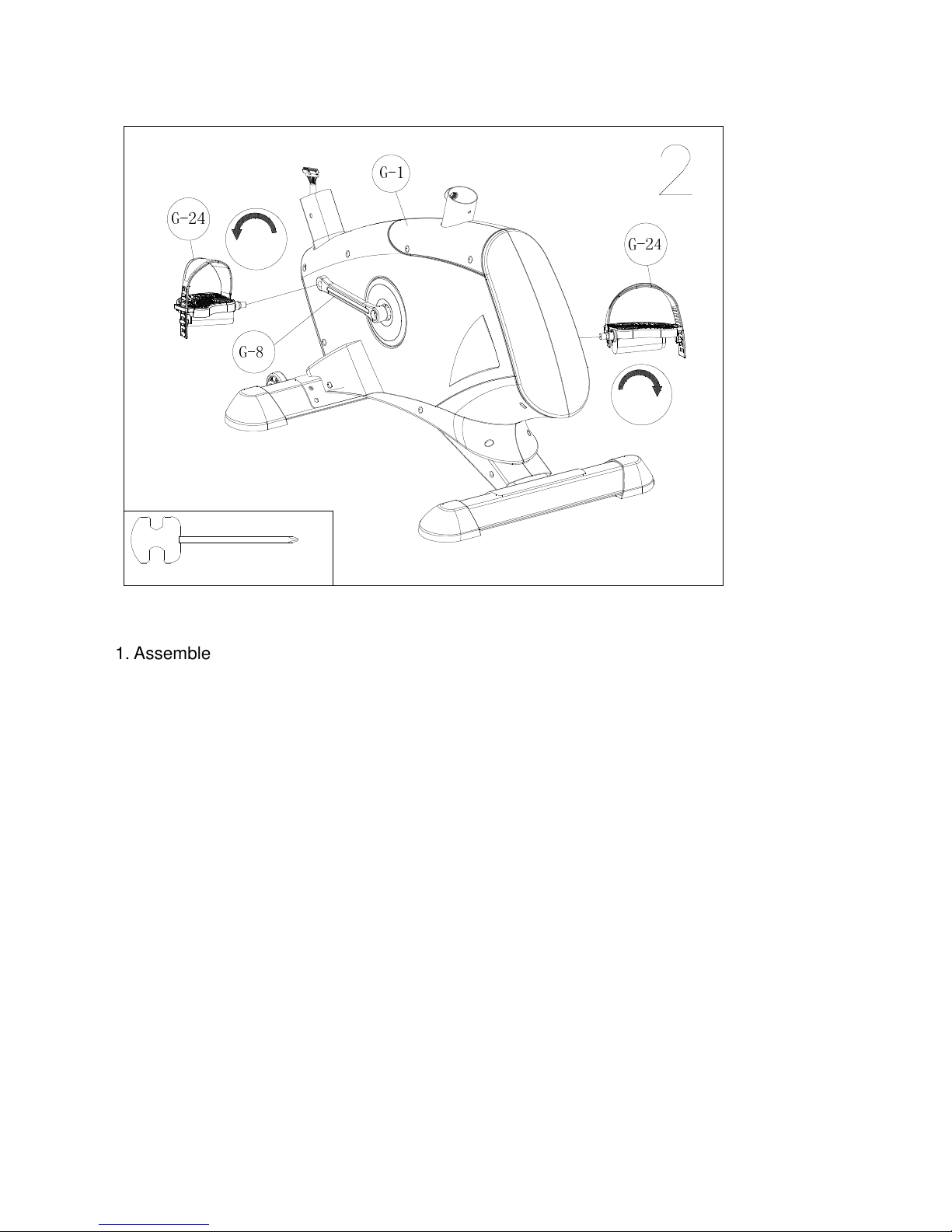

1. Assemble the two pedals (G-24 R+L) onto the Crank (G-8, G-9) with a screw driver.

Remarks: Screw the left pedal’s spindle counter-clockwise and the right pedal’s

spindle clockwise. Use a wrench (or screwdriver) to screw the two spindles completely

Assembly Stage #3

G-1

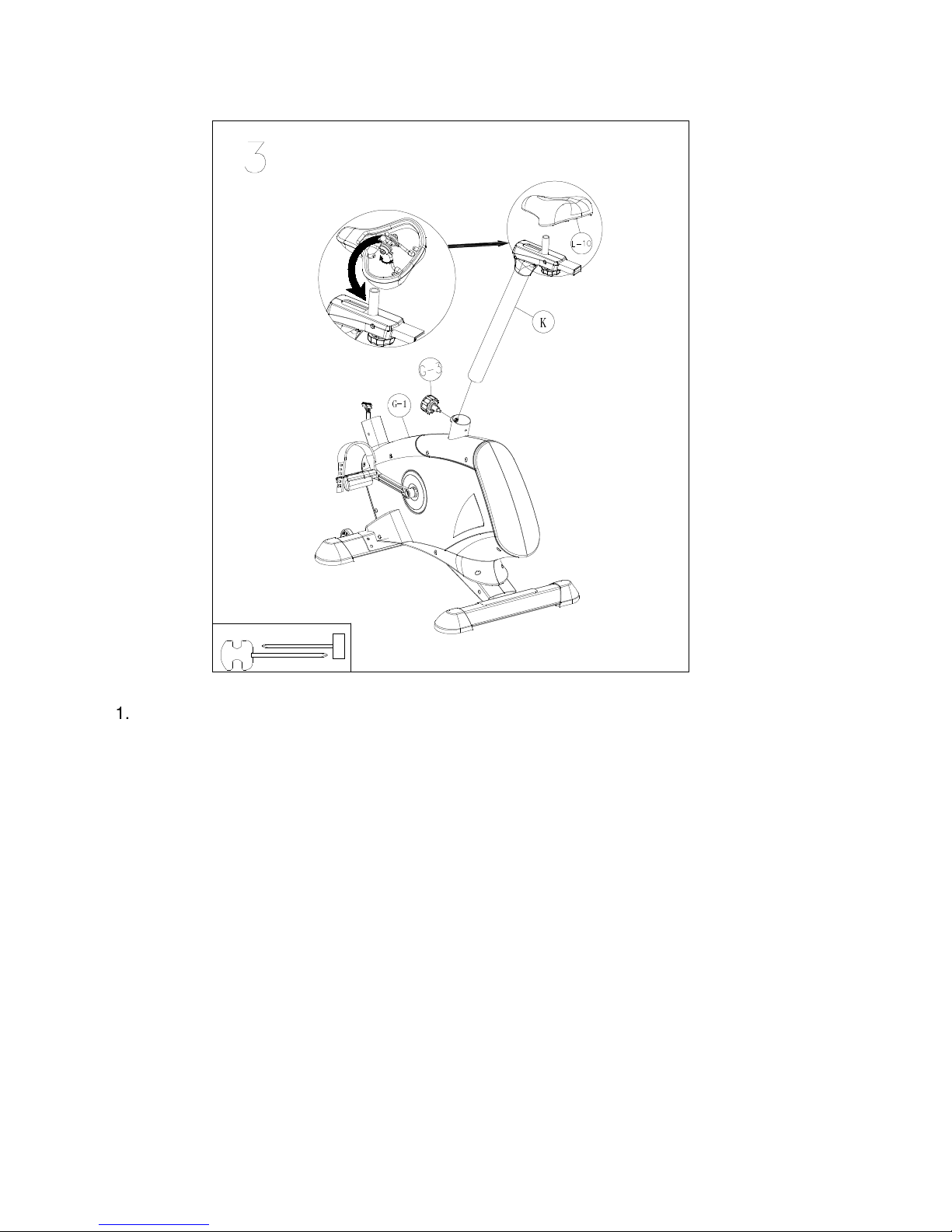

1. Assemble the seat (L-10) to the seat slider. The Slider can be adjusted in different angles.

Tighten the two Nuts under the Seat using a screwdriver. In addition, the Slider can be

adjusted in horizontal level by loosening the Knob.

2. Insert the seat post (K) into the main frame (G-1), and then choose the desired position,

and tighten the knob (G-3). Be sure the knob is always tightened.

Remarks: When you have chosen a desired position,

and tighten the Seat Post Knob until you hear a “click”.

Assembly Stage #4

M8*16L

H-1

E-3

8*2T

1. Put the cover (G-23) into the Handlebar post (H-1).

Connect the sensor wires Upper &

lower (H-2, G-25).

2. Insert the handlebar post (H-1) to the main frame with Allen bolts (E-2),

flat washer (E-1),

and semi-circular washers (E-3) with Allen wrench.
