RC609L disassembly guide
2022-04-28
1
2
Notes on Assembly and Disassembly
Thank you for buying an Orbic Q10 mobile phone, This product is designed to
give you years of quality trouble free performance, if in the unlikely event your
device does not function as required and needs servicing, we strongly
recommend that you contact us at Orbic in regards to getting your device
repaired both in and out of warranty.
If you wish to repair your own device whilst under the warranty period, and
damage is caused as a result of the repair, it will void any warranty claims being
honored.
We recommends any self repairs made on the Orbic Q10 is done by a
competent person with an understanding of electronics with appropriate ESD
and moisture protected work environment.
3
ORBIC Q10 ID
4
EXPLODED DRAWING
Remove the Sim card tray
with the card pin
5
Remove the two T3
screws at the bottom
6

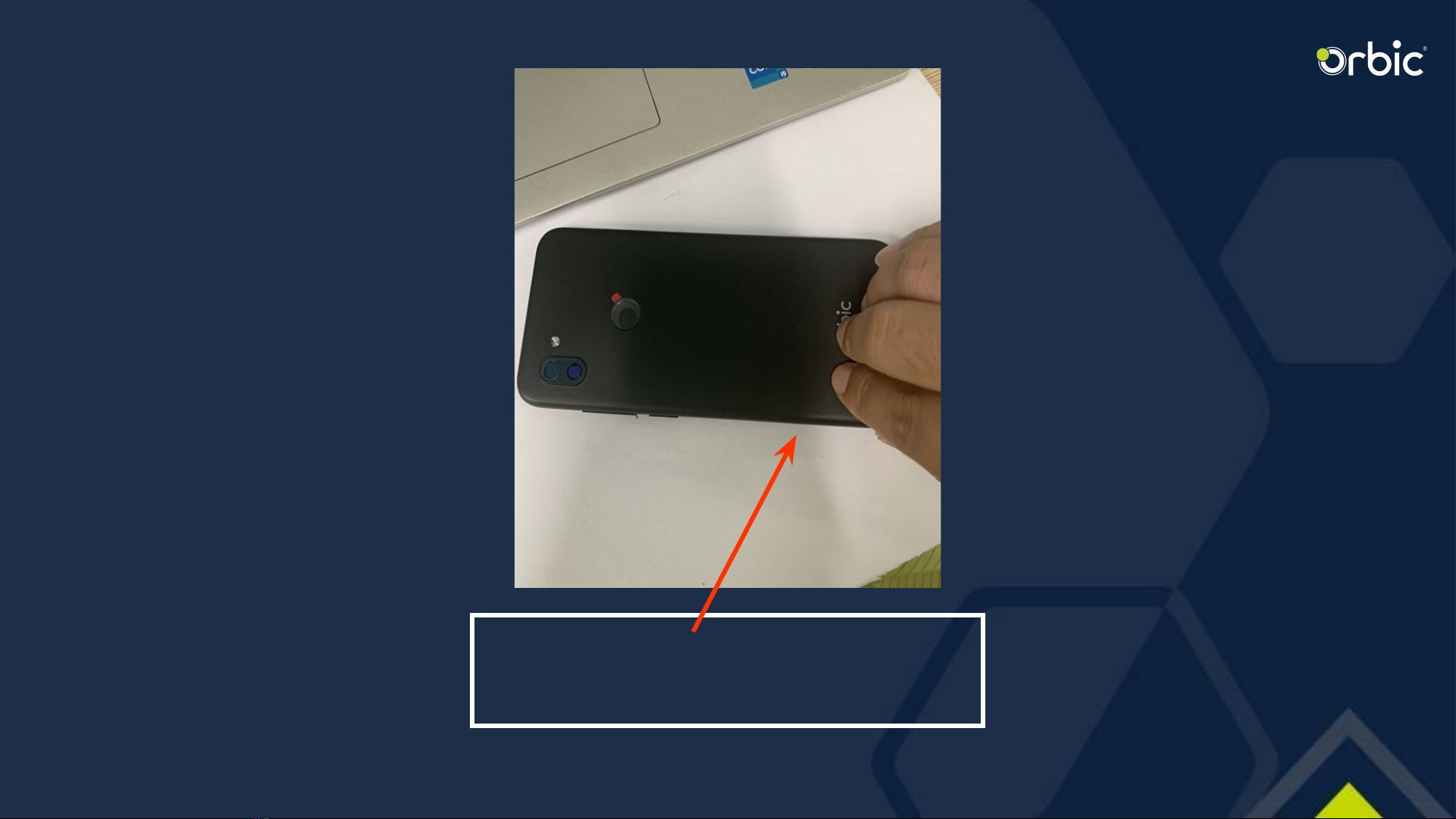

Starting from the bottom, loosen the
button of the battery cover, and then
remove the battery cover
7
Loosen the fingerprint
module connector
8
Loosen 15 body
screws
9

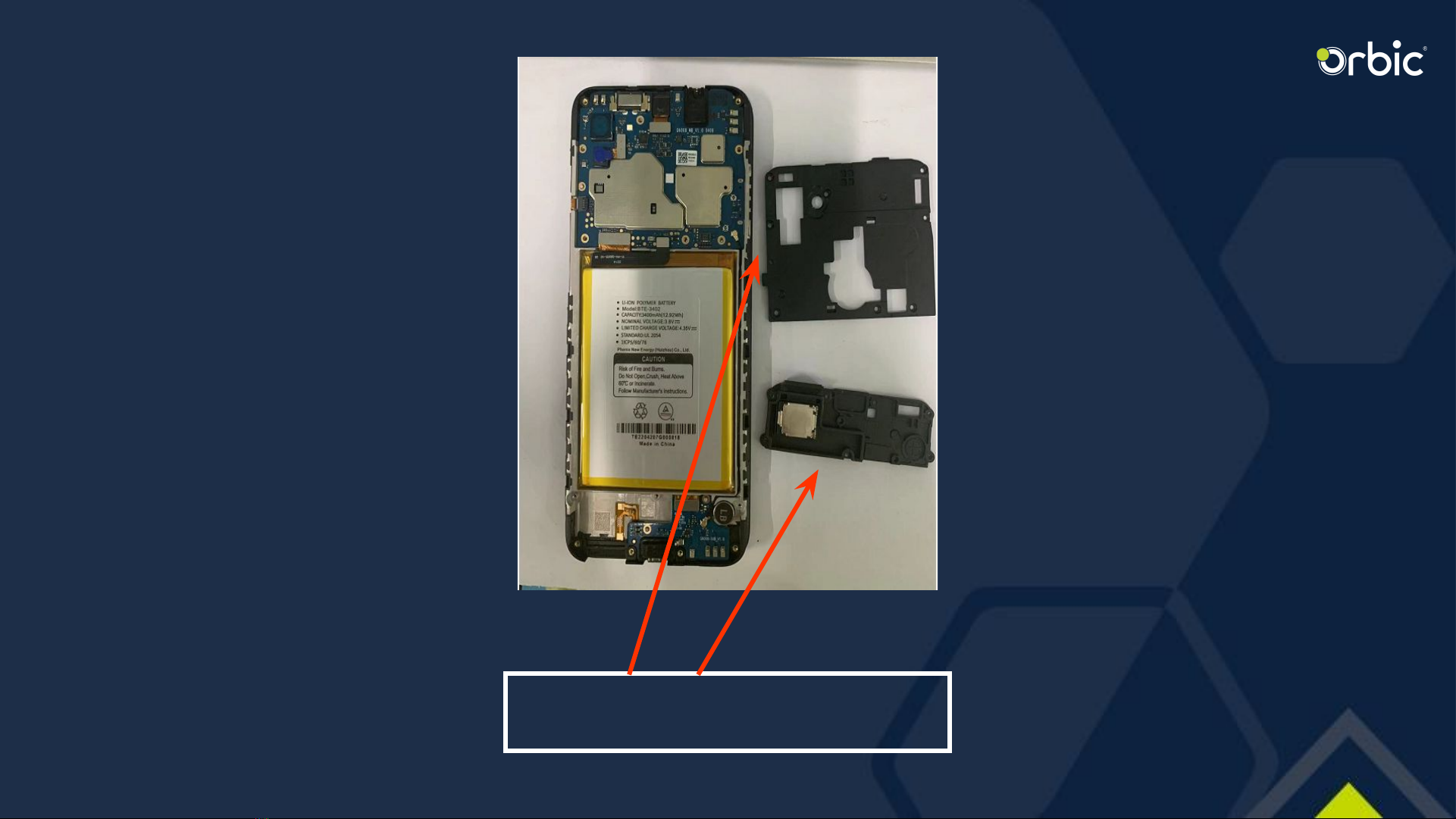

Disassemble the bottom case
and speaker bracket
10
