Oracle ZS9-2 Manual de usuario

Oracle® ZFS Storage ZS9-2 Getting Started Guide

Contents

1 Oracle ZFS Storage ZS9-2 controller 2 Two power cords 3 Slide rail kit

4 Cable management arm 5 One 6-meter Ethernet cable (black) 6 Two 2.5-meter Ethernet cables (green, red)

7 Up to eight (mid-range model) or up to

sixteen (high-end model) 3-meter or 6-meter

active optical SAS cables (blue). Length and

quantity per customer order.

Front Panel Components

1 RFID tag 2 System status LED: Locator (white) 3 System status LED: Service Action

Required (amber)

4 System status LED: Power/OK (green) 5 Power button 6 Fan service action required (amber)

7 Power Supply (PS) service action required

(amber)

8 Over-temperature warning (amber) 9 Service Processor (SP) OK (green)

10 Do Not Service indicator 11 System disk 0 12 System disk 1

13 Filler panel 14 Filler panel 15 Filler panel

16 Filler panel 17 Filler panel 18 Filler panel

19 Filler panel 20 Filler panel 21 Filler panel

22 Filler panel

Back Panel Components

1 Power Supply Unit (PSU) 1 2 PSU 1 status indicators (top to bottom):

■ Attention (amber)

■ Power/OK (green)

3 PSU 0

4 PSU 0 status indicators (top to bottom):

■ Attention (amber)

■ Power/OK (green)

5 Second PCIe option (slot 1) 6 Third PCIe option (slot 2)

7 Fifth PCIe option (slot 3) 8 External SAS-3 HBA (slot 4) 9 Slot 5:

■ High-end model: External SAS-3 HBA

■ Mid-range model: Filler panel; slot not

available

10 Not available 11 Serial management (SER MGT) RJ-45

serial port

12 Service Processor (SP) NET MGT port

13 Network (NET) 100/1000BASE-T RJ-45

Gigabit Ethernet (GbE) port: NET 0

14 USB 3.0 port 15 System status LEDs:

■ Locate (white) - left

■ Attention (amber) - right, top

■ Power/OK (green) - right, bottom

16 Ethernet cluster interface card (slot 6) 17 First PCIe option (slot 7) 18 Slot 8:

■ High-end model: External SAS-3 HBA

■ Mid-range model: Filler panel; slot not

available

19 External SAS-3 HBA (slot 9) 20 Fourth PCIe option (slot 10)

Install the Hardware

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from https://docs.

oracle.com/en/storage.

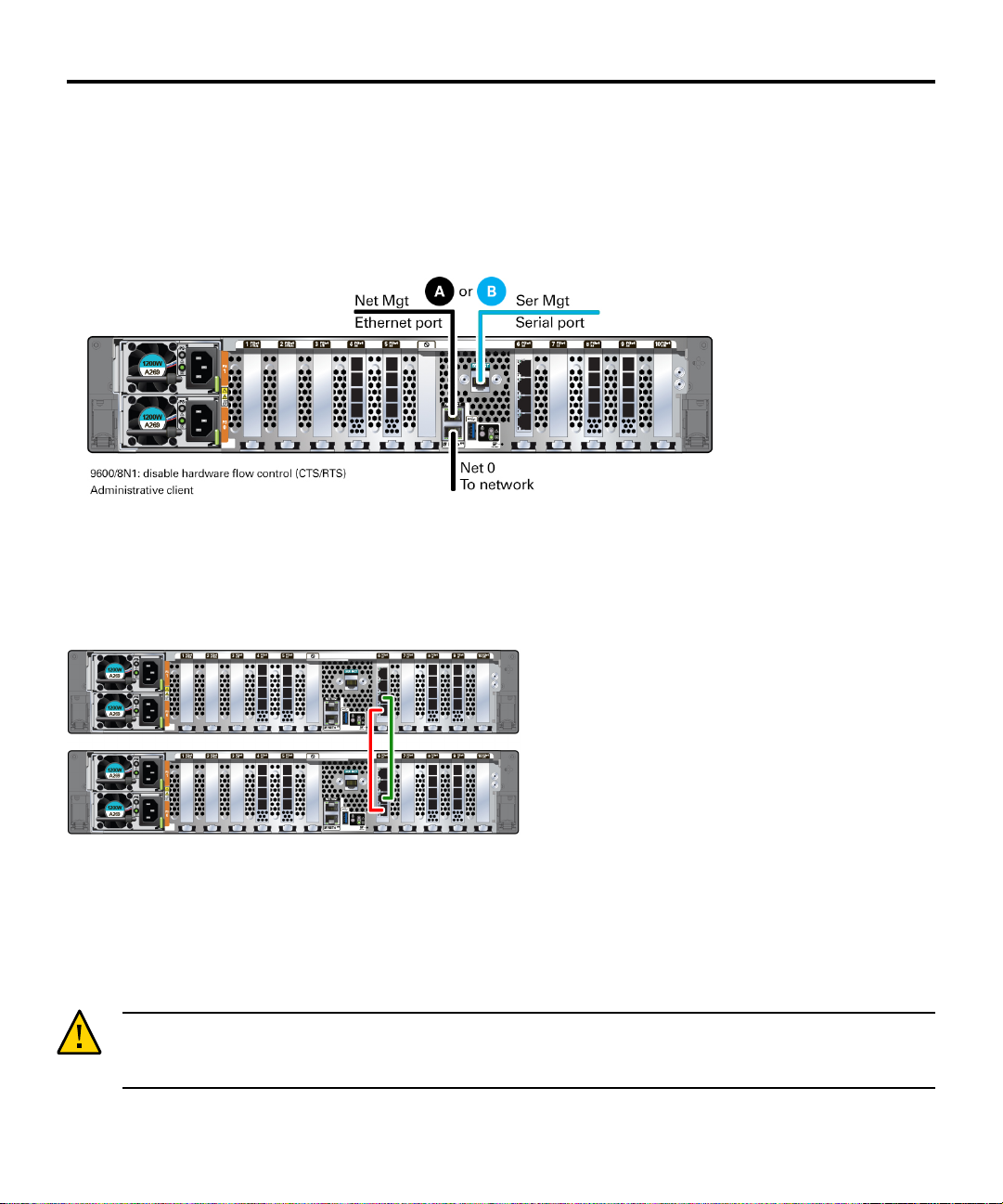

Connect System Cables

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from https://docs.

oracle.com/en/storage. If you have clustered controllers, connect the cables to both controllers. Do not connect

power cables to the controllers or disk shelves until instructed to do so in "Power On and Configure the System."

The following illustration shows an Oracle ZFS Storage ZS9-2 high-end model.

Connect Clustered Controllers

If you have clustered controllers, connect the two controllers together. For detailed information, see the Oracle ZFS

Storage Appliance Cabling Guide available from https://docs.oracle.com/en/storage.

Connect Disk Shelves

The following illustration shows clustered controllers connected to an Oracle Storage Drive Enclosure DE3-24P (left

panel), and connected to four DE3-24x disk shelves (right panel). For additional configuration options, see Oracle

ZFS Storage Appliance Cabling Guide available from https://docs.oracle.com/en/storage. Do not connect

power cables to disk shelves or controllers until instructed to do so in "Power On and Configure the System."

Caution - Use active optical cables (AOCs) to connect Oracle ZFS Storage ZS9-2 external SAS-3 HBAs

to Oracle Storage Drive Enclosure DE3-24x disk shelves. Use copper cables to connect disk shelves to each

other, and to connect the controller to Oracle Storage Drive Enclosure DE2-24x disk shelves.

Caution - Attaching a SAS cable in the wrong orientation at the controller HBA or the disk shelf I/O Module

damages the port connector, and the system will not function properly.

The following procedure connects an AOC cable to the controller and to an Oracle Storage Drive Enclosure DE3-

24P disk shelf. For additional information, see Oracle ZFS Storage Appliance Cabling Guide available from https:

//docs.oracle.com/en/storage.

1. Facing the controller HBA, position the cable's release tab to the right (left panel) for the controller end, and to

the top for the disk shelf end (#1 in right panel).

2. Insert the cable connectors into the appropriate ports, aligning the cable connector latches (#2 in right panel)

with the port latch receiver holes (#3 in right panel). Ensure the latches engage with the receiver holes.

Power On and Configure the System

Required information: Network host name and port of your serial connection, or network management port DHCP-

assigned address. Connect disk shelf power cables, power on disk shelves, connect controller power cables, power

on controllers, and configure the system as described in the Oracle ZFS Storage Appliance Installation Guide

available from https://docs.oracle.com/en/storage.

Perform Initial Configuration

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from https://docs.

oracle.com/en/storage, including properly configuring management interfaces and updating controller software.

Product Documentation Library

Documentation and resources for this product and related products are available in the storage section of the Oracle

Help Center, located at https://docs.oracle.com/en/storage/.

Documentation Accessibility

For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program web site at http:

//www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.

Access to Oracle Support

Oracle customers that have purchased support have access to electronic support through My Oracle Support. For

information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit http://www.oracle.

com/pls/topic/lookup?ctx=acc&id=trs if you are hearing impaired.

Feedback

Provide feedback on this document at http://www.oracle.com/goto/docfeedback.

Part No: F40862-01

August 2021
