English 1

Usage Notice

Precautions .......................................................................................... 2

Introduction

About the Product................................................................................. 3

Package Overview ............................................................................... 4

Installation

Product Overview ................................................................................. 6

Connecting the Projection Display........................................................ 9

Powering On/Off the Projection Display................................................ 11

Adjusting the Image Size ...................................................................... 13

User Controls

User Controls ....................................................................................... 14

OSD Menus.......................................................................................... 16

Appendices

Troubleshooting .................................................................................... 22

Maintenance ......................................................................................... 25

Specifications ....................................................................................... 28

Compatibility Modes............................................................................. 29

Table of Contents

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse a soft cloth moistened with mild detergent to clean the display housing.

qDisconnect the power plug from AC outlet if the product is not being used for a

long period of time.

Don’t:

qBlock the slots and openings on the unit provided for ventilation.

qUse abrasive cleaners, waxes or solvents for your cleaning.

qUse under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Warning- Do not look into the lens. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Warning- Please do not open or disassemble the product as this may cause

electric shock.

Warning- When changing the lamp, please allow unit to cool down and follow

all changing instruction.

Warning- This product will detect the life of the lamp itself. Please be sure to

change the lamp when it shows warning messages.

Warning- After changing a new lamp, please reset the lamp life timer from

OSD menu.

Warning- Before switching off the product, please keep the cooling fan

running for a few minutes.

Usage Notice

English 3

About the Product

This product, designed with a high-powered UHP lamp, is an XGA data/video

portable projection display. The outstanding feature of it are listed as follows:

G8.9 lbs. (4.0 kgs) lightweight compact design

GTrue XGA, 1024 x 768 addressable pixels

GWith SXGA compression and VGA/SVGA resizing

GMac / NEC PC-98 / FM Towns compatible

GNTSC / NTSC4.43/ PAL/ PAL-M / PAM-N / SECAM compatible

GDual Data Input

GReal plug and play with auto-image function

GUser-friendly multilingual on-screen display menu adjustment

GAdvanced electronic keystone correction function

GHard carrying case with detachable wheels and handle

Introduction

English

Package Overview

This projection display comes with all the items shown below. Check to make

sure your unit is complete. Contact your dealer immediately if anything is

missing.

LCD Projection Display

Hard Carrying Case

S-Video Cable RCA Audio/ Video Cable Audio-in Cable for

Computer

User’s Manual Warranty Card

Power Cord VGA Cable X 2

English 5

Battery x 3

Remote Mouse Package

Wireless Remote

Mouse Set

Remote Receiver Cable

PC PS/2

Remote Adapter

PC PS/2

Mouse Adapter

Mac

Remote Adapter

Mac

Mouse Adapter

English

Product Overview

MMain Unit

Installation

* There are two elevator releasing buttons and elevator feet on both sides.

* There are also two remote control receivers on the front and the rear side.

Remote Control Receiver

Carrying Handle

Projection Lens

Elevator Foot

Elevator

Releasing Button

Speakers

Panel Controls

Zoom Ring

Focus Ring

Air Filter

Power Connector

Ports

Remote Control

Receiver

100-240V50-60Hz

2.5A

English 7

MPanel Controls

Computer 2

Input Connector

Power Connector

Computer 1

Input Connector

Monitor Loop-Through

Connector

Audio Output Connector

Audio Input Connector

Audio Input

for Computer

Composite Video

Connector

S-Video

Connector

MConnection Ports

Four Directional

Select Keys

Enter

Remote Mouse

Connector

100-240V 50-60Hz

2.5A

English

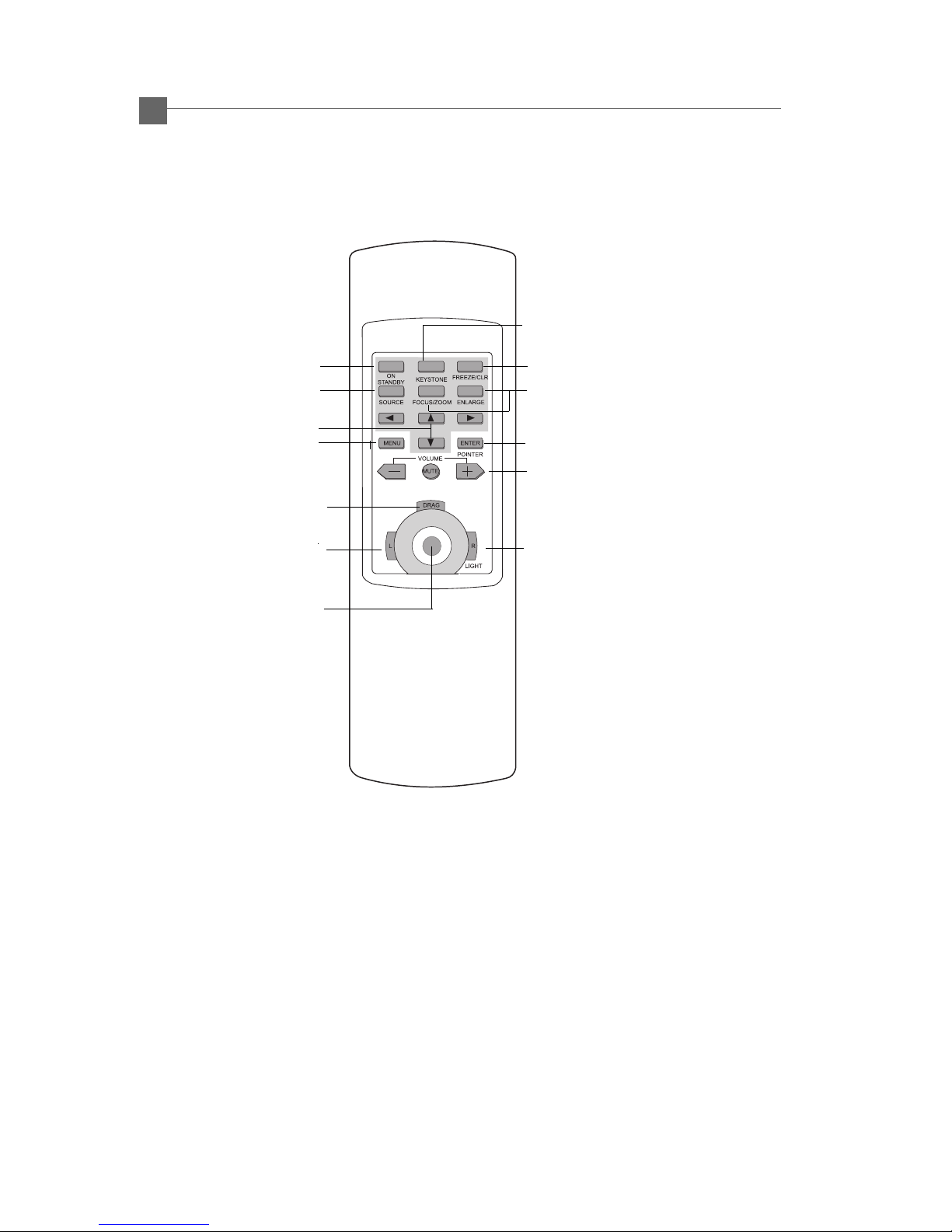

MRemote Mouse

Freeze/Clear

Enter/Pointer

Power On/Standby

Source Selection Zoom Out / Zoom In

Keystone

Four Directional Select Keys

Volume

Right Mouse Button / Backlight Function

Left Mouse Button

Joy Stick

(Mouse Cursor Function)

Mouse Left Button Down

English 9

Connecting the Projection Display

Power Cord

Audio Cable

S-Video Cable

VGA Cable

Audio Cable

Monitor Cable

RCA Audio

Video Cable

Remote Receiver Cable

100-240V 50-60Hz

2.5A

English

Follow regular setup procedures. Make sure you have a 100% compatible Microsoft

Mouseand aMicrosoftMousedriver installed.

wConnecting the Remote Mouse

4Setting Up Procedure:

1. Turn off your computer.

2. Unplug the mouse from your computer.*

3. Connect the remote receiver cable to the computer and the projection display.

4. If you need an external mouse, connect the mouse with the other end of the

receiver cable.

5. Turn on your projection display first and then your computer.

6. Begin your presentation.

* If you have a Mac or PC PS/2 mouse, use the supplied matching adapters as

shown in the diagram.

RemoteReceiver Microsoft Mouse

Mac or PS/2 Mouse

Mac or PC PS/2 Adapter

Mac or PC PS/2 MouseAdapter

(Microsoft Mouse Connection)

(Mac or PC PS/2 Mouse Connection)

RemoteReceiver
