Optoma EP540 Manual de usuario

English

Usage Notice

Precautions .......................................................................................... 2

Introduction

About the Product................................................................................. 3

Package Overview ............................................................................... 4

Installation

Product Overview ................................................................................. 5

Start Your Installation............................................................................ 7

Powering On/Off the Projection Display................................................ 9

Adjusting the Image Size ...................................................................... 10

User Controls

User Control Overview ......................................................................... 11

Function Descriptions........................................................................... 13

Appendices

Troubleshooting .................................................................................... 16

Maintenance ......................................................................................... 17

Specifications ....................................................................................... 20

Table of Contents

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse a soft cloth moistened with mild detergent to clean the display housing.

qDisconnect the power plug fromAC outlet if the product is not being used for a

long period of time.

Don’t:

qBlock the slots and openings on the unit provided for ventilation.

qUse abrasive cleaners, waxes or solvents for your cleaning.

qUse under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Warning- Do not look into the lens. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Warning- Please do not open or disassemble the product as this may cause

electric shock.

Warning- When changing the lamp, please allow unit to cool down and follow

all changing instruction.

Warning- This product will detect the life of the lamp itself. Please be sure to

change the lamp when it shows warning messages.

Warning- After changing a new lamp, please reset the lamp life timer from

OSD menu.

Warning- Before switching off the product, please keep the cooling fan

running for a few minutes.

Usage Notice

English

About the Product

This video projection display, designed with a high-powered metal halide lamp, has

its outstanding features as follows:

q10.34lbs (4.7 kg) lightweight compact design

q330-watt user replaceable metal-halide lamp

qSingle panel 6.4” TFT LCD projection system

q800 x 600 addressable pixels

q16.7M (24-bit) displayable colors

qNTSC/ NTSC 4.43/ PAL/ SECAM composite video & S-Video

qLarge keystone correction range up to 20 degree

qAutomatically saves adjustments

qFan automatic stop after 5 minutes of standby mode

qMultilingual OSD menu adjustments

Introduction

English

Package Overview

This projection display comes with all the items shown below. Check to make

sure your unit is complete. Contact your dealer immediately if anything is

missing.

LCD Projection Display

Carrying Case

(Optional)

S-Video Cable

Battery x 2Remote Control

User’s Manual Warranty Card

Power Cord

Composite Video Cable Audio-in Cable

English

Product Overview

wMainUnit

Installation

Rear Connection Ports

Panel Control Buttons

Keystone Correction

Lens Latch

Lamp Door

Carrying Handle

Elevator Foot

Lamp Latch

Lens

Power Switch

Power

Connector

Fuse

Audio Inputs

Composite Video

Connector

Audio Inputs

Audio Outputs

Composite Video

Connector

Audio Inputs

S-Video Connector

English

wRemoteControl

* For more detailed information, please refer to “Function Descriptions”

on page 13.

Reset All

Freeze

Sharpness

Source selection

Volume

Enter

TINT

SHARPNESSCOLOR

POWERON

STANDBY

ENTER

BRIGHTNESS

CONTRAST

VOLUME

MUTE

Poweron/Standby

Color

Contrast

Brightness

On-Screenmenus

Directional select keys

SOURCE

RESETAll FREEZE

Tint

English

StartYourInstallation

wConnectingtheProjectionDisplay

Refer to the installation figure shown below.

S-Video Cable

Audio Cable

Power Cord

Composite Video

Cable

Audio Cable

English

uPowering On the ProjectionDisplay.

4Switch on the power; then turn on the lamp by pressing “STANDBY”

button.

Press the “ I ” side of the power switch to turn on the projection display. After a

few seconds, press the “Power on/Standby” button to power on the projection

lamp. At this time, the “Power on/Standby” indicator (theGreen Light, see follow-

ing figure) will be illuminated.

*If you wish to turn off the projection display for a short period of time, press

the “Power on/Standby” button. The Amber Light will illuminate. This indi -

cates the projection lamp is powered off and is cooling down.

*If you want to turn on the projection lamp again, you must wait at least 1

minute until the Amber Light is OFF. Be sure the Amber Light is in OFF status

so that you can press the “Power on/Standby” button to turn on the projection

lamp.

uPowering Off the Projection Display

4Turn off lamp power first for three minute and then switch off the power.

Press “Power On/Standby” button to make the display in Standby mode first and

wait for three minutes, then you can switch off the power.

* After pressing the “Power on/Standby” button , you will see a message-

“Power off the lamp?”. Press the “Power on/Standby” button again to turn

off the lamp. Otherwise the message will disappear itself 5 seconds later.

*The projection display will automatically shut down when the lamp is powered

off and is not turned back on within 5 minutes. Please switch off the

power if this occurs.

*Always remember to turn off the projection lamp first and allow it to cool for a

few minutes before switching off the power.

Powering On/Off the ProjectionDisplay

Power Switch

Green Light

Amber Light

English

qPositioning the projection display

(projection distance and image size)

qSlide the lens latch and pop up the projection lens. Switch on the power and

press the “Power on/Standby” button. See “Powering On/Off the Projection

Display” on page 8 for more information.

qAdjusting the screen image.

1. Rotate the projection lens to focus the image.

2. Slide the keystone correction button to adjust image shape.

3. Adjust the elevation:

(1) Pull out the carrying handle.

(2) Lift the projection display to the desired angle.

(3) Press down on the elevator node to loosen the elevator foot.

Keystone Correction

Carrying Handle

Power Switch

Power on/

Standby Buttons

Lens Latch

ElevatorNode

Lens

Adjusting the Image Size

Projection

Distance 5 ft.

(1.5 m) 6.5 ft.

(2 m) 9.5 ft.

(3 m) 13 ft.

(4 m) 20 ft.

(6 m)

Image Size

(diagonal)

40"

(1.01m)

(min.)

60"

(1.52m) 80"

(2.03m) 110"

(2.79m) 160"

(4.06m)

(max.)

English

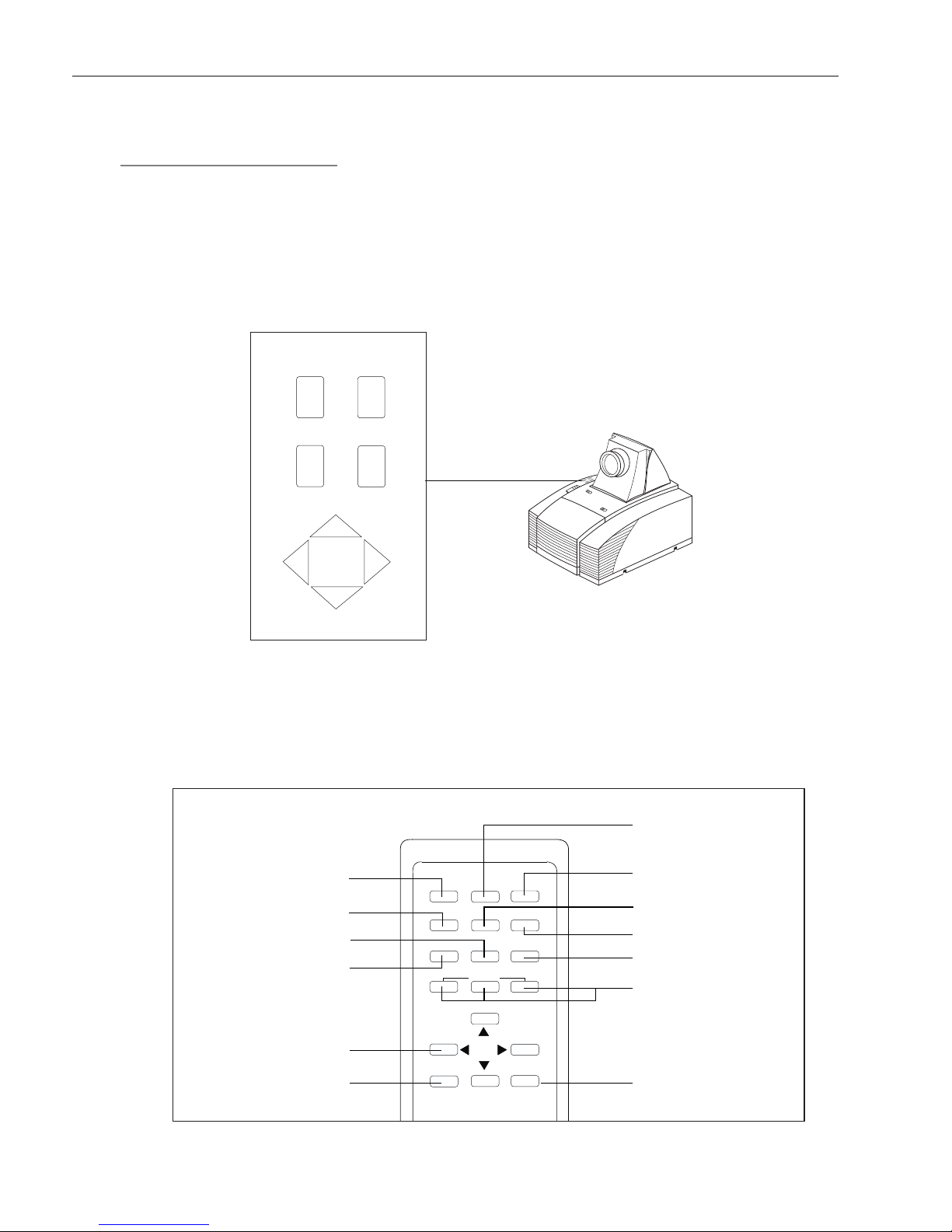

User Control Overview

Thereare two ways foryouto controlthe functions:panel controlandremotecontrol.

wPanelControl

POWERON

STANDBY RESET

ALL

MENU ENTER

4 Directional Keys

wRemoteControl

User Controls

Freeze

Sharpness

Source selection

Volume

Enter

TINT

SHARPNESS

COLOR

POWERON

STANDBY

ENTER

BRIGHTNESS

CONTRAST

VOLUME

MUTE

Poweron/Standby

Color

Contrast

Brightness

On-Screenmenus

SOURCE

Reset All

RESETALL FREEZE

Directional select keys

Tint
