Optoma A16 Manual de usuario
INSTALLATION INSTRUCTION
A16 UST lens
1
Content
Projector system requirement......................................................................2
Required accessories and tools...................................................................2
Entering UST mode for installation setup ...................................................4
Removing the non-UST lens.........................................................................4
Boresight pre-adjustment .............................................................................4
Installing UST lens boresight module..........................................................6
Installing the lens supporter.........................................................................7
Installing ceiling mount with lens supporter...............................................9
Installing the UST lens ................................................................................11
Turning the projector on..............................................................................12
Image adjustment ........................................................................................12
Lens focus adjustment.........................................................................12
Boresight adjustment...........................................................................13
Attaching the lens supporter to the UST lens...........................................14
Removing the UST lens...............................................................................14
Change back to the non-UST lens after using the UST lens....................15
Releasing the UST lens boresight module ................................................15
2
A16 UST LENS INSTALLATION
INSTRUCTION
This user manual is designed to assist with the installation of the BX-CTA16 UST lens
in your Optoma projector. Before attempting to fit the UST lens, please read through
this document in full order to ensure installation steps are made correctly.
Projector system requirement
Firmware version xxxx or higher is mandatory for correct UST lens installation or
operation.
To check the firmware version in the projector menu, select: OPTION > Information.
ZU660: requires firmware version V04.10 or higher
ZU850: requires firmware version V03.77 or higher
ZU1050: requires firmware version V00.29 or higher
Required accessories and tools
Check that the following items (A-L) are included in the package. Prepare the required
tools (I, II, III) for installing each item.
Item
Name of item
Quantity included
A
UST lens
1
B
UST lens boresight
module
1
3
C
Lens mount bracket
1
D
Bracket
1
E
Lens supporter
1
F
M3 X L8 screws
2
G
M3 X L8 hex screws
3
H
M6 X L22 hex
screws
2
I
M3-3.7 x 0.8 x 18
washer
3
J
M6-6.7 x 1 x 16
washer
2
K
Boresight extender
3
4
Entering UST mode for installation setup
To complete the UST lens setup, follow the steps below.
1. Power on the projector with a non-UST lens.
2. In the projector menu, follow these steps: Option > Service > UST Lens Install
> Start.
To enter service menu, enter the password “Left, Down, Right, Up”or “1, 5,
9, 0”.
3. Press Exit to turn off the projector.
4. Disconnect the AC cable.
Note: If an additional non-UST lens is not available, RS232 command, “~XX361 1”, or
hot key “Exit, Input, Left, Right” can be used to do UST lens calibration. After UST
lens calibration, the projector would automatically power off.
Removing the non-UST lens
To remove the non-UST lens, follow the steps below.
1. Make sure projector is turned off before removing the non-UST lens.
2. Rotate the non-UST lens counter-clockwise by a quarter to release the lens.
3. Remove the non-UST lens from the front aperture of the projector.
Boresight pre-adjustment
The UST lens boresight module needs to be adjusted before fitting to the projector.
1. Make sure the boresight gears are in the initial state.
If not, turn the small boresight gears counter-clockwise to the end position,
where 2 marks are roughly aligned.
L
L shape tool
1
5
2. Turn the boresight gears clockwise according to the desired projector
orientation.
Note: The ZU850 has a different orientation table from ZU660 and ZU1050.
A
C
B
6
Installing UST lens boresight module
To install UST lens boresight module, complete the following steps.

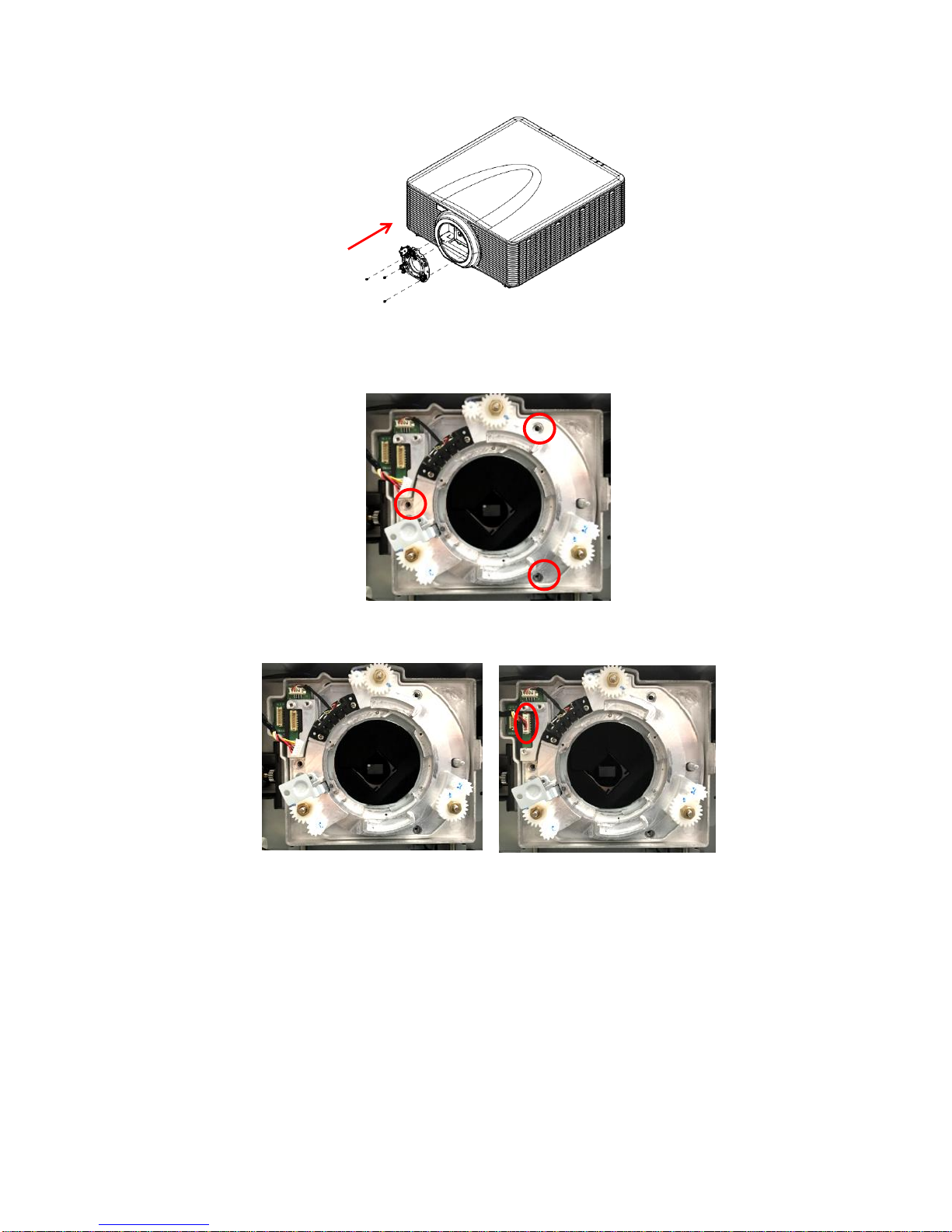

1. Remove 3 screws with a Philips #2 screwdriver from the non-UST lens
boresight module.
2. Release the non-UST lens boresight module from projector.
1. Release the lens cable from the original holder on the plate.
2. Install the UST lens boresight module into the projector.
The boresight module needs to be adjusted before fitting to the unit.
See Boresight pre-adjustment.
7
3. After installing UST lens boresight module, fasten using 3 screws with a
Philips #2 screwdriver.
4. Insert the cable back into the UST lens boresight module.
Note: Ensure the cable is not wrapped or pinched when fastening the UST
lens boresight module.
Installing the lens supporter
An additional lens supporter is required for this lens. Complete the following steps to
install the lens supporter.
1. Place the lens and projector upside-down on the cushioned surface.
2. Use a Philips #2 screwdriver to fasten the lens mount bracket on to the UST
8
lens with 2 M3 X L8 screws.
Note: Ensure the arrow on lens mount bracket is facing out from the lens
mount.
3. To avoid the lens supporter touching the surface, turn the projector feet at
least 5 counter-clockwise turns.
4. To pre-lock the bracket on to the lens supporter use a 2.5 mm allen key with 1
M3 x L8 hex screw and M3-3.7 X 0.8 X 18 washer.
Note: Do not fully tighten the screws until the lens has been installed.
Lens supporter
M6-6.7 x 1 x 16 washers
M6 X L22 hex screws
M3 X L8 screws
Lens mount bracket
UST lens
Lens mount
9
5. Attach the lens supporter to the bottom of the projector.
6. To fasten the lens supporter on to the mounting holes use 5 mm allen key
with 2 M6 x L22 hex screws and 2 M6-6.7 x 1 x 16 washers.
Installing ceiling mount with lens supporter
To install this lens in ceiling mount, complete the following steps.
Note: Due to thermal requirement, user needs to keep at least 30mm between the
ceiling mount plate and bottom intake. Furthermore, user would need to prepare
adapter A, adapter B, M6 ceiling mount screws and ceiling mount plate that are not
included in the package list.
Lens supporter
M6-6.7 x 1 x 16 washers
M6 X L22 hex screws
bracket
M3-3.7 x 0.8 x 18 washer
M3 X L8 hex screw
