Onlogic HX310 Manual de usuario

HX310 / HX330 Industrial Computer

Product Manual

Revision History

Date

First release of HX300 manual

8/4/2021

Update errata list

8/12/2021

Table of Contents

1 - System Overview 5

1.1 - System Introduction 5

1.2 - In-box Accessories 5

1.3 - Product Specifications 6

1.4 - Exterior Features and Dimensions 8

1.4.1 - Front I/O 8

1.4.2 - Back I/O 8

1.4.3 - Helix 300 Dimensions (HX310 / HX330) 9

1.5 - System Block Diagram 10

2 - I/O Definitions 11

2.1 - Front I/O Deﬁnition 11

2.2 - Rear I/O deﬁnition 15

2.3 - Motherboard Connectors 18

3 - Mounting Instructions 27

3.1 - Wall Mount & DIN Rail Mounting 27

3.1 - VESA Mounting 30

4 - Power Management 31
4.1 - Wake-Up Events 31
4.2 - Protection Circuitry 31
5 - Regulatory Compliance 32
CE 32
FCC Statement 32
ISED (Innovation, Science and Economic Development Canada) 32
6. - Appendices 32
6.1 - Appendix A: Power consumption 32
6.2 - Appendix B: Isolated DIO guide 34
6.3 - Appendix C: BIOS manual 34
6.4 - Appendix D: CAN user guide 34
6.4 - Appendix E: System thermal results 36
6.5 - Appendix F: Expansion port pinout 39
6.5.1 - M.2 B-Key 39
6.5.2 - M.2 E-Key 40
6.5.3 - M.2 M-Key 41
6.5.4 - mPCIe 42
6.6 - Appendix G: Safety Information 43
6.6.1 Safe use and installation instructions 43
6.6.2 Précautions et guide d’installation 44
6.7 - Appendix H: Errata 44
IP-263: RS422 and RS485 Require SerCx2 44
Overview 44
Description 45
Workaround 45
Resolution 45
3

1 - System Overview

1.1 - System Introduction

The Helix 300 Series harnesses the enhanced power and capabilities of Intel "Elkhart Lake"

Celeron and Pentium processors in a low profile fanless system built for the challenges of

the IoT edge. With support for triple independent 4K displays, a 0°C to 50°C operating

temperature range, and a wealth of configuration options, the Helix 310 and Helix 330 were

engineered with versatility in mind. The systems also feature compliance testing for IT

Equipment and pre-compliance testing for 60601-1 medical EMC and safety.

1.2 - In-box Accessories

●4x Rubber Feet

●Power cable retention

If you purchased additional items such as mounting brackets, power supplies or terminal

block connectors, they will be located in the system box or within the outer shipping carton.

All drivers and product guides can be found on the corresponding product page. For more

information on accessories and additional features, visit the Helix Product pages.

Helix 310 Product Page: https://www.onlogic.com/hx310/

Helix 330 Product Page: https://www.onlogic.com/hx330/

1.3 - Product Specifications

Model

HX310

HX330

System Dimensions

196x37x120 mm (TBD)

same

Motherboard

Dimensions

114 x 175 mm max (TBD)

same

CPU

Celeon N6211 6W, 2 Cores or Pentium

J6426 - 10 W, 4 Cores

Celeon N6211 6W, 2 Cores or Pentium

J6426 - 10 W, 4 Cores

Memory

2 x SO-DIMM (2 x 16 max Dual Channel) 32

GB Total

2 x SO-DIMM (2 x 16 max Dual Channel) 32

GB Total

LAN controller

1x Intel GPY115 or 2x Intel GPY115 with

Pentium J6426

1x Intel GPY115 or 2x Intel GPY115

Expansion

1x M.2 2280/60/3042 B-Key (PCIe x 1, USB

3.0, SATA III)

1x M.2 2230 E-key (Wi-Fi) (PCIe / USB 2.0)

1x M.2 2280 M-key (PCIe x 2, SATA III)

1x M.2 2230 E-key (Wi-Fi) (PCIe / USB 2.0)

1x M.2 2280 M-key (PCIe x 2, SATA III)

Optional Add On

Module

4G/5G, CAN Bus, Coral VPU

Dual LAN

Back I/O

3x Full size DisplayPort 1.4 with CEC

support by optional add-on module

1 x Gb LAN (2 Gb LAN optional with

Pentium J6426)

2x USB 3.1 (Host Gen 2)

2x USB 2.0

Terminal Block Option - Punch out

3x Antenna punch outs

Barrel Jack with 12~24 V input

1x Kang Yang SWPL-3 (Power Cable

Retention)

Kensington Lock

3x Full size DisplayPort 1.4 with CEC

support by optional add-on module

1 x Gb LAN (2 Gb LAN optional with Pentium

J6426)

2x USB 3.1 (Host Gen 2,)

2x USB 2.0

Terminal Block Option - Punch Out

3x Antenna punch outs

Barrel Jack with 12~24 V input

1x Kang Yang SWPL-3 (Power Cable

Retention)

Kensington Lock

Front I/O

1x Power LED button (recessed power

button)

1x USB 2.0

1x USB 3.1 (Host Gen 2)

2FF-Sim slot (Mapped to the B-Key)

1x Serial port (RS-232/422/485)

1x Power LED button (recessed power

button)

2x Gb LAN

1x USB 2.0

1x USB 3.1 (Host Gen 2)

2FF-Sim slot (Mapped to the B-Key)

1x Serial port (RS-232/422/485)

ModBay (Front

plate)

2 DB9 COM ports/CANBus

3 antenna punch outs

10-pin terminal block (for 8-pin DIO)

Dual LAN RJ45

Onboard Headers &

Connectors

1x Battery on a cable

2x Serial Header, RS 232/422/485

1x USB 2.0 (1x5 header)

1x 2-Pin power for devices 5V (J32)

4 Pin in for Terminal Block Power

1x Battery on a cable

2x Serial Header, RS 232/422/485

1x USB 2.0 (1x5 header)

1x 2-Pin power for devices 5V (J32)

4 Pin in for Terminal Block Power

Auto Power On (AT/ATX Mode Select)

2x6 connector for GPIO x 8 with Interrupt

(including 1 pin power, 2 pin ground, 1

keyed)

CAN-FD Bus 2x5-pin header with key (to use

standard DB9 cable)

2x6 pin CEC header

Auto Power On (AT/ATX Mode Select)

2x6 connector for GPIO x 8 with Interrupt

(including 1 pin power, 2 pin ground, 1

keyed)

CAN-FD Bus 2x5-pin header with key (to use

standard DB9 cable)

2x6 pin CEC header

Voltage Input

rated input: 8~24V via DC jack or onboard

4-pin power header; +/- 10% tolerance

rated input: 8~24V via DC jack or onboard

4-pin power header; +/- 10% tolerance

Power Input

Barrel Jack with optional 4-pin Terminal

Block (support remote switch, Barrel Jack

covered when not in use.)

Barrel Jack with optional 4-pin Terminal

Block (support remote switch, Barrel Jack

covered when not in use.)

Power Protections

TVS for power input protection

Moderate disturbance protection with a TVS

LC filter. Alternate DC supplies should be IT

equipment rated when possible.

TVS for power input protection

Moderate disturbance protection with a TVS

LC filter. Alternate DC supplies should be IT

equipment rated when possible.

BIOS

Insyde

Operating Systems

Windows 10 IoT Enterprise, Ubuntu 20.04

LTS (TBD), Yocto

Windows 10 IoT Enterprise, Ubuntu 20.04

LTS (TBD), Yocto

Special Features

Watchdog timer

RTC

PTT in BIOS,

TPM header, Nuvoton NPCT750AABYX

Hardware Autopower on

Watchdog timer

RTC

PTT in BIOS,

TPM header, Nuvoton NPCT750AABYX

Hardware Autopower on

Mounting Options

DIN (edge mount)

Wall

VESA

Desk

DIN (edge mount)

Wall

VESA

Desk

Thermal Standards,

Subject to Change

through RFI and RFQ

steps

System Operating Temperature: 0-50C

Board Operating Temperature: 0-65C

Storage Temperature: -10-85C

Operating Humidity: 0% - 90%

System Operating Temperature: 0-50C

Board Operating Temperature: 0-65C

Storage Temperature: -10-85C

Operating Humidity: 0% - 90%

1.4 - Exterior Features and Dimensions

1.4.1 - Front I/O

The HX310 is pictured. See Section 2.1 for information on the HX330

1.4.2 - Back I/O

The HX310 is pictured with the dual LAN option.

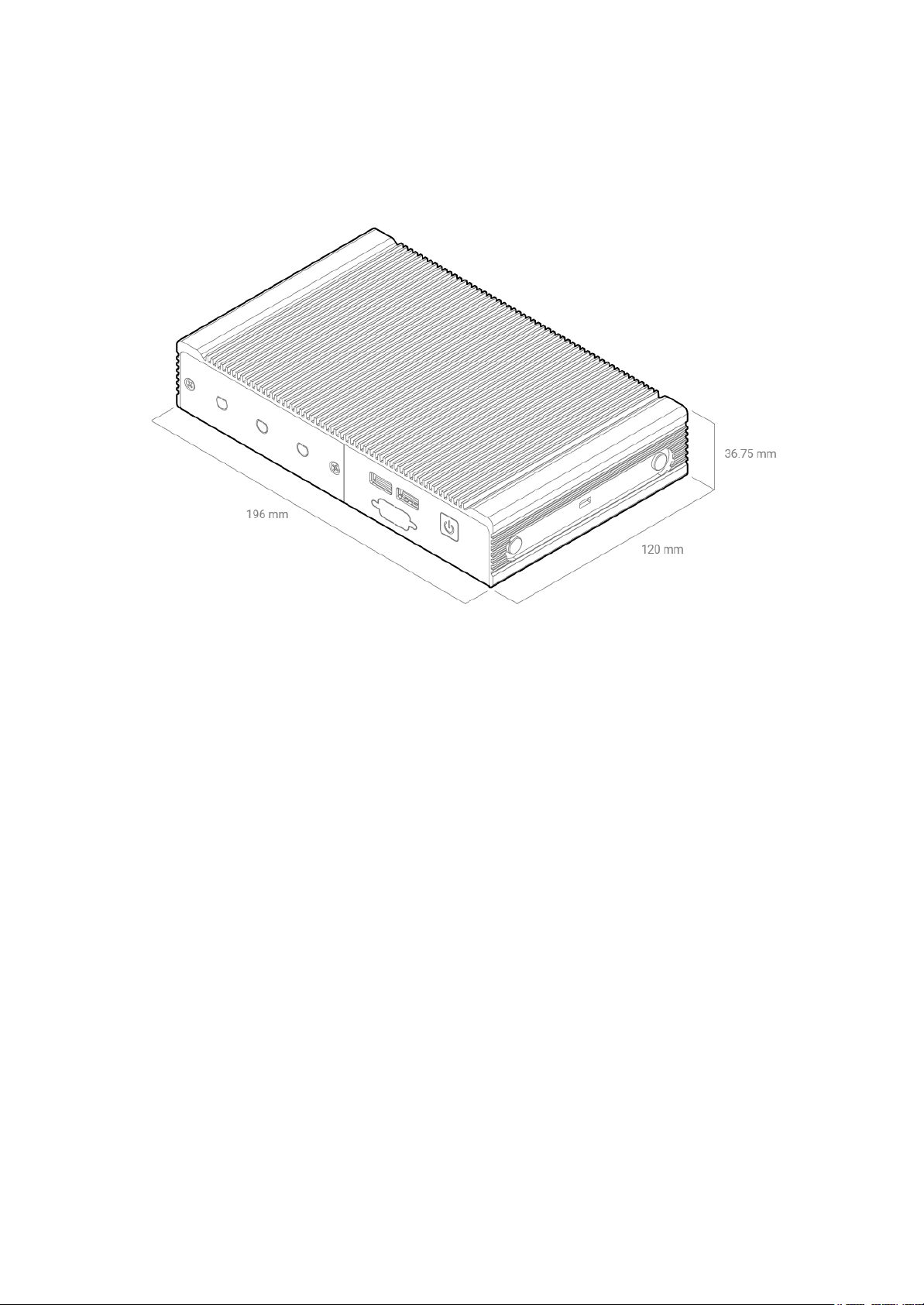

1.4.3 - Helix 300 Dimensions (HX310 / HX330)

1.5 - System Block Diagram

2 - I/O Definitions

2.1 - Front I/O Definition

The HX310 with the DIO option is pictured.

The HX330 with the additional dual LAN option is pictured.

Power Button / Power LED

The front power button can be used to turn on and off the Helix system. The power button is a

momentary contact button with a blue LED backlight used to display the status of the system. A

single press while the system is on will initiate a graceful shutdown operation from the OS. Pressing

and holding the button for 4 seconds while the system is running will cause a hard reset of the

system. The system can be woken by a single press of the power button from any state.
