Blu-ray Disc Player

Quick Start Guide

BD-SP807

Connecting an AV receiver

Make one of the following connections, depending on the capabilities of your existing device.

COMPONENT

VIDEO OUT

PRHDMI OUT

AUDIO OUT

VIDEO CONNECTIONAUDIO CONNECTION

RCA video cable

(not supplied)

HDMI-DVI cable

(not supplied)

RCA

component

video cable

(not supplied)

(Green)

(Blue)

(Red)

(Green)

(Blue)

(Red)

VIDEO

OUT

COMPONENT

VIDEO IN

RCA audio cable

(not supplied)

TV TV or Projector

AUDIO IN

VIDEO OUTPUT

(COMPONENT)

VIDEO OUTPUT

(VIDEO)

HDMI OUT

AUDIO OUTPUT

(DOWN MIX L/R)

and

and or or

or or

AV receiver

DVI IN

and

RCA video cable

(supplied)

HDMI cable

(not supplied)

RCA component

video cable

(not supplied)

RCA audio cable

(supplied)

AUDIO IN

this unit

(Green)

(Blue)

(Red)

(Green)(Blue)(Red)

AUDIO IN

VIDEO

COMPONENT

VIDEO IN

HDMI IN

Basic Connections

Make one of the following connections, depending on the capabilities of your existing device.

VIDEO CONNECTIONAUDIO CONNECTION AUDIO/VIDEO CONNECTION

Method 1 Method 2 Method 3

better picture best audio/picture

VIDEO OUTPUT

(COMPONENT)

VIDEO OUTPUT

(VIDEO)

HDMI OUT

TV standard picturestandard audio

AUDIO OUTPUT

(DOWN MIX L/R)

and RCA video cable

(supplied)

HDMI cable

(not supplied)

(Green)

(Blue)

(Red)

(Green)(Blue)(Red)

RCA component

video cable

(not supplied)

RCA audio cable

(supplied)

this unit

AUDIO IN

VIDEO

COMPONENT

VIDEO IN

HDMI IN

HDMI Connection

HDMI OUT

HDMI cable

(not supplied)

HDMI cable

(not supplied)

AV receiverthis unit TV

HDMI IN

HDMI cable (not supplied)

Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack.

(For BD/AVCHD, press [STOP C]rst.)

Note

• You cannot select the video resolutions which are not supported by the connected TV.

• In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed HDMI Cable is

recommended) and select “1080p24” if the connected TV is compatible with 1080p24 frame input.

• If no sound is output, check “HDMI Audio Out” setting. (Refer to page 38 in the Instruction Manual.)

E5KE0UD

1VMN28738 /★★★★★

SN 29400306

Printed in China

EN EN

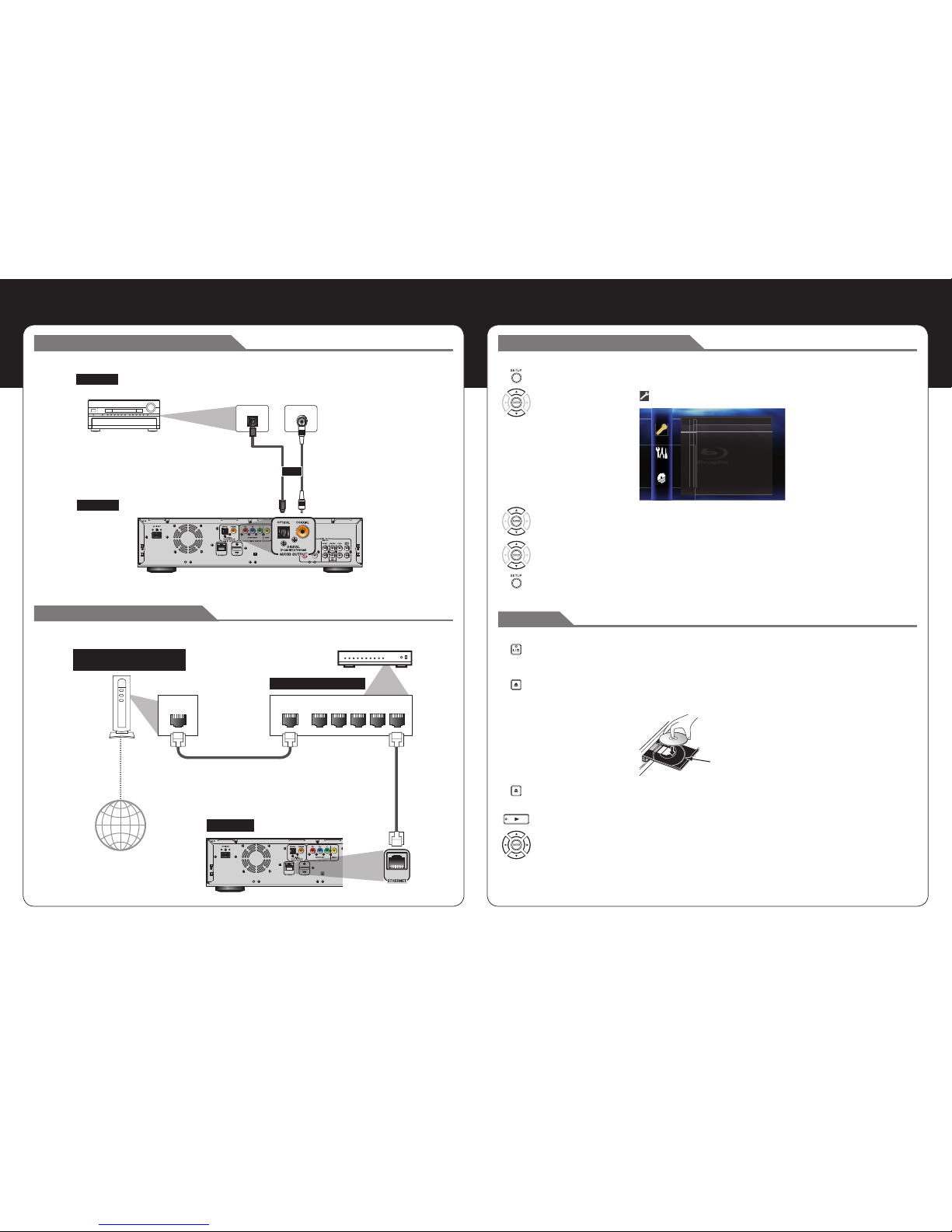

Connecting to a Digital Audio System

AV receiver / amplier

audio

digital audio

coaxial input jack

digital audio coaxial cable

(not supplied)

this unit

AUDIO OUTPUT (DIGITAL OPTICAL/COAXIAL)

digital audio optical cable

(not supplied)

digital audio

optical input jack

DIGITAL AUDIO INPUT

COAXIAL

DIGITAL AUDIO INPUT

OPTICAL

Network Connection with LAN

You can use a disc which oers BD-Live function by connecting the unit to the Internet.

(For BD-Live information, please refer to page 29 in the Instruction Manual)

LAN NALNAW

12345

Hub or broadband router

Telecommunications

equipment (modem, etc.)

Internet

LAN cable

this unit

LAN cable

Selecting the Player Menu Language

1 In stop mode, press [SETUP].

2 Use [K] or [L] to select , then press [ENTER].

Quick

Media Select

HDMI Audio Out

HDMI Video Resolution

Component Output

7.1 ch Audio Out

Disc

HDMI Multi(Normal)

Auto

480i

Multi Channel

Player Menu English

3 Use [K] or [L] to select “Player Menu”, then press [ENTER].

4 Use [K] or [L] to select your desired language, then press [ENTER].

5 Press [SETUP] to exit.

Playback

ON/STANDBY

1 Press [ I / yyON / STANDBY].

2 Turn on the TV and select the appropriate input on the TV to which the unit is connected.

OPEN/CLOSE

3 Press [OPEN/CLOSE A] to open the disc tray.

4 Place the disc on the disc tray with its label side facing up.

Align the disc to the disc

tray guide.

OPEN/CLOSE

5 Press [OPEN/CLOSE A] to close the disc tray.

It may take a while to load the disc.

• Some discs may start playback automatically.

6 Press [PLAY B] to start playback.

• For many of BD-video and DVD-video, a menu screen may appear.

• In this case, use [K/ L/

{

]to select the desired item, then press [ENTER].

To pause playback:

Press [PAUSE k].

To return to normal playback:

Press [PLAY B].

To stop playback:

Press [STOP C].

To eject the disc:

Press [OPEN/CLOSE A]to open the disc tray, then

remove the disc before turning o the unit.
