I TRODUCTIO

The One or All 4 Device Universal Remote Control (URC-4220) is

designed to remotely operate up to four home entertainment devices.It

also features intuitive and easy-to-use keys for instant control of DVD and

PVR (or DVR) components.Moreover,its sophisticated technology will

allow you to consolidate your original home entertainment remote

controls into one easy-to-use product. Advanced features include:

• Intuitive buttons to allow easy access to functions and menus on your DVD

player,PVR (or DVR),and Cable/Satellite devices

• Direct code setup for easy device programming

•Step-and-Set code search and Code Verification for an alternate way to pro-

gram devices

•ower Macro for master on/off control of all of your equipment with a single

keystroke

•Volume Lock/Unlock feature to lock or unlock the volume control to one mode

or individual modes

•Device Key Re-Assignment to remotely control a second (duplicate) device

•Channel Scan and Favorite Channel Scan for easy channel surfing

• Color-coded keys to quickly locate popular functions

• Extensive code library for popular video devices including DVD players and

PVRs (or DVRs)

The URC-4220 remote control requires two (2) new AAA alkaline batter-

ies (not included) and some easy programming to control your devices.

or best results,please read and perform all instructions listed here.Also,

keep this guide for future reference.

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 3

FEATURES A D FU CTIO S

Use the illustration below to locate features on the One or All 4 Device

Universal Remote Control (URC-4220) and then study the Key Charts (on

the next two pages) to learn how they function.

To find out what type of devices can be controlled by each device key after

programming,see the Device Table on page 6.

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 4

Key Charts

When the LED (red light) blinks,the remote control is

working and (after programming) is sending signals.

Press VCR/PVR,DVD,CBL/SAT,or TV once to select a

desired home entertainment device to control.

Also see the Device Table on page 6.

Press POWER once to turn on or off the selected device.

or master power control,see rogramming

A Master ower Macro on page 10.

Use the keypad (1~9and 0) to directly select channels

(e.g., 009 or 031).

Use TV/VID to switch the TV’s input to view TV or video

programs.

Press E TER once after entering the channel numbers on

some TVs.

Use GUIDE to display your selected device’s program

guide or setup menu.

Press ME U once to display your selected device’s main

menu.

Use I FO to display the current channel and program or

on-screen directory.

Use EXIT to exit from your selected device’s guide or

menu.

Use the Cursor Keys to move the cursor in the program

guide and menu screens.

Use SELECT (OK) to choose options from your selected

device’s menu or guide.

Press LAST once to recall the last channel.

Use FAV to scan all channels,or after programming,

to scan up to 10 favorite channels.

Use CH + (or CH -) to select the next higher (or lower)

channel.

Press SUBTITLE/CC once to display (or turn off) subtitles or

closed captions,if available on your DVD player or

cable/satellite service.

or a PVR (or DVR),press PVR ME U once to display a

list of your recorded shows.

Press MUTE once to turn the sound off or on.

Use VOL+(or VOL -) to raise (or lower) the sound vol-

ume.

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 5

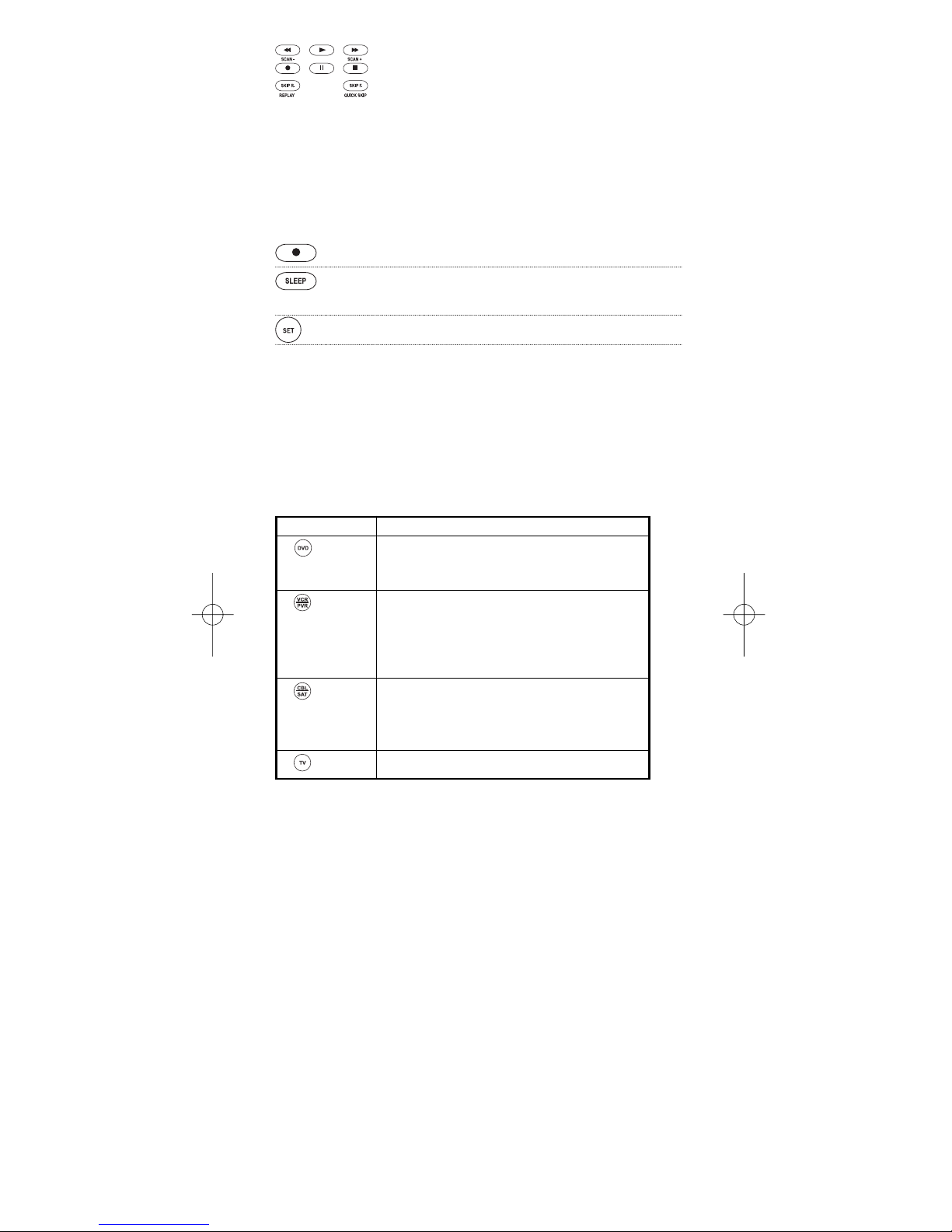

Use REW,PLAY,FWD,PAUSE,or STOP to control yourVCR,

PVR (or DVR),or DVD player.

or a DVD player,use SKIP F. or SKIP R. to view the next

or previous chapter.

or aVCR,PVR (or DVR),orVOD (if available),use SCA -

or SCA + to quickly scan forward or back through a video

program.Use REPLAY for an instant replay.Use QUICK

SKIP to advance the video program a preset amount (as

set on your device).

Press REC twice to record a VCR or PVR (or DVR) program.

Use SLEEP to set the sleep timer on a selected device if

equipped with this feature.

Use SET for all programming sequences.

Device Table

NOTE: lease refer to the table below when performing the instructions in “ rogramming

Device Control”on page 8.

After programming,the One orAll 4 Device Universal Remote Control will

be able to control the following types of devices:

DEVICE KEY CO TROLS THESE TYPES OF DEVICES

• DVD Player

• TV/DVD Player Combo

• VCR/DVD Player Combo

• VCR

• TV/VCR Combo

• TV/VCR/DVD Player Combo

• VCR/DVD Player Combo

• PVR (or DVR)

• Cable Box (or Converter)

• Cable Box/PVR (or DVR) Combo

• Satellite Receiver

• Satellite Reciver/PVR (or DVR) Combo

• Television

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 6

I STALLI G BATTERIES

1. On the remote control’s back,push the tab and lift off the

battery cover.

2. Obtain two (2) new AAA alkaline batteries.Match the +

and – marks on the batteries to the + and – marks in the

battery case,then insert the new batteries.

3. Press the battery cover back into place. The tab should

click when the cover is locked.

4. Test the remote control by pressing any mode key (e.g.,

TV).If the batteries are inserted correctly,the LED (red

light) will blink.

NOTE: When batteries need replacement, the remote control will stop operating.Remove

the old batteries and insert new ones within 10 minutes to ensure all of your programming

information is restored.

Battery Precautions: Do not mix old and new batteries.• Do not mix alkaline,standard

(carbon-zinc) or rechargeable (nickelcadmium)batteries.• Always remove old, weak or

worn-out batteries promptly and recycle ordispose of them in accordance with Local and

National Regulations.

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 7

PROGRAMMI G DEVICE CO TROL

The One orAll 4 Device Universal Remote Control is preprogrammed at

the factory to operate an RCA TV, a Toshiba DVD player,a Motorola cable

box,and an RCAVCR.To control devices other than the default brands,per-

form the following steps;otherwise skip this section:

1. Turn on a desired device (e.g.,VCR or DVD player) and, if

applicable, insert media (e.g.,cassette or disc).

NOTE: lease read steps 2 through 4 completely before proceeding.

Highlight or write down the codes and device you wish to program

before starting step 2.

2. On the remote control,press a device key once (i.e.,VCR/PVR,

DVD,CBL/SAT,or TV).

NOTE: To program control of a VCR, VR (or DVR),TV/VCR Combo,

or TV/VCR/DVD layer Combo press VCR/PVR once.After program-

ming aVCR Combo device, you will be able to control channel selec-

tion, volume,and VCR functions.

NOTE: To program control of a DVD layer, DVD layer/VCR

Combo, or TV/DVD layer Combo, press DVD once.After program-

ming a DVD Combo device,you will be able to control channel selec-

tion, volume,and DVD functions.

NOTE: To program control of a Cable Box,Cable Box/ VR (or DVR)

Combo, Satellite Receiver, or a Satellite Receiver/ VR (or DVR)

Combo, press CBL/SAT once.

3. Press and hold SET until the LED (red light) blinks twice,

then release SET.

4. Use the Manufacturer’s Codes (starting on page 36) to

locate the type of device and brand name and then enter

the first four-digit code for your device.If performed cor-

rectly, the LED will blink twice.

NOTE: If the LED did not blink twice,repeat steps 2 through 4 and enter

the same code again.

5. Aim the remote control at the device and press POWER

once.The device should turn off.If it does not,repeat

steps 2 through 5,trying each code for your brand until

you find one that works.If it still doesn’t work,try

Searching For Your Code on next page.

NOTE: If the device does not have a POWER key, press PLAY.

6. Repeat steps 1 through 5 for each device you want to con-

trol. or future reference,write down each working device

code in the following boxes:

VCR/PVR Code:

Device Type:______________

DVD Code:

Device Type:______________

CBL/SAT Code:

Device Type:______________

TV Code:

Device Type:______________

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 8

SEARCHI G FOR YOUR CODE

If your device does not respond to the remote control after trying all codes

listed for your brand,or if your brand is not listed at all,try searching for

your code.

NOTE: Before performing a code search for a DVD player or a VCR,turn on the device and

insert the required media.

or example, to search for a code for your TV:

1. On the remote control,press TV once.

2. Press and hold SET until the LED (red light) blinks twice,

then release SET.

3. Enter 9-9-1. The LED will blink twice.

4. Aim the remote control at the TV and slowly alternate

between pressing POWER and TV.Stop when the TV turns

off (after pressing POWER).If the device does not have a

Power key, you can substitute another function,such as

digits 0~9,CH +, or PLAY).

NOTE: In the search mode,the remote control will send IR codes from

its library to the selected device,starting with the most popular code

first.

5. To lock in the code,press and release SET.The LED will blink

twice.

6. To search for the codes of your other devices,repeat steps

1 through 5,but substitute the appropriate device key for

the device you are searching for.

CHECKI G THE CODES

If you have set up the remote control using the Searching ForYour Code pro-

cedure (as above),you may need to find out which four-digit code is operat-

ing your equipment. or example,to find out which code is operating your

TV:

1. On the remote control,press TV once.

2. Press and hold SET until the LED (red light) blinks twice,

then release SET.

3. Enter 9-9-0. The LED will blink twice.

4. To view the code for the first digit, press 1once.Wait 3

seconds,count the LED blinks (e.g.,three blinks = 3) and

write down the number in the leftmost box in the TV

code boxes on page 8.

NOTE: If a code digit is“0”,the LED will not blink.

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 9

5. Repeat step 4 (on the previous page) three more times for

remaining digits. Use 2for the second digit,3for the third

digit, and 4for the fourth digit.Write down the code dig-

its in the remaining TV code boxes on page 8.

6. To check for codes of other devices,repeat steps 1

through 5 (starting on the previous page),but substitute

the appropriate device key for each device you are check-

ing. Write down the device’s code digits in the appropri-

ate code boxes on page 8.

PROGRAMMI G A MASTER POWER MACRO

In its default state,the POWER key on the One or All 4 Device Universal

Remote Control will individually power your home entertainment devices

on or off.However,you can also program a Master ower Macro onto the

POWER key that will sequentially turn on or off all the devices with a single

key press.

Programming The Power Key For The Master Power Macro

1. Press and hold SET until the LED (red light) blinks twice,

then release SET.

2. Enter 9-9-5. The LED will blink twice.Then press POWER

once.

3. or the first device you want in the power-on sequence,

press its device key (e.g.,CBL/SAT) once.

4. Repeat step 3 up to three more times to add desired

devices to the power-on sequence (e.g., VCR/PVR,DVD,and

TV).

5. To save the settings and exit the program, press and hold

SET until the LED blinks twice,then release SET.

Operating The Master Power Macro

1. After programming,point the remote control at the

devices and press POWER for at least 2 seconds to sequen-

tially turn on (or off) your devices.

NOTE: When POWER is pressed for less than 2 seconds,a power com-

mand will only be sent to the currently-selected device. This allows

you to still individually power devices on or off.

2. Devices will turn on (or off) according to your

programmed sequence.

NOTE: The currently-selected device will always turn on or off first,

followed by the remaining programmed sequence.After the master

power sequence has been completed,the remote control will be set to

control the first powered-on device.

NOTE:If one or more devices does not have a POWER key, the power

off/on sequence may be slightly delayed when the remote control signals

the device(s).This action is normal.

continued on next page...

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 10

PROGRAMMI G A MASTER POWER MACRO

(continued)

Clearing The Master Power Macro

1. Press and hold SET until the LED (red light) blinks twice,

then release SET.

2. Enter 9-9-5. The LED will blink twice.Then press POWER

once.

3. Press and hold SET until the LED blinks twice,then release

SET.The Master ower Macro is now cleared.

RE-ASSIG I G DEVICE KEYS

The One orAll 4 Device Universal Remote Control can be set to control a

second PVR,VCR,or DVD player. or example,to control a TV,a cable box,

and two DVD players,re-assign the unused VCR/PVR key to operate the second

DVD player as follows:

1. On the remote control,press and hold SET until the LED

(red light) blinks twice,then release SET.

2. Enter 9-9-2. The LED will blink twice.

3. Press DVD once.

4. Press VCR/PVR once.The LED will blink twice.The VCR/PVR

key is now ready to be set up to control your second DVD

player.See rogramming Device Control on page 8.

To re-assign a secondVCR or PVR (or DVR) to the unused DVD key, repeat

steps 1 through 4 .However,in step 3 substitute VCR/PVR for DVD,and in step

4 substitute DVD for VCR/PVR.Now the DVD key will be ready to be set up as

your secondVCR or PVR (or DVR).See rogramming Device Control on page

NOTE: Only one device can be assigned to an unused device key at a time.

USI G CHA EL SCA

In the CBL/SAT or TV mode,use the FAV key to start a 3-second scan of all

channels.Or, if programmed,use the FAV key to scan only your favorite

channels to view a desired channel (see rogramming Favorite Channel Scan

on next page.)

1. Press CBL/SAT or TV once.

URC4220 man al booklet:WALLB4P man al booklet 4/13/09 3:47 PM Page 11

Otros manuales para URC-4220

Tabla de contenidos

Idiomas:

Otros manuales de Mando a distancia de One Forall

One Forall

One Forall URC-8780 Manual de usuario

One Forall

One Forall URC-7140 Hoja de especificaciones

One Forall

One Forall URC1212 Manual de usuario

One Forall

One Forall Xsight Touch Manual de usuario

One Forall

One Forall URC-6820 Manual de usuario

One Forall

One Forall URC-10820 Manual de usuario

One Forall

One Forall URC-8820 B00 Manual de usuario

One Forall

One Forall URC-7140 Manual de usuario

One Forall

One Forall URC-7200 Manual de uso y mantenimiento

One Forall

One Forall URC 7115 Manual de usuario

One Forall

One Forall Video Expert URC 4080 Manual de usuario

One Forall

One Forall KAMELEON 6 Manual de usuario

One Forall

One Forall SmartControl URC-7960 Manual de usuario

One Forall

One Forall ONE FOR ALL URC3220 Manual de usuario

One Forall

One Forall Cinema 6+ URC 6800 Guía del administrador

One Forall

One Forall 6-DEVICE PVR Manual de usuario

One Forall

One Forall Smart Contro Manual de usuario

One Forall

One Forall URC-4730 Manual

One Forall

One Forall URC-7140 Manual sencillo

One Forall

One Forall URC1030 Manual de lista de piezas

One Forall

One Forall URC-5705 Manual de usuario

One Forall

One Forall URC 5065 Manual de usuario

One Forall

One Forall URC 1910 Manual de usuario

One Forall

One Forall URC-4110 Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
