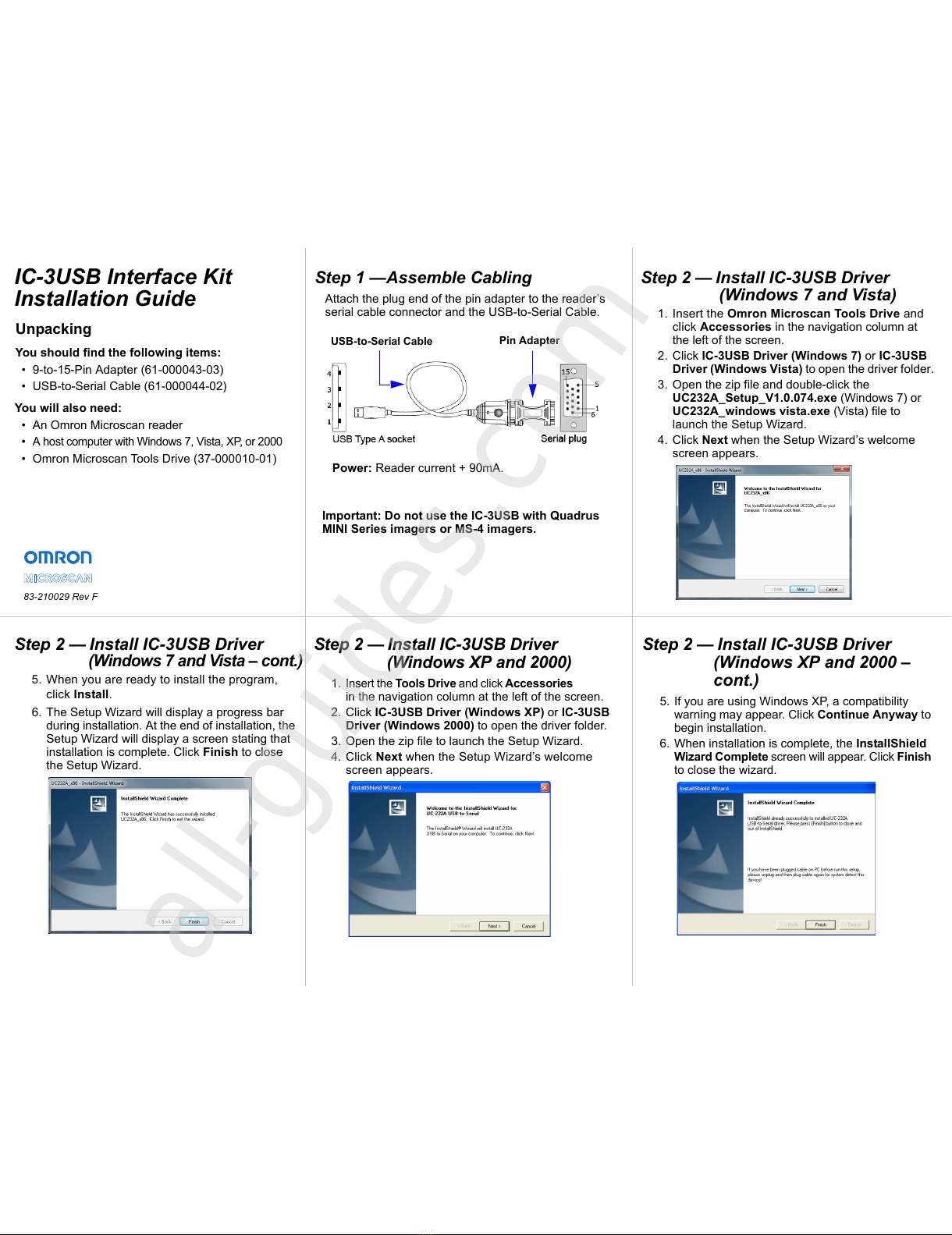

IC-3USB Interface Kit

Installation Guide

Unpacking

You should find the following items:

• 9-to-15-Pin Adapter (61-000043-03)

• USB-to-Serial Cable (61-000044-02)

You will also need:

• AnOmron Microscan reader

•

Ahost computer with Windows 7, Vista, XP, or 2000

•Omron Microscan Tools Drive (37-000010-01)

Important: Do not use the IC-3USB with Quadrus

MINI Series imagers or MS-4 imagers.

Pin Adapter

USB-to-Serial Cable

Step 1 —Assemble Cabling

Attach the plug end of the pin adapter to the reader’s

serial cable connector and the USB-to-Serial Cable.

Power: Reader current + 90mA.

Step 2 — Install IC-3USB Driver

(Windows 7 and Vista – cont.)

5. When you are ready to install the program,

click Install.

6. The Setup Wizard will display a progress bar

during installation. At the end of installation, the

Setup Wizard will display a screen stating that

installation is complete. Click Finish to close

the Setup Wizard.

Step 2 — Install IC-3USB Driver

(Windows XP and 2000)

Insert the

Tools Drive

and click

Accessories

in the navigation column at the left of the screen.

2. Click IC-3USB Driver (Windows XP) or IC-3USB

Driver (Windows 2000) to open the driver folder.

3. Open the zip file to launch the Setup Wizard.

4. Click Next when the Setup Wizard’s welcome

screen appears.

Step 2 — Install IC-3USB Driver

(Windows XP and 2000 –

cont.)

5. If you are using Windows XP, a compatibility

warning may appear. Click Continue Anyway to

begin installation.

6. When installation is complete, the InstallShield

Wizard Complete

screen will appear. Click

Finish

to close the wizard.

Step 2 — Install IC-3USB Driver

(Windows 7 and Vista)

1. Insert the Omron Microscan Tools Drive and

click Accessories in the navigation column at

the left of thescreen.

2. Click IC-3USB Driver (Windows 7) or IC-3USB

Driver (Windows Vista) to open the driver folder.

3. Open the zip file and double-click the

UC232A_Setup_V1.0.074.exe (Windows 7) or

UC232A_windows vista.exe (Vista) file to

launch the Setup Wizard.

4. Click Next when the Setup Wizard’s welcome

screen appears.

83-210029 Rev F

All manuals and user guides at all-guides.com

all-guides.com

Step 3 — Connect IC-3USB

Windows 7 and Vista

Connect the USB socket end of the IC-3USB cable

to a USB port on the host computer. A confirmation

dialog will appear, stating that the driver has been

installed and that the IC-3USB is ready to use.

Windows XP and 2000

1. Connect the USB socket end of the IC-3USB

cable to a USB port on the host computer.

2. The Found New Hardware Wizard will appear

and ask if you want to connect to Windows

Update to search for software. Select No, not

this time and click Next.

3. On the next screen, select Install the software

automatically (Recommended)

and click

4. If you are using Windows XP, a compatibility

warning may appear. Click Continue Anyway

to begin installation.

5. When installation is complete, the Completing

the Found New Hardware Wizard screen will

appear. Click Finish to close the wizard.

Step 4 — Locate Virtual COM Port

The installation wizard creates a virtual COM port that

will appear automatically whenever you insert the IC-3USB.

To verify correct installation, go to your Windows

Device Manager and click on Ports to see the virtual

port (highlighted below).

If you remove the IC-3USB from the USB port, the

associated COM port will disappear.

Caution: Do not re-insert the IC-3USB into your USB

port without first restarting the computer. Doing so may

cause the computer to lose other COM port connections

and force you to reboot your computer.

Step 5 — Start ESP

When you run ESP after installing the IC-3USB

driver, you will notice that a new COM port is now

available to ESP.

Select the highest available COM port on the list and

continue your reader setup in ESP.
