Omron V400-F Manual de usuario
V400-F
A-1V400-F
Fixed 2D Code Reader
V400-F
One step to read the Code
The V400-F achieves highest 2D Code reading perfor-
mance on challenging materials and environmental con-
ditions. In combination with the easy and intuitive usage,
the V400-F makes the difference. Pressing the teach but-
ton once is sufficient, to automatically adjust the settings
for light and filter. This enables V400-F to read any Code
correctly, independent of the quality or changing environ-
ment. V400-F is a compact system, which is available
with integrated lense and lighting or as C-Mount variant.
• Easy adjustment of parameters
• Accurate reading of Codes
• Direct print marks on any material
• Eliminate the effects of print quality and work piece
changes
Ordering Information
2D Code Readers
Accessories (Order Separately) and Cables
Monitor
Name Model Field of vision
Special Lighting Lens V400-F250 14 x 18 mm
V400-F350 31 x 42 mm
C-Mount V400-F050 Changes according to the lens
Name Model Cable length Remarks
Communications Cable V400-W23 (NPN) 5 m For connection to SYSMAC Series PLC (in-
cludes power line)
V400-W23P (PNP)
V400-W24 (NPN) For connection to an IBM PC/AT or compatible
(includes power line)
V400-W24P (PNP)
Monitor Cable V400-WM0
Name Model
LCD Monitor F150-M05L-2D*1
*1. There is no need for an external power supply when this Monitor is used.(Power
is supplied from the V400-F.)
A-2 Handheld 2D Code Reader
System Configuration
Specifications
Model V400-F050 V400-F250 V400-F350
Dimensions 40 x 50 x 75.3 mm 40 x 50 x 97.1 mm
Working distance (WD) Depends on the lens. Approx. 100 mm Approx. 200 mm
Field of vision Depends on the lens. Approx. 14 x 18 mm Approx. 31 x 42 mm
Lighting Up to two can be directly
powered.
Red LED
Image sensor 1/3" CCD
Effective pixels 640 x 480 pixels
Power supply voltage 24 VDC ±10%
Power consumption 0.5 A max.
Insulation resistance 20 MΩmin.
Withstand voltage 1,000 VAC for 1 min
Leakage current 0.25 mA max.
Noise resistance Power line: 2 kVp-p, Pulse width: 50 ns, Rise time: 5 ns, Consecutive burst time: 15 ms, Cycle: 300 ms
Applicable standards CE: EN 61326:1997, +A1:1998, +A2:2001 (EMI: Class A)
Vibration resistance 10 to 150 Hz, 0.35-mm half-amplitude (maximum acceleration: 50 m/s²)
10 times for 8 minutes each in 3 directions
Shock resistance 150 m/s² 3 times each in 6 directions
Ambient humidity Operating: 0 to 45°C, Storage: -25 to 65°C
Ambient temperature Operating/storage: 25% to 85% (with no icing or condensation)
Ambient environment No corrosive gasses
Degree of protection None IEC 60529 IP67
Weight Approx. 130 g Approx. 150 g
V400-F050
V400-F250/350
Moritex MG-Wave Series
recommended.
C mount
V400-W23/23P*
SYSMAC Series PLC
Personal computer
(Connected to the RC-232C port)
5 m
5 m
LCD Color Monitor
F150-M05L-2D
Recommended power supply: OMRON S8VS-03024
*Use only the specified cable.
Power Supply
Power Supply
V400-W24/24P*
5 m
External Lighting Connector
Lens
Lighting
Monitor Cable
V400-WM0*
POWER
POWER
SYNC
SYNC
The CS1W-CIF31 USB-Serial
Conversion Cable (mfd. by OMRON)
is recommended for connection to a
USB terminal.
A-3V400-F
V400-F

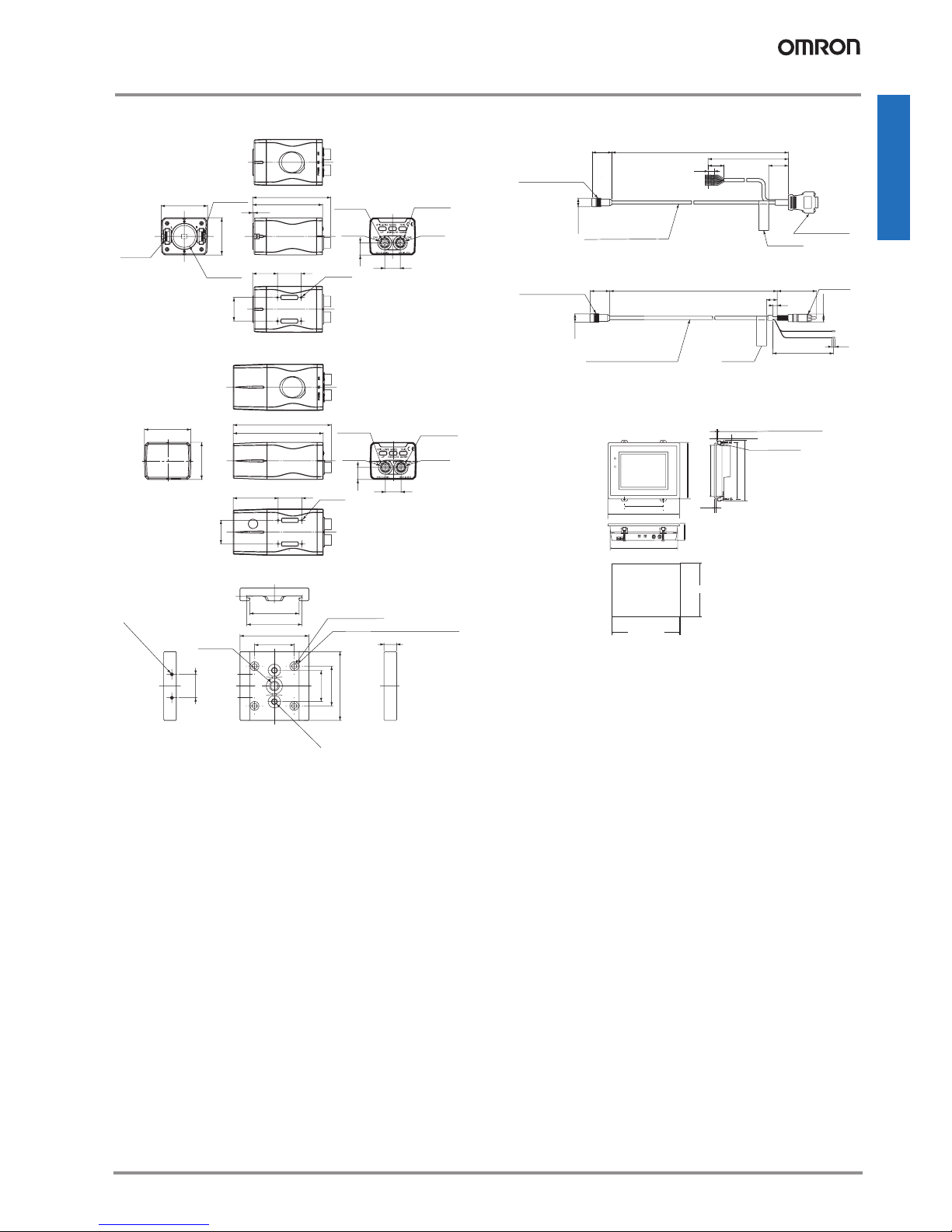

Dimensions
2D Code Readers
V400-F050
V400-F250/350
Mounting Base
Communication Cable and Monitor Cable
V400-W23/23P/24/24P
V400-WM0
LCD Monitor
F150-M05L-2D
50
(13.1)
(16.8)
25.4
75.3
(84.1)
26.8
1.6
25.4
40
11.5 dia.
Lighting
connector
(L-CH)
1"-32UN-2A
(C mount)
Power supply,
communications
connector
Monitor cable
connector
Four M3,
depth: 5
11.5 dia.
Lighting
connector
(R-CH)
50
40
(105.9)
97.1
48.6 25.4
25.4
(13.1)
(16.8)
Four M3,
depth: 5
Power supply,
communications
connector Monitor cable
connector
11.5 dia. 11.5 dia.
25.4
44
20
15
8
44
25.4
35.2
31.6
Tw o M 4
holes
Two M2, depth: 5
1/4-20UNC
Four 3.4-dia holes
Four 5.4-dia. countersunk holes, depth: 2.2
50
39.8
500
50
20
5000
D-sub 9-pin
connector
Nameplate
Vinyl-insulated round cable,
6.5-dia. with 12 conductors
15.5 dia.
12-pin round connector
70
60
40
150
10
39.8 5000
12.2 dia.
RCA jack
12-pin round connector
Nameplate
Vinyl-insulated round cable,
6.5-dia. with 3 conductors
15.5 dia.
Mounting plate thickness: 1.6 to 4.8
Mounting bracket
•Tolerance: ±1 mm
POWER
SYNC
143
(145)
(155)
132
(46 max.)
(100)
185
(5.5)
174
42.2
175.5+0.5 mm
0
133.5+0.5 mm
0
Panel Cutout
A-4 Handheld 2D Code Reader
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. Q148-E2-01-X
