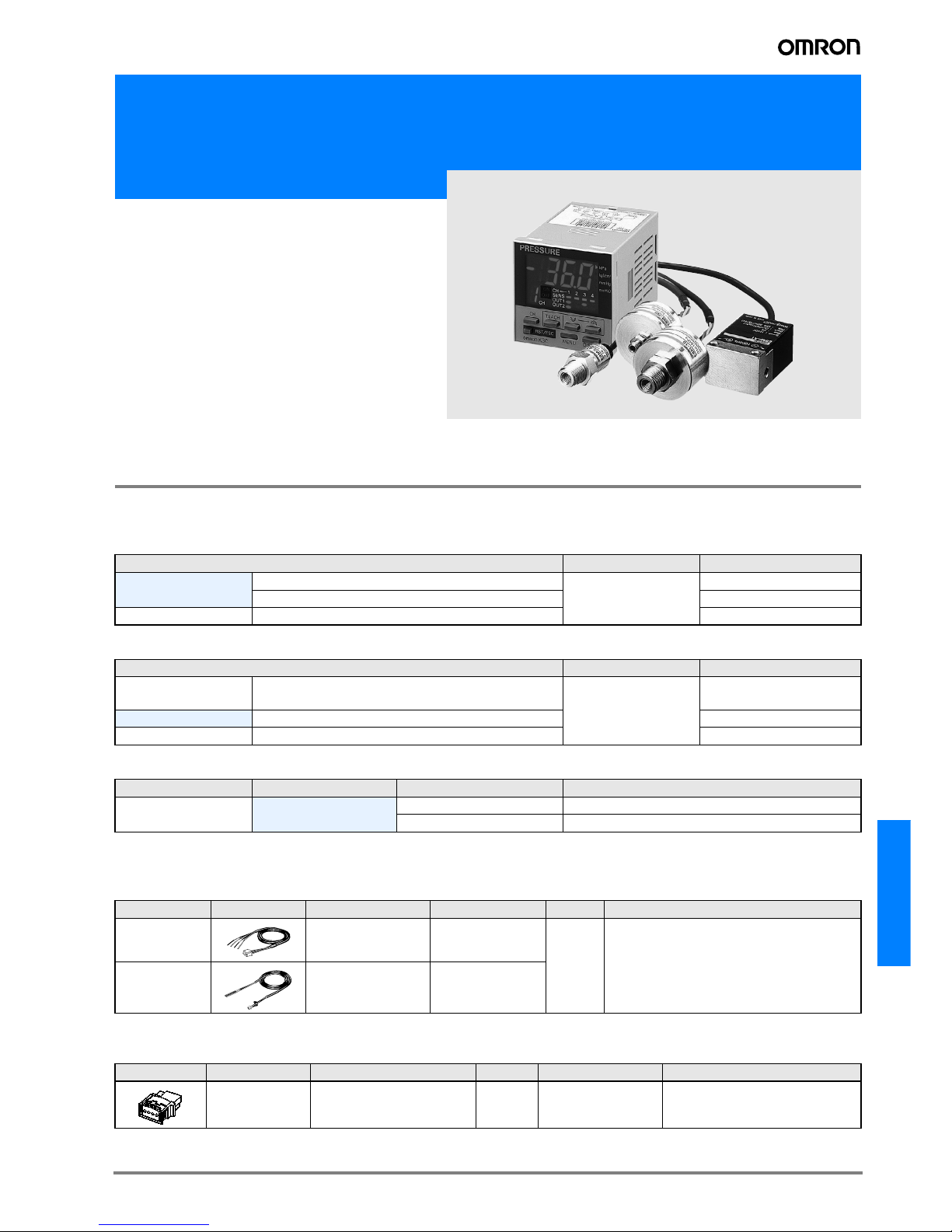

F-5E8MS/E8M

E8MS/E8M

Pressure Sensor

E8MS/E8M

Four-channel Pressure Sensor

Offering Versatile Functions and

High Precision Without Errors

• The industry’s smallest pressure sensor, compact,

lightweight - ideal for robot arms or other moving

components

• A highly sensitive minute-pressure sensor model de-

tects very small differences in air pressure

• No wiring conduit required - can be located for sens-

ing in small places

• Simple display panel for efficient space-saving,

though, providing large LEDs

• Easy sensitivity adjustment using the teach function

and channel-to-channel copy function

Ordering Information

Sensors

E8MS

E8M

Controller

Note: 1 ch model available.

Accessories (Order Separately)

Sensor I/O Connectors

Note: E8M-A1 does not require the Sensor I/O Connector.

Pin Controller Connector

Note: Orders are accepted in multiples of the minimum order unit.

Pressure range Output form Model

Positive pressure 0 to 100 kPa

Linear output 1 to 5 V

E8MS-01

0 to 1 MPa E8MS-10

Negative pressure 0 to -101 kPa E8MS-N0

Pressure range Output form Model

Minute differential

pressure sensor

Differential pressure from 0 to 1,000 Pa (0 to 0.145 psi)

between positive and negative ports Linear output 1 to 5 V

E8M-A1

Positive pressure 0 to 1 MPa E8M-10

Negative pressure 0 to -101 kPa E8M-N0

Supply voltage Output form Number of sensor inputs Model

24 VDC NPN open collector 4K3C-MP8-T1Z

2CH K3C-DP8-T1Z

Applicable type Shape Model Specifications Quantity Remarks

E8M E89-M3 (see note) 4-pin connector

with 3 m long cable

1Supplied with one XS8A-0442 Pin Controller

Connector

E8MS E89-M4 3-pin connector

with 3 m long cable

Shape Model Fitting conductors size (mm) Quantity Minimum order unit Remarks

XS8A-0442 0.14 to 0.2 110 E89-M3 and E89-M4 supplied with

one XS8A-0442 each

F-6 Proximity Sensors

Power and output connector

Adapter

Note: Orders are accepted in multiples of the minimum order unit.

Sensor and Controller Combinations

Use the Pressure Controllers in the following combinations.

The E89-M3/M4 is required when using the Sensor as a single

unit.

O:Required; X: Not required.

Sensor and Controller Connection

Model Specifications Quantity

K32-MP2W 7-pin connector with 2-m-long cable 1

Shape Model Quantity Minimum order unit Remarks

Y92F-30 110

One Adapter is attached

to the K3C Controller.

Soft Cover Hard Cover

Shape Model Shape Model

Y92A-48F1 Y92A-48

Model E89-M3 E89-M4 K3C-MP8-T1Z

K3C-DP8-T1Z K32-MP2W

E8MS-01 X O O O

E8MS-10 X O O O

E8MS-N0 X O O O

E8M-A1 X X O O

E8M-10 O X O O

E8M-N0 O X O O

K32-MP2W

E-89-M3/M4

E8MS-##

E8M-10/N0

E8M-A1

K3C

Controller output

Sensor Input

F-7E8MS/E8M

E8MS/E8M

Dimensions (Unit: mm)

Sensors

E8MS-01

E8MS-10

E8MS-N0

13 10

12 dia.

5.4

3.4

Connector: DF-13B-3P-1.25V(21)

by Hirose Electric

Pressure joint

13.4

29.7

(32.5)

8.5 5.3

5.3

(15) (8.8)

B(PT)1/8M5, 7.5-mm depth

Connection with E89-M4 Sensor I/O

Connector

E8M-A1 8

8.4

Two, M4 mounting hole

42.9

2026

42.5

Power indicator (green)

4-mm-dia., 4-conductor (40 X 0.08 dia.),

vinyl-insulated round cable,

length: 3m

8.4

M5, 7-mm-deep pressure joint (Positive) +

M5, 7-mm-deep pressure joint (Positive) -

One XS8A-0442 supplied with E8M-A1.

E8M-10 M8 hexagonal nut

M5 R1/8

Pressure joint

16.7

(37.5)

13.5

1.4

B04B-XASK Connector

20.6

Power indicator

4.9 dia.

27.5 dia.

9.2 (8.2)

(10)

Connection with E89-M3 Sensor I/O

Connector

E8M-N0

M4 hexagonal nut

Pressure joint

16.7

(31)

1.4

B04B-XASK Connector

20.6

Power indicator 4.9 dia.

27.5 dia.

9.2

(8.2)

(10)

Connection with E89-M3 Sensor I/O

Connector

F-8 Proximity Sensors

Controller

K3C-#P8-T1Z

48 X 48

(84)

663.7

14.2

44.8 X 44.8

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. F041-E2-02-X
