OMPHOBBY 60” 70E Edge 540 Kevlar Reinforced
Balsa Airplane
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
OMPHobby 60” Balsa Airplane
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
OMPHobby 60” 70E EDGE 540, not only has the low speed
stability, low stall point, excellent 3D performance, but also very
fast roll rate of traditional EDGE, and precise navigation control.
The traditional securing method of the motor base and the
landing skid base have been changed, preventing the loosening
of the ant i-grasping nut. Wing, wing fence, n ew quick
disassembly design, significantly reduced the installation time.
The horizontal tail and the fuselage are connected by a slot
Securing design, which increases the strength of the horizontal
tail and makes the installation more accurate and convenient.
Each aircraft has a metal nameplate with a unique serial number.
OMPHobby 60” Balsa Airplane
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
Parameter Specification
Item: OMPHOBBY 60”EDGE 540 Color Option
Green-Black
Red-White
Yellow-White
Orange-White
WingSpan: 1524mm(61in) Full Length: 1500mm(60in)
Flight Weight: 2.75~2.85KG
The Center of
Gravity (CG):
Approx.86-95mm
Wing Area: 42.32d㎡Wing Load: 64.98~67.34g/d㎡
Wing Angle of
Incidence:
0°
Motor Thrust
Angles:
Down 0° & Right 2.8°
Pack Dimension 130*44*22 (L*H*W)cm Gross Weight: 10KG
Servo: 13~15 Kg.cm*4 (Aileron*2,Elevator*1, Rudder*1)
Electric Power (Recommended):
Option 1: Option2:
Motor: X4120 550KV 4125 515KV
ESC: 80-100A 100A
Propeller: Eolo 15x8 Eolo 16x8
Lipos: 6s 3300mah-4000mah 6s 3300mah-4000mah
ØPackage contents (ARF version)
ØTools and Gear needed
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
OMPHobby 60” Balsa Airplane
Cowl and Engine Assembly
ØMotor Installation
1. Unscrew socket head screws from the head plate of fuselage.
2. Put the screws into motor mount and put aluminum columns
to the other side of screws.
3. Apply glue to the screws and install motor to motor holder.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
ØESC Installation
1. Attach the connected ESC to ESC holder with double-sided tape
and Secure with cable ties.
2. Tie the wires of ESC and motor with fastening strap.
Cowl Part Assembly
ØCowl , Propeller, Spinner Installation
1. Install cowl to fuselage (please take note that motor
must be in center position)
2. Remove the propeller spinner adapter and screw gasket,
install the aluminum spinner back-plate, propeller,
propeller spinner adapter and screw gasket in
succession.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
3. Secure the spinner with screws, please pay attention
that spinner must be located in the centre position of
the cowl, and spinner edge is parallel to the cowl, gap is
about 1.5mm.
4. Secure the cowl with screws, two screws for each of two
sides.secure
Landing gear Assembly
ØLanding Gear Installation
1. Unscrew hexagon screws on the landing gear plate.
2. Apply glue to hexagon screws, use it to secure the carbon fiber
landing gear to landing gear plate.
3. Put landing gear cover plate into a slot and stick it with
transparent tape.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
4. Install landing gear cuffs, Secure it with electrical tape.
5. Install wheels, Secure wheels with gasket and screw.
(Apply glue to screws)
Landing gear Assembly
6. Install wheel cowls, tighten screws.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
Tail wheel Assembly
ØTail Wheel Installation
1. Find the securing hole of the tail wheel frame, secure
the tail wheel bracket with screws.

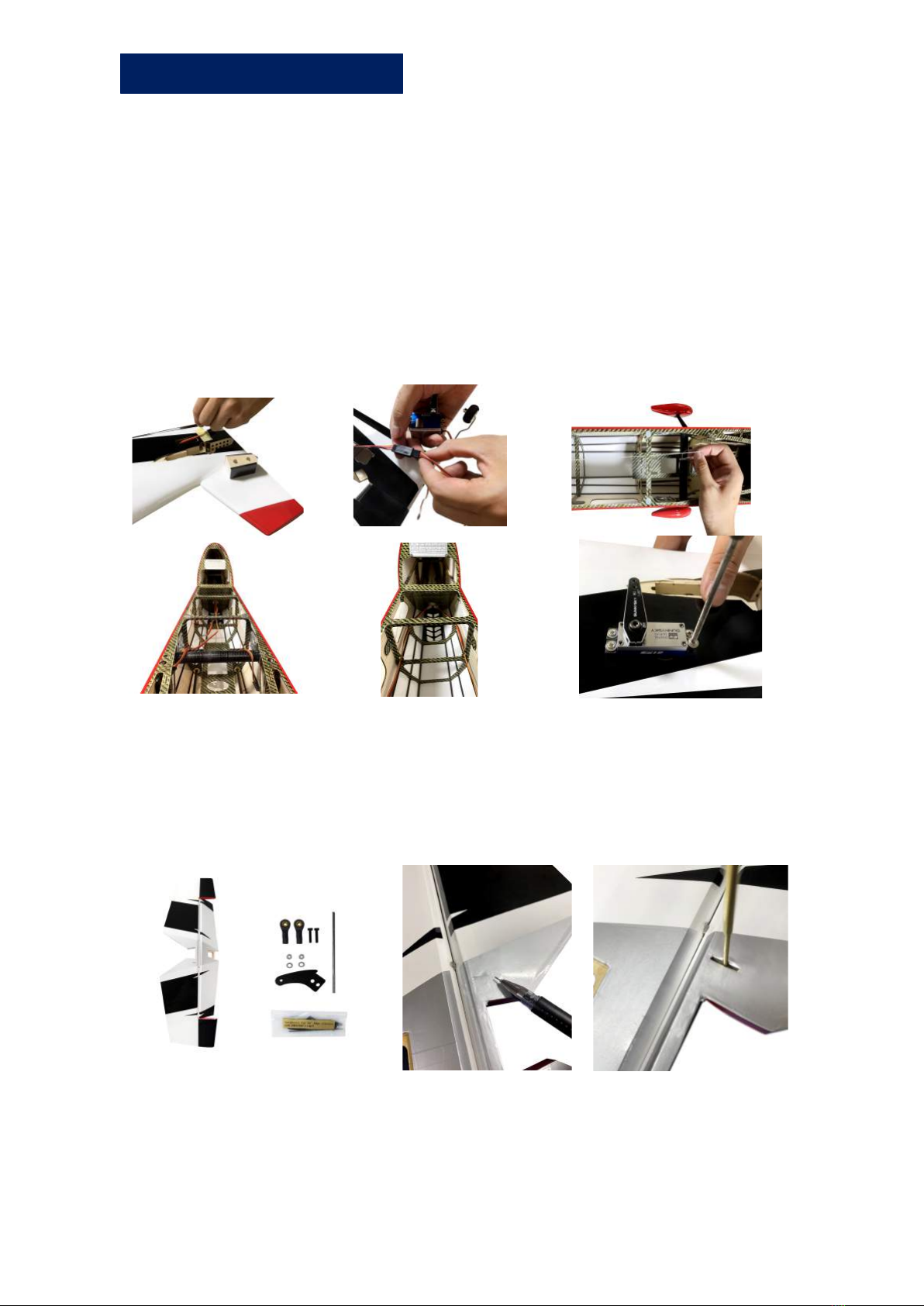

Elevator Assembly
ØElevator Servo Installation
1. Find a 60-core extension cable on the fuselage, tear off the
sticker, then connect it with elevator servo.
2. Find the white polyester thread in the fuselage frame, gently
pull it until the servo is placed into the opened servo hole.
3. Run the elevator servo extension wires through the conduit
located inside the fuselage and then place the extension wires
into frame holes.
4. Secure the servo using the screws.
ØHorizontal Tail Installation
1. Carefully locate the slot which has been made on
horizontal tail, lightly cut through the covering but not
into the balsa sheeting.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
Elevator Assembly
ØHorizontal Tail Installation
2. Use sand paper to roughen the root of control arm. Try to
insert it into the mounting slot to adjust the position at
first, then take it out, apply glue to the slot and the root
of the control arm, insert it to the slot to secure it.
3. Remove the secured plate used for filling the horizontal
tail slot, insert the horizontal tail into fuselage, please take
note that it must be fully inserted into the fuselage.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
4. Insert secured plate to fill the horizontal tail slot, use 502
gluing the gap all around the horizontal tail.
