Olympus DP22 Manual de usuario

INSTRUCTIONS

This instruction manual is for the Olympus microscope digital camera DP22/DP27.

To obtain optimum performance of this camera and to ensure the safety, study this manual

thoroughly before operating the camera and keep it on hand during operation of the camera.

Keep this instruction manual in a safe place.

For details of products included in the configuration of this system, see page 16 of this

instruction manual.

MICROSCOPE DIGITAL CAMERA

DP22/DP27

Optical Microscope Accessory

In accordance with European Directive 2002/96/EC on Waste Electrical and Electronic

Equipment, this symbol indicates that the product must not be disposed of as unsorted

municipal waste, but should be collected separately.

Refer to your local Olympus distributor in EU for return and/or collection systems available in your

country.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This device complies with the requirement of directive 2004/108/EC concerning electromagnetic

compatibility. CE marking means the conformity to this directive.

For Korea only

B급 기기 (가정용 방송통신기자재)

이 기기는 가정용(B급) 전자파적합기기로서 주로 가정에서 사용하는 것을

목적으로 하며, 모든 지역에서 사용할 수 있습니다.

Introduction ...............................................................................................................................................1

Safety precautions ..............................................................................................................................2

Handling precautions.......................................................................................................................5

1 System diagram ...............................................................................................................................16

2 Nomenclature of respective portions ...........................................................................17

3 Assembly ................................................................................................................................................18

1 Attaching camera head ....................................................................................................................................................................18

2 Connecting interface cables ........................................................................................................................................................20

4 Installation of software ...............................................................................................................21

5 Outline of image acquisition procedures ................................................................22

Table of Contents

6 Specifications .....................................................................................................................................23

7 Troubleshooting ...............................................................................................................................26

Proper selection of the power supply cord ..........................................................................................32

DP22/DP27

Introduction

Contents in this instruction manual

This Instruction Manual covers only the contents concerning the microscope digital camera DP22 and DP27. For

operating procedures according to the connection status of the microscope digital camera, refer to the Instruction

Manual according to the relevant connection status.

With this microscope digital camera DP22/DP27 attached to the Olympus UIS2/UIS series microscope using the

camera adapter, the image from the optical microscope can be acquired.

Using this microscope digital camera in combination with microscopes of other manufacturers may not obtain the

complete optical performance.

Safety precautions

CAUTION - Installation of microscope -

Do not allow the height of the microscope higher than 1 m.

In order to prevent overturning, do not combine accessories to allow the height of the microscope higher than 1 m.

If the product is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition, the

product may also be damaged. Always use the equipment according to this instruction manual.

The following symbols are used in this instruction manual.

CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

CAUTION

: Indicates a potentially hazardous situation which, if not avoided, may damage

the equipment or other property.

} : Indicates commentary (for ease of operation and maintenance).

DP22/DP27

CAUTION - Electric safety -

Always use the power cord provided by Olympus.

Without using the correct power cord, the electric safety and the EMC (Electro-Magnetic Compatibility) performance of

the device cannot be assured.

Always connect the grounding terminal.

Connect the grounding terminal of the power cord and the grounding terminal of the power outlet. If the device is not

grounded, our intended electric safety and EMC performance of the device can not be assured.

Do not use the device near the source of strong electromagnetic radiation.

The proper operation may be interfered. The electromagnetic environment should be evaluated prior to operation of

this device.

In case of emergency, unplug the power cord.

In case of emergency, be sure to remove the power cord from the power cord connector on the product or from the

wall power outlet. Install the product at the location where you can reach the power cord connector or the wall power

outlet at hand to remove the power cord quickly.

Be sure to turn OFF the power of the device before connecting/disconnecting cables.

CAUTION - Protection for burns -

Do not keep touching the camera head for long hours.

The camera head generates heat after long hours of use. Be careful not to allow this device to touch your skin for long

period of time to avoid the low temperature burns.

CAUTION - Protection for electric shock -

Do not insert any tools or metal fragments in the air vents of the device.

Doing so could cause electric shock or failure of the product.

Keep the power cord and cables well away from the lamp housing.

If the power cord and cables contact a hot area of the lamp housing, they could melt and cause electric shock.

DP22/DP27

Intended use

This device is intended to be used for the capture of digital images, but not for clinical diagnostic purposes.

1. This equipment is a precision instrument. Handle it with care and avoid subjecting it to a sudden or severe impact.

Also note that this equipment is not waterproof.

2. Never disassemble any part of the product. Otherwise, failure could be caused.

3. Do not use the camera in areas where it may be subjected to direct sunlight, high temperature and humidity, dust

or vibrations.

(For use environment, refer to "6 Specifications"on 25 page.

4. The cables are vulnerable to bend or twist. Do not apply excessive force. When connecting cables, make sure of

the orientation to insert them.

5. If cables are connected incorrectly, it may cause a failure of the product. Make sure that the cables are connected

to respective modules correctly before operating the product.

6. For operating the PC, refer to the instruction manual provided with the PC in use. Pay attention to the precautions

and warnings, etc. in the manual.

7. It is recommended to install the antivirus software to the controller to protect from the computer virus. Note,

operations of the software cellSens/OLYMPUS Stream may be slower depending on the antivirus software.

Cautions in use

Handling precautions

Image data

1. The recorded image data may be lost (destroyed) in the following cases. Olympus is not liable for the loss

(destruction) of recorded data.

· When the user or a third party carried out a repair to the product.

· When the system is terminated or the power cord is unplugged while PC or the control box is recording or

deleting (initializing).

· When the cable is disconnected while acquiring still images or movies.

· When the data have been kept saved in the recording media such as USB memory beyond the data storage

life (approx. from one to several years).

· When the product failed.

2. If following phenomena occur even though the camera is working properly, images cannot be restored and the

damages are not compensated.

· The image is abnormal.

· File properties such as file names, file date, etc. are abnormal.

· The image was lost.

} In general, as there is a data storage lifetime in the recording media, such as USB memory, HDD, CD-R, DVD-R, etc.,

the saved files may be lost after several years.

} The image data may be lost (corrupted) unexpectedly, so make frequent backups of the data you acquired.

OLYMPUS shall have no liability for any damage (including compensation for the corrupted image data) from the

use or incapable use of this product.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microscopio de Olympus

Olympus

Olympus IX81-ZDC2 Manual de usuario

Olympus

Olympus U-D5BDREMC-VA3 Instrucciones de funcionamiento

Olympus

Olympus BHS Manual de usuario

Olympus

Olympus MX63 Manual de usuario

Olympus

Olympus V60 Manual de usuario

Olympus

Olympus BX61 Manual de usuario

Olympus

Olympus Fluoview FV1000 Manual de usuario

Olympus

Olympus IX71 Manual de usuario

Olympus

Olympus CX40 Manual de usuario

Olympus

Olympus BX-RLA2 Manual de usuario

Olympus

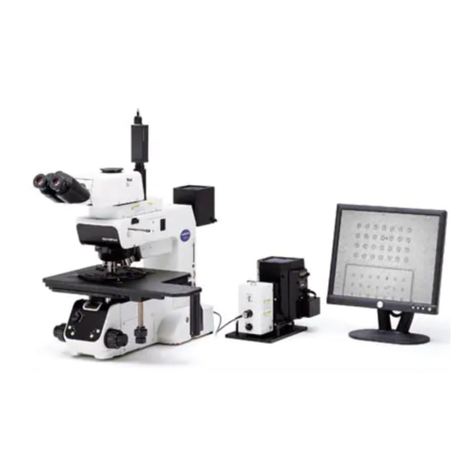

Olympus U-UVF248A Manual de usuario
