EN 30

Thank you for purchasing our product.

Please read this instruction manual carefully and use the product

safely and correctly. Please keep this instruction manual for

reference after reading it.

Wrong use may cause damage to the camera inside the Case due

to water leakage, and repair may not be possible.

Before use, perform an advance check as described in this manual.

Introduction

 Unauthorized copying of this manual in part or in full, except for private

use, is prohibited. Unauthorized reproduction is strictly prohibited.

 OLYMPUS CORPORATION shall not be responsible in any way for lost

proﬁ ts or any claims by third parties in case of any damage occurring

from improper use of this product.

Please read the following items before use

This Case is a precision device designed for use at a water depth within

45 m. Please handle it with suﬃ cient care.

 Please use the Case correctly after suﬃ cient understanding of the

contents of this manual in regard to handling of the Case, checks before

use, maintenance, and storage after use.

 OLYMPUS CORPORATION shall in no way be responsible for

accidents involving immersion of a digital camera in water. In addition,

expenses incurred for damage of internal materials or loss of recorded

contents due to water entering the camera will not be compensated.

Please address these possible damages by insuring your camera at

your own discretion before use.

 OLYMPUS CORPORATION shall not pay any compensation for

accidents (injuries or material damage) at the time of use.

EN 31

For safe use

This instruction manual uses various pictographs for correct use of the

product and to prevent danger to the user and other persons as well as

property damage. These pictographs and their meanings are shown

below.

WARNING This shows the content regarding assumption of

possibility of human death or severe injury in case

of handling with disregard of this indication.

CAUTION This shows the contents regarding assumption of

possibility of injury or damage to property in case of

handling with disregard of this indication.

WARNING

1 Keep this product out of the reach of babies, infants, and children.

There is the possibility of occurrence of the following types of

accidents.

• Injury by dropping onto the body from a height.

• Injury from parts of the body getting caught in parts which open and

close.

• Swallowing of small parts, O-ring, silicone grease and silica gel. Please

consult a physician immediately if any parts have been swallowed.

• Triggering of the ﬂ ash in front of the eyes may cause permanent vision

impairment etc.

2 Do not store with a battery in the digital camera housed in this

product. Storage with a battery inserted may lead to leakage of the

battery liquid and ﬁ re.

3 If leakage of water should occur with a camera installed in this

product, quickly remove the battery from the camera. There is the

possibility of ignition and explosion from generation of hydrogen gas.

4 This product is made of resin. There is the possibility that injuries

may be caused when it becomes broken because of strong impact

with a rock or other hard objects. Please handle it with suﬃ cient

care.

EN 32

CAUTION

1 Do not disassemble or modify this product. This may cause water

leakage or defect. In case of the loss of image data caused by

disassembly, repair or modiﬁ cation etc. by any party other than

those appointed by OLYMPUS CORPORATION, we shall bear no

responsibility for damage.

2 Use or storage of the product at the following locations may cause

defective operation, trouble, damage, ﬁ re, internal clouding, or water

leakage. This should be avoided.

• Locations reaching high temperatures such as those under direct

sunlight, in an automobile, etc.

• Locations close to ﬁ re

• Water depths in excess of 45 m

• Locations subject to vibrations

• Locations with high temperature and humidity or with severe

temperature changes

• Locations with volatile substances

3 Opening and closing at locations with much sand, dust, or dirt may

impair the waterproof characteristic and cause water leakage. This

should be avoided.

4 This product is not a case to soften impacts to the camera inside the

product. When this product with a digital camera inside it is subjected

to impacts or heavy objects are placed onto it, the digital camera

may become damaged. Please handle it with suﬃ cient care.

5 Do not use the following chemicals for cleaning, corrosion

prevention, prevention of fogging, repair or other purposes. When

these are used for the Case directly or indirectly (with the chemicals

in vaporized state), they may cause cracking under high pressure or

other problems.

EN 33

Chemicals which cannot

be used Explanation

Volatile organic solvents,

chemical detergents

Do not clean the Case with alcohol, gasoline,

thinner or other volatile organic solvents or with

chemical detergents etc. Use pure water or

lukewarm water.

Anticorrosion agent Do not use anticorrosion agents. The metal parts

use stainless steel or brass. Wash with pure

water.

Commercial defogging

agents

Do not use commercial defogging agents. Always

use the speciﬁ ed desiccant silica gel.

Grease other than

speciﬁ ed silicone grease

Use only the speciﬁ ed silicone grease for the

silicone O-ring, as otherwise the O-ring surface

may deteriorate and water leakage may occur.

Adhesive Do not use adhesive for repairs or other purposes.

When repair is required, please contact a dealer or

a service station of OLYMPUS CORPORATION.

6 Jumping into the water with the Case in your pocket or in your hand,

throwing the Case from a boat or ship into the water, and other rough

handling may cause water leakage. Please handle with suﬃ cient

care, when handing it over from hand to hand etc.

7 If the Case interior or the camera should become wet because of

water leakage, etc., immediately wipe oﬀ all moisture and contact

your local service station or dealer.

8 Please remove the O-ring when traveling by air. Otherwise air

pressure may make it impossible to open the Case.

9 For safe use of the digital camera in this product, please read the

“Instruction Manual” for the digital camera carefully.

0 When sealing this product, take suﬃ cient care that no foreign matter

gets caught at the O-ring and the contact surface. It is caused for

water leakage.

a When you install your digital camera in the Case after taking pictures

in the water, it may cause the loss of transparency of the lens inside

even if you insert the supplied silica gel to the Case when drying the

camera is insuﬃ cient.

EN 34

Contents

Introduction ............................................................................30

Please read the following items before use ...........................30

For safe use ...........................................................................31

1. Preparations..................................................................36

Check the contents of the package .......................................36

Names of the parts ................................................................. 37

Using the accesories .............................................................39

Install the hand strap .............................................................. 39

Installation and removal of the monitor hood .......................... 40

Mounting and removing the lens cap ...................................... 40

Prepare the digital camera ....................................................41

Attach the antireﬂ ective ring to the digital camera .................41

2. Advance check of the Case .........................................42

Advance check before use ....................................................42

Remove the O-ring ................................................................42

Remove any sand, dirt, etc. ...................................................43

How to Apply Grease to the O-ring ........................................43

Install the O-ring ....................................................................44

3. Install the digital camera..............................................45

Open the Case ......................................................................45

Load the digital camera .........................................................46

Make sure the camera is loaded properly .............................47

Seal the Case ........................................................................48

Check the operation of the loaded camera ............................48

Waterproofness test...............................................................49

4. Connecting the underwater ﬂ ash ................................50

5. Taking Pictures Under Water .......................................52

Underwater shooting modes ..................................................52

How to select the shooting scene ..........................................53

Locking AF during underwater shooting ................................53

EN 35

6. Handling After Shooting ..............................................54

Wash the Case with pure water .............................................54

Wipe oﬀ any waterdrop ..........................................................54

Take out the digital camera ....................................................55

Dry the Case ..........................................................................55

7. Maintaining the Waterproof Function .........................56

Remove the O-ring ................................................................56

Remove any sand, dirt, etc. ...................................................56

How to Apply Grease to the O-ring ........................................56

Install the O-ring ....................................................................56

Replace consumable parts ....................................................56

8. Appendix .......................................................................57

Speciﬁ cations ........................................................................57

EN 36

1. Preparations

Check the contents of the package

Check that all accessories are in the box.

Contact your dealer if accessories are missing or damaged.

• Optical ﬁ ber

cable adapter

(PFCA-03)

• Silicone grease

(PSOLG-2) • Silica gel 1g (5)

(SILCA-5S)

• Monitor hood

(PFUD-08)

(on the body)

• Monitor hood

strap

• Lens cap

(PRLC-14)

• Hand strap

• O-ring remover • Antireﬂ ective ring

(POSR-053)

• Instruction manual

(this manual)

• Case body

(Check that the O-ring (POL-058) is installed)

After purchase, be sure to do maintenance even in brand-new condition. Neglecting the

maintenance may become the cause of water leakage.

For how to maintenance the case, refer to P.56.

• Optical ﬁ ber

cable insertion

slot cap (2)

EN 37

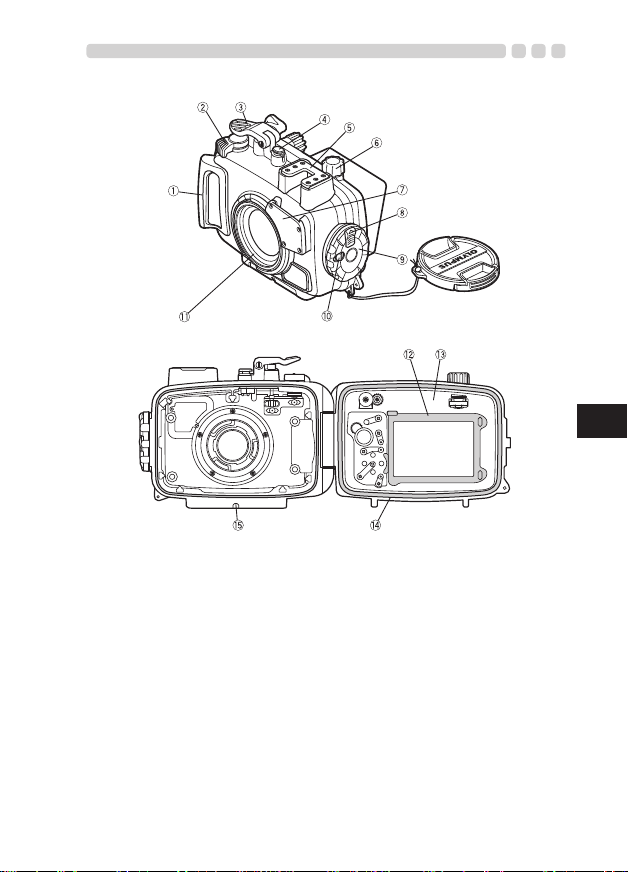

Names of the parts

1 Palm grip

2 Zoom lever

3 Shutter button

4 ON/OFF button

5 Accessory mount

*6 LOG lever

7 Diﬀ user

8 Slide lock

9 Open/close dial

0 Lock knob

a Lens ring

b Monitor inner hood

c Rear lid

d O-ring

e Tripod seat

EN 38

f INFO button

g Control dial

h R(Movie) button/

Select button

i Mode dial

j q(Play) button

k F button/Arrow pad C

l # button/Arrow pad D

m OK/AFL button (*1)

n jY button/S button/

Arrow pad E

o MENU button

p Mode function call

button/Arrow pad F

q Monitor window

r Monitor hood

(*1) During Underwater Snap, Underwater Wide-Angle, Underwater-Macro, Underwater

HDR shooting mode or Underwater Microscope the OK/AFL button functions as the AF

LOCK button (P.53).

Memo:

The Case operation parts marked by * correspond to the operation parts of

the digital camera. When the operation parts of the Case are operated, the

corresponding functions of the digital camera will operate. For details of the

functions, refer to the instruction manual for the digital camera.

Otros manuales para PT-059

Tabla de contenidos

Otros manuales de Accesorios para cámaras de Olympus

Olympus

Olympus BCL-1580 Manual de usuario

Olympus

Olympus E-System VF-2 Manual de usuario

Olympus

Olympus PT-027 Manual de usuario

Olympus

Olympus SHV-1 Manual de usuario

Olympus

Olympus PT-041 Manual de usuario

Olympus

Olympus WINDER 2 Manual de usuario

Olympus

Olympus DM-550 Manual de usuario

Olympus

Olympus Li-50B - Stylus 1030 SW 10.1MP Digital... Manual de usuario

Olympus

Olympus PPO-E01 Manual de usuario

Olympus

Olympus Waterproof Case PT-17 Manual de usuario

Olympus

Olympus PT-E01 Manual de usuario

Olympus

Olympus PT-046 Manual de usuario

Olympus

Olympus PT-033 Manual de usuario

Olympus

Olympus B-HLD30 Manual de usuario

Olympus

Olympus CAMEDIA FL-BK01 Manual de usuario

Olympus

Olympus PT-E02 Manual de usuario

Olympus

Olympus HLD-4 Manual de usuario

Olympus

Olympus EX-25 Manual de usuario

Olympus

Olympus PT-034 Manual de usuario

Olympus

Olympus PT-054 Manual de usuario

Olympus

Olympus PT-024 Manual de usuario

Olympus

Olympus OM-MOUNT PHOTOMICRO ADAPTER L Manual de usuario

Olympus

Olympus PPO-E03 Manual de usuario

Olympus

Olympus BLL-1 Manual de usuario

Manuales populares de Accesorios para cámaras de otras marcas

Viltrox

Viltrox EF-NEX Instrucciones de instalación

Calumet

Calumet 7100 Series CK7114 Manual de usuario

Ropox

Ropox 4Single Series Manual de usuario

Cambo

Cambo Wide DS Digital Series Instrucciones de funcionamiento

Samsung

Samsung SHG-120 Manual de usuario

Ryobi

Ryobi BPL-1820 Manual de operación

Aegis

Aegis ABL-36020P Manual de usuario

Pentax

Pentax Data Back Fc Manual de usuario

Fantasea

Fantasea EyeGrabber F Series Manual de usuario

Honeywell

Honeywell HDZ20HD Manual de usuario

EGO

EGO BA1400T Manual de usuario

Sima

Sima SRW-62 Manual de usuario

Shape

Shape A7SSMKIT Manual de usuario

Slide Kamera

Slide Kamera HST-2 Manual de usuario

Power works

Power works 2902613 Manual de usuario

SES

SES SE-2047-2 Manual de usuario

Starlite

Starlite OctoDome nxt Manual de usuario

Custom Brackets

Custom Brackets Digital PRO-M Manual de usuario
