8x8 Sunshed Garden Shed

Assembly Manual

Plywood Roof - T&G Model

Page 1

Revision #7

Feburary 8, 2022

Some of the safety and usage measures you may wish to consider include:

-snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep the

snow off the roof(s).

-if the product is elevated, any structural and building code requirements are solely the customer's

responsibility, and should be abided by.

-in high or gusty wind conditions it is advisable to keep the structure securely grounded.

-have a regular maintenance plan to ensure screws, doors, windows and parts are tight.

In the event of a missing or broken piece, simply call the Outdoor Living Today Customer

Support Line @ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our

commitment to you to courier replacement parts, free of charge, within 10 business days of

this notification. Replacement parts will not be provided free of charge after the 30 day grace

period.

Reversible

Roof Lines

Thank you for purchasing

an 8x8 SunShed Garden

Shed from Outdoor Living

Today. Please take the

time to identify all the

parts prior to assembly.

Customer agrees to hold Outdoor Living Today Partnership and any Authorized Dealers free of

any liability for improper installation, maintenance and repair.

Safety Points and Other Considerations

Our products are built for use based on

proper installation and normal residential

use, on level ground. Please follow the

instruction manual when building your

shed and retain the manual for future

maintenance purposes.

Roof Area: 50 sqft

What to do before my Shed arrives?

Become familiar with this assembly manual and determine if you can•

complete the project yourself or will require a professional contractor.

Clear the construcon area and ensure a clear pathway for delivery when•

the freight company arrives. Remove all debris: roots, grass, rocks, etc.

Excavate the site. Contact your local ulies company to ensure there are no•

gas or electric lines buried in the area before digging.

Decide on the type of foundaon you will be using:•

 Concrete slab, or

 46 inches of crushed gravel with paver stones or 4x4 stringers.

You can ﬁnd the footprint for your shed on Page 3 of your Assembly Manual.

If doing the assembly yourself, have all the necessary tools ready to go and in•

working condion. A list of required tools can be found aer the parts list.

One helper is recommended to assist in construcng your shed.•

It generally takes two people over two days to assemble a shed. If you’re

hiring a contractor, their rate should be in line with that duraon of work.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 2

Foundation Types for 8x8 Garden Shed

Concrete Slab Foundation:

- Slab must be at least the same size as assembled floor frame (91” x 96”) or larger.

- 6” Deep foundation.

- 1.2 Cubic Yards of concrete required.

- A concrete slab will have the longest durability out of your foundation options.

Once level, a concrete slab is the easiest surface to build on.

Gravel with 4x4 Pressure Treated Stringers:

- Excavate at least 6” deep, and 6” wider than floor frame on each side.

- 1.5 Cubic Yards of gravel required, approximately 14 wheelbarrows.

- 5 - 4x4 Pressure Treated Stringers 8’ long required.

- Evenly spaced, with one at each end of floor frame.

Saves money on materials, easy to level and work with.

Gravel with Patio Paver Stones:

- Excavate at least 6” deep, and 6” wider than floor frame on each side.

- 1.5 Cubic Yards of gravel required, approximately 14 wheelbarrows.

- 25 patio pavers (8” x 8” or larger).

- Center patio paver stones underneath floor runners and underneath seams in floor joists.

Patio paver stones are widely available from most landscape stores.

96”

91”

96”

91”

6” Deep

108”

103”

5 - 4”x4”x96”

25 Patio Stones

Floor Frame

Concrete Foundation Completed Foundation

18 3/8”

Gravel Foundation Gravel Foundation with treated stringers Completed Foundation

Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation

108”

103”

Shed Front Shed Front Shed Front

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 3

Thank you for purchasing our 8x8 Sunshed Garden Shed.

Please take the time to identify all the parts prior to assembly.

Parts Lists: 8x8 Sunshed

A. Floor Section

2 - 45 1/2” x 75” - Floor Joist Frames (Interior Joist Unattached)

2 - 45 1/2” x 21” - Floor Joist Frames (Interior Joists Attached)

4 - 1 1/2” x 3 1/2” x 71 3/4" - Floor Joists

2 - 45 3/8” x 74 7/8” - Floor Plywood

2 - 45 3/8” x 20 7/8” - Floor Plywood

5 - 1 1/2” x 3 1/2” x 60” - Floor Runners - Long

5 - 1 1/2” x 3 1/2” x 31” - Floor Runners - Short

B. Wall Section

Main Wall Panels

3 - 45 1/2” x 84” - Solid Wall Panels

3 - 1 1/2" x 2 1/2" x 45 1/2" Wall Plates

2 - 45 1/2” x 84” - Window Wall Panels

2 - 45 1/2” x 75” - Double Window Walls

1 - 12” x 73” - Narrow Wall Panel

1 - 31 1/2” x 72” Dutch Door - 2pcs (42” and 30” high)

1 - 45 1/2” x 9” - Wall Extendor

2 - 3/4” x 3 1/2” x 60” - Horizontal Wall Extendor Brace (front/back)

2 - 3/4” x 3 1/2” x 30” - Horizontal Wall Extendor Brace (front/back)

2 - 3/4” x 3 1/2” x 65 3/4” - Horizontal Wall Extendor Brace (side)

2 - 3/4” x 3 1/2” x 20 1/4” - Horizontal Wall Extendor Brace (side)

Door Jamb, Header & Door Stops

1 - 1 1/2” x 3 1/8” x 73” - Vertical Door Jamb

1 - 2” x 3 1/8” x 45 1/2” - Door Header

2 - 1/2” x 2 1/2” x 72” - Interior Vertical Door Stops

Gable Walls

2 - Front and Rear Gable Walls - Triangular shaped

(33 3/4 degrees on 1 side / 22 1/2 degrees on other)

2 - Triangular Gable Trims - (L/R) Found stapled to inside of Gable in

each corner - see step 63)

Top Wall Plates

1 - 3/4” x 2 1/2” x 86” - Double Window Wall Side - 22 deg. cut on edge

1 - 1 1/2” x 2 1/2” x 86” - Solid Wall Side - 33.75 deg. cut on edge

2 - 3/4” x 2 1/2” x 73 3/4” Front & Rear

(33 3/4 degrees on 1 end / 22 1/2 degrees on other)

C. Rafter Section

6 - 1 1/2” x 3 1/2” x 77 3/4” - Long Roof Side Rafters (22 1/2 degrees)

6 - 1 1/2” x 3 1/2” x 37 3/4” - Short Roof Side Rafters (33 3/4 degrees)

1 - 3/4” x 4 5/8” x 33 1/2” - Ridge Boards (long roof side)

1 - 3/4” x 4 5/8” x 57 1/2” - Ridge Boards (long roof side)

1 - 3/4” x 5 1/8” x 33 1/2” - Ridge Boards (short roof side)

1 - 3/4” x 5 1/8” x 57 1/2” - Ridge Boards (short roof side)

3 - 3/4” x 3 1/2” x 72 - Gussets (angle cut on both ends)

Soffits

2 - 1/2” x 3 1/2” x 45 1/2” Short Roof Side

2 - 1/2” x 4 1/2” x 45 1/2” Long Roof Side

D. Roof Section

4 - 3/4” x 1 1/2” x 34” - F&R Roof/Facia Nailing Strips

4 - 5/8” x 48” x 37 1/2” - Plywood Roof Panels

8 - 3/4” x 3/4” x 44 1/2” - Polygal Support Cleats

2 - 1/2” x 2 1/2” x 41 1/2” - Mid Ridge Caps for Polygal

1 - 1/2” x 3 1/2” x 41 1/2” - Center Ridge Cap for Polygal

2 - 1/2” x 5 1/2” x 41 1/2” - Outside Caps for Polygal (w nailing strip)

4 - 20 1/4”w x 44” - Polygal Panels

E. Miscellaneous Section

Bottom Skirting

8 - 1/2” x 4 1/2” x 45 1/4” - Bottom Skirting

Corner & Wall Trim

2 - 5/8” x 2 1/2” x 75” - Filler Trim Short Wall Side

2 - 5/8” x 2 1/2” x 84” - Filler Trim Tall Wall Side

2 - 1/2” x 4 1/2” x 82” - Corner Trim Short Wall Side

2 - 1/2” x 4 1/2” x 87” - Corner Trim Tall Wall Side

3 - 1/2” x 2 1/2” x 87” - Front Door Trim & Rear Wall Seam Trim

3 - 1/2” x 2 1/2” x 88” - Tall Wall Vertical Trim

3 - 1/2” x 2 1/2” x 79” - Short Wall Vertical Trim

1 - 1/2” x 2 1/2” x 32” - Horizontal Door Trim (above Door)

1 - 1/2” x 2 1/2” x 8 3/4” - Horizontal Narrow Wall Trim (above Wall)

2 -1/2” x 4 1/2 x 85 1/2” - Hor.Gable Trim (F & R) Angle cut 1 end

Facia Trim

2 - 3/4” x 3 1/2” x 79 1/4” - Angle Cut Front/Rear Facia Trim

2 - 3/4” x 3 1/2” x 38 3/4” - Angle Cut Front/Rear Facia Trim

4 - 3/4” x 3 1/2” x 47 7/8” - Side Facia

2 - Facia Detail Plates (sides)

2 - Pentagon Detail Plates (front and back)

Flower Boxes

4 - Flower Box Kits

Potting Shelves

2 - Long Potting Shelves

1 - Short Potting Shelf

3 - 1 1/2” x 2 1/2” x 38” - Potting Shelf Legs

Window Inserts/Trim

2 Reg. Window Inserts

4 Small Window Inserts

2 Reg. Window Trim Pkg: 1 x 24 1/16” top, 3 x 23” bottom & sides

4 Sm. Window Trim Pkg: 1 x 19 7/8” top, 2 x 21 7/16” sides,

1 x 18 3/4” bottom

**Miscellaneous Pieces

1 pc - Spare Wall Siding

2 pcs - Spare Shingles - use to shim door, etc.

Note: All Trim, Facia and Bottom Skirting pieces will be positioned rough face out when installed.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 4

8x8 SUNSHED-PLYWOOD-HARDWARE SHEET

2 1/2”

2”

1 1/4”

3/4”

2”

3/4”

1 1/2”

Pull Handle

Ridge Board

Connector x 2

Silver

Square Drive Bit

Hardware Kit (Provided)

Safety Glasses Work Gloves

Safety Equipment Required (Not Provided)

Ladder

Screw Gun/Drill Tape Measure

Hammer Wood Clamp

Level

Tools Required (Not Provided)

1/8” Drill Bits

Drop Latch

Silver Barrel Bolt

Silicon Caulking

Caulking Gun

Simpson Strong

Tie (Roof) x 8

Finishing

Pliers

x270

x98

x26

x412

x38

x16

x455

Black Headed

Black Headed 22.5° Single

Rafter Bracket x2

Tee Hinge x4

22.5° Double

Rafter Bracket x1

33.5° Single

Rafter Bracket x2 33.5° Double

Rafter Bracket x1

1” x30

Silver

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 5

Regular Maintenance & Tips to prolong the life of your shed.

Before/During Assembly:

1.) Paint each face and edge of your plywood floor with a latex exterior paint.

2.) Caulk wall seams if gaps appear.

3.) Caulk around window framing.

4.) Caulk perimeter between floor plywood and bottom wall plate.

5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.

6.) Caulk edge of door threshold (if applicable).

7.) Optional: Install a Sill Gasket between floor runners and foundation.

8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.

Routine Maintenance:

- Routinely check all fasteners are tight (ex. Door Hinges, Nails)

- Brush off dirt from walls.

- Brush off snow from roof regularvly.

- Routinely remove needles and leaves from roof.

Painting/Staining

- Your cedar shed, if left untreated, will weather to a silvery grey colour.

- Painting or staining your structure is highly recommended and will prolong the life of your shed.

- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can be

—stained or painted immediately.

- Consult your local paint store for the best paint or stain for cedar.

- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)

1. 2. 3.

4. 5. 6.

Sill Gasket

Floor Joists

Floor Runner

Foundation

Floor Plywood

Wall Panel

Small gap between

T&G siding and

window trim

Dab of caulking

Strip of roofing paper over

apex of roof panels

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 6

A. Floor Section

Plywood Floor

Large (2)

Floor Joist

Frames

Large (2)

Long Floor

Runners (5)

Plywood Floor

Small (2)

Exploded view of all parts necessary to

complete Floor Section. Identify all parts

prior to starting. Note: Floor Footprint is

96” wide x 91” deep.

Concrete Pad

(optional foundation method)

Floor Joist

Frames

Small (2)

2. Lay out Floor Joist Frames as illustrated

above. There are 2 larger and 2 smaller Frame

Sections. The Footprint for the floor when

attached together will be 96” wide x 91” deep.

3. Attach each large and small floor joist

frames together with 6 - 2 1/2” screws per

section.

Short Floor

Runners (5)

1. Lay out Large Floor Joist Frame and 2 Floor Joists. Position Joists equally in Floor Joist Frame.

Use Small Floor Joist Frame as a template to determine joist position. Position Joist flush with

framing. When correctly positioned, attach each Joist with 4 - 2 1/2” screws.

Flush

with

framing

Front

You can find the

Square Drive Bit

for the screws in

with the Hardware

Kit Bag.

If reversing roof and walls,

also reverse Floor Frames.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 7

4. Complete all large and small

frame attachments. Screw each

completed section together with

8 - 2 1/2” screws.

5. When completed, your floor footprint

should be 96” wide x 91” deep.

6. Attach Floor Runners to completed floor frame.

There are 2 floor runners per 91” side and 5

completed runners in total. Use 6 - 2 1/2” screws

per Runner.

7. Make sure Runners are flush

with floor framing and not

overhanging.

8. Complete all Floor Runners, alternating long and short.

Front

91” deep

96” wide

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 8

9. With Floor Runners attached, carefully flip the floor over and place on your foundation.

Caution: you will need 2 people to assist you. Be careful when laying floor down not to bend or twist

floor. When in place, level floor completely.

Concrete Slab

Foundation

10. Position Plywood Floor pieces (4) on top

of completed Floor Joists. Plywood will sit

slightly back from outside edge of Floor Joist

Framing. The Plywood is cut slightly

smaller than floor framing. Keep plywood

seams tight.

Hint: Use a chalk

line to mark location

of floor joists to

determine screw

placement.

11. With Plywood positioned correctly on floor framing,

attach with 1 1/4” screws. Use screws every 16”.

plywood

pushed together

at seams.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 9

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com

Page 10

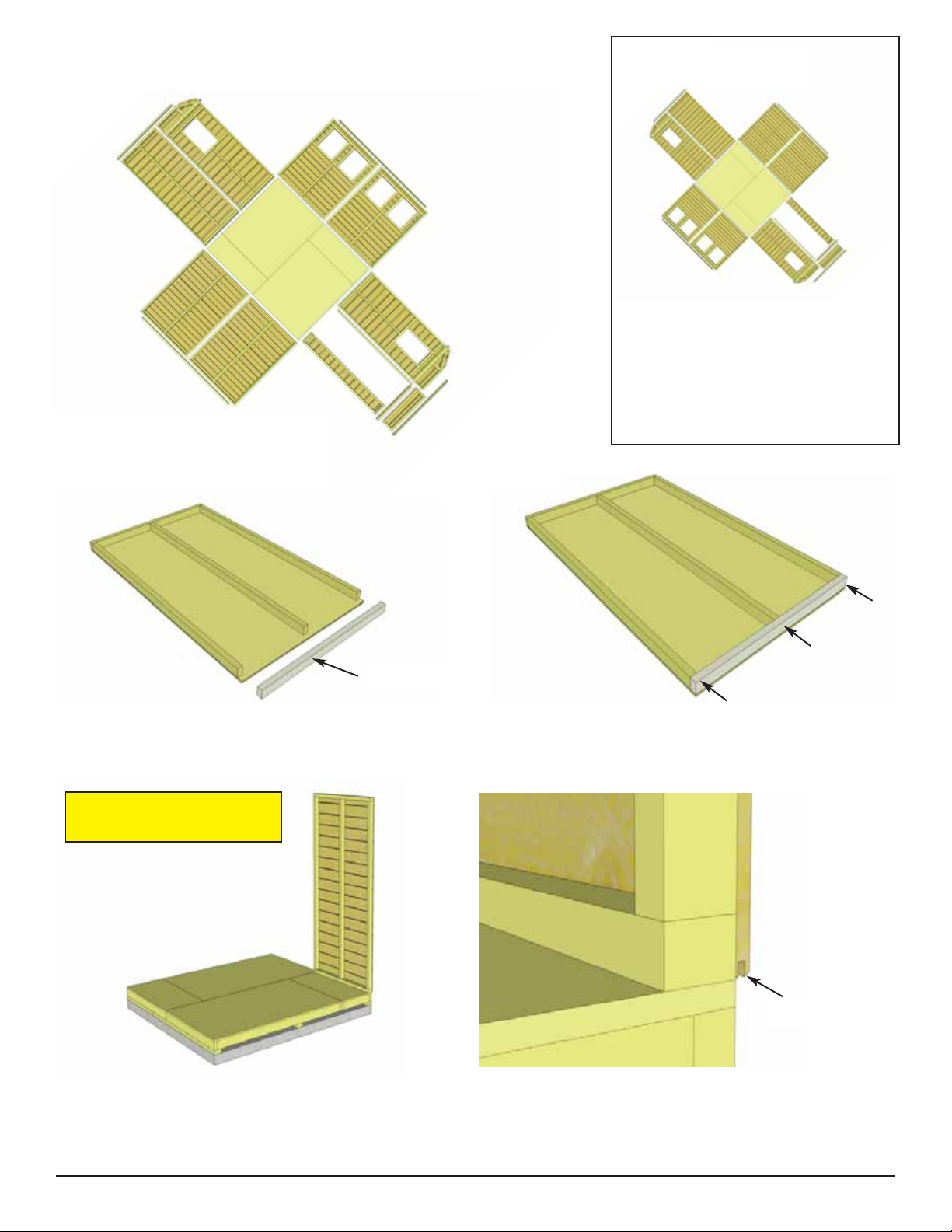

Rear of shed

Rear

Front

Double Window Wall Side

Wall Plate

13. Locate 3 Solid Wall Panels and 3 Wall Plates. Attach Plates to bottom of wall studs of each

wall panel with 3 - 2 1/2” screws. Position so plates are flush with framing.

5/8” overhang

Do Not Attach Walls To

Floor until Step 24.

12. Locate and position all wall

panels around the perimeter of

completed Floor Section.

Rear

Front

B. Wall Section

Important: If you prefer Polygal

Roof Panels on left side when

facing front, position wall panels

as illustrated above. Follow

general assembly directions but

note opposite orientations.

Front

Left Side Polygal Roof

Panel Orientation

14. Position a Solid Wall Panel upright on the floor. Make sure wall siding is facing upright with a

groove at the bottom of the wall. See window walls for correct direction of siding. Position panel so

wall framing is flush with floor joist framing. Siding of wall will overhang the floor by approximately 5/8”.

Tabla de contenidos

Otros manuales de Casa de jardín de OLT

OLT

OLT PEN99 Manual de usuario

OLT

OLT SpaceSaver SS124-SLIDER-METAL-FJ Manual de usuario

OLT

OLT 8x12 Santa Rosa Manual de usuario

OLT

OLT SunShed SSGS1216-AK-Ply Manual de usuario

OLT

OLT 6x6 Maximizer Storage Shed Manual de usuario

OLT

OLT 8x4 SpaceSaver Garden Shed Bevel Model with Plywood... Manual de usuario

OLT

OLT CB128-AK-METAL Manual de usuario

OLT

OLT 12x16 SunShed Manual de usuario

OLT

OLT 9x6 Cabana Manual de usuario

OLT

OLT SunShed Garden Shed SSGS1212-FJ-METAL Manual de usuario

OLT

OLT GardenSaver GS124-SLIDER-METAL-FJ Manual de usuario

OLT

OLT GS84-SLIDER-CEDAR-FJ Manual de usuario

OLT

OLT Santa Rosa SR812-FJ-Cedar Manual de usuario

OLT

OLT 8x8 Pine SpaceMaker Manual de usuario

OLT

OLT SunShed Garden Shed SSGS1212-AK-METAL Manual de usuario

OLT

OLT 12x16 Sunshed Garden Manual de usuario

OLT

OLT GardenSaver GS84D-Plywood Manual de usuario

OLT

OLT 12x8 Cabana Garden Shed Manual de usuario

OLT

OLT SSGS1212 Manual de usuario

OLT

OLT GS84-D-FJ Manual de usuario

OLT

OLT GS84-S Manual de usuario

OLT

OLT CB96-AK-METAL Manual de usuario

OLT

OLT 84-D-BASE-BEV Manual de usuario

OLT

OLT 8x4 GardenSaver Manual de usuario

Manuales populares de Casa de jardín de otras marcas

Mercia Garden Products

Mercia Garden Products 0628LOG181-V4 Manual de usuario

Lemeks

Lemeks Palmako PA120-5930-6 Manual del instalador

Gartenhaus-King

Gartenhaus-King Valery Manual de usuario

Rion

Rion Hobby Gardener Manual de usuario

POD

POD Camping 480 Manual de usuario

Select

Select ISAAC E9682 Manual de usuario

Mercia Garden Products

Mercia Garden Products 01DTSHPWOR1010DDOW-V4 Manual de instrucciones

Palmako

Palmako Saale Manual de usuario

Lemeks

Lemeks Palmako Kira EL16-3623 Manual del instalador

Mercia Garden Products

Mercia Garden Products 0644LOG186-V4 Manual de instrucciones

Palmako

Palmako Roger FR44-5953-2 Manual de usuario

Mercia Garden Products

Mercia Garden Products 03DTSHHP1206HGD4MW-V1 Manual de instrucciones

WAR-LOCK

WAR-LOCK GARDENSHED Skillion Series Manual de usuario

Pergola kits USA

Pergola kits USA PREMIUM VINYL PAVILION Manual de usuario

G21

G21 Boston 882 Manual de usuario

Lemeks

Lemeks Palmako Grace PM56-4529 Manual del instalador

Mercia Garden Products

Mercia Garden Products 03WES0808-V1 Manual de instrucciones

Shire

Shire Salcey Manual de usuario
