Olorin VC190D Manual de usuario
Display User’s Manual
VistaLine & MedicLine
VC190D, MC190D &
MC200D
www.olorin.com
2
3
1. Preface 4
2. Product features 5
3. Intended use of this product 6
4. Intended markets 6
5. Safety Precautions 7
6. Regulatory Tests and Certications 10
7. Test of medical power adapter 11
8. FCC Information 11
9. Warranty and Limitation of Liability 12
10. Product identication 12
11. Cleaning of the Product 13
12. Disposal of the Product 13
13. Getting started 14
14. How to assemble Panel and Base unit 15
15. Mounting on a wall or LCD arm 16
16. Rotating the LCD Panel 17
17. Connection Method 18
18. Input signals 19
19. How to Operate 20
20. OSD Adjustment Functions 21
21. PerfectLum Calibration Software 24
22. Applicable Signal Timings 25
23. Specications 26
24. Special Considerations for LCD Panels 30
25. Longer life for your monitor 32
26. Troubleshooting 33
27. Reference 34
28. Contact information 35
Contents
4
Preface
Thank-you for purchasing this Olorin LCD Monitor.
To get the full benet of the features that this product offers you, it is important that you read this
User’s Manual which, among other things, will explain how to properly install and operate the
monitor. In this user guide there are detailed product specications, explanations for many of
the technical terms used in this manual as well as information on regulatory approvals, cleaning,
service instructions, warranty terms, waste disposal and some other useful information.
It is of utmost importance that you carefully read and follow the safety instructions and
safety notices included in this User´s Manual.
Failure to comply with these instructions could in some instances cause bodily harm to yourself
or other persons and/or un-repairable damage to the product or to other attached devices /
appliances.
Throughout this manual the following symbols are used to guide you to the proper use of the
product:
Keep this Users Manual in an easy accessible and safe place for future reading of it. If you lose
your copy, you may request a new one by contacting us at our internet home page www.olorin.
com.
Olorin reserves the right to change the specications of this product without any notice. Such
changes could cause the operation of the product to be slightly different from the descriptions in
this copy of the Users Manual.
Windows and MS-DOS are trademarks and/or registered trademarks of Microsoft Corporation in
the United States and/or other countries. VESA is a trademark of the Video Electronics Standard
Corporation. All other product and company names are trademarks of their respective owners.
Copyright © 2012
Symbols
Expresses DO NOT.
Person could be at risk of
severe injury or death.
Person or properties could be
at risk of injury or damage.
Expresses MUST DO.
Warning
Caution
5
Product Features
Standard delivery
The product is normally delivered in 2 main parts, which, when mounted together, form a normal
monitor for desktop use.
• a LCD panel with TFT picture element which also contains the lamps for the backlight along
with necessary electronics and cable connectors as well as power connector. These parts are
mounted inside a plastic housing.
• a base unit (stand) to be mounted at the VESA holes at the back of the panel.
For certain applications, when the monitor is to be placed on a wall or built into a desk, then only
the LCD panel part is delivered. In these cases it is quite often delivered with the plastic housing
removed in what is called “open frame”. Certain other options or special mounting components
might have been pre-installed.
When the monitor has been delivered as open frame there is a greater risk to come
in contact with electric parts which could cause harm to yourself or your property. It
should therefore only be handled with special precaution and only by properly trained
service personnel.
Power management
This unit has power management system. The monitor will go into “sleep mode”, where power
consumption is less than 5W, whenever either horizontal or vertical signals or both disappear.
High performance panel element
The color LCD panel used in this product is specically designed for advanced applications such
as viewing digital X-ray images. ALS (Automatic Luminance Stabilization) circuits gives a stable
picture for the life of the product. ALC (Automatic Luminance Control) circuits will automatically
adjust for the decay of the backlight lamps.
Front sensor for calibration and quality assurance
The monitor is equipped with a front sensor used for stabilizing the calibrated luminance. It is also
used for un-attended calibration and quality checks. The monitor is bundled with PerfectLum™
calibration and quality assurance software.
Preloaded DICOM curve
The monitor has a preloaded Barten DICOM curve for use as a plug-n-play X-ray review display.
Ergonomic features
To ease eyestrain on the user, the panel features excellent viewing angles. In addition, the base
unit can be adjusted to t the individual user’s need by adjusting the height and tilt of the monitor.
VESA® standard wall / arm mountings
The unit is compliant with VESA’s 100mm-pitch (75 mm for 12” and 15” monitors) for hanging
tools. The base unit is detachable; the panel can be mounted on a wall or arm according to user’s
enviroment.
Warning
6
Intended use of this product
This product has been designed and developed for use as a visual output device for direct
connection to a Personal Computer and PC compatible devices as well as other video generating
equipment, such as cameras. The product will accept industry standard video signals coming over
cables with industry standard type connectors. The product will operate and function properly in
normal ofce environment and under conditions as specied in the Product Specication chapter.
Attempting to use the product for any other purpose than its intended use or
connecting to other devices could cause damage to the product and / or to other
property and equipment. There could also be a risk of bodily harm to yourself or other
persons.
The product operates on 12V (some on 24V) DC power and must be connected thru the AC 100-
240V, 50-60Hz to12V DC adapter (or 24V DC adapter) which is included with the product. Power
to the adapter should be coming from an ordinary grounded AC 100-240V power outlet.
Never try to connect the product to any other power source than the 12V/24V adapter
delivered together with the product. There would be a risk of electrical shock which
could cause bodily harm, possibly even death. Most certainly such electrical shock will
damage the product.
The product can also be delivered with certain options installed. Such options could be touch
panel or other special accessories.
All other uses of the product, including but not limited to attempts such as;
• connection to other types of power sources
• using other types of mounting or placement of the product
• connection to other devices than those for which the monitor has been
designed.
will void any and all warranties of the product and the manufacturer will not be
responsible or libel for any bodily injury or property damage either directly or
indirectly caused by such non-intended use of the product.
Warning
Warning
Intended Markets
Olorin products are developed primarily for sales and installation in countries within Europe and
North America. The products comply with all regulations and directives issued by the European
Union and by authorities in the United States.
The products are not intended for sales and/or installation in countries, which require
other or additional mandatory approvals than those required by the authorities of the
European Union or the United States.
Consult the product identication label or product specication for regulatory approvals that apply
to this product.
Warning
Warning
7
Safety Precautions
It is important that you read through the following notes of Safety Precautions to avoid any
damage to the Product, yourself or other property. Following these precautions will also ensure
that you get the best use of the Product.
DO NOT OPEN THE PRODUCT. There are no user serviceable parts inside. Because
of high voltage inside there is a risk of bodily injury or death. Only authorized and
qualied service personnel should maintain the product.
Cautions when setting up
Do not put the unit on unstable places (on a wonky table or in an inclined
place), which might cause injuries if it falls down.
Do not place the unit where it is subject to direct sunlight or near any
heating device. This could cause overheating resulting in damage to
the product and eventually causing a re.
Cautions when using
Do not put the unit in such a place where there is bad air circulation,
dust, humidity, oily smoke or steam. It may lead to a re.
Do not put any metal materials or ammable foreign objects into the
unit through the vent holes. It may lead to electric shock and/or re.
Immediately disconnect the unit from the power outlet and contact your
local re-seller for service.
Scratching or hitting with hard objects may damage the unit.
Warning
Caution
Warning
Caution
Caution
Caution
8
Warning
Safety Precautions
Do not use the unit turned over on its back, put on its side, or upside
down. These positions may cause the heat that the unit generates to
accumulate inside the unit. Such overheating can cause damage to the
product and eventually start a re.
When using the unit for several hours, you should take a 10-15 minute
break every hour to reduce eyestrain. Failure to do so could cause injury to
your eyes.
Abnormal circumstances
In case of any abnormality such as odor, sound, and overheat taking
place, immediately turn off the power and disconnect the plug from
the outlet. Continuing to use the unit under such condition may lead to
electric shock and/or re. For assistance contact your local re-seller.
In the event of thunder, immediately turn off the power and
disconnect the plug from the outlet. Lightning strikes may cause
electric shock and/or re.
In the event of broken panel and leaking liquid crystal, do not inhale,
swallow, or touch the liquid crystal. It may cause you to get poisoned
and/or having a skin irritation. If you put it in your mouth, immediately
gargle with water and contact a doctor to get a checkup. In case of
getting it on your skin and/or cloth, wipe it off with alcohol and rinse
them.
Warning
Caution
Warning
Warning
9

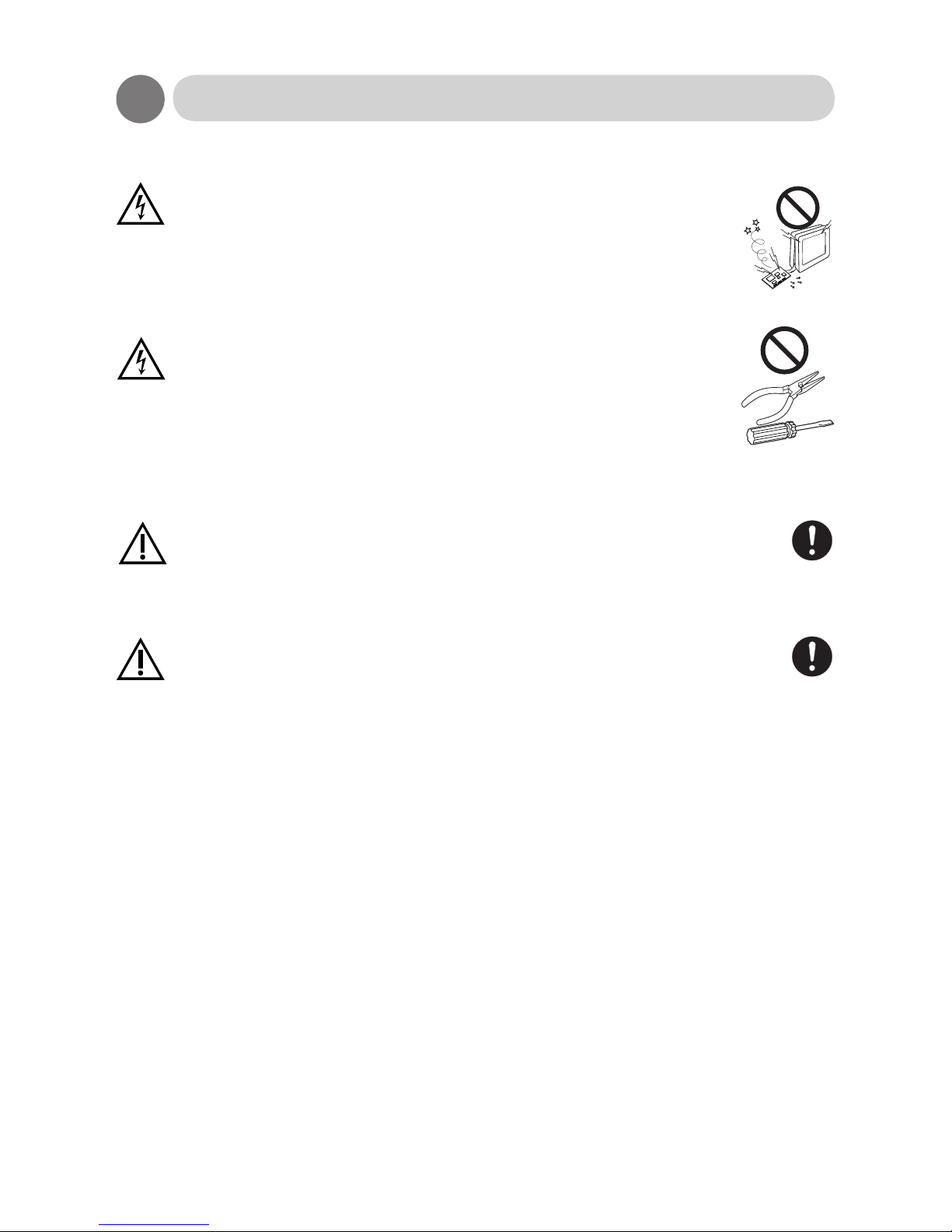

Safety Precautions
Maintenance
Do not remove the plastic cabinet. There are high voltage parts inside
that may lead to electric shock. Ask a re-seller for adjustment and
inspection.
Do not remodel or repair. It may lead to re, electric shock, or injuries.
Clean the dust inside the display once a year. The dust that accumulates
inside the unit may lead to re. Ask a re-seller for adjustments and
inspection.
Disconnect the plug from the outlet when you do not use the unit for a
prolonged period.
Warning
Caution
Warning
Caution
10
Regulatory Tests and Certications
All Olorin products have normally been tested to comply with all mandatory Regulatory
requirements for the markets where the products are sold. Approvals are listed by each
Regulatory Agency under the name of the manufacturer and model number as specied on the
Product Identication Label. Copies of such approvals can be requested by contacting Olorin AB
via www.olorin.com.
Approvals applicable for this product is listed in the Product Specication section of this
manual.
Tests and Approvals for VistaLine Series
Each product in the VistaLine series has been tested as an IT-category product for normal ofce
environment and for use as a desktop monitor. They comply with the following standards and
regulations:
• CE for use within the European Union member states
• UL for use in the United States
• FCC for use in the United States
• WEEE for use within the European Union member states
• RoHS for use within the European Union member states
Tests and Approvals for MedicLine Series
Each product in the MedicLine series has additionally been tested for risk of electrical shock and
to comply with
• MDD directive 93/42/EEC class 1 for the European Union member states
• EN60601-1, EN60601-1-2
• IEC 60601-1
Some of the products have also been tested to comply with:
• UL 60601-1
• CAN/CSA C22-2 No. 601-1
Under these directives and regulations, MedicLine products are complying with the requirements
for a Class 1 product with continuous mode of operation. The monitor must not be in direct contact
with a patient.
Using any other 12V/24V adapter than the medical approved one delivered with the
product or connecting this to a non-grounded power outlet voids the approval.
Before taking the product in use, the person installing it must test that the grounding
of the monitor complies with the impedance requirements of the country where it is
being installed.
When using at 240 V in the United States, supply must be from center-tapped, 240 V,
single phase circuit.
Warning
Warning
Warning
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Monitor de Olorin
