Olivetti d-ColorMF659 Manual de usuario
Multifunction Digital Copier
d-ColorMF659/MF559/MF459
INSTALLATION MANUAL
Code: Y119820-3
PUBLICATION ISSUED BY:
Olivetti S.p.A.
Gruppo Telecom Italia
Strada Monte Navale, 2/C
10015 Ivrea (TO) ITALY
Copyright © 2020 Olivetti
All rights reserved
INSTALLATION MANUAL
Applied Machines:
[Important]
Be sure to correctly follow the procedures in order as explained in this Installation Manual.
If you do not follow the procedure in order, the image trouble may occur.
E-1
1. Outline of installation procedures
Main Body
AU-102
AU-201S
PC-216 PC-416 PC-417PC-116
PK-519*2
FK-514
SC-509
FS-533*2
MK-607*2
KP-102
WT-506
KH-102
MK-735
SP-501
HT-509 MK-734
TK-101
EK-608EK-609
MK-730
CU-102
LU-207
LU-302
VI-516
UK-115*1
IC-420
EM-908
FS-539(SD) FS-540(SD)
PK-524 ZU-609
PK-526
PI-507 JS-602
RU-513
OT-513JS-508*2
UK-221
*1: Only for 45C-0i
*2: Only for 55C-0i/45C-0i
When installing the main body and associated options as a system, follow the order shown on the upper.
CAUTION
Main body mass: approx. 100 kg (220-7/16 lb)
• Lifting the main body in an awkward position or transporting it in a poorly bal-
anced position could result in personal injury. When transporting the main
body, assign an adequate number of persons to the job and ensure that each
person can take a good position of not being excessively loaded.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the correspond-
ing installation manual and perform the procedures correctly.
• When placing the main body on the floor, make sure to use the paper feed cabinet to secure the perfor-
mance and the quality of the product.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
Y119820-3 Installation Manual
E-2
2. Installation space
(Unit: mm (inch))
65C-0i/55C-0i/45C-0i + PC-417 + FS-540SD +
LU-207
615
(24-3/16)
781
(30-3/4)
467.5
(18-3/8)
875.5
(34-7/16)
322
(12-11/16)
759
(29-7/8)
2477 (97-1/2)
1343 (52-7/8)
1560.5 (61-7/16)
961
(37-13/16)
246
(9-11/16)
353.5
(13-15/16)
3. Pre-installation check items
(1) Select a level and stable place for installing the
machine.
(2) Be sure to use a power source of the voltage
and frequency indicated in the product specifi-
cations. Ensure that the current carrying ca-
pacity of the power outlet is at least equal to
the current listed in the product specifications.
(3) Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
(4) Do not plug or unplug the power cord with wet
or dirty hands, otherwise you may get an elec-
tric shock.
(5) Avoid a hot and humid environment, or a place
exposed to direct sunlight.
(6) Avoid a dusty location, or a place near volatile
and flammable substances.
(7) Avoid a poorly ventilated place.
4. Notes on using touch panel
Be sure to instruct users on the following points.
• This machine uses a capacitive touch panel.
When you touch the touch panel, use your finger
or the stylus pen supplied with the machine.
If you touch the panel using your nail or a pen tip
instead of using your finger or the stylus pen, the
touch panel does not respond normally.
• Pressing the touch panel hard may cause dam-
age.
• Do not strongly press the panel or press it using
the sharp tip of mechanical pencils.
• The key is a finger tapping (quick light touch us-
ing a finger) operation.
Installation Manual Y119820-3
E-3
5. Accessory parts
No. Name Shape Q’ty
1. Installation
manual
1 set
2. Paper size la-
bel *1
1
3. NFC label 1
4. Filter unit 1
5. Duct cover 1
6. User’s guide
holder
1
7. Cap 4
8. Paper feed
cabinet con-
nector cover
1
9. Stylus pen 1
10. Waste toner
conveyance
unit
1
11. Waste toner
box
1
No. Name Shape Q’ty
12. Chart 1
13. Cable clamp 1
14. Screw A (3 x 8
mm)
1
15. Screw B (3 x
10 mm) (black)
2
16. Screw C (3 x
30 mm)
1
17. Screw D (3 x 8
mm)
4
*1 Keep the paper size label at hand. It is neces-
sary for mounting the Large Capacity Unit
LU-302.
WARNING
Keep this bag away from babies and chil-
dren. Do not use in cribs, beds, carriages,
or playpens.
The thin film may cling to nose and mouth
and prevent breathing. This bag is not a
toy.
WARNING
If a power cord is not supplied, use only
the power cord that meets the following
conditions.
Failure to do this could result in a fire or
electrical shock.
• The power cord has voltage and current
rating appropriate for the rating plate on
this machine.
• The power cord meets regulatory re-
quirements for the area.
• The power cord is provided with
grounding pin/terminal.
Y119820-3 Installation Manual
E-4
* Power supply
65C-0i: 220-240V 10A
55C-0i: 220-240V 9A
45C-0i: 220-240V 8A
Note:
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the ap-
pearance of your machine to follow the instal-
lation procedure.
This does not cause any significant change or
problem with the procedure.
• If none of the later steps instruct you to use the
parts including screw and cover that you re-
moved following the instructions described in
this manual, discard them.
6. Installing the main body and the Paper
Feed Cabinet
(1) Take the main body and the Paper Feed Cabi-
net out from its packaging.
CAUTION
Main body mass: approx. 100 kg (220-7/16
lb)
• Make available collective manpower of
an appropriate size for transporting the
main body.
• When holding the transportation han-
dles, be careful not to catch your fin-
gers in the machine.
Note:
Remove the main body, holding it by the handles
on the right and left sides as shown in the illustra-
tion and keeping it level.
(2) Refer to the installation manual for the Paper
Feed Cabinet and follow the “Installation Pro-
cedures.”
Note:
When installing either the Heater HT-509, the
Transformer kit TK-101, or the Power Supply BOX
MK-734 on the Paper Feed Cabinet, install them
at the same time.
Installation Manual Y119820-3
E-5

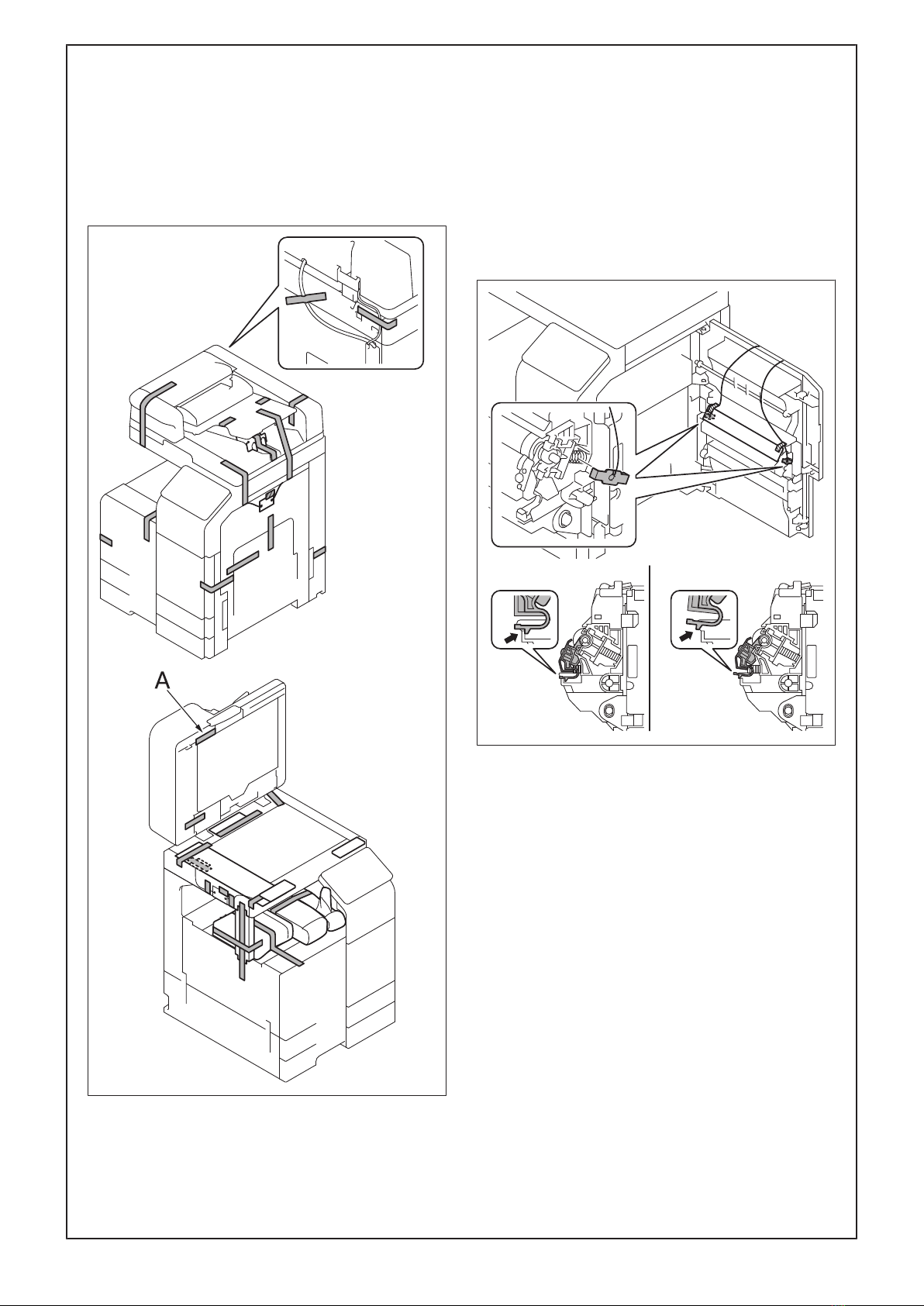

7. Removing protective tape, packing and
other shipping materials
(1) Remove the protective tape and the protective
materials.
Note:
Be sure to lock the lever after removing the pro-
tective tape A.
(2) Open the right door and remove the protective
sheet and locking materials.
Note:
• After removing the locking materials, make
sure that the transfer roller assembly is se-
cured in place. In the case of <NG>, press the
transfer roller assembly into place so that it is
secured as shown in <OK>.
• Save the packaging materials removed in this
and subsequent steps of (6), (8), and (15) for
later use when transporting the machine.
<OK> <NG>
(3) Close the right door.
Y119820-3 Installation Manual
E-6
(4) Slide out the tray 1.
(5) Remove the protective tapes from the inside of
the tray 1 and remove accessory parts.
Note:
See the User’s Guide for instructions on setting
paper in each tray and configuring the paper
types.
(6) Slide out the tray 2 and remove the tray locking
materials.
(7) Remove the protective tapes from the inside of
the tray 2 and remove accessory parts.
(8) Remove the four locking screws.
(9) Attach the four supplied caps.
(10) Remove the protective sheets.
Installation Manual Y119820-3
E-7
(11) Remove the cable clamp securing the DF ca-
ble. (One screw)
(12) Secure the DF cable with the removed cable
clamp as shown in the illustration. (One re-
moved screw)
(13) Open the lower front door.
(14) Remove the protective tape on the lower front
door.
(15) Remove the four locking materials.
(16) Release the lever of the drum unit.
Y119820-3 Installation Manual
E-8
(17) Slightly slide the drum unit out and remove the
protective tape and protective material.
(18) Slide the drum unit into the main body.
(19) Lock the drum unit with the lever.
(20) Install the supplied waste toner conveyance
unit to the main body.
(21) Install the supplied waste toner box to the main
body.
(22) Close the lower front door.
8. Installing the toner cartridge
Note:
Since cartridge is not supplied with the machine,
purchase toner cartridge separately.
(1) Shake the toner cartridge up and down and left
to right 5 to 10 times respectively.
Note:
Shake the cartridge adequately. Otherwise, it may
cause trouble.
(2) Open the upper front door.
(3) Insert the toner cartridge into the main body.
Note:
Make sure that the color of the label of the toner
cartridge is matched with the one of the main
body side.
Installation Manual Y119820-3
