SERVICE MANUAL

Multifuction Digital Copier

d-Color MF552Plus, MF452Plus

and Options

Code:Y117750-5

www MK-Electronic de

L PARTS/CONNECTOR LAYOUT DRAWING

1. PARTS LAYOUT DRAWING

1.1 d-Color MF552Plus/MF452Plus

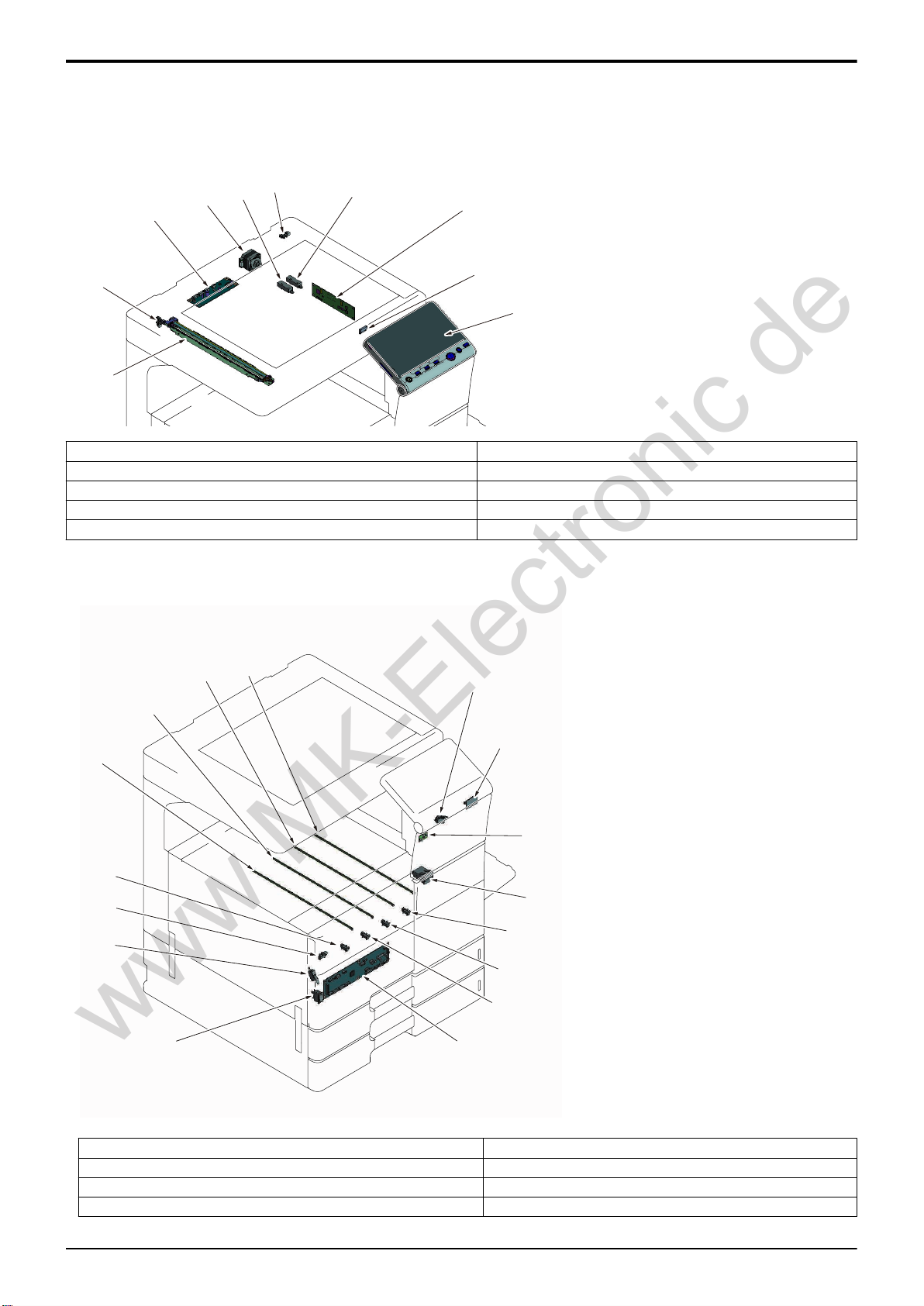

1.1.1 Scanner section

[5]

[4]

[8]

[7]

[6]

[9] [1] [2] [3]

[10]

[1] Angle sensor (PS202) [2] Original size sensor/2 (PS205)

[3] CCD board (CCDB) [4] Original cover sensor (RS201)

[5] Control panel unit [6] LED exposure unit (LU201)

[7] Scanner home sensor (PS201) [8] Scanner drive board (SCDB)

[9] Scanner motor (M201) [10] Original size sensor/1 (PS204)

1.1.2 Front side

(1) Board/switch/sensor/others

[3]

[4]

[5]

[6]

[7]

[8]

[12]

[10]

[9]

[1]

[2]

[16]

[15]

[14]

[13]

[11]

[1] Right door switch (SW3) [2] USB board (USBB)

[3] Machine condition monitor board (MCMB) [4] Total counter (TCT) *

[5] Toner empty sensor/K (PS31) [6] Toner empty sensor/C (PS32)

[7] Toner empty sensor/M (PS33) [8] Front side board (FRB)

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-1

Y750-5 Service Manual

www MK-Electronic de

[9] Main power switch (SW1) [10] Front door switch (SW2)

[11] Front upper door sensor (PS43) [12] Toner empty sensor/Y (PS34)

[13] Erase LED/Y (EL/Y) [14] Erase LED/M (EL/M)

[15] Erase LED/C (EL/C) [16] Erase LED/K (EL/K)

NOTE

• *: Japan only

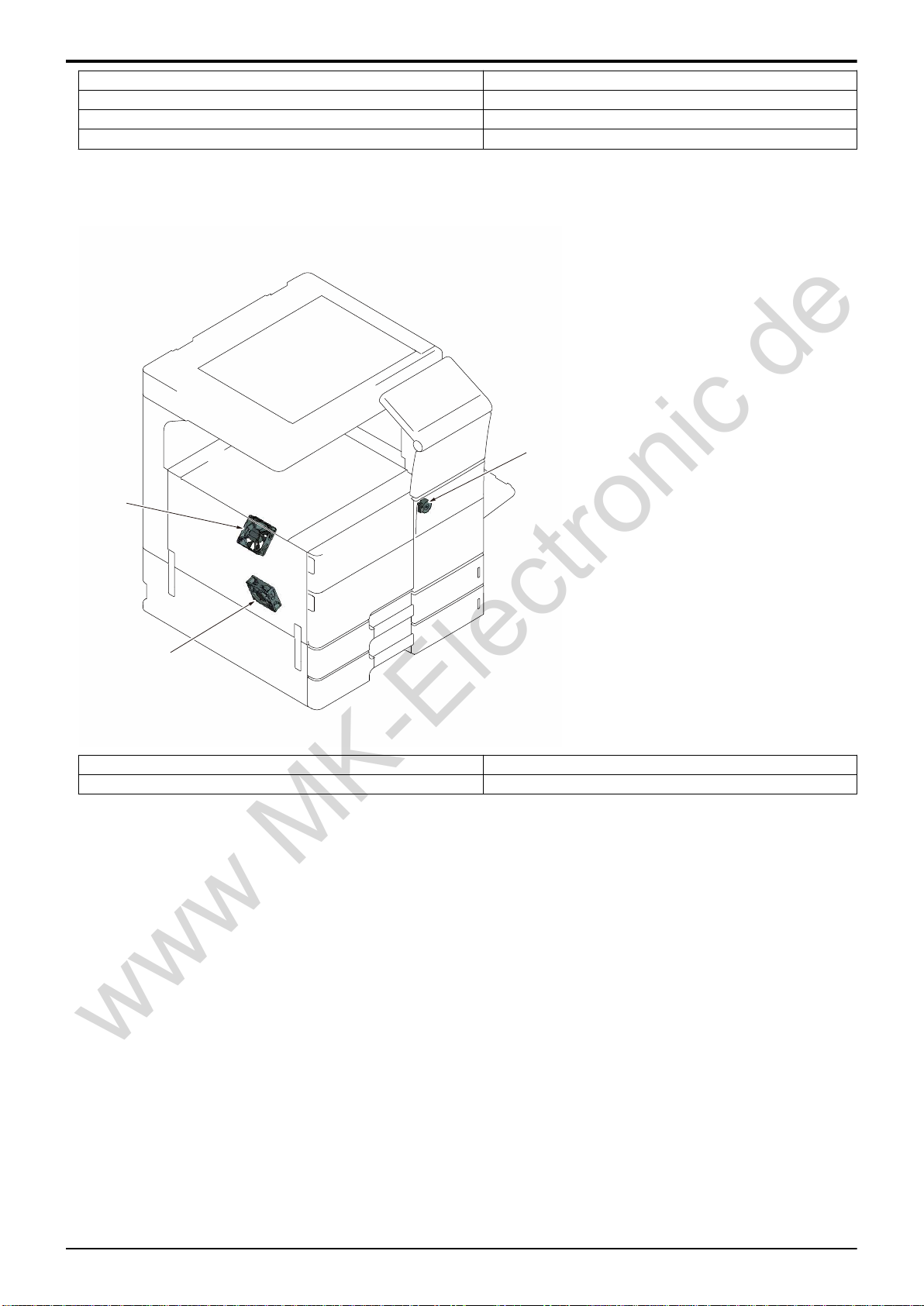

(2) Load

[1]

[3]

[2]

[1] Toner supply motor/K (M6) [2] Power supply cooling fan (FM1)

[3] Transfer belt cleaner cooling fan (FM2) - -

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-2

Service Manual Y750-5

www MK-Electronic de

1.1.3 Back side

(1) Board

(a) MF552Plus

[1]

[3]

[4]

[5]

[10]

[9]

[7]

[6]

[8]

[11][12] [13]

[2]

[1] ERP board (ERPB) [2] Expansion control board (EXCB)

[3] Printer control board (PRCB) [4] High voltage unit (HV)

[5] CPU cooling fan (FM14) [6] Hard disk (HDD)

[7] Memory board/1 (MEMB/1) [8] SSD board (SSDB)

[9] MFP board (MFPB) [10] Dual scan image processing board (DSIPB)

[11] NF board (NFB) [12] IH magnetic erasing board (IHMEB)

[13] IH power supply (IHPU) - -

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-3

Y750-5 Service Manual

www MK-Electronic de

(b) MF452Plus

[1]

[3]

[4]

[5]

[6]

[10]

[9]

[7]

[8]

[11]

[2]

[1] ERP board (ERPB) [2] Expansion control board (EXCB)

[3] Printer control board (PRCB) [4] High voltage unit (HV)

[5] CPU cooling fan (FM14) [6] Hard disk (HDD)

[7] Memory board/1 (MEMB/1) [8] SSD board (SSDB)

[9] MFP board (MFPB) [10] Dual scan image processing board (DSIPB)

[11] Fusing power supply (FUPU) - -

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-4

Service Manual Y750-5

www MK-Electronic de

(2) Switch/sensor/others

[1]

[2]

[3]

[1] 1st transfer pressure sensor (PS39) [2] Developing solenoid (SD4)

[3] Service port sensor (PS50) - -

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-5

Y750-5 Service Manual

www MK-Electronic de

(3) Load

[3]

[4]

[6]

[7]

[8]

[14]

[13]

[12]

[15] [1]

[2]

[5]

[9]

[10]

[11]

[1] Toner bottle motor (M10) [2] Fusing power supply cooling fan (FM12)

[3] Toner supply motor/Y (M9) [4] PC motor (M2)

[5] Toner suction fan (FM11) [6] Developing motor (M21)

[7] Ozone fan (FM13) [8] Machine rear side cooling fan (FM3)

[9] Tray2 vertical transport motor (M23) [10] Paper feed motor (M22)

[11] Registration motor (M24) [12] 1st transfer pressure clutch (CL5)

[13] Toner supply motor/C (M7) [14] Paper cooling fan (FM8)

[15] Toner supply motor/M (M8) - -

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-6

Service Manual Y750-5

www MK-Electronic de

1.1.4 Left side

[1]

[2]

[3]

[1] PH unit [2] PH relay board (PHRYB)

[3] DC power supply (DCPU) - -

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-7

Y750-5 Service Manual

www MK-Electronic de

1.1.5 Right side

(1) MF552Plus

[7] [1]

[2]

[4]

[3]

[5]

[6]

[1] IDC sensor/Rr (IDCS/Rr) [2] Fusing loop sensor (PS2)

[3] IDC sensor/Fr (IDCS/Fr) [4] IDC sensor shutter solenoid (SD2)

[5] Registration sensor (PS1) [6] Temperature/humidity sensor (TEM/HUMS)

[7] Paper exit clutch (CL8) - -

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-8

Service Manual Y750-5

www MK-Electronic de

(2) MF452Plus

[8] [1]

[2]

[4]

[3]

[5]

[6]

[7]

[1] IDC sensor/Rr (IDCS/Rr) [2] Fusing loop sensor (PS2)

[3] IDC sensor/Fr (IDCS/Fr) [4] IDC sensor shutter solenoid (SD2)

[5] Registration sensor (PS1) [6] Temperature/humidity sensor (TEM/HUMS)

[7] Toner bottle cooling fan (FM4) [8] Paper exit clutch (CL8)

d-Color MF552Plus/MF452Plus L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT

DRAWING

L-9

Y750-5 Service Manual
