OPERATION MANUAL

AND PARTS LIST

7660.002

ROUND ROD MILLING MACHINE

WARNING: 1.Read this operation manual carefully before operation

2.Keep this manual for future reference



WOOD RATTAN WORKING MACHINE

AUTOMATIC ROUND RATTAN

AND ROUND ROD MILLING MACHINE

7660.002

The is a precise WOOD RATTAN WORKING MACHINE AUTOMATIC

ROUND

RATTAN AND ROUND ROD MILLING MACHINE. We believe that if you

operate it normally and make a good maintenance periodically, the

machine will stay in a perfect condition. Before operating the machine,

please read the INSTRUCTION-HANDBOOK.

SPECIFICATIONS

：



TYPE

7660.002

Work area diameter.

3/8”-2-3/8”

Minimum workable length（mm）

300

Main shaft motor（HP）

3-5

Feed motor（HP）

1-2

R.P.M. of main shaft

3000

Feeding speed（m/min）

6，9，13，16

Size of machine（cm）

92x68x100

Packing size（cm）

105x75x110

Net weight（kg）

300

Gross weight（kg）

340



FEATURES

：

1. This unit is ideally suited for the rod milling jobs for flag rod, especially with

materials like rattan, molded board, acrylics, carbon, bakelite, bamboo and

wood.

2. The cutter head is equipped with a stabilizer featuring no chips blocking in

stabilizer guide way and effectively reduces the noise level of this machine

during operation.

3. There are four rollers for input and output, therefore, any material can be

conveyed smoothly. The processing speed can be changed 4 speed by trans-

mission.

4. The conveyance unit can be adjusted in speed or replacement for clockwise

or counter clockwise revolution.

5 The retain roller for processed materials is made in ball type. As the center

point is adjusted, for any kind of outside diameter of processed material, the

width of the roller can be easily adjusted by the handle. Besides, it can

function to control the center point between roller with the tension of the

spring, consequently, it keeps the material in the center although there is

difference in distorter, rough and fine angles.

OPERATION STEPS

：

1. Put machine in a steady position， and then check whether the power is

suitable for the motor voltage. Turn on the electricity supply and examine

whether the revolution of main shaft follows the arrows. If not， turn off the

power and switch the two wire lines.

2. Before operation, please check and adjust positions of support bracket

for work-piece. When height of work-piece support is inappropriate,

loose the handle and fix the support bracket. Fig 1 shown after

adjustment is completed.

Fig 1

3. To select the correct feed wheel to install and fix: loose the nuts and wind-

up after completed changing of feed wheel.

(for the switch side with nuts of left-clockwise & right-counter clockwise

thread) Fig 2.

Fig 2

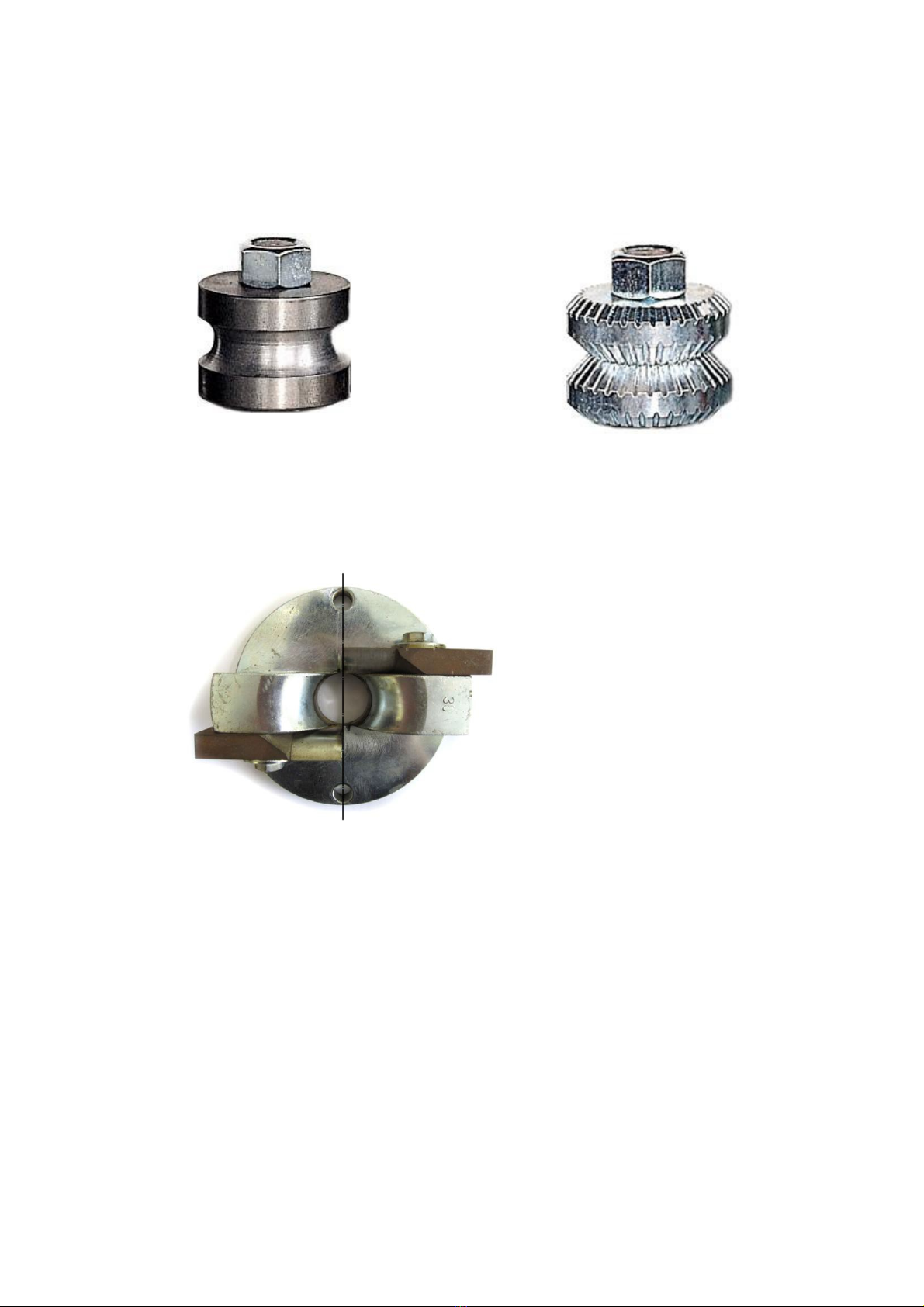

4. Even edge tool correct regulation means that as shown in Figure 3.

Fig 3

5. To adjust hand wheel according to sizes of work-piece: adjust spring nuts.

See Fig 4.

Fig 4

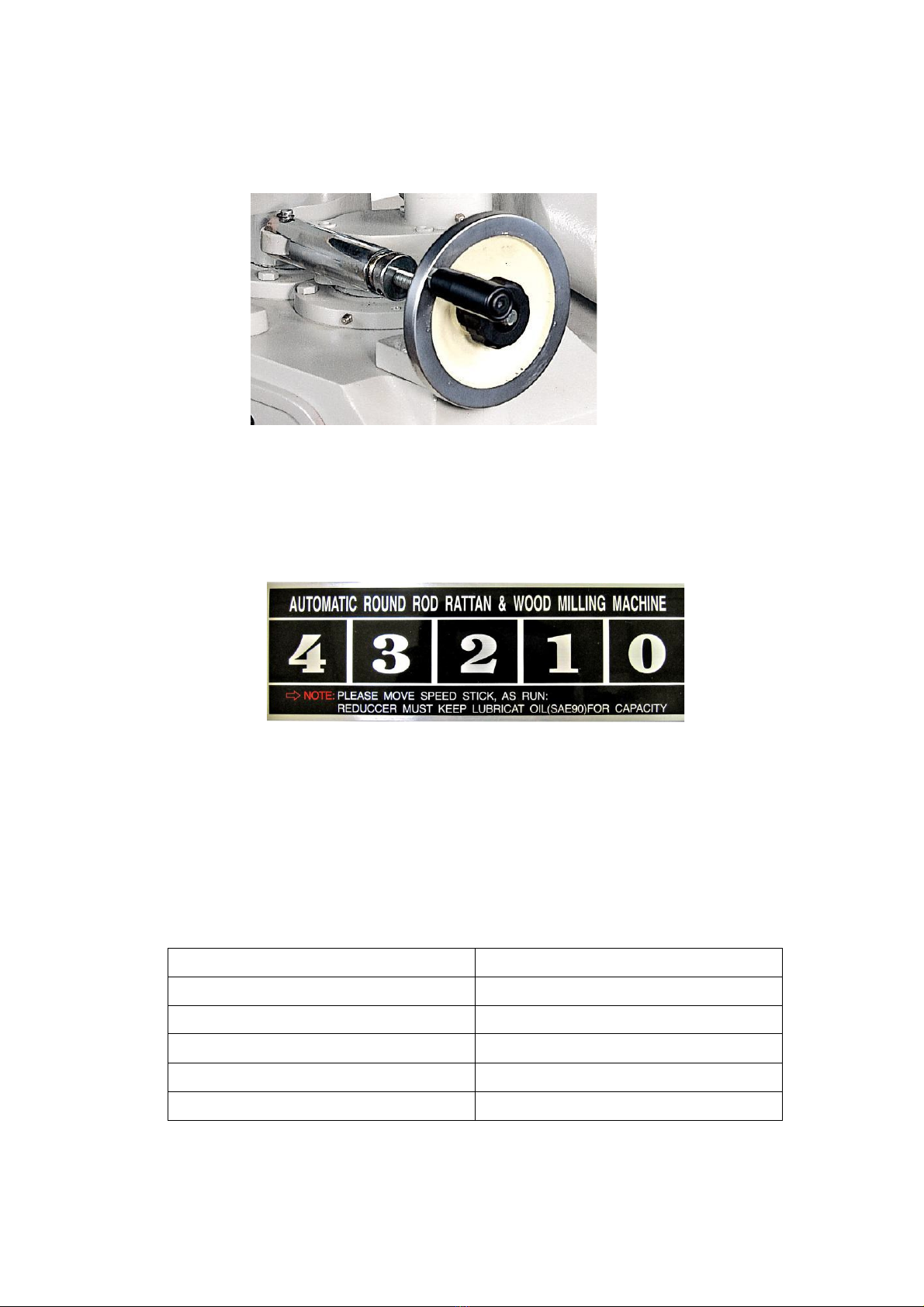

6. There are 4 variable speeds, to select the correct speed， depends on the

quality, hard or soft and sizes of work-piece.

Fig 5

7. To adjust the machine to meet requirements, the power needs to be

turned off.

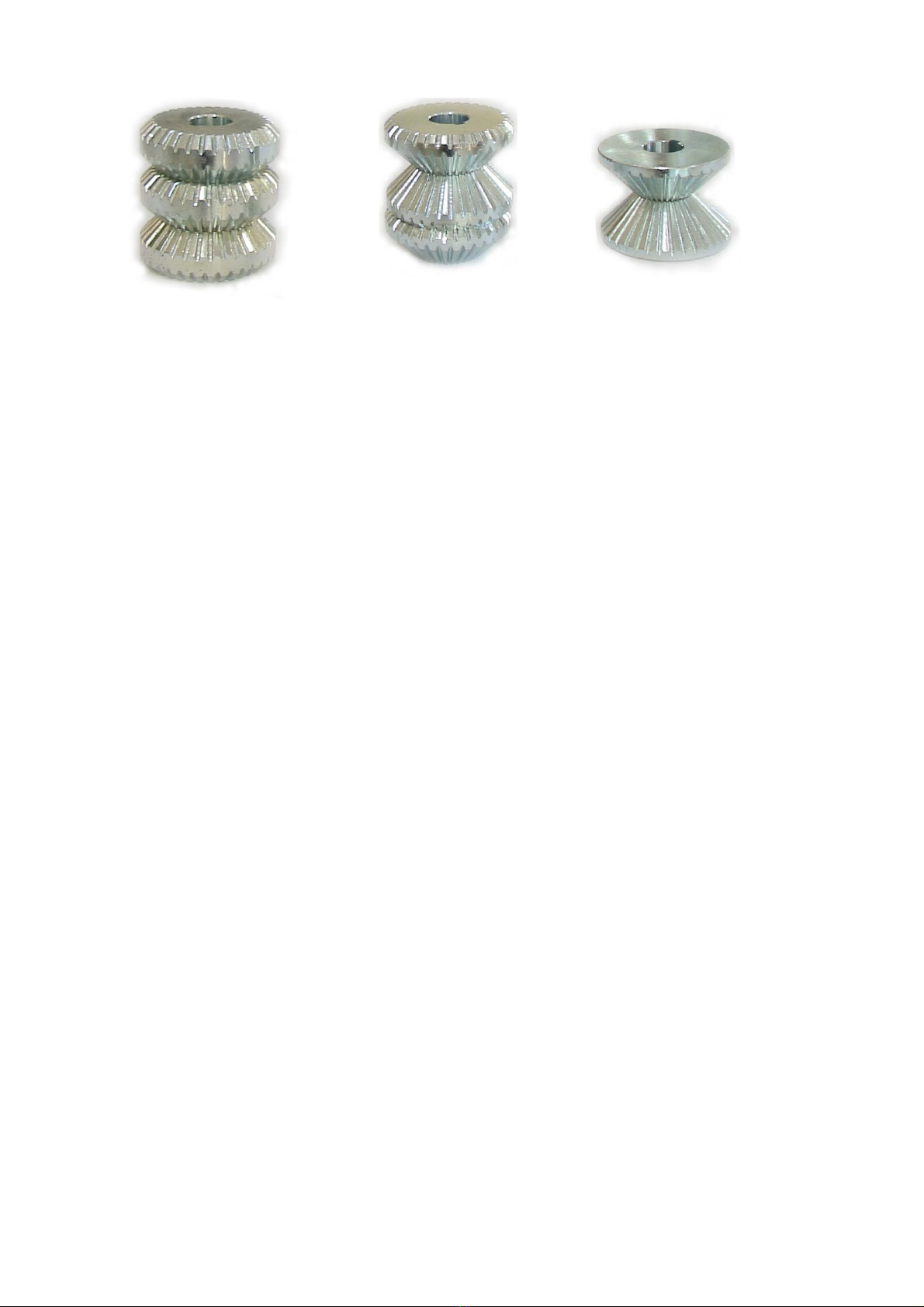

8. How to the select feed wheel for according to work-piece.

WORKPIECE SIZE

FEED WHEEL SIZE

8-12 m/m

6 m/m

12-18 m/m

10 m/m

18-28 m/m

16 m/m

28-36 m/m

26 m/m

36-60 m/m

34 m/m

Φ 12-φ 17 φ 28-φ 42

φ 18-φ 27 φ 9-φ 11

Fig 6（圖 6）

φ 43-φ 60

MAINTENANECE:

1. Do not open the tool guard or put in anything while the machine is in

operation. Always keep away from the dust exhaust port. Do not put in

band or open the tool guard when machine in operating， to keep away

from Dust Exhaust port.

2. Lubrication should be done in daily basis before operation.

3. Machine and its surface should be cleaned daily.

4. Gearbox should be lubricated and replaced periodically. S.A.E. #30

lubricant is suggested for the gearbox.

5. When work piece is jammed during operation, stop the feed wheel

and withdraw the work-piece.



ROD MILLING MACHINE

Description

QUANTITY

Lower Base

Support of Motor Seat

Net

Hexagon Screw

Flat Washer

Hexagon screw

Seat of Motor & Transmission

Seat of Motor

Hexagon screw

Set plate

Hexagon Screw

Flat Washer

Nut

Left Column

Hexagon screw

Flat Washer

Hexagon screw

Flat Washer

Pulley

20-1

A-Belt

Hexagon screw

Square Key

Motor 5HP

Motor 2HP

Pulley

25-1

B-Belt

Socket Set

Hexagon screw

Spring Washer

Transmission

Net

Spring Washer

Pulley

32-1

Pulley

Spring Washer

Net

Hexagon screw

Transmission Rod Head

Transmission Rod

Handle

Hexagon screw

Seat of Reducer

Reducer

Spring Washer

Hexagon screw

Pulley

Round Head Screw

Hexagon screw

Guard

Round Head Screw



ROD MILLING MACHINE

Upper Base

Gear

Socket Head Screw

Chain Drum

Socket Head Screw

Flat Washer

Hexagon screw

Chain Drum

Gear Coupler

Hexagon screw

Chain Drum

Snap Ring

Idle Gear Shaft

Idle Gear Support

Flat Washer

Nut

Hexagon screw

Support of Hanging Hook

Socket Head Screw

Work-piece Support

Hexagon screw

Work-piece Support Seat

Locking Handle

Name Plate

Round Head Screw

Spring Sleeve

Spring Screw

Spring

Nuts of Spring Sleeve

Snap Ring
