The Greystone Lectern
ASSEMBLY MANUAL
Model # GSL
2
INTRODUCTION
Congratulaons!! On your purchase of the Model GSL Lectern. The perfect lec-
tern that provides an all-in-one presentaon experience. This beaufully hand-
craed lectern is built with durable steel parts along with a curved plywood top.
The unit is equipped with a front 8” drawer, two side pull-out shelves and a slid-
ing keyboard tray. The cabinet is equipped with two shelves for ample storage
and moves easily with four double hooded casters.
Dear Valued Customer,
Thank you for your purchase. Although extreme care goes into manufacturing
and packaging of this product, mistakes are possible. If you encounter any miss-
ing parts or diculty in assembly, etc. please call our toll-free customer service
line at 1-800-261-4112 for courteous and immediate resoluon to your prob-
lem.
Sincerely,
OKLAHOMA SOUND
3
ASSEMBLY INSTRUCTIONS
Assembly Tips
Do not use a sharp instrument such as a knife or screwdriver to open the packag-
ing, as this may scratch or damage the unit.
All assembly should be done on a clean protected surface such as a carpet or the
like.
Make sure that you have all the required parts. (A list of all the parts is listed be-
low).
Read the instrucons carefully and follow the diagrams to ensure an easy and
correct assembly.
Tools Required
Philips head screwdriver or power Screwdriver
Wrench (included)
Hammer
Parts (Hardware)
Packet #1-
6 black knobs…….
6 Philips head knob screws...
Packet #2
8 Dowels ….
8 cam bolts
8 cam locks
4 door pivots
4 at-head Philips screws
Packet #3-
12 Philip zinc plated 12mm screws
12 Philip-head black 15mm screws
8 Philip-head black 10mm screws
4

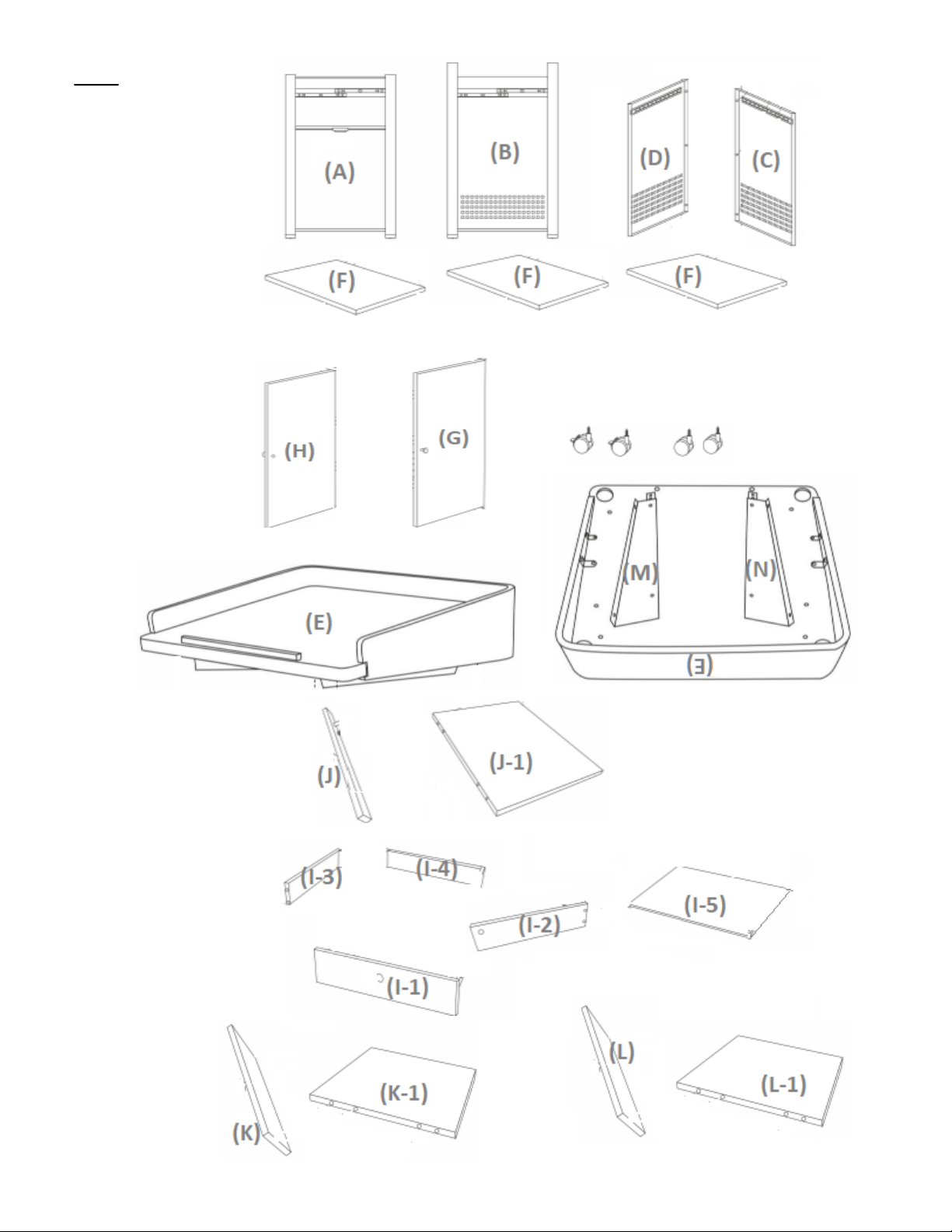

Parts
Front panel (A)
Back panel (B)
Right panel (C)
Le panel (D)
Shelves x 3
Lectern top & support brackets
Keyboard parts
Drawer parts
Casters (O)
Doors (G) & (H)
Right
side
shelf
Le
side
shelf
5
Assembling the unit:
Caster installaon-
1) Install the two locking casters on the front tubes of panel A. Use the enclosed wrench
to ghten.
2) Install the two non-locking casters to back tubes of panel B. Use the enclosed wrench
to ghten.
Aaching Back panel to side panels-
1) Lay back panel (B) on a oor or at surface. Take side panel (C) and align holes on
side to holes on tubes on right side of panel (B). Install by using three black 15mm
Phillips head screws from hardware packet #3.
2) Next, take side panel (D) and align holes on side to holes on le side of tube of pan-
el (B). Install by using three black 15mm Phillips head screws from hardware packet
#3.
See Diagram below.
6
Aaching Front panel to side panels-
1) Li parally assembled unit to an upright posion and begin by aligning holes of right
side of tube of front panel (A) to holes on side panel (C). Install by using three black
15mm Phillips head screws from hardware packet #3.
2) Next, align holes of le side of tube of front panel (A) to holes on le side of panel (D).
Install by using three black 15mm Phillips head screws from hardware packet #3.
See diagram below.
7
Cabinet Shelf Installaon-
1) Place one shelf (Part F) at the boom of cabinet assuring that it is rmly resng on ledg-
es of the interior of the side and pack panels of cabinet.
2) While holding on a slanted posion, place the remaining two shelves (Parts F) on the
ledges of side panels assuring that they are rmly resng on ledges of the interior of the
side panels of cabinet.
Door assembly & installaon-
1) Idenfy right cabinet door (Part G) and using pivot pins from hardware packet #2, in-
stall a pivot into the pre-drilled holes on the boom and top of doors.
2) Idenfy le cabinet door (Part H) and using pivot pins from hardware packet #2, in-
stall a pivot into the pre-drilled holes on the boom and top of doors.
3) Using silver Phillips head screws and black handles from hardware packet #1, install
door knobs onto panels (G) & (H) using a Philips screw driver.
4) While holding door (part G), insert pivot of boom of door into the hole located on
right side of cabinet boom. Align door with the top of door frame and slide upper
pivot into hole at right side of door frame top.
5) While holding door (part H), insert pivot of boom of door into the hole located on
le side of cabinet boom. Align door with the top of door frame and slide upper piv-
ot into hole at le side of door frame top. See diagram below.
8
Top assembly & installaon-
1) Carefully remove lectern top (Part E) from carton and place upside down.
2) Idenfy right & le lectern support brackets (Parts M & N).
3) Place bracket (M) on right side aligning with pre-drilled holes on under side of top.
4) Using four Philip-head black 10mm screws from hardware packet #3, install by ghtly
screwing screws into pre-drilled holes. Repeat this step for le side bracket (N). As-
sure to screw at side of brackets (with tracks facing the center) to underside of lec-
tern top.
5) Once support brackets are aached to underside of top, begin by holding top with
front slanted downwards and aligning round grooves at the corners of underside of
top with top of front metal posts. Place grooves snugly onto top of posts and proceed
to do the same for grooves at back of underside of top assuring that the round un-
derside grooves are ghtly inserted over posts.
6) Using the four remaining four Philip-head black 10mm screws from hardware packet
#3, secure cabinet to top by installing screws through holes in metal strip at front of
cabinet and at back through tabs located at top of posts. See illustraon below.
9
10
Keyboard assembly & installaon-
1) Idenfy keyboard front panel (Part J) and using a silver Philips head screw and black knob
from hardware packet #1, install knob onto front panel.
2) Idenfy keyboard panel (Part # J-1) and connect front panel to it in the following manner:
3) Tightly Screw in one cam bolt (found in packet #2) at each of the two outer holes of the
inside of the front panel.
4) Tightly insert one dowel (found in packet #2) at each of the two inner holes of the inside
of the front panel.
5) Place the keyboard panel (Part # J-1) with the side that has holes next to the front panel.
6) Install cam locks into the keyboard panel holes. The cams should be inserted in the larger
holes as shown on diagram. Make sure the arrow on the cam is poinng to the closest
edge and aligned with the hole on the edge.
7) Align front panel cam bolts & dowels with holes on keyboard and push in.
8) Once front panel and keyboard panel is aached, secure by turning cam bolts to locked
posion.
9) Slide keyboard into tracks that are located just below top of lectern.
10) Using four zinc plated 12mm Philip-head screws, aach keyboard to tracks by installing
screws through tabs located underneath of keyboard.
