Quick

Setup

1Check Contents

Remove the Protective Sheet

Tilt up the image drum and lift it out. Do not

touch image drum’s green surface.

Install the Paper Feed Tray

Before you can use your printer:

Steps 1 to 5 - Setup your printer.

Step 6 - Install the correct Interface cable for your system—USB or Parallel.

Step 7 - Determine your computer’s Operating System—Windows®95, 98, 2000, NT®4.0 or

Macintosh®(OS 8.1 or higher), then install the correct printer software for your computer’s

Operating System and Interface.

See the on-line User’s Guide for more information about your printer.

Press down firmly until drum snaps into place.

Printer

Paper Feed Tray

Toner

Power Cord

Light-Shield Bag (to protect image

drum from light when it is removed

from printer)

➐Quick Setup Instructions

!Interface cable is not included. For

information on cable requirements, see

“Supplies” in the on-line User’s Guide.

Pull out sheet ➊, and remove tape ➋.

If transparent film is attached, remove

film with sheet.

58341901

Lift the cover.

Replace the image drum, tilting it down

to slide under the guides ➊.

➊

➋

Press to lock tray in place.

Align tabs on bottom of paper tray

into slots on back of printer.

Swing tray up and align tabs

and slots at top.

➊

➋

➌

➍

➎

➏

➐

All manuals and user guides at all-guides.com

all-guides.com

Push lock lever down towards rear.

Insert Paper

Adjust left guide for paper size. Insert a stack of paper. (max. 100 sheets, 20 lb.) Adjust the right guide gently against the paper. Make sure power is off.

Install Toner

Connect to Your Computer

Connecting to a USB Port

For Windows 98/2000 and Macintosh Computers with a USB

port. Requires USB cable.

1Connect the USB cable to the computer’s USB port.

2Connect the other end of the USB cable to the printer’s USB

port.

3Go to Step 7, Install the Printer Software.

Connecting to a Parallel Port

Requires IEEE 1284-compliant bi-directional parallel cable.

1Make sure the computer and printer are turned off.

2Connect the parallel cable to the computer’s parallel port.

Secure the screws.

3Connect the other end of the cable to the printer’s parallel

port. Secure it with the wire clips.

4Go to Step 7, Install the Printer Software.

Plug the power cord into the printer and into a

grounded electrical outlet.

With label up, place left side

under tab ➊, lower into the

toner well. Close the cover.

Unwrap toner cartridge. Shake

side to side to distribute toner.

Lift out toner well cover and discard.

➊

Pulling firmly, remove

tape from bottom.

All manuals and user guides at all-guides.com

Otros manuales para OKIPAGE 8z

Otros manuales de Impresora de Oki

Oki

Oki C710dn Manual del propietario

Oki

Oki Microline 320 Turbo D1 Manual de usuario

Oki

Oki B6500 Series Manual de usuario

Oki

Oki C822n Manual de usuario

Oki

Oki C9500 Series Manual de usuario

Oki

Oki OKIPOS RT322 Instrucciones de uso

Oki

Oki C8800dn Manual de usuario

Oki

Oki LE810DT Manual de usuario

Oki

Oki proColor Pro510DW Manual de usuario

Oki

Oki C 9650dn Manual de usuario

Oki

Oki Microline 520 Cómo utilizar

Oki

Oki C542 Guía de configuración

Oki

Oki proColor Pro930 Series Manual de usuario

Oki

Oki B710dn Manual de usuario

Oki

Oki C830dn Manual de operación y mantenimiento

Oki

Oki ES9541 Manual de usuario

Oki

Oki B4100 Manual de usuario

Oki

Oki ML490 Series Manual de usuario

Oki

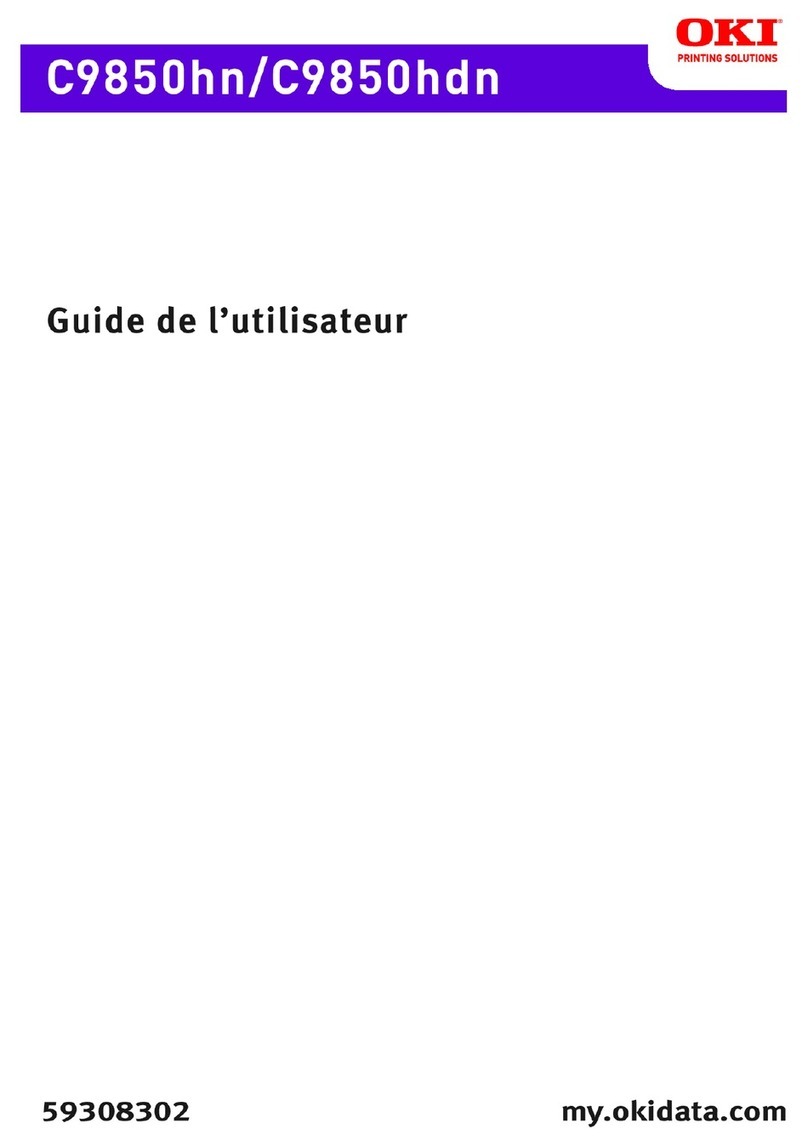

Oki C9850hdn Guía de inicio rápido
