Step 1:

Unpack

Check the Contents

If any items are missing, contact your dealer

immediately.

Printer

Stacker

Power Cable

Ribbon Cartridge

Not illustrated: Documentation

Space Requirements

Place the printer on a stable, level surface.

Check that sufficient space is available for the

installation:

• Width: 35.4" (90 cm)

•Depth

– Behind printer: 23.6" (60 cm)

– In front of printer: 12.6" (32 cm)

– Overall: 60.2" (153 cm)

• Height: 18" (46 cm) minimum

Environmental Requirements

• Operating Temperature: 41 to 104°F (5 to 40°C)

• Humidity: 30 to 85% RH

Documentation

Your printer includes the following documentation:

•This

Setup Guide

How to get the printer up and running.

•

Safety and Regulatory Information

booklet

Important safety information, along with general

regulatory information (FCC, Energy Star, IC, etc.)

and the Material Safety Data Sheet for the ribbon.

OKI

MICROLINE

8810/8810n

Setup Guide

Installation Summary

Unpack . . . . . . . . . . . . . . . . . . . . . . . . .1

Set Up the Printer . . . . . . . . . . . . . . . .2

Run a Self Test . . . . . . . . . . . . . . . . . . .7

Load Paper . . . . . . . . . . . . . . . . . . . . . .7

Connect to the Computer . . . . . . . . . .10

Components Feb 17


Printer Components

Front View

Ribbon Cartridge

Platen Knob

Sheet Guide

Power Switch

Sheet Platform

Display Panel

Sheet Supports

Stacker

Printhead

Cover

Control Panel

Rear View

Stacker

Parallel Port

Power Socket

USB Port

Step 2:

Set Up the Printer

Remove the Printhead Shipping

Restraint

1. Open the cover using the grips on either side.

2. Peel the protective plastic film off the display

panel.

3. Tilt the display panel toward you.



F2_03_open_



F2_04_Tilt_D


4. Remove the shipping restraint (

Note

Save the shipping restraint and packing materials

in case you ever need to ship the printer.

5. Push the display panel back to its original

position.

6. Close the cover.

Install the Power Cord

7. Make sure the printer power switch is in the OFF

position:

8. Attach the power cord to the back of the printer.

9. Plug the opposite end into a suitable, grounded

outlet.

Install the Ribbon Cartridge

1. Turn ON the printer.

The printhead lifts, moves to the left, then moves

to the center and stops.

2. Turn OFF the printer

before

opening the cover.


F2_04_Tilt_Display_


F2_03_close_c






Warning!

Make sure the printer is turned off before you

open the cover.

3. Open the cover.

4. Verify that the printhead is centered (at the

“Ribbon set position”).

5. Unpack the ribbon cartridge and remove the lock

pieces (

6. Swing out the ribbon arms on either end of the

cartridge until they

snap

into place.

7. Tilt the display panel toward you.

F2_03_open_c





F2_04_Tilt_Display.J

8. Observe the black pin (

) over which the ribbon

knob fits, and the guides (

)—one at either end—

into which the ribbon arms fit.

9. Feed the ribbon arms (

) in beside the guides

(

), position the take-up knob (

) over the pin,

then press the cartridge in firmly at either end.

10. Pull the ribbon out a bit at the left end of the

cartridge to give some slack, then slide the ribbon

underneath the printhead. Be careful that the

ribbon is not twisted, folded or pulled off the

ribbon arms during this process.

11. Make sure the ribbon is threaded through the

indentation in each ribbon guide arm.

Caution!

Always turn the ribbon knob

clockwise

turning it

counter

clockwise (to the left) can

cause the ribbon to jam.

12. Turn the ribbon knob

clockwise

(in the direction

of the molded arrow) to take up any excess slack

in the ribbon.




F2_1

3b.jp

F2_15a.j

13. Push the display panel back to its original

position.

13. Close the cover.

Caution!

If the cover does not close easily,

do not

force it

. The right end of the ribbon

cartridge is not properly seated in the

printer. Open the cover and reseat it. Then

reclose the cover.

Install the Stacker

With the flat edge toward the printer and the frosted

side up, slide the stacker into the channels at either

end of the support, pushing it in as far as it will go.

Remove the Protective Film

Peel the protective plastic film off the viewing area on

the cover.


F2_03_cl

ose_cove



Remove_Prote

ctive_Plastic.jp

Step 3:

Run a Self Test

Before proceeding, run a self test to check that the

printer is operating correctly. This prints out a list of

available fonts.

1. Turn off the printer.

2. Press and hold MODE and LF while

turning on the printer. Release them

when

RELEASE SW

appears on the

second line of the display.

3. When the printer finishes initializing,

the display will prompt you to insert

paper.

4. Place a letter size or larger sheet of paper on the

platform anywhere within the “Paper range when

Auto Align is ON” area.

The sheet feeds in. The test prints and the page is

ejected back out onto the platform.

The self test is complete.

Step 4:

Load Paper

Individual Sheets/Forms (“MANUAL”)

The printer is set at the factory for

• single sheets/forms (Manual Feed)

• Auto Align mode

• automatic printhead gap (Auto Gap)

8810 MODE + LF.jpg


Paper Specifications,

for Use with Auto Align Mode

Minimum Print Margins

1/4-inch (6.4 mm) on all sides

Individual Sheets

•Size

– Minimum Width: 3.9” (100 mm)

– Maximum Width: 14.3” (364 mm)

– Minimum Length: 2.8” (70 mm)

– Maximum Length: 16.5” (420 mm)

•Weight

– Minimum:13.8 lb. US Bond (52 g/m

)

– Maximum: 55.8 lb. US Bond (210 g/m

)

Individual Multi-Part Forms

•Size

– Minimum Width: 3.9” (100 mm)

– Maximum Width: 14.3” (364 mm)

– Minimum Length: 2.75” (70 mm)

– Maximum Length: 16.5” (420 mm)

• Thickness

– Up to 8-part forms (original + 7)

– Maximum Thickness: 0.0189” (0.48 mm)

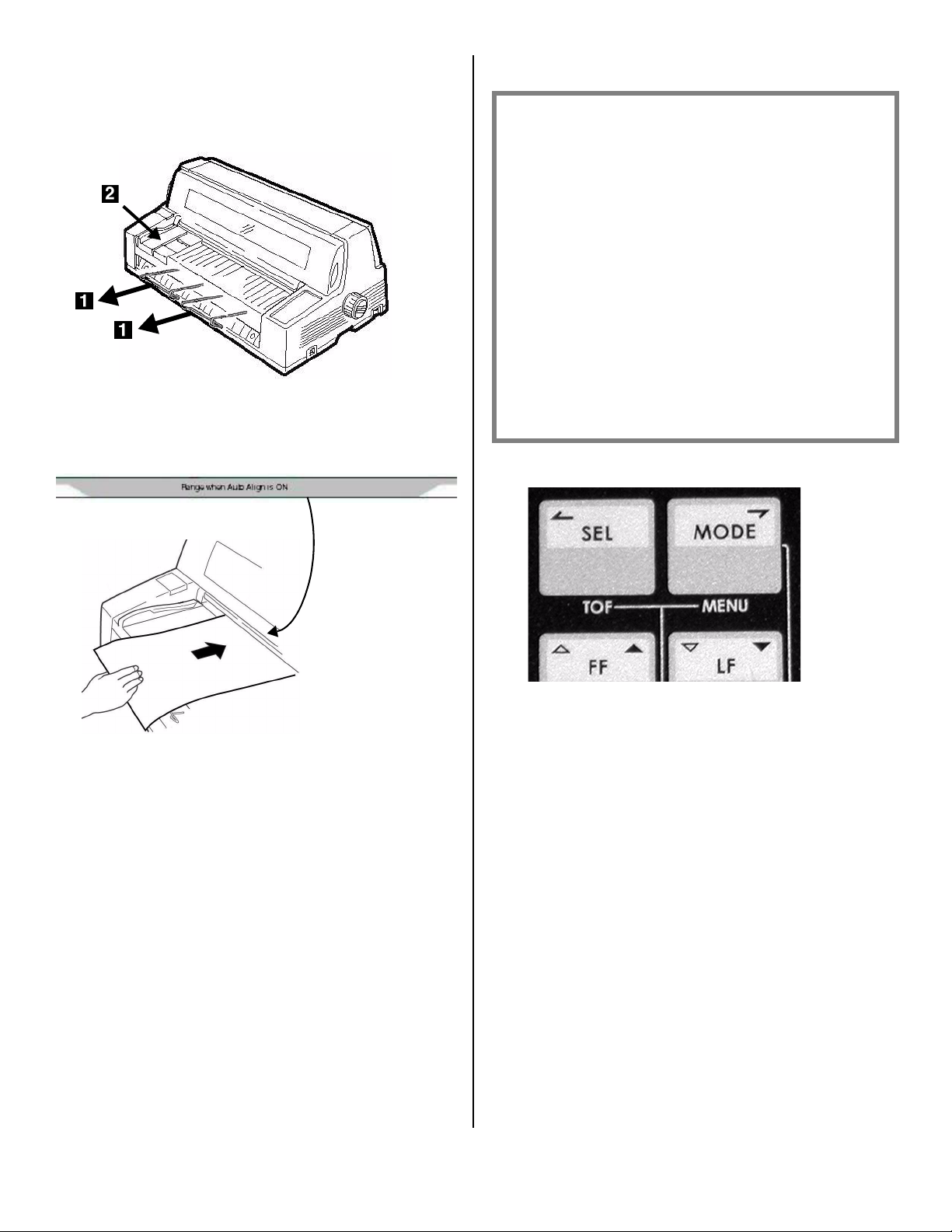

Load Individual Sheets/Forms

1. Pull out the sheet supports (

) and move the

sheet guide (

) to the right as far as it will go (the

travel of the sheet guide is limited).

2. Place a letter size or larger sheet/form on the

platform anywhere within the “Paper range when

Auto Align is ON” area

The sheet loads in to the print position,

automatically aligning so that it is square with the

print path.

Continuous Forms (“FRONT”)

Set the Printer for Continuous Forms

1. If there is a sheet loaded on the platform, remove

it.

2. With the printer turned on, press SEL to place the

printer off line.

3. Press MODE once or twice until you see

FRONT

on the second line of the display.

The printer changes paths and returns to the on

line state. FRONT appears on the second line of

the display.

Note

To switch back to single sheet feed, follow the

same steps, pressing MODE several times until

you see

MANUAL

on the second line of the

display.

Sheet_G

uide_cro



Continuous Forms Specifications

•Width

– Minimum: 4” (102 mm)

– Maximum: 16” (406 mm)

• Single Thickness Forms

– Weight range: 14 to 34 lb. US Bond

(52.6 to 128 g/m

)

• Multi-part Forms: Front Feed Tractor

– up to 8-part forms (original + 7)

– Maximum Thickness: 0.0189” (0.48 mm)

• Multi-part Forms: Optional Rear Feed

Tractor

– up to 6-part forms (original + 5)

– Maximum Thickness: 0.0142” (0.36 mm)


Load Continuous Forms

1. Push the sheet supports in and lift the sheet feed

platform

2. Lift the lock lever on the left tractor, then move

the left tractor to set the desired left margin for

printing.

•The

▼

mark on the gauge (

)—or the center of

the diamond shaped hole (

)—represents the

location of the center of the first character

printed.

Note

The movement of the left tractor is limited to

ensure that the paper covers the paper out

sensor.

3. Push the lock lever down to lock the left tractor in

place.

4. Lift the lock lever (

) on the right tractor (

) and

move the tractor over to correspond to the width

of the continuous forms you are using. Center the

paper support (

) between the two tractors.

5. Open both tractor covers and place the first three

holes in the continuous forms paper over the pins.

Important!

Make sure that an equal number of paper holes

are engaged on each tractor. If not, the paper

will jam.

6. Close the tractor covers and fine tune the position

of the right tractor until the holes in the paper are

centered on the pins, then push back the right

tractor lock lever.

7. Lower the platform.








8. Position the continuous forms stack below the

printer with no more than about 1 inch (3 cm)

offset (

Tearing Off Printed Continuous Forms

9. With the SEL light on, press SHIFT.

The continuous forms move forward onto the

stacker.

10. Tear off the printed form along the perforation.

11. Press SHIFT.

The forms move back into the printer, ready for

printing the next document.

Removing Continuous Forms

1. Follow the steps above to remove the printed

portion.

2. Press SEL.

3. Press LOAD.

The forms move back to the tractors.

4. Lift the platform and remove the forms from the

tractors.

5. Lower the platform.

Step 5:

Connect to the Computer

Caution!

Do not connect both the USB and parallel

ports at the same time.

USB Port

Note

No USB interface cable is supplied with the

printer. Use a USB cable that is compatible with

USB specification 2.0.

1. Turn off the printer.

2. Connect the USB cable to the USB port on the

printer.

3. Secure the cable in one of the channels (

)

molded into the housing on either side at the back

of the printer to keep it out of the way.

4. Connect the USB cable to the USB port on the

computer.

5. Turn on the printer.



F3_02_c




Otros manuales para MICROLINE 8810

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Impresora de Oki

Oki

Oki T410 Instrucciones originales

Oki

Oki B6500 Series Guía del usuario

Oki

Oki B401 Manual de usuario

Oki

Oki C5250 Manual de usuario

Oki

Oki C9650 Series Manual de usuario

Oki

Oki ES2024 Manual de usuario

Oki

Oki B6500 Series Instrucciones de instalación

Oki

Oki es7120 Manual de usuario

Oki

Oki LE810DT Guía de inicio rápido

Oki

Oki B6250 Series Manual de usuario

Oki

Oki ES8140 Manual de usuario

Oki

Oki MPS930b Manual de servicio

Oki

Oki PH640 Manual de usuario

Oki

Oki B930dn Manual de usuario

Oki

Oki ML3390 Instrucciones de funcionamiento

Oki

Oki ML1120 Manual de usuario

Oki

Oki MPS420b Instrucciones de funcionamiento y mantenimiento

Oki

Oki B4250 Series Manual de usuario

Oki

Oki OKIPAGE6w Manual de usuario

Oki

Oki MICROLINE Turbo ML390 Manual del propietario

Oki

Oki C9600hdn Guía de configuración

Oki

Oki LP441b Manual de usuario

Oki

Oki C711dtn Manual de servicio

Oki

Oki B6200 Series Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
