OGrow OGAL-866A Guía de inicio rápido

OGAL-866A

GREENHOUSE ASSEMBLY

www.kshbrands.com

suppor[email protected]

1.888.965.3331

INSTRUCTIONS

www.kshbrands.com [email protected] 1.888.965.3331

TO PREVENT INJURY, READ AND UNDERSTAND THE

GREENHOUSE ASSEMBLY INSTRUCTIONS BEFORE USE.

Notes:

1. It takes about 2-3 hours to assemble the greenhouse by 2-3 persons.

2. The UV-protected side of the sheet is covered with opal white film and

must face towards the sun.

3. Remove approximately 2 inches of film from all sheet edges before

installing. Removing all film immediately after the construction is

completed

4. Make sure the greenhouse is located on a flat, level surface.

GENERAL SAFETY, WARNINGS AND PRECAUTIONS

KEEP WORK AREA CLEAN AND DRY.

Cluttered, damp or wet work areas invite injuries.

STAY ALERT. Watch what you are doing at all times. Use common

sense. Do not use the greenhouse when you are tired or distracted from

the job at hand. It is recommended to use gloves for assembling the

greenhouse.

MAINTAIN THIS PRODUCT WITH CARE.

Keep the greenhouse clean and dry for better performance:

maintenance should be performed regularly.

USE THE RIGHT PRODUCT FOR THE JOB.

Do not attempt to force a small product to do the work of a larger

industrial product. There are certain applications for which the

greenhouse was designed. It will do the job better and more safely in the

manner for which it was intended. Do not modify the greenhouse and do

not use the greenhouse for a purpose for which it was not intended.

MAINTAIN A SAFE WORKING ENVIRONMENT.

Keep the work area tidy. Make sure there is adequate surrounding

workspace. Avoid high traffic areas. Always keep the work area free of

obstructions, grease, oil, trash and other debris.

PROPER GREENHOUSE LOCATION.

Make sure the greenhouse is located on a flat, level surface.

99 inches x 79 inches x 75 inches

www.kshbrands.com [email protected] 1.888.965.3331

TO PREVENT INJURY, READ AND UNDERSTAND THE

GREENHOUSE ASSEMBLY INSTRUCTIONS BEFORE USE.

Notes:

1. It takes about 2-3 hours to assemble the greenhouse by 2-3 persons.

2. The UV-protected side of the sheet is covered with opal white film and

must face towards the sun.

3. Remove approximately 2 inches of film from all sheet edges before

installing. Removing all film immediately after the construction is

completed

4. Make sure the greenhouse is located on a flat, level surface.

GENERAL SAFETY, WARNINGS AND PRECAUTIONS

KEEP WORK AREA CLEAN AND DRY.

Cluttered, damp or wet work areas invite injuries.

STAY ALERT. Watch what you are doing at all times. Use common

sense. Do not use the greenhouse when you are tired or distracted from

the job at hand. It is recommended to use gloves for assembling the

greenhouse.

MAINTAIN THIS PRODUCT WITH CARE.

Keep the greenhouse clean and dry for better performance:

maintenance should be performed regularly.

USE THE RIGHT PRODUCT FOR THE JOB.

Do not attempt to force a small product to do the work of a larger

industrial product. There are certain applications for which the

greenhouse was designed. It will do the job better and more safely in the

manner for which it was intended. Do not modify the greenhouse and do

not use the greenhouse for a purpose for which it was not intended.

MAINTAIN A SAFE WORKING ENVIRONMENT.

Keep the work area tidy. Make sure there is adequate surrounding

workspace. Avoid high traffic areas. Always keep the work area free of

obstructions, grease, oil, trash and other debris.

PROPER GREENHOUSE LOCATION.

Make sure the greenhouse is located on a flat, level surface.

99 inches x 79 inches x 75 inches

www.kshbrands.com [email protected] 1.888.965.3331

Notes.

1. Remove approximately 5mm of film from all sheet edges before installing.

Remove all film immediately after the construction completed.

2. The UV-protected side of the sheet is covered with opal white film and must

face towards the sun.

Two sides of PC sheet are covered with thin film, one side’s film is transparent, another’s

film is opal white. The UV-protected side of the sheet is covered with opal white

film and must face towards the outside.

Opal white film

PC sheet

Transparent film

POLYCARBONATE PANEL

SUN

www.kshbrands.com [email protected] 1.888.965.3331

Notes.

1. Remove approximately 5mm of film from all sheet edges before installing.

Remove all film immediately after the construction completed.

2. The UV-protected side of the sheet is covered with opal white film and must

face towards the sun.

Two sides of PC sheet are covered with thin film, one side’s film is transparent, another’s

film is opal white. The UV-protected side of the sheet is covered with opal white

film and must face towards the outside.

Opal white film

PC sheet

Transparent film

POLYCARBONATE PANEL

SUN

1 | OGAL-866A ASSEMBLY INSTRUCTIONS

www.kshbrands.com [email protected] 1.888.965.3331

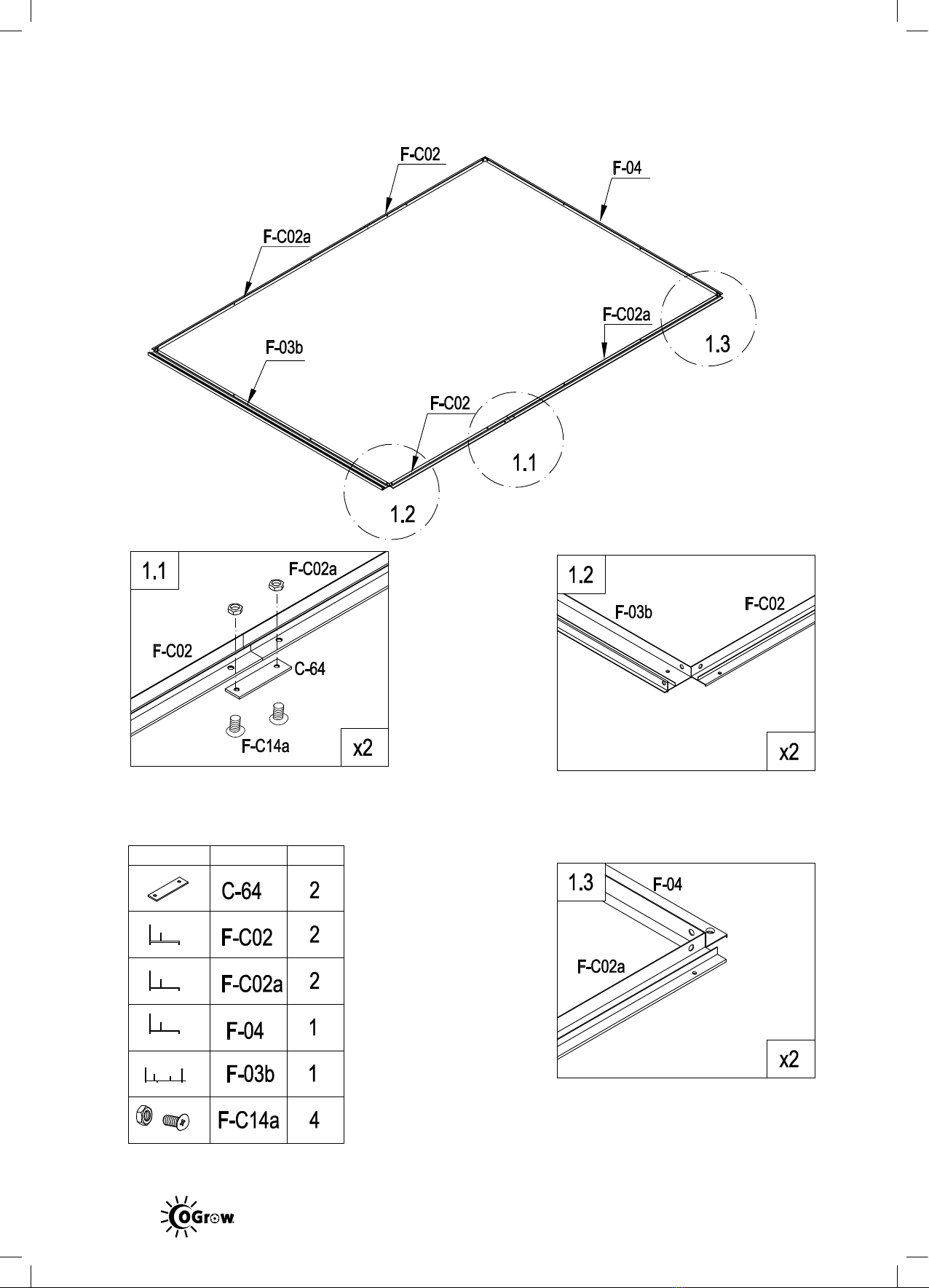

1.1 Connect F-C02 & F-C02a by C-64,

fix the bolts and nuts.

1.3 Lay F-04 & F-C02a to a right-angle,

make sure the grooves of F-04 &

F-C02a are on the outside.

1.2 Lay parts F-03b & F-C02 to a

right-angle, make sure the grooves of

F-03b & F-C02 are on the outside.

Parts used in this section.

Image Item # Quantity

OGAL-866A ASSEMBLY INSTRUCTIONS | 2

www.kshbrands.com [email protected] 1.888.965.3331

2.1.1 Insert the bolts (F-C14) into the

holes.

2.1.2 Insert F-05 into the bolts.

2.1.3 and 2.1.4 Put on the nuts and tighten.

Parts used in this section.

Image Item # Quantity

3.1.2 Connect F-05, F-19b, F-18 by the

upper bolt. Once the notch on F-19b is

aligned with the top of F-05, you can

screw the nut tight on the bolt.

4.1 Connect F-29 and F-17 to F-05 with

bolts and nuts, maintaining 3/4 of an inch

distance from the top of F-05 to the bolt.

5 | OGAL-866A ASSEMBLY INSTRUCTIONS

www.kshbrands.com [email protected] 1.888.965.3331

5.1 Connect F-30 and F-05 to the lower notch

of F-19b with bolts and nuts.

NOTICE: The notch of F-19b MUST be aligned

with the top of F-05.

5.2 Connect F-30 and F-04 with bolts and

nuts.

NOTICE: Don't tighten nuts yet.

5.3 Insert two bolts into F-05. Connect F-30

and F-05 to the lower notch of F-19b, using the

lower bolt and nut. Insert the top bolt into the

lower hole of F-19b.

NOTICE: The notch of F-19 MUST be aligned

with the top of F-05.

Parts used in this section.

Image Item # Quantity
