Oceanic PROPLUS X Manual

PROPLUS X BATTERY SERVICE PROCEDURE

DOC. 12-7959-r02 (8/19/20)

Doc. 12-7959-r01 (8/19/20)

USA Ofce

1540 North 2200 West

Salt Lake City, Utah 84116

Tel: 888-270-8595

Web: www.OceanicWorldwide.com

CONTENTS

INTRODUCTION

GENERAL PROCEDURES

SERVICE TOOLS

ASSEMBLY DRAWING

DISASSEMBLY

REASSEMBLY

Doc. 12-7959-r01 (8/19/20)

This manual is intended as a guide to replace the battery in the

Oceanic ProPlus X dive computer module.

This service must be performed in a dry (maximum 40% relative

humidity) and clean environment at room temperature (56-78°F

/ 18-25°C).

Safety Precautions

This manual provides step by step instructions for replacing

the battery of the Oceanic ProPlus X dive computer. It is

recommended that all steps are followed in the order given.

Read each section completely PRIOR to beginning the work

described in that section.

Pay close attention to all WARNINGS, CAUTIONS and NOTES

that are intended to draw your attention to items of importance.

Denitions of terms:

!WARNING

WARNING is used before a procedure that could

potentially result in serious injury or death if

performed incorrectly.

CAUTION

CAUTION is used in connection with a procedure

that may cause damage to the equipment.

NOTE

NOTE is used in connection with a procedure

that requires special attention.

INTRODUCTION

NOTE

Do not open any seals if not necessary. After opening a

seal, always replace the O-ring.

Battery replacement is necessary when the battery replacement

message is displayed on the computer screen and/or the user

is experiencing shortened battery life per charge.

Handling & Storage of Parts

Spare parts must be stored in a clean and dry environment.

Ensure parts are not exposed to dust or other contaminants.

Take special care of sealing gaskets, O-rings, and electronic

components.

NOTE

The battery kit must be stored in original packaging until

being used in repair.

GENERAL PROCEDURES SERVICE TOOLS

General Tools

• 3/32” Allen key

• Grounding strap

• Work station (grounded)

• Orange stick or spudger

• Silicone grease

• Lint-free microber cloth

Doc. 12-7959-r01 (8/19/20)

ASSEMBLY DRAWING

ITEM OCEANIC PART

DESCRIPTION QTY.

1 - BATTERY, PPX 1

2 - O-RING, BATTERY COVER, PPX 1

3 - O-RING 1

4 - PLUG, OVER PRESSURE 1

N/S 04.6175.97 Battery Kit, PPX (includes items 1-4) 1

N/S = Not Shown

Doc. 12-7959-r01 (8/19/20)

!CAUTION

To prevent damage resulting from static discharge, the

individual and work station must be grounded when

handling any electronic components.

CAUTION

DO NOT attempt to open the ProPlus X before reading

these instructions completely.

NOTE

Protect the lens and nish of the ProPlus X by working on

a clean padded surface.

1. Unscrew the battery retaining screws by turning

counterclockwise (using an allen driver), as shown (Fig. 1).

2. Remove the battery cover (Fig. 2). Inspect for any signs of

damage, discard if found.

3. Carefully, press the over-pressure plug and O-ring out of the

cavity in the battery cover using a non-marking tool (Fig. 3,

4). DO NOT use metal tools.

DISASSEMBLY

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Doc. 12-7959-r01 (8/19/20)

Fig. 5

Fig. 6

Fig. 7

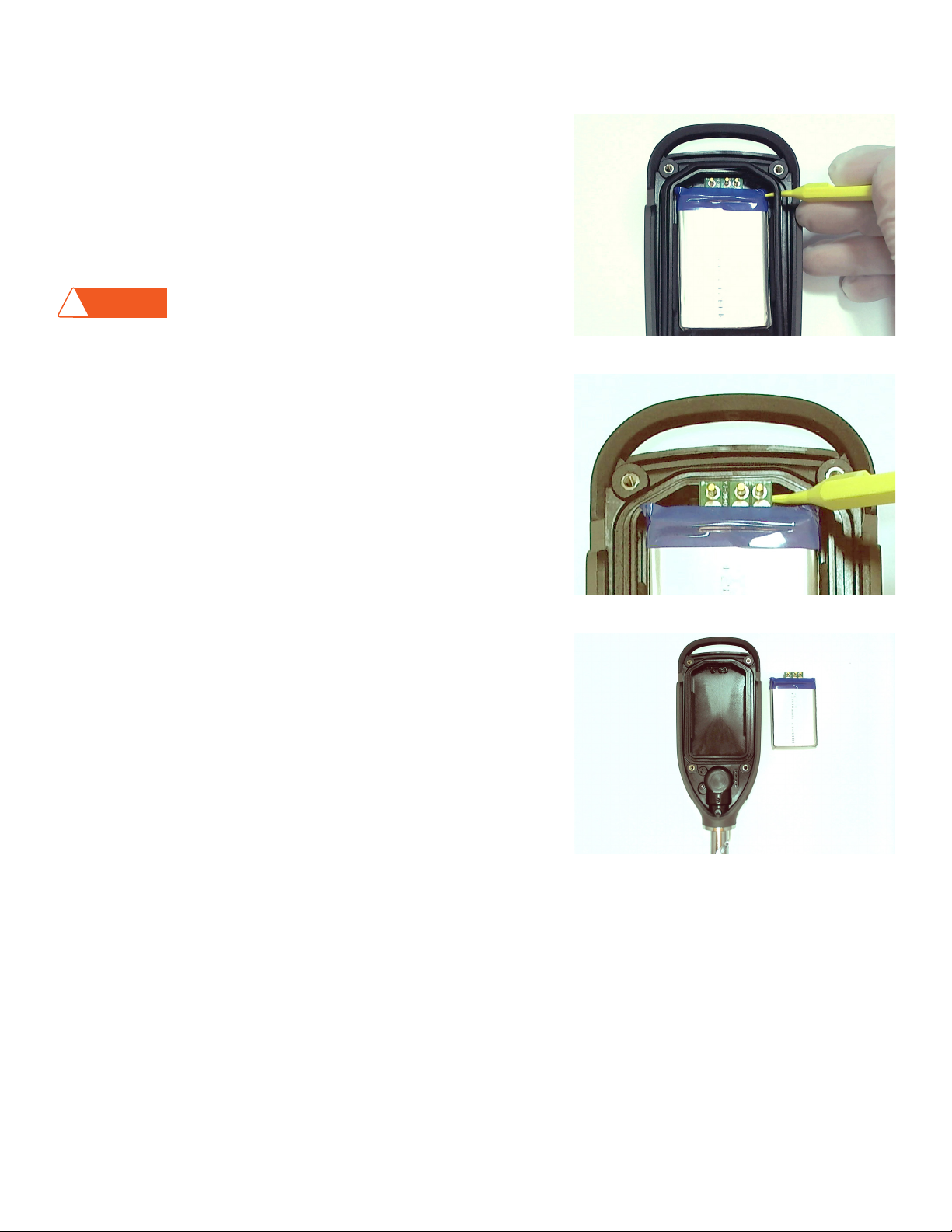

4. Remove and discard the battery cover O-ring with a non-

marking tool (Fig. 5). Do not use metal tools.

5. Carefully separate the battery contacts with a plastic tool

(Fig. 6). Do not bend or damage the battery terminals.

6. Carefully lift the battery out of the housing (Fig. 7).

CAUTION

Properly recycle or dispose of the original battery in

accordance with local regulations.

Doc. 12-7959-r01 (8/19/20)

!CAUTION

To prevent damage resulting from static discharge, the

individual and work station must be grounded when

handling any electronic components.

NOTE

Protect the lens and nish of the ProPlus X by working on

a clean padded surface.

!CAUTION

Do not use chemicals or alcohol to clean the plastic parts.

1. Install the battery, as shown, by pressing and fully seating

the connector (Fig. 1, 2).

NOTE

The writing on the battery should be facing outwards.

2. Lightly lubricate the battery O-ring with silicone and install it

along the O-ring groove (Fig. 3).

CAUTION

Ensure the O-ring is free of any debris and evenly seated.

3. Ensure that the battery cover still has insulating pads in place

and in good condition (Fig. 4).

REASSEMBLY

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Doc. 12-7959-r01 (8/19/20)

4. Evenly seat the battery cover onto the case assembly (Fig. 5).

5. Install the battery cover screws (Fig. 6). DO NOT overtighten.

6. Carefully press the over-pressure plug and O-ring into the

cavity of the battery cover, as shown (Fig. 7, 8).

CAUTION

The O-ring installs under the over-pressure plug. The

plug and O-ring need to be fully seated to maintain water

integrity of the ProPlus X assembly. Fig. 5

Fig. 6

Fig. 7

Fig. 8

Doc. 12-7959-r01 (8/19/20)

7. Visually inspect the ProPlus X unit to ensure correct assembly

and that there are no gaps between the battery cover and

case. Power the unit up and ensure proper operation (Fig. 9).

CAUTION

Fully charge the battery after assembly and before use.

Expect 3-4 hours to charge fully.

Fig. 9
