Ocean Technology Systems SCU-BUD Manual de usuario
Ocean Technology Systems
Installation of the SCU-BUD into the ScubaPro Full-Face Mask

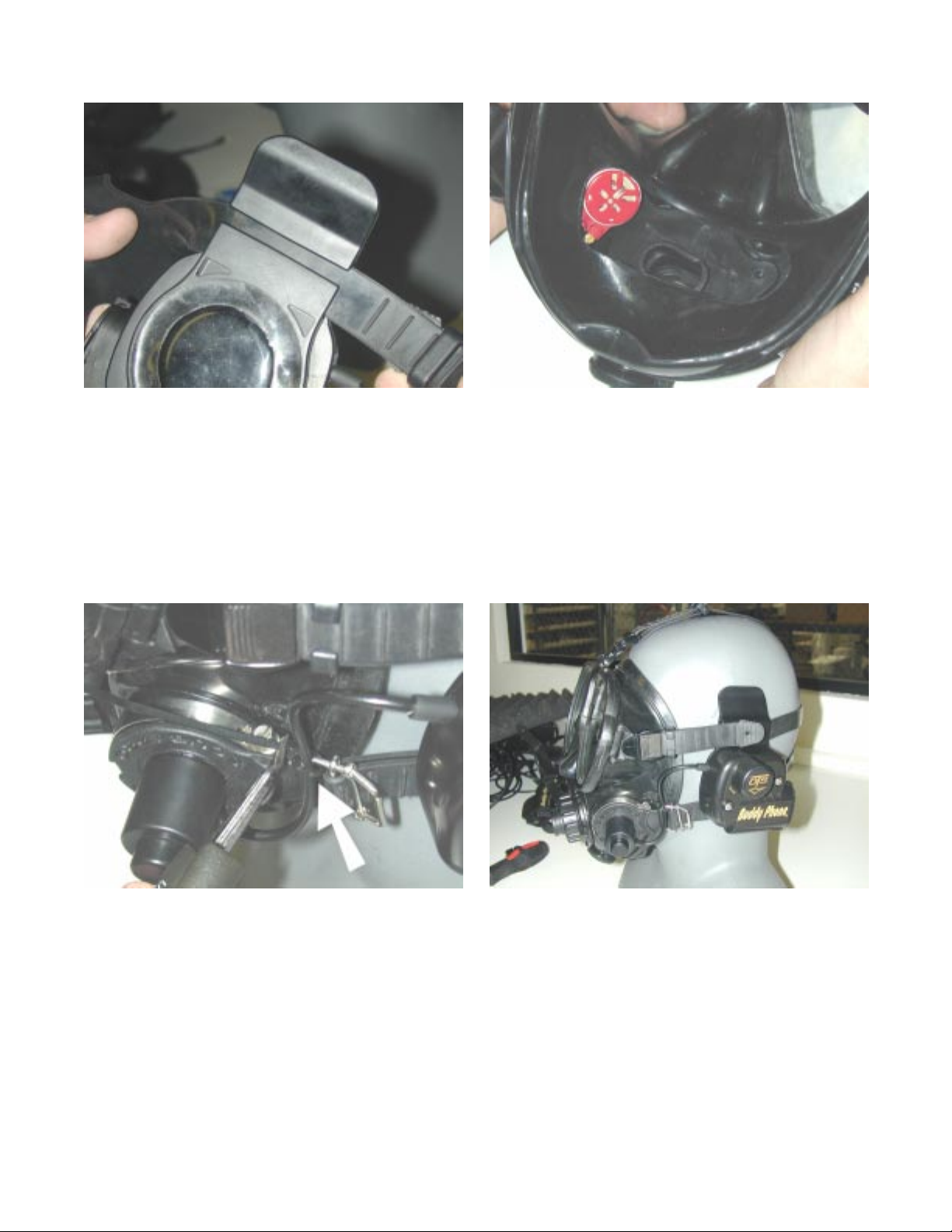

1. Unscrew and remove the metal band that secures
the mask’s left accessory port cover, to which the
lower mask strap is attached. Remove the acces-
sory port cover.
2. Remove the mask strap from the accessory port
cover. Remove the male buckle end from the strap,
and set it aside. Install the mask strap into the buckle
of the Buddy Phone®microphone module.
3.InstalltheBuddyPhone®microphone module into
the mask’s left accessory port. 4. Close the metal band around the opening of the
accessory port and tighten the screw, so that the
microphone module is securely attached.
p. 1 of 2
Installation Instructions
506106-000 (A)
6. Don the mask and assure the microphone is posi-
tioned as close to your lips as possible (less than
1/4 inch is best). The correct microphone position
is important: If it is too far from your lips, commu-
nications will sound weak and distant.
Undersea Systems International, Inc. dba
Ocean Technology Systems
3133 W. Harvard Street • Santa Ana • California • 92704 • USA
www.oceantechnologysystems.com
5. Fully insert the upper left head strap of the mask
into the strap retainer slot on the Buddy Phone®so
that the Buddy Phone®will be positioned over the
left ear.
7. Adjust the ScubaPro Buddy Phone®so the earphone is over your ear or as close to it as possible.
A fully installed ScubaPro Buddy Phone®
p. 2 of 2
8. Secure the Buddy Phone®cable to the mask strap
buckle with a tie wrap. The tie wrap should be just
loose enough that the cable can move freely through
it. Cut off all excess length of tie wrap.
