Océ Education Services

Guideline

Océ CS620/CS650 Pro Quick Start

How to execute the Quick Start program at the customer.

This guideline describes the activities a field engineer needs to execute to deliver

the Océ CS620/CS650 Pro Quick Start program to the customer.

Océ Quick Start

Page 1 of 24

What is an Océ Quick Start course?

Objective: after this short introduction the customer can perform basic operations on the Océ CS620/CS650 Pro system.

Intended for: Field Engineers

Duration: ½ hour, after installing Océ CS620/CS650 Pro system + applications

Target group: the target group is (key) operators, if desired end users are welcome as well.

The Océ Quick Start is included in the implementation of the Océ CS620/CS650 Pro system. Its objective is that after the installation the customer is

able to perform the basic operations on the Océ CS620/CS650 Pro system.

For a more in-depth knowledge of the Océ CS620/CS650 Pro plus workflow aspects separate user training is available that is offered by

Océ Education Services.

The ⇒sign indicates a demonstration. Active use of the user manual is an ITC objective, also for the Quick Start this will be a valuable tool.

When to perform the Océ Quick Start course?

After installation of the Océ CS620/CS650 Pro system.

Océ Quick Start

Page 2 of 24

Content of the Océ CS620/CS650 Pro Quick Start course

This Quick Start of the Océ CS620/CS650 Pro system consists of the following subjects:

1. Introduction to the system

2. Turn On and Off the engine

3. Load paper

4. Re-fill staples

5. Re-fill toner

6. Basic copy job

7. Basic print job

8. Basic scan job

Océ Quick Start

Page 3 of 24

1) Introduction to the system

⇒The Océ CS620/CS650 Pro is a machine producing up to 65 B/W / full colour pages. Via the trays 1, 2, 3 and 4 (CS650 Pro) it is possible to feed

64-256 g/m2. Via tray 5 (CS650 Pro), the multisheet bypass (CS620) and the optional bulk tray (CS620) it is possible to feed 64-300 g/m2.

The CS620 is available with a booklet finisher, large capacity unit (bulk tray) and optional punch kit and post inserter. The booklet finisher has

2-point and corner stapling, center fold and threefold capacities.

The CS650 Pro is available in various configurations, for example with:

• a staple finisher

• a multi folding unit with punch kit and post inserter

• a high capacity stacker

• a booklet maker

2) Turn On and Off the engine

The machine has 2 power switches:

• the main power switch (used mainly by the service engineer)

• the sub power switch

The main power switch turns on/off all functions of the machine. Normally, the main power switch is and remains turned on.

⇒To turn On the print engine:

1. Open the front door of the engine. The main power switch is located at the upper left hand side.

2. Set the main power switch to [ I ]. The power LED on the control panel will light red.

3. The sub power switch is located at the front of the machine. Turn on the sub power switch [ I ]. The power LED on the control panel will light

green.

The sub power switch turns on/off machine operations, for example copying, printing or scanning. When the sub power button is turned off, the

machine enters an energy save mode.

Océ Quick Start

Page 4 of 24

⇒To turn Off the engine:

1. Set the sub power button to [ ].

Note: the main power switch should remain turned on.

Océ Quick Start

Page 5 of 24

3) Load paper

⇒Tray 1, 2, 3

1. Withdraw tray 1, 2, or 3 completely, and lift the paper feed roller.

2. Adjust the position of the side guide plate

• Pull up the lock lever at the front, then slide the side guide plate to the desired position.

• See the size indication on the bottom plate of the tray to determine the position of the side guide plate.

• Push down the lock lever firmly until it clicks in position to fix the side guide plate.

3. Adjust the position of the rear stopper.

• To slide the rear stopper to the right, hold it at the upper part and slide it while pressing down slightly.

• On the other hand, hold the rear stopper at the lower part to slide it to the left.

Océ Quick Start

Page 6 of 24

4. Place the paper on the tray

• Align the paper first to the right side of the tray, then align the rear stopper to the paper.

• Do not load more than 500 sheets (80 g/m²) or above the limit indicated on the side guide plates.

5. When the paper is positioned properly, lower the paper feed roller.

6. Gently push in the tray until it locks into position.

Océ Quick Start

Page 7 of 24

⇒The bulk tray LU-202 (CS620)

1. Open the top door of the bulk tray.

2. Adjust the position of the paper guides and rear stopper.

• Turn the four paper guide knobs and two rear stopper knobs counterclockwise to loosen them.

• Move the upper part of the two paper guides to the appropriate positions according to the size indication, then turn the paper guide knobs

(two for each) clockwise to fix the guides.

Océ Quick Start

Page 8 of 24

• Move the position of the rear stopper to the appropriate position according to the size indication on the bottom plate, then turn the two rear

stopper knobs clockwise to fix the rear stopper.

3. Press the green paper loading button once, then load the paper into the tray.

4. Repeat step 3 until the bottom plate will not go down any more.

5. Close the top door.

Océ Quick Start

Page 9 of 24

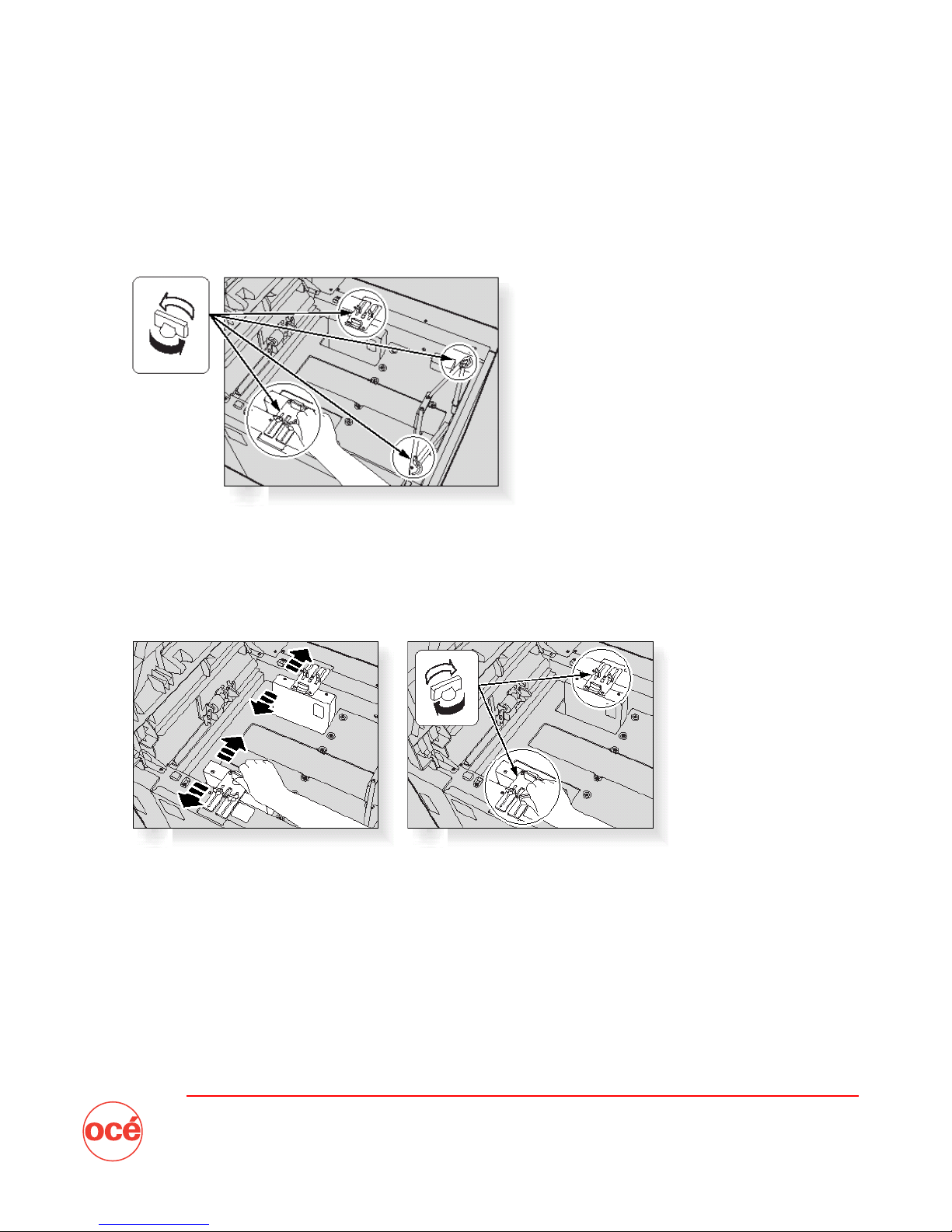

⇒Paper trays 4 & 5 (PF-601 for CS650 Pro)

Make sure that the machine is powered ON before you withdraw the tray.

You can only withdraw one tray at a time.

1. Withdraw tray 4 or 5.

2. Adjust the position of the side paper guides.

• Turn the four paper guide knobs counterclockwise to loosen them.

• While you push the paper guide lock release lever, move the lateral guides along the appropriate size guides as desired.

• Release the pressure applied to the paper guide lock to lock it again.

• Turn the the paper guide knobs clockwise to fix the guides.
