SMPTE / MIDI Kit

Installation Guide

NX4 – NX2 – NX Wing

Page 2

1. Introduction

Due to the shortage of components some NX2, NX4, and NX-Wing controllers shipped without the SMPTE and MIDI

interfaces. This guide describes in detail how these interfaces are installed in these 3 controllers.

To register your device and receive the SMPTE/MIDI Kit free of charge please visit:

support.obsidiancontrol.com/timecodeparts

WARNING: ANTI-STATIC PRECAUTIONS

ESD or Electrostatic Discharge is one of the main causes of electronic defects, such that the defect may not be

immediately noticeable, but can pop up later, even months afterwards. ESD can ruin electronic components and

can cause significant additional costs. Therefor it is very important to follow the instructions below.

Be sure to be properly grounded before opening the controller:

-If possible: Carry out the service at an anti-static workstation.

-Wear a grounded anti-static wristband.

-Touch a grounded conductor every few minutes to discharge any static buildup.

-Hold components by their edges only. Do never touch the surfaces or any of the contacts of the PCBs.

Page 3

2. Kit Contents

The SMPTE/MIDI Kit contains following items:

-SMPTE interface

-MIDI interface

-Interconnect cable

-1 set of reserve screws + wire straps

-This guide

3. Tools needed

Following tools are needed:

-Torx T10 screw driver

-Torx T20 screw driver (only NX2, NX4)

-XLR 3-pin male to 3-pin female cable (for testing)

-MIDI cable (for testing)

Page 4

4. Installation

4.1. NX-Wing

1. Remove screws:

-Remove 4 screws on the front (Torx T10)

-Remove 4 screws on the back (Torx T10)

-Slightly loosen 2 screws on the back (Torx T10)

2. Lift the front panel off the base. Push the top corner of the lamp dimmer plate in slightly, while lifting the

front panel off the base.

3. Put the front panel behind the base. Make sure that the cabling is not damaged.

4. Remove the blind plate:

-Remove 6 screws + washers from the base (Torx T10)

-Remove 4 screws from the side (Torx T10)

-Remove the blind plate

Page 5

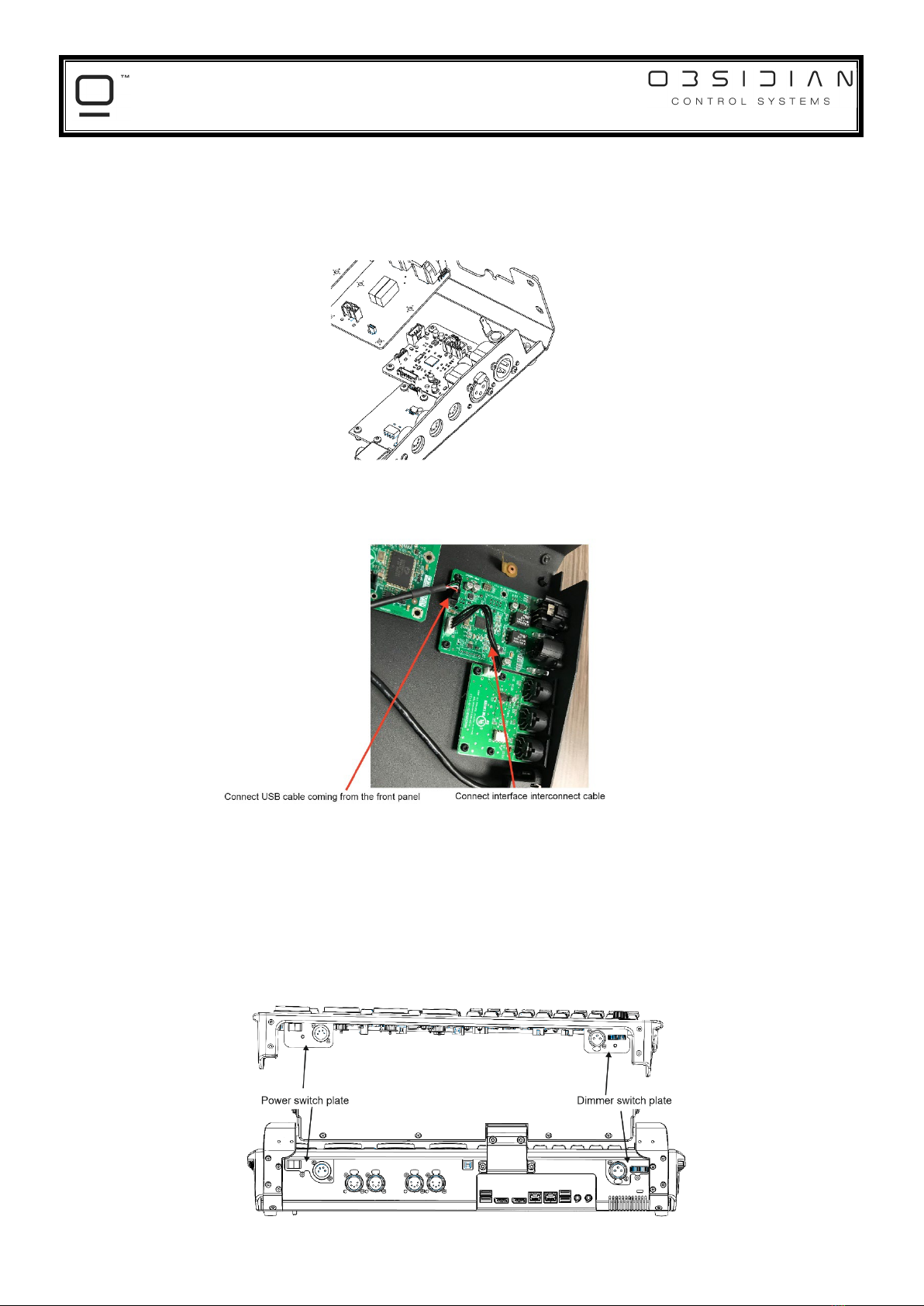

5. Install the SMPTE and MIDI interfaces

-Install the 2 interfaces with the screws and washers that were removed in the previous step.

6. Connect cabling:

-Connect the USB cable coming from the front panel

-Connect the interface interconnect cable

7. Test the interface.

-Before closing the controller, test the interfaces (see chapter 5)

8. Close the controller when the test was successful.

-Close the controller in reverse order of opening.

PLEASE NOTE that the dimmer plate and power switch plate are on the inside of the controller when you place the

front panel on the base. Forced closing when the 2 plates are not in the correct position can damage the dimmer wheel

of the desk lamp and/or the power switch!!!

Page 6

4.2. NX2

1. Remove screws:

-Remove 4 screws on the front (Torx T10)

-Remove 8 screws on the back hinges (Torx T10)

-Slightly loosen 2 screws on the back (Torx T10)

-Slightly loosen 2 screws on the bottom of the hinges (Torx T20)

2. Lift the front panel off the base. Push the top corner of the lamp dimmer plate in slightly, while lifting the

front panel off the base.

Page 7

3. Place the front panel on the screen (put a piece of cardboard between them to prevent damage), as shown in

the photo. Make sure that the cabling is not damaged.

Note: SMPTE and MIDI interfaces are already installed in the picture

4. Remove the blind plate:

-Remove 6 screws + washers from the base (Torx T10)

-Remove 4 screws from the side (Torx T10)

-Remove the blind plate

Page 8

5. Install the SMPTE and MIDI interfaces

-Install the 2 interfaces with the screws and washers that were removed in the previous step.

6. Connect cabling:

-Connect the USB cable coming from the front panel

-Connect the interface interconnect cable

7. Test the interface.

-Before closing the controller, test the interfaces (see chapter 5)

8. Close the controller when the test was successful.

-Close the controller in reverse order of opening.

PLEASE NOTE that the dimmer plate and power switch plate are on the inside of the controller when you place the

front panel on the base. Forced closing when the 2 plates are not in the correct position can damage the dimmer wheel

of the desk lamp and/or the power switch!!!

Page 9

4.3. NX4

1. Place the desk lights in horizontal position behind the screen

2. Place the screen in open position

3. Remove screws:

-Remove 4 screws on the front (Torx T20)

4. Open the desk. Use the screen to keep it in open position.

Page 10

5. Remove the blind plate:

-Remove 6 screws + washers from the base (Torx T10)

-Remove 4 screws from the back (Torx T10)

-Remove the blind plate

6. Install the SMPTE and MIDI interfaces

-Install the 2 interfaces with the screws and washers that were removed in the previous step.
