Oase Bitron 18c Manual de usuario

Warranty, Safety and

Operating Instructions

Garantie, mode d'emploi

et consignes de sécurité

Garantia, Instructivo

de Seguridad y de

Operaciones

18C – 55C

Bitron

26866/01D

95-08 26866 Bitron_USA.p65 22.01.2008, 15:531

95-08 26866 Bitron_USA.p65 22.01.2008, 15:532

Bitron 18C Bitron 36C/55C

230 mm

9 in

270 mm

10.6 in

145 mm

5.7 in

145 mm

5.7 in

95-08 26866 Bitron_USA.p65 22.01.2008, 15:533

English

1. Symbols 5

2. Appropriate use of device 5

3. Important Safety Instructions 6

4. General Safety Instructions 6

5. Electrical connection 7

6. Ground fault circuit interrupter

(GFCI) protection 7

7. Installation 8

8. Placing in service 11

9. Maintenance 11

10. Cleaning 13

11. Storage/winter care 14

12. Repair 14

13. Disposal instructions 14

14. Troubleshooting in case of malfunction 14

15. Parts subject to wear 15

16. Device overview: 16

17. Technical data 16

18. LIMITED WARRANTY 17

Français

1. Symboles 18

2. Utilisation appropriée 18

3. Consignes de sécurité importantes 19

4. Consignes de sécurité générales 19

5. Connexion électrique 20

6. Protection par prise disjoncteur

de mise a la terre (GFCI) 20

7. Installation 21

8. Mise en service 24

9. Entretien 25

10. Nettoyage 27

11. Stockage/hivernage 28

12. Réparation 28

13. Conseil relatif à l'élimination 28

14. Mesures en cas de panne 28

15. Pièces d'usure 29

16. Aperçu de l’appareil: 30

17. Caractéristiques techniques 30

18. Garantie limitée OASE 31

Español

1. Símbolos 32

2. Uso adecuado del dispositivo 32

3. Instrucciones de Seguridad Importantes 33

4. Instrucciones de Seguridad Generales 33

5. Conexión eléctrica 34

6. Protection par prise disjoncteur

de mise a la terre (GFCI) 34

7. Instalación 35

8. Puesta en funcionamiento 38

9. Mantenimiento 39

10. Limpieza 40

11. Almacenamiento/Conservación durante el invierno 42

12. Reparación 42

13. Indicación para eliminación 42

14. Medidas en caso de averías 42

15. Piezas de desgaste 43

16. Resumen de aparatos 44

17. Technical data 44

18. Garantía limitada de OASE 45

95-08 26866 Bitron_USA.p65 22.01.2008, 15:534

Use these instructions to familiarize yourself with the device before you use

it for the first time. It is absolutely essential that you observe the safety

guidelines on the proper and safe use of the device.

For safety reasons, children and young people under 16 years of age, as

well as people who cannot recognize potential hazards or who are not

familiar with these instructions, must not use this device!

Please keep these instructions in a safe place! In the event of a change of

ownership, please pass these instructions on to the new owner along with

the product.

1. Symbols

The symbols used on the device and in these instructions have the

following meaning:

Caution! Important advice about hazards!

Important information!

Caution! Refer to the instructions!

Caution! Disconnect plug!

Lamp is suitable for direct attachment to surfaces with

normal flammability.

Keep away from direct sunlight!

Caution! Magnetic field!

Potential hazards for people with pacemakers!

Caution! Dangerous UVC radiation!

2. Appropriate use of device

The Bitron model range is suitable for cleaning normal pond water between

40°F and 95°F. Irradiation of the pond water with short-wave UVC light

results in algae being flocculated. Optimum cleaning of ponds is achieved in

combination with OASE pond filters and OASE pumps.

English

95-08 26866 Bitron_USA.p65 22.01.2008, 15:535

English

3. Important Safety Instructions

WARNING – To guard against injury, basic safety precautions should be

observed, including the following:

1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

2. DANGER - To avoid possible electric shock, special care should be taken

since water is employed in the use of this equipment. For each of the

following situations, do not attempt repairs yourself; return the appliance

to an authorized service facility for service or discard the appliance.

– lf the appliance falls into the water, DON’T reach for it! First unplug it and

then retrieve it. lf electrical components of the appliance get wet, unplug

the appliance immediately.

– Do not operate any appliance if it has a damaged cord or plug, or if it is

malfunctioning or if it is dropped or damaged in any manner.

3. Always unplug an appliance from an outlet when not in use, before

putting on or taking off parts, and before cleaning. Never yank cord to pull

plug from outlet. Grasp the plug and pull to disconnect.

4. Do not use an appliance for other than intended use. The use of

attachments not recommended or sold by the appliance manufacturer

may cause an unsafe condition.

5. Read and observe all the important notices on the appliance.

6. SAVE THESE INSTRUCTIONS

4. General Safety Instructions

–Caution: Dangerous ultraviolet radiation. The rays from the UVC

lamp are a danger to your eyes and skin! Never operate the lamp

of the Bitron outside the casing!

– For your own safety, contact an electrician if you have any questions

or problems!

–Never immerse the device in water!

–Always disconnect the plugs of all devices that are in the water and of

this device before you carry out any work on the device!

–Only operate the Bitron in a horizontal standing/hanging position with the

supports at the bottom.

–Please note: the Bitron is fitted with permanent magnets.Their magnetic

fields can:

–affect pacemakers. People with pacemakers should therefore avoid

contact with the Bitron.

–interfere with electrical and electronic components. Such equipment

should therefore be kept away from the Bitron.

– delete data on data carriers. These should therefore be kept away

from the Bitron.

95-08 26866 Bitron_USA.p65 22.01.2008, 15:536

English

Do’s

–Make sure that the unit is installed in accordance with all National and

Electrical Codes.

–Make sure to install the Bitron at least 6 feet from the edge of the pond.

–Make sure to keep the outlet system free of dirt and debris.

–Make sure to unplug the unit before servicing the unit.

–Make sure to keep the plugs and connections dry at all times.

–Make sure to return the unit to an authorized service dealer for any

repairs.

Don’ts

–Do not exceed the “Maximum Operating Pressure” of 7 psi.

–Do not carry or pull the unit by the power cord.

–Do not tamper with or operate unit without the proper grounding plug.

–Do not operate the unit if the power cord appears to be defective.

–Do not operate the lamp outside of the housing.

–Do not operate the unit without water flowing through the unit.

–Do not expose eyes or skin to the lamp’s rays.

–Do not attempt any repairs on this unit.

–Do not open the casing of the Bitron or its accessories unless expressly

directed to do so in the instructions

5. Electrical connection

GROUNDING INSTRUCTIONS

This product must be grounded. If it should malfunction or breakdown,

grounding provides a path of least resistance for electric current to reduce

the risk of electric shock. This product is equipped with an electrical cord

having an equipment grounding conductor and a grounding plug. The plug

must be plugged into an appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordinances.

DANGER – Improper connection of the equipment-grounding conductor can

result in the risk of electrocution. Check with a qualified electrician or service

personnel if you are in doubt as to whether the outlet is properly grounded.

Do not modify the plug provided with the product – if it will not fit the outlet,

have a proper outlet installed by a qualified electrician. Do not use any type of

adapter with the product.

6. Ground fault circuit interrupter (GFCI) protection

To comply with the National Electric Code (NFPA 70) and to provide additional

protection from the risk of electrical shock, this unit should only be connected

to a receptacle that is protected by a ground fault circuit interrupter (GFCI).

WARNING – To reduce the risk of electrocution, keep all connections dry and

off the ground. Do not touch plug with wet hands.

95-08 26866 Bitron_USA.p65 22.01.2008, 15:537

English

7. Installation

– Be sure to read and observe the safety instructions prior to installation!

– Compare the electrical data of the supply grid with that of the type label.

This data must be consistent.

– Install the Bitron at least 6 feet from the edge of the pond!

– Position the Bitron so that it will not be emmersed in water.

– Put the Bitron where it will not be exposed to direct sunlight!

– Lay the hoses and the connecting lead in such a way that they do not

present an obstacle and cannot be damaged!

– You must read and follow the safety instructions before the installation!

– The Bitron devices 18C are suitable for a pump capacity of up to

3960 Gph (15000 l/h). The flow rate on the UVC bulb should not exceed

– 580 Gph (2200 l/h) for Bitron 18C

(see “8.1 Bypass setting”)

– The Bitron devices 36C/55C are suitable for a pump capacity of up to

7920 Gph (30000 l/h). The flow rate on the UVC bulb should not exceed

– 1190 Gph (4500 l/h) for Bitron 36C

– 1720 Gph (6500 l/h) for Bitron 55C

(see “8.1 Bypass setting”)

– Please select the filtration system according to Table 7 (page 47).

Selection criteria: Pond size and with/without fish stock).

7.1 Device overview

AUVC water discharge

BRotary handle for water

flow adjustment

CWater discharge bypass

DWater intake

EFoot

FInspection glass for

inspecting the UVC

bulb and the cleaning

rotor function

GSafety locking lever;

prevents the device

head from being

opened unintentionally.

HDevice head, removable

for UVC bulb replacement.

Legend for Table 7 (page 47):

Near natural garden ponds with plants.

Garden and koi ponds with a fish stock up to 2.2 lbs (1000 grams)

per 265 Gal. (1000 litres).

95-08 26866 Bitron_USA.p65 22.01.2008, 15:538

English

7.2 Setting up the Bitron

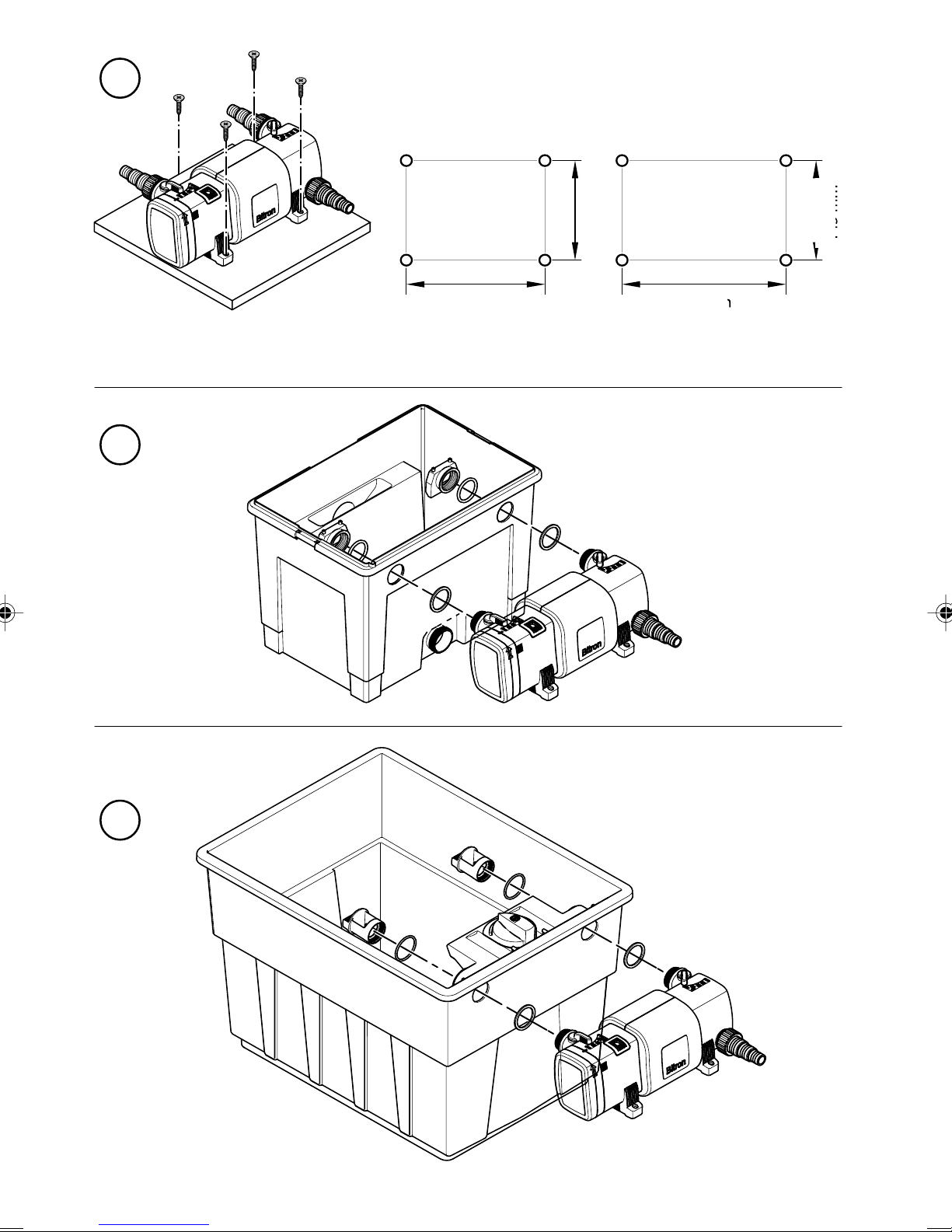

7.2.1 Single-unit setup with hoses (Fig.3)

1. Anchor the Bitron horizontally on a suitable substrate with the feet down.

Use four countersunk head screws (not supplied with the product) to

anchor the Bitron.

2. Hand tighten the screws.

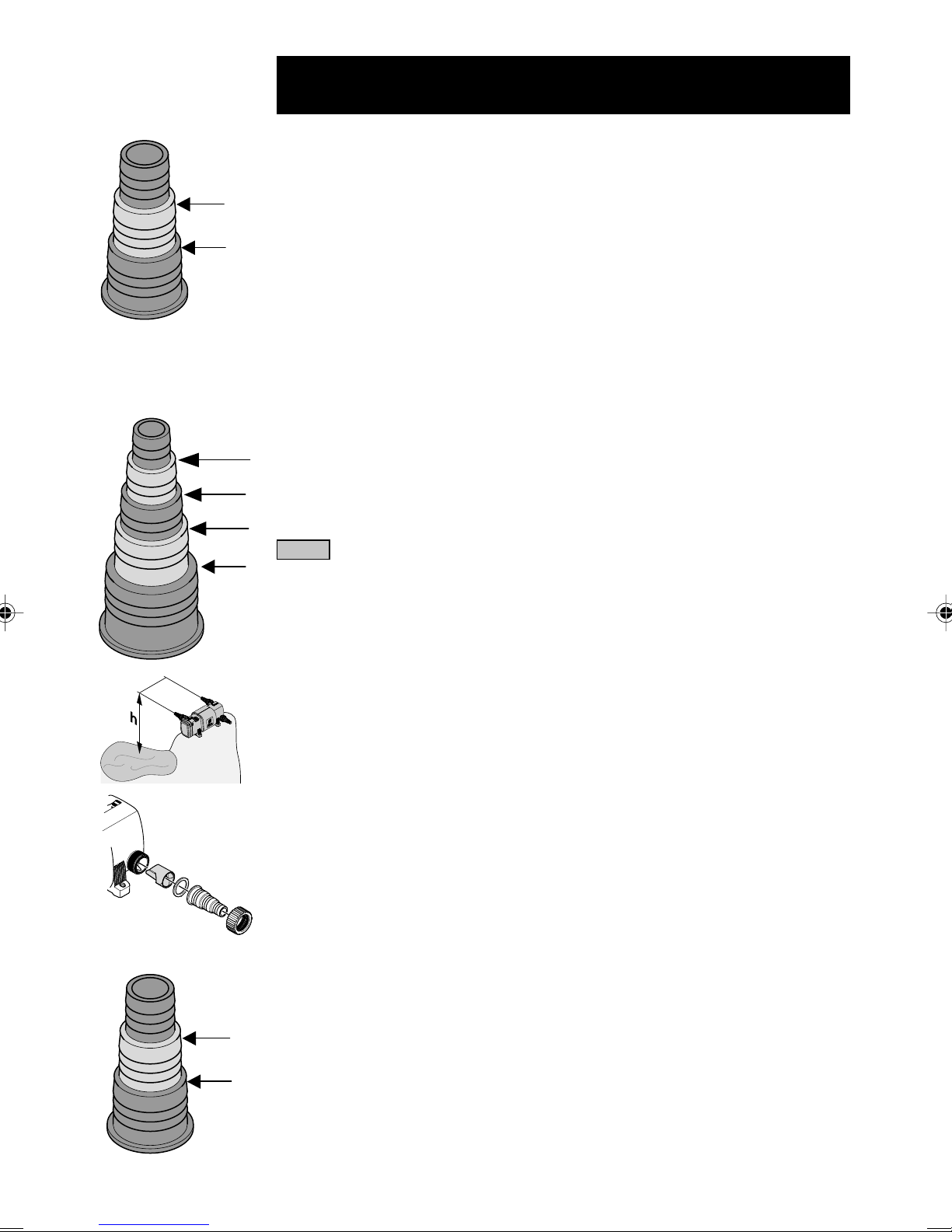

3. Connect the hoses (see “7.3 Hose connection”):

– Water intake D

– Water discharge A(UVC)

– Water discharge C(bypass)

Note: If the pump capacity is less than the maximum water flow of the

Bitron (see “7 Installation”) then the water discharge C(bypass) can be

closed with the sealing cap and flat gasket.

7.2.2 Connection to Biotec 5/10/30 and Biotec 5.1/10.1 (Fig. 1 and 4)

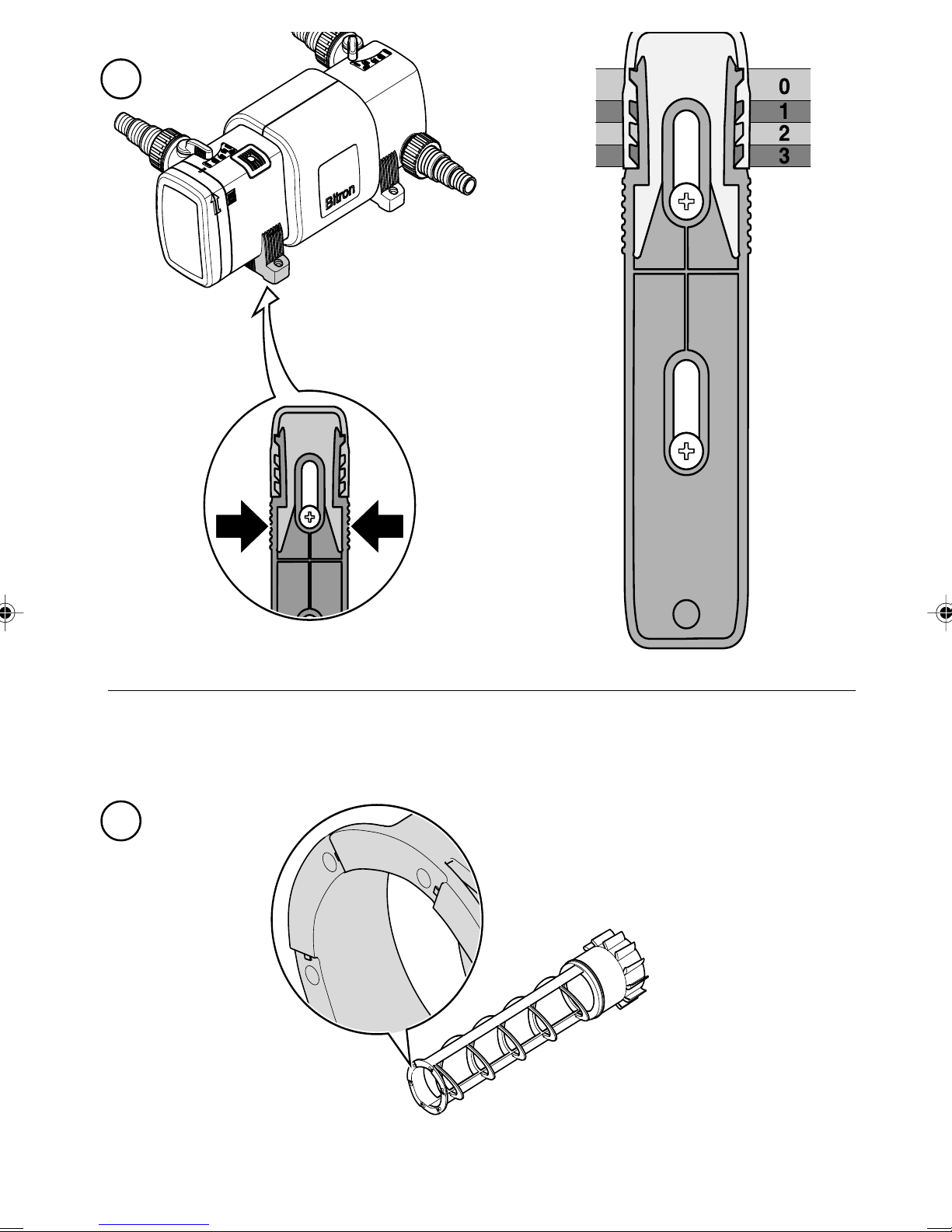

1. Adjust feet so that they are in the correct position (see table and Fig. 1).

To do this, press the grip surfaces of the feet together (see fig.) and slide

the movable portion into the correct position.

2. Place a large flat gasket on each of the water discharges (A, C).

3. Place the Bitron onto the Biotec as shown in illustration 4.

4. Insert an O-ring from inside on each of the water discharges (A, C).

5. Screw the inlet nozzles from inside on the water discharges (A, C). The

inlet nozzle opening must point downward after mounting.

6. Connect the hose to water intake D(see “7.3 Hose connection”).

7.2.3 Connection to Biotec 12/18/36 (Fig. 1 and 5 )

1. Adjust the feet so that they are in position 0 (see Fig. 1). To do this press

the grip surfaces of the feet together (see fig.) and slide the movable

portion into position 0.

2. Place a large flat gasket on each of the water discharges (A, C).

3. Place the Bitron onto the Biotec as shown in illustration 5.

4. Screw the Bitron on tightly with the anchoring nuts of the water distributor

and the O-rings.

5. Connect the hose to water intake D(see “7.3 Hose connection”).

7.3 Hose connection

– Only operate the Bitron with pressure hoses that are approved for at

least 0.5 bar, or for the maximum pump pressure.

– Select the largest possible hose diameter for the connection between

pump and Bitron.

Hose recommendation: Aquamax 1000 SF-1600 SF 1 ¼ - 1 ½ inch

Aquamax 2200 SF-3500 SF 1 ½ inch

Aquamax 6000 2 inch

Bitron

Biotec

5 / 10

5.1 / 10.1 / 30

18C

36C

55C

95-08 26866 Bitron_USA.p65 22.01.2008, 15:539

English

–Note: We recommend warming up the hose with hot water, pushing it or

twisting it onto the hose adapter and securing with the appropriate hose

clamp. This improves the seal of the connection.

– To avoid pressure loss, saw off the stepped hose adapter at the

appropriate point for the respective hose.

Note: At the end of each step of the hose adapter there is groove for

shortening (see arrow in the fig.).

– Avoid unnecessary angles and curves that lead to additional pressure

loss.

7.3.1 Water intake D

To ensure proper cleaning rotor function, the flow nozzle must be inserted in

the intake duct if there is low water flow and/or a large height differential

between pond surface and the Bitron’s water discharge (see Table 8 and

Fig. 6).

Legend for Table 8 (page 47):

X Flow nozzle must be inserted.

– Flow nozzle not required.

Due to the excessively low water flow, the cleaning rotor will no

longer function even with flow nozzle inserted.

1. To avoid pressure loss, saw off the stepped hose adapter at the

appropriate point for the respective hose.

– Bitron 18C/24C: Stepped hose adapter 1" to 1½”

– Bitron 36C/55C: Stepped hose adapter ¾” to 2"

2. Insert the flow nozzle in the water intake – if required according to Table 8.

The triangular protrusion in water intake D fits into a corresponding

aperture in the flow nozzle.

3. Push the threaded collar over the stepped hose adapter.

4. Push or twist the hose on and secure it with a suitable hose clamp.

5. Insert the flat gasket in the threaded collar. Firmly screw the stepped

hose adapter with threaded collar onto the water intake D of the UVC

device.

6. Layout the hose all the way to the pump in such a manner that it cannot

be stepped on and has no kinks.

7. Connect the hose to the pump according to the pump’s operating

instructions.

7.3.2 Water discharge A and C (only for single-unit setup)

1. To avoid pressure loss, saw off the stepped hose adapter at the

appropriate point for the respective hose.

2. Push the threaded collar over the stepped hose adapter.

3. Push or twist the hose on and secure it with a suitable hose clamp.

4. Insert the flat gasket in the threaded collar. Firmly screw the stepped

hose adapter with threaded collar onto the water discharge A and C of

the UVC device.

1¼''

¾"

1½''

1''

2''

1¼''

1½''

1''

1¼''

1½''

1''

95-08 26866 Bitron_USA.p65 22.01.2008, 15:5310

Otros manuales para bitron 18c

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Bomba de agua de Oase

Oase

Oase Filtral 2500 UVC Manual de usuario

Oase

Oase ProMax MudDrain 20000 Manual de usuario

Oase

Oase Aquarius Universal Classic 600 Manual de usuario

Oase

Oase ProMax Pressure Well 3000/18 Manual de usuario

Oase

Oase WaterTank 50 Manual de usuario

Oase

Oase Aquarius Universal Classic 600 Manual de usuario

Oase

Oase Aquarius Fountain Set Eco Guía

Oase

Oase ProMax Garden Automatic 3500 Manual de usuario

Oase

Oase OxyMax 100 Manual de usuario

Oase

Oase Aquarius Fountain Set Pro 5500 Manual de usuario

Oase

Oase AquaMax Eco Premium 6000 Manual de usuario

Oase

Oase Optimax 10.000 Manual de usuario

Oase

Oase AquaMax Eco Premium 4000 Manual de usuario

Oase

Oase Aquarius Solar 700 Manual de usuario

Oase

Oase Neptun 3000 Manual de usuario

Oase

Oase Profimax 7000 Manual de usuario

Oase

Oase AquaMax Eco Expert 5300 Manual de usuario

Oase

Oase Aquarius Universal Classic 600 Manual de usuario

Oase

Oase Aquarius Fountain Set Classic Series Manual de usuario

Oase

Oase Aquarius Universal 4000 Manual de usuario

Oase

Oase BioSmart 5000 Manual de usuario

Oase

Oase AQUARIUS SOLAR Manual de usuario

Oase

Oase Eco 16000 Manual de usuario

Oase

Oase Aquarius Universal Classic 600 Manual de usuario

Manuales populares de Bomba de agua de otras marcas

Neptun

Neptun NPHW 5500 Manual de usuario

Sensidyne

Sensidyne Gilian BDX-II Instrucciones de instalación y funcionamiento

Draper

Draper 47808 Manual de usuario

Trolla

Trolla 12820 Manual de usuario

Sunfab

Sunfab SVH Series Manual de usuario

WilTec

WilTec 50740 Manual de usuario

Fieldmann

Fieldmann FVC 5015 EK Manual de usuario

Everbilt

Everbilt EFSUB5-122HD Manual de usuario

Graco

Graco Husky 3300e Manual de usuario

esotec

esotec 101018 Manual de usuario

moyno

moyno 2000 CC Manual de usuario

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manual de usuario

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guía de solución de problemas

DUROMAX

DUROMAX XP WX Series Manual de usuario

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manual de usuario

Franklin Electric

Franklin Electric IPS Manual de usuario

Xylem

Xylem e-1532 Series Manual de usuario

Milton Roy

Milton Roy PRIMEROYAL Manual de usuario

Oase bitron 18c Manual de usuario

Manuales populares de Bomba de agua de otras marcas
