Oase Aquarius Universal Classic 3000 Manual de usuario

Aquarius Universal Classic

3000

Operating instructions

Downloaded from www.watergardeningdirect.com

Original manual.

WARNING

Disconnect all electrical devices in the water from the power supply

before reaching into the water. Otherwise there is a risk of severe in-

juries or death by electrocution.

This unit can be used by children aged 8 and above and by persons

with reduced physical, sensory or mental capabilities or lack of expe-

rience and knowledge if they are supervised or have been instructed

on how to use the unit in a safe way and they understand the hazards

involved. Do not allow children to play with the unit. Only allow chil-

dren to carry out cleaning and user maintenance under supervision.

Downloaded from www.watergardeningdirect.com

Safety information

Electrical connection

•Special regulations apply for electrical installation in outdoor spaces. Only a qualified electri-

cian may perform the electrical installation.

– The qualified electrician has the necessary professional training, knowledge and experience

to perform electrical installation in outdoor spaces. The electrician can detect potential

dangers and knows how to adhere to regional and national standards, regulations and direc-

tives.

– For your own safety, please consult a qualified electrician.

•Only connect the unit if the electrical data of the unit and the power supply match.

•Only plug the unit into a correctly installed outlet. Ensure that the unit is fused for a rated

fault current of max. 30 mA by means of a fault current protection device.

•Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use

(splash-proof).

•Protect open plugs and sockets from moisture.

Safe operation

•Do not use the unit, if electrical lines or the housing are damaged.

•Dispose of the unit if its power connection cable is damaged. The power connection cable can-

not be replaced.

•The impeller unit in the pump contains a magnet with a strong magnetic field that may affect

the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Keep a distance

of at least 0.2 m between the implant and the magnet.

•Do not carry or pull the unit by its power cable.

•Route lines in such a way that they are protected from damage and do not present a tripping

hazard.

•Never carry out technical changes to the unit.

•Only carry out work on the unit that is described in this manual.

•Only use original spare parts and accessories.

•Should problems occur, please contact the authorised customer service or OASE.

Downloaded from www.watergardeningdirect.com

Intended use

Only use the product described in this manual as follows:

•For pumping water, e.g. for water features.

•Indoors and outdoors.

•While adhering to the technical specifications. (→ Technical data)

•Adherence to the permissible water quality. (→ Permissible water quality)

The following restrictions apply to the unit:

•Do not use in swimming ponds.

•Never use the unit with fluids other than water.

•Never run the unit without water.

•Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

•Do not connect to the domestic water supply.

•Do not use for commercial or industrial purposes.

•According to EMC (Electromagnetic Compatibility), this is a class A unit. The unit may cause

malfunctions in living environments. It is the user's responsibility to take suitable counter-

measures.

Downloaded from www.watergardeningdirect.com

Product Description

Overview

ARS0083

Inlet (suction side)

•

With filter cage (3) for submerged installation.

•With hose sleeve for connecting a hose for dry installation.

Outlet (pressure side)

•Connection of the return line (e.g. to a fountain)

Filter cage

Flow rate controller

Power cable

•Pump power supply

Stepped hose adapter

Downloaded from www.watergardeningdirect.com

Symbols on the unit

The unit is dust-tight and water-tight down to 4 m.

Possible danger for

persons with pacemakers.

Protect the unit from direct sunlight.

Do not dispose of the unit with normal household waste.

Read the operating instructions.

Installation variants

ARS0084

•Variant (a): Submerged pump installation

–The pump is positioned in the pond or basin.

–Water flow via the filter cage.

•Variant (b): Dry pump installation

–The pump is installed without the filter cage outside of the pond or basin but lower than the

water level.

–Water flow via a satellite filter or skimmer.

Downloaded from www.watergardeningdirect.com

Installation and connection

The pump can be installed submerged (in water) or dry (outside the water).

The use of the pump is only permitted with observance of the specified water quality.

(→ Permissible water quality)

WARNING

Severe injuries or death due to operation of this unit in a swimming pond. Defective electrical

components will electrify the water with dangerous electrical voltage.

Never operate the unit in a swimming pond.

CAUTION

Rotating components in the intake and pressure socket area. Risk of injury when reaching into

the sockets.

In particular, observe the following: A unit that has stopped due to overload can start up unex-

pectedly!

Do not reach into the opening of the intake socket or pressure socket while the power plug is

plugged in.

If the sockets are freely accessible during operation, e.g. if no hoses are connected, use a hand

guard to secure the sockets. The hand guard is available as an accessory.

NOTE

If the pump is used for conveying excessively soiled water, the impeller unit will be subject to in-

creased wear and will require earlier replacement.

Thoroughly clean the pond or pool before installing the pump.

Install the pump at a raised level above the bottom. This reduces intake of muddy water.

Avoid direct sunlight on unit components that are not submerged, as they may overheat. If

necessary, use a protective cover.

Downloaded from www.watergardeningdirect.com

Turning the pump inlet

The pump inlet can be moved to the required orientation.

Orientation

Use

Top or side (right, left)

•

Recommended for dry installation.

•

When used with submerged installation, ensure that the water level is

sufficient.

Bottom

•

Recommended for submerged installation.

•Pumps water even when the water level is low.

ARS0090

Downloaded from www.watergardeningdirect.com

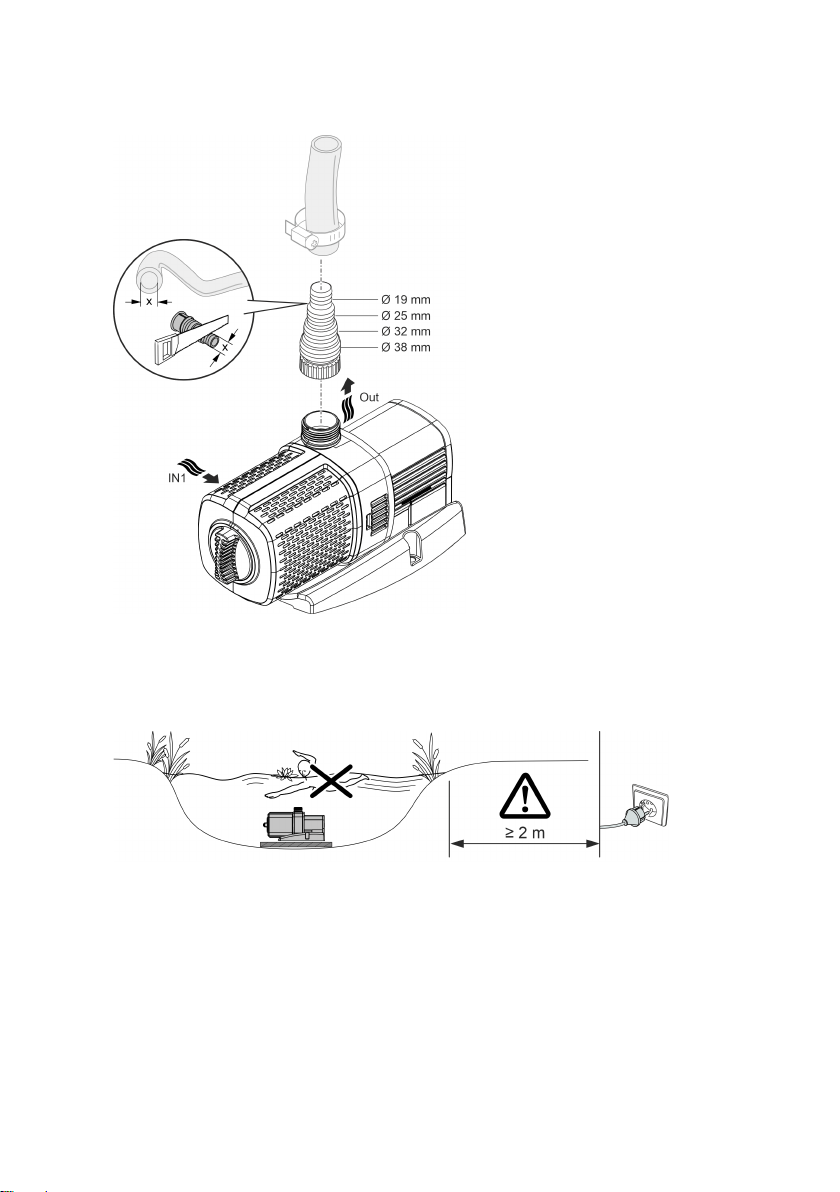

Submerged installation of the pump

Connecting

ARS0085

Do not plug the power plug into the socket yet!

Installation

ARS0086

•Place the pump horizontally on a stable, mud-free surface.

•Ensure secure and stable positioning of the pump.

•Only operate the pump when it is fully submerged.

Downloaded from www.watergardeningdirect.com

Install the unit at a dry place

Connecting

ARS0087

Do not plug the power plug into the socket yet!
