AN13256
Get started with EdgeLock A5000 support package
Rev. 1.0 — 28 March 2022 Application note
Document information
Information Content
Keywords EdgeLock A5000 Secure Authenticator, Plug & Trust Secure Authenticator
Abstract This document is the entry point for getting familiar with EdgeLock A5000
support package contents and how to get started with them.
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
Revision history
Revision number Date Description
1.0 2022-03-28 Initial version
Revision history
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
2 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
1 About EdgeLock A5000 Secure Authenticator Plug & Trust family
The A5000 Plug & Trust device offers enhanced Common Criteria EAL 6+ based
security, for unprecedented protection against the latest attack scenarios. This ready-
to-use family of authenticator for IoT devices provides a root of trust at the IC level and
supports the increasing demand for easy-to-design and scalable IoT security.
Delivered as a ready-to-use solution, the EdgeLock A5000 includes a complete product
support package that simplifies design-in and reduces time to market. The EdgeLock
A5000 support package offers:
•Software enablement for different MCUs and MPUs.
•Integration with the most common OSs including Linux, Windows, RTOS and Android.
•Sample code for major IoT security use cases.
•Extensive application notes.
•The development kit is compatibile with i.MX, I.MX RT and Kinetis® MCU boards.
Figure 1. EdgeLock A5000 support package overview
As such, the EdgeLock A5000 support package supplies you with all you need to
evaluate, prototype and implement your next secure IoT application. This document lists
the existing material within EdgeLock A5000 support package, organized in the following
sections:
•EdgeLock A5000 development kits.
•Supported MCU / MPU boards.
•EdgeLock Plug and Trust middleware.
•Support documentation.
To implement inclusive language, the terms "master/slave" has been replaced by
"controller/target", following the recommendation MIPI.
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
3 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
2 EdgeLock A5000 development boards
The EdgeLock A5000 secure authenticator is supported by a development board that can
be connected with any MCU board using the compatible Arduino headers or via direct
I2C connection. Table 1 summarizes the ordering details of the EdgeLock development
boards:
Part number 12NC Description Picture
OM-A5000ARD 935424319598 Arduino® compatible
development kit
OM-SE050RPI 935379833598 Raspberry Pi to
OMSE050ARD
adapter board.
Table 1. EdgeLock A5000 development boards.
Note: You have two options to connect the Raspberry Pi to the OM-A5000ARD board:
1. Using the OM-SE05xRPI adapter board. This board does not include any active
component.
2. Using the OM-SE05xARD connected with wires, as described in AN12570.
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
4 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
3 Supported MCU/MPU boards
The EdgeLock A5000 security IC is designed to be used as a part of an IoT system. It
works as an auxiliary security device attached to a host controller (MCU or MPU board).
The host controller communicates with EdgeLock A5000 through an I²C interface with the
host controller being the controller and the EdgeLock A5000 being the target.
Table 2 summarizes the ordering details of the MCU / MPU boards supported by the
EdgeLock Plug & Trust middleware:
Part number 12NC Description Picture
FRDM-64F 935326293598 Freedom development
platform for Kinetis
K64, K63 and K24
MCUs
MIMXRT1060-EVK 935368284598 MIMXRT1060-EVK low
cost evaluation kit for
Cortex-M7
MIMXRT1170-EVK 935378982598 MIMXRT1170-EVK low
cost evaluation kit for
Cortex-M7
MCIMX8M-EVK 935378743598 Evaluation Kit for the
i.MX 8M Applications
Processor
LPC55S69-EVK 935377412598 LPCXpresso55S69
Development Board
Table 2. Evaluation MCU/MPU boards details
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
5 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
3.1 MCUExpresso EdgeLock A5000 examples
The EdgeLock Plug & Trust middleware includes a set of project examples that
demonstrate the use of EdgeLock A5000 in the latest Authenticator security use cases.
For MCU based projects the example can be either:
•Imported from the CMake-based build system included in the EdgeLock Plug & Trust
middleware package.
•Imported from the MCUXpresso SDKs made available for the MIMXRT1170-EVK, the
MIMXRT1060-EVK, the FRDM-64F and the LPC55S69-EVK MCU boards.
The CMake-based build system is briefly explained in Section 4.2.
For the MIMXRT1170-EVK, the MIMXRT1060-EVK, the FRDM-64F and the LPC55S69-
EVK, a set of project examples can be directly imported from the board SDK package to
your MCUXpresso workspace.
These project examples offer a quick way to evaluate EdgeLock A5000 features, and its
source code can be re-used for your own implementations. The latest SDK packages can
be found in EdgeLock A5000 product website, under the Tools & Software tab, as shown
in Figure 2.
Figure 2. MCU board SDKs with EdgeLock A5000 examples
Note: The MCU SDKs can be downloaded also from the MCUXpresso SDK Builder
website, but may not include all the EdgeLock A5000 project examples or the latest
version of them.
The NXP Plug & Trust middleware supports the A5000 Secure Authenticator and the
SE05x Secure Element product family through the SSS and se05x API. Table 3 lists all
examples supported by the A5000 Secure Authenticator when using the FRDM-64F
MCUXpresso SDK.
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
6 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
Example Name Description
se05x_GetInfo This project can be used to get A5000/SE05x platform
information.
se05x_Minimal This is a bare minimum example for A5000/SE05x. This gets the
amount of free avialable memory in byte.
se05x_cloud_aws This demo demonstrates connection to AWS IoT Console
using pre-provisioned device credentials and publish/subscribe
procedure using MQTT.
se05x_cloud_azure This demo demonstrates connection to Azure IoTHub using
pre-provisioned device credentials and demonstrates publish/
subscribe procedure using MQTT.
se05x_cloud_gcp This demo demonstrates connection to Google Cloud Platform
using pre-provisioned device credentials and demonstrates
publish/subscribe procedure using MQTT.
se05x_cloud_ibm_watson This demo demonstrates connection to IBM Watson IoT platform
using pre-provisioned device credentials and publish/subscribe
procedure using MQTT.
se05x_ex_ecc This example does a elliptic curve cryptography signing and
verify operation.
se05x_ex_hkdf This example does a HMAC Key derivation operation based on
the info and salt.
se05x_ex_md This example does a Message Digest hashing operation.
se05x_symmetric This example does a symmetric cryptography AES encryption
and decryption operation.
se05x_iot_agent_demo This is an example for the EdgeLock 2GO agent.
se05x_vcom The vcomSE050 demo application allows the board to be used
as a bridge between the PC and the secure module and enables
the execution of the config tool and other utilities from the PC.
Table 3. EdgeLock A5000 FRDM-64F MCUXpresso SDK examples
The Plug & Trust Middleware uses the feature file fsl_sss_ftr.h to select a dedicated
EdgeLock product IC and the corresponding Authenticator application or IoT applet. The
fsl_sss_ftr.h is located in the project source folder. To take advantage of EdgeLock
A5000 features, it is required to change the following options in the fsl_sss_ftr.h
header file:
1. Set the #define SSS_HAVE_APPLET_AUTH flag to 1 and disable all other applet
variants be setting the flags to 0 (see Figure 3).
2. The authentication application version flag #define
SSS_HAVE_SE05X_VER_07_02 must be set to 1 and all other application version
flags must be set to 0 as shown in Figure 4.
3. Re-build the MCU Expresso project so that the settings are applied.
In Table 5 you can find the corresponding application note reference which explains
how to get started with EdgeLock Plug & Trust middleware using the OM-A5000ARD
and the MIMXRT1170-EVK,MIMXRT1060-EVK, FRDM-64F or LPC55S69-EVK
boards. It provides detailed instructions to run projects imported either from the MCU
Expresso SDK or the CMake-based build system included in the EdgeLock Plug & Trust
middleware.
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
7 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
Figure 3. Plug & Trust middleware feature file fsl_sss_ftr.h - select AUTH application
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
8 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package
Figure 4. Plug & Trust middleware feature file fsl_sss_ftr.h - select application version 7.2
3.2 MPU EdgeLock A5000 examples
A pre-compiled Linux image with the EdgeLock Plug & Trust middleware is available for
the MCIMX8M-EVK. This pre-compiled Linux image can be directly flashed into a micro-
SD card, and booted from MCIMX8M-EVK for evaluation of EdgeLock A5000 features.
Note: To take advantage of EdgeLock A5000 features, please select the corresponding
CMake options as described in Section 4.2 and rebuild the middleware.
The AN13027 explains How to get started with the OM-A5000ARD board and i.MX 8M
board.
The latest EdgeLock Plug & Trust middleware software package pre-installed on a
bootable SD Card image version can be found in product website, under the Tools &
Software tab, as shown in Figure 5.
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
9 / 30
NXP Semiconductors AN13256
Get started with EdgeLock A5000 support package

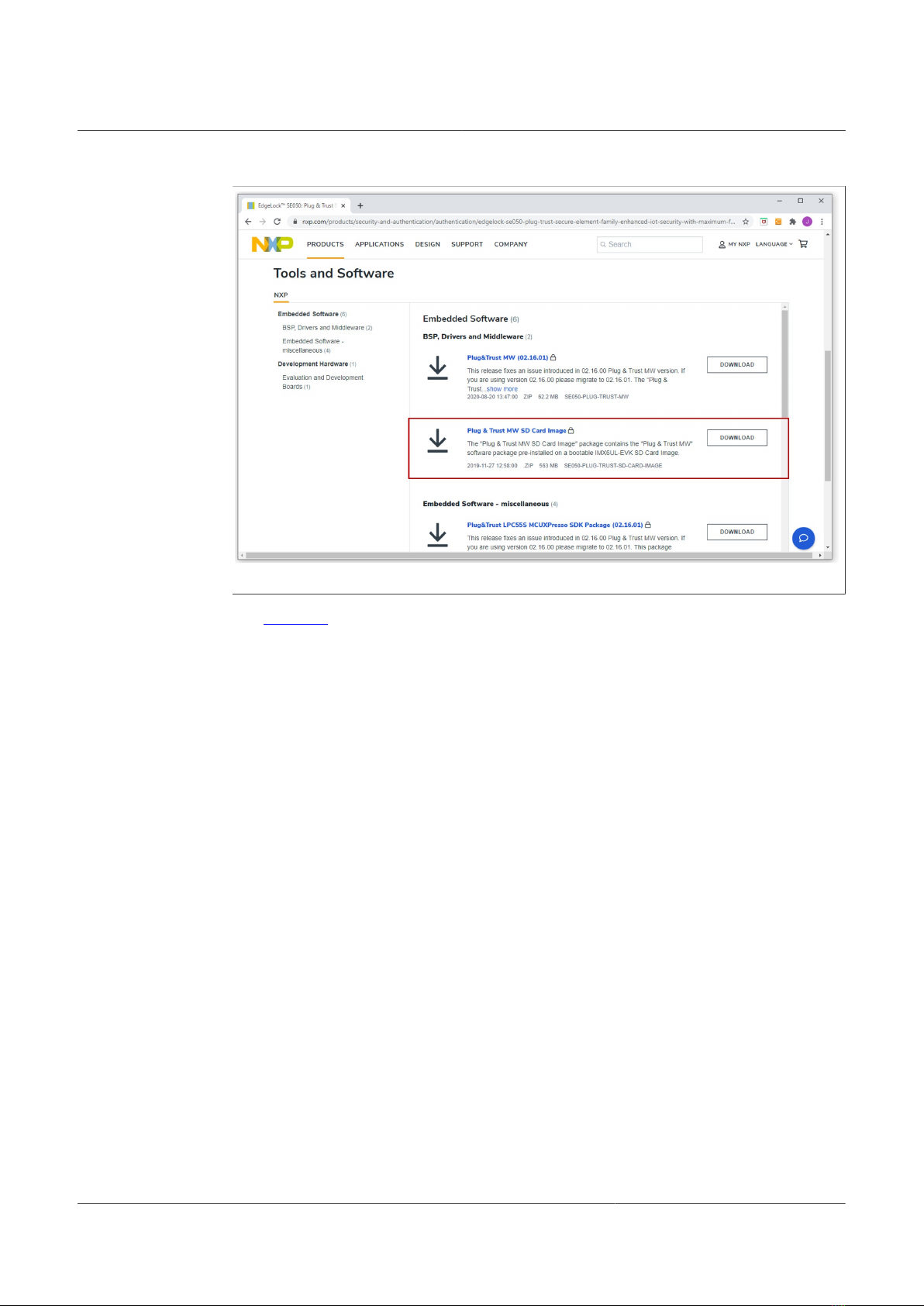

Figure 5. Bootable SD Card image for MCIMX8M-EVK
The AN12570 explains how to get started with the OM-A5000ARD board and the
Raspberry Pi board, as a reference for any other device running a Linux distribution.
AN13256 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved.
Application note Rev. 1.0 — 28 March 2022
10 / 30
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Placa madre de NXP Semiconductors
NXP Semiconductors
NXP Semiconductors Freedom FRDM-K32L3A6 Manual de usuario
NXP Semiconductors
NXP Semiconductors i.MX 8M Mini LPDDR4 EVK Manual de instalación
NXP Semiconductors
NXP Semiconductors iMX6ULLEVK Manual de usuario
NXP Semiconductors
NXP Semiconductors PTN3222CUK-EVB Manual de usuario
NXP Semiconductors
NXP Semiconductors S32G-VNP-GLDBOX3 Manual de usuario
NXP Semiconductors
NXP Semiconductors PCA9955 Manual de usuario
NXP Semiconductors
NXP Semiconductors freescale PE micro DEMO9S08QE32 Manual de usuario
NXP Semiconductors
NXP Semiconductors UM10388 Manual de usuario
NXP Semiconductors
NXP Semiconductors EVB9S08DZ60 Manual de usuario
NXP Semiconductors
NXP Semiconductors KIT34FS6407EVB Manual de usuario
NXP Semiconductors
NXP Semiconductors Layerscape LS1028A BSP Manual de usuario
NXP Semiconductors
NXP Semiconductors Layerscape FRWY-LS1046A Manual de usuario
NXP Semiconductors
NXP Semiconductors P3A9606JK-EVB Manual de usuario
NXP Semiconductors
NXP Semiconductors MPC5777C Manual de usuario
NXP Semiconductors
NXP Semiconductors OM13330 Manual de usuario
NXP Semiconductors
NXP Semiconductors M68VZ328ADS Manual de usuario
NXP Semiconductors
NXP Semiconductors FRDM-MC36XSD-EVB Manual de usuario
NXP Semiconductors
NXP Semiconductors MIMXRT1160-EVK Manual de usuario
NXP Semiconductors
NXP Semiconductors DEVKIT-S12G128 Manual de usuario
NXP Semiconductors
NXP Semiconductors DSPAUDIOEVM Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
