NuTone RMIP33 Manual de usuario

SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

70D 99043303E

Mount insert so bottom of custom hood is 24’’ to 30’’

above cooking surface.

RMIP SERIES

INSERT

36", 42", 48", 60"

”

HA0011

4 1/2''

6 3/8''

HC0010

HK0076A

Custom Hood Liner

RML33 or RML45 Series

Backsplash

RMP Series

RMIPWC Remote Control

HB0032

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)

Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario, L5T 1H9 (1-888-882-7626)

Bafe Filters

RBFIP Series

HA0026

4”

Adjustable depth

(See liner spec

sheet for details)

Fits custom hood nominal

width 36”, 42”, 48”, 54” or 60

”

Especially designed to be installed in custom hood

for use over residential commercial-style

cooking surfaces.

A complete installation requires several optional

components. Refer to page 2 when planning your

installation.

FEATURES

•Cabinet mount _ custom application

•Widths: 33’’, 45’’

•Halogen lighting (33’’_2 x 50 watt; 45’’_3 x 50 watt

PAR20)

Lamps not included

•Controls: rocker switches for lighting and on-off,

knob for innite speed

•Heat Sentry™ turns blower ON to HIGH speed when

excess heat is detected

OPTIONS

•Custom hood liners (RML33 or RML45 Series):

Widths - 36’’, 42’’, 48’’, 54” and 60’’

Adjustable depth - see liner spec. sheet for details

Stainless Steel construction - protects custom hood

base

and wipes clean easily

• Dishwasher-safe stainless steel bafe lters RBFIP

Series

•Backsplash (RMP Series):

Widths - 36’’, 42” 48”, 60”

Stainless Steel construction - protects back wall

and wipes clean easily

•RMIPWC Remote control: With Stainless Steel

faceplate,

to t any décor.

INSERT SPECIFICATIONS

120 Vac, 60 Hz

Amps (without blower): 0.8 (RMIP33) 1.3 (RMIP45)

RMIP MOUNTING

Size of the cut-out

NOTE: The 3 1/2’’ notch must be cut only if the RMIPWC

optional wall control will be installed.

HH0040A

1 1/2”

HD0093A

17 1/16''

16 3/8''

32 1/2'' or 44 1/2''

3 1/2''

2 1/4'' min.

Suggested Custom Hood Internal Framework

NOTE: If optional RML series liner is used, refer to installation

instructions for size and location of the cut-out.

RMIP SERIES INSERTS

BLOWER DUCTING

POSITIONS

MODEL RMIP33 WITH P8 BLOWER (Vertical Outlet)

HB0032





3/4’’

3 1/4’’

16 1/8’’

7 5/8’’

7/8’’

14’’

9 1/8’’

7/8’’ dia.

8’’ round

transition

HK0031A

MODEL RMIP33 WITH P5 BLOWER (Vertical Outlet)





3/4’’

3 1/4’’

16 1/8’’

7 5/8’’

7/8’’

10’’

11 1/8’’

7/8’’ dia.

7’’ or 8’’

round transition

HK0030A

MODEL RMIP33 WITH 331H, 332H, 335, 336, HLB3,

HLB6, HLB9 OR HLB11 BLOWER (Vertical Outlet)





5 1/4’’

16 1/8’’

9 5/8’’ dia.

7/8’’ dia.

1 11/16’’

6 11/16’’

HK0029

MODEL RMIP45 WITH P8 BLOWER (Vertical Outlet)

MODEL RMIP45 WITH P5 BLOWER (Vertical Outlet)

MODEL RMIP45 WITH 331H, 332H, 335, 336, HLB3,

HLB6, HLB9 OR HLB11 BLOWER (Vertical Outlet)





3 1/4’’

22 1/8’’

13 5/8’’

7/8’’

3/4’’ 15 1/8’’

14’’

7/8’’ dia.

8’’ round

transition

HK0034A





3 1/4’’

22 1/8’’

13 5/8’’

7/8’’

3/4’’ 17 1/8’’

10’’

7/8’’ dia.

7’’ or 8’’

round transition

HK0033A





5 1/4’’

22 1/8’’ 12 11/16’’

1 11/16’’

9 5/8’’ dia.

7/8’’ dia.

HK0032

Top view Top view

HL0067

RMP Series Backsplash

(Stainless Steel wall

covering with warming

shelves. Optional)

RML3336S, RML3342S,

RML4548S, RML4554S or

RML4560S

Custom Hood Liner (optional)

Model 415

7” Rd adjustable

elbow (optional)

8” Rd

adjustable

elbow (optional)

Model 412

transition

(31/4” x 10” to 7”)

Adapter and damper 31/4’’ x 10’’

(supplied with P5 and P8 blowers)

Adapter and damper 31/4’’ x 14’’

(supplied with P8 blower)

Model P5

single-blower

(500 cfm)

RMIP33 OR RMIP45

INSERT

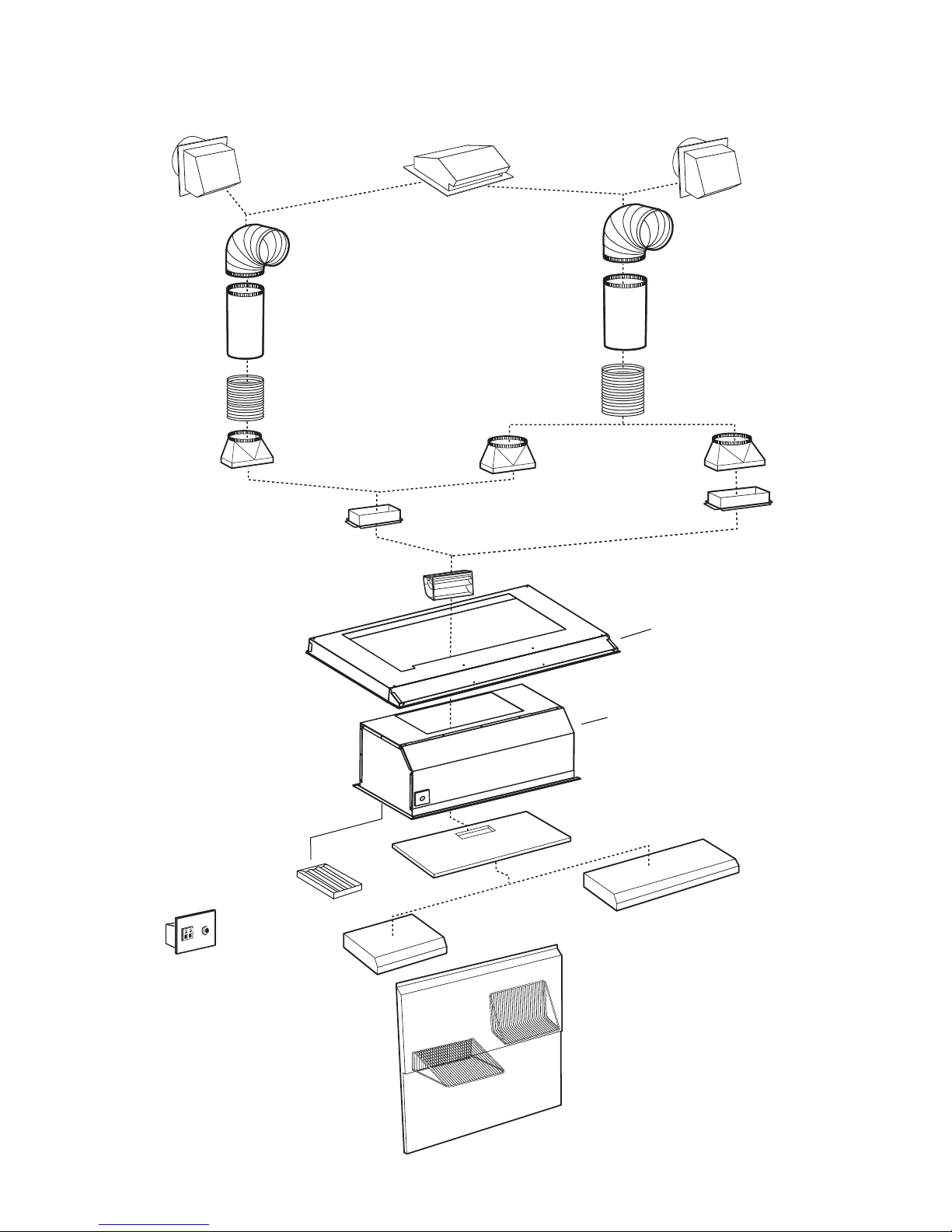

- RMIP33 AND RMIP45 INSERT SYSTEM -

INTERIOR BLOWERS

Flow deviator

(supplied with P5 and P8 blowers)

Model 647

(7” Rd wall cap)

Model 634 or 644

(roof cap)

Model 643

(8” Rd wall cap)

8” Rd

standard

duct

Model 407

(7” Rd x 24’’

section)

7” Rd metal

flexible duct

(optional)

8” Rd metal

flexible duct

(optional)

Model 413

transition

(31/4” x 10” to 8”)

Model 459

transition

(31/4” x 14” to 8”)

Model P8

dual-blower (900 cfm)

NOTE: The dual blower P8 can be

installed either with 7’’ round

or 8’’ round ductwork.

For optimal air and quiet sound

performance, use 8’’round ductwork.

Rough-in kit

(supplied with P5 and P8 blowers)

RMIPWC

Wall control

(Optional)

RBFIP Series

Baffle Filters

(Optional)

HL0068

RMP Series Backsplash

(Stainless Steel wall

covering with warming

shelves. Optional)

RML3336S, RML3342S,

RML4548S, RML4554S or

RML4560S

Custom Hood Liner (optional)

Model 418

10” Rd

adjustable elbow

(optional)

Model HLB3 (280 cfm)

in-line blower

(includes one 8” to 10”

round transition)

RMIP33 OR RMIP45

INSERT

- RMIP33 AND RMIP45 INSERT SYSTEM -

IN-LINE AND EXTERIOR BLOWERS

Model 331H (600 cfm)

or 332H (900 cfm)

exterior blower

Model 335 (1200 cfm)

or 336 (1500 cfm)

exterior blower

Model 441

(10” Rd wall cap)

Model 437

(High capacity roof cap)

Model 441

(10” Rd wall cap)

Model 421

(10” Rd. vert.

in-line damper)

Recommended

for use with

exterior blowers

Model 410

(10” Rd duct

- 2ft. sections)

10” Rd metal

flexible duct

(optional)

332KR in-line and exterior blower

rough-in kit - Purchase separately.

RMIPWC

Wall control

(Optional)

RBFIP Series

Baffle filters

(Optional)

Model HLB6 (600 cfm)

in-line blower

(includes two 4½” x 18½”

to 10’’ round transitions)

Model HLB9 (800 cfm)

or HLB11 (1100 cfm)

in-line blower

(includes two 8” x 12” to

10’’ round transitions)
