NuTone RM604201 Manual de usuario

RMP Series

Backsplash

(Optional)

SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted By Date

70D 99043133D

RM60000 SERIES

PRO-STYLE

RANGE HOOD

(Original Rangemaster)

Provides high ventilation and durable construction

to meet the needs of professional-quality residential

cooktops.

A complete installation requires several optional compo-

nents. Refer to page 2 when planning your installation

FEATURES

HOOD:

•Widths - 30” to 72” in 6” increments

•Finishes - Stainless Steel*, White**, and Black** appli-

ance colors

•Appliance colors in 54”, 60”, 66” & 72” widths are Spe-

cial Orders

•Grease lters are dishwasher safe

•Dual food warming lamps (BR40 Size, 250W, Infrared

- purchase separately)

•Three-level cooktop lighting (Uses three, 50W,

PAR 20 halogen lamps - purchase separately)

•Solid-State, innite speed blower control with speed

memory

•Exclusive, Broan Heat Sentry™ turns blower ON to

HIGH speed when excess heat is detected

BAFFLE FILTER KIT:

RBF Series (Optional)

•Available for all hood widths

BACKSPLASH:

RMP Series (Optional)

•Widths - 30” to 72” in 6” increments

•Stainless Steel* construction - protects back wall and

wipes clean easily

•Two, removable, dual-position food warming / condi-

ment storage shelves

SOFFIT CHIMNEY:

RMN Series (Optional)

•Widths - 30” to 72” in 6” increments

•Finishes - Stainless Steel*, White**, and Black** appli-

ance colors

•Appliance colors in 54”, 60”, 66” and 72” widths are

Special Orders

•Recommended for use when installation location has no

soft

RM60000 Series

Hood

RMN Series Sof-

ﬁt Chimney

(Optional)

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)

Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario L5T 1H9 (1-888-882-7626)

Intended for

domestic

cooking only.

* 22 gauge, type 430

stainless steel

** 22 gauge, painted

galvanneal

HL0075

- 4 -

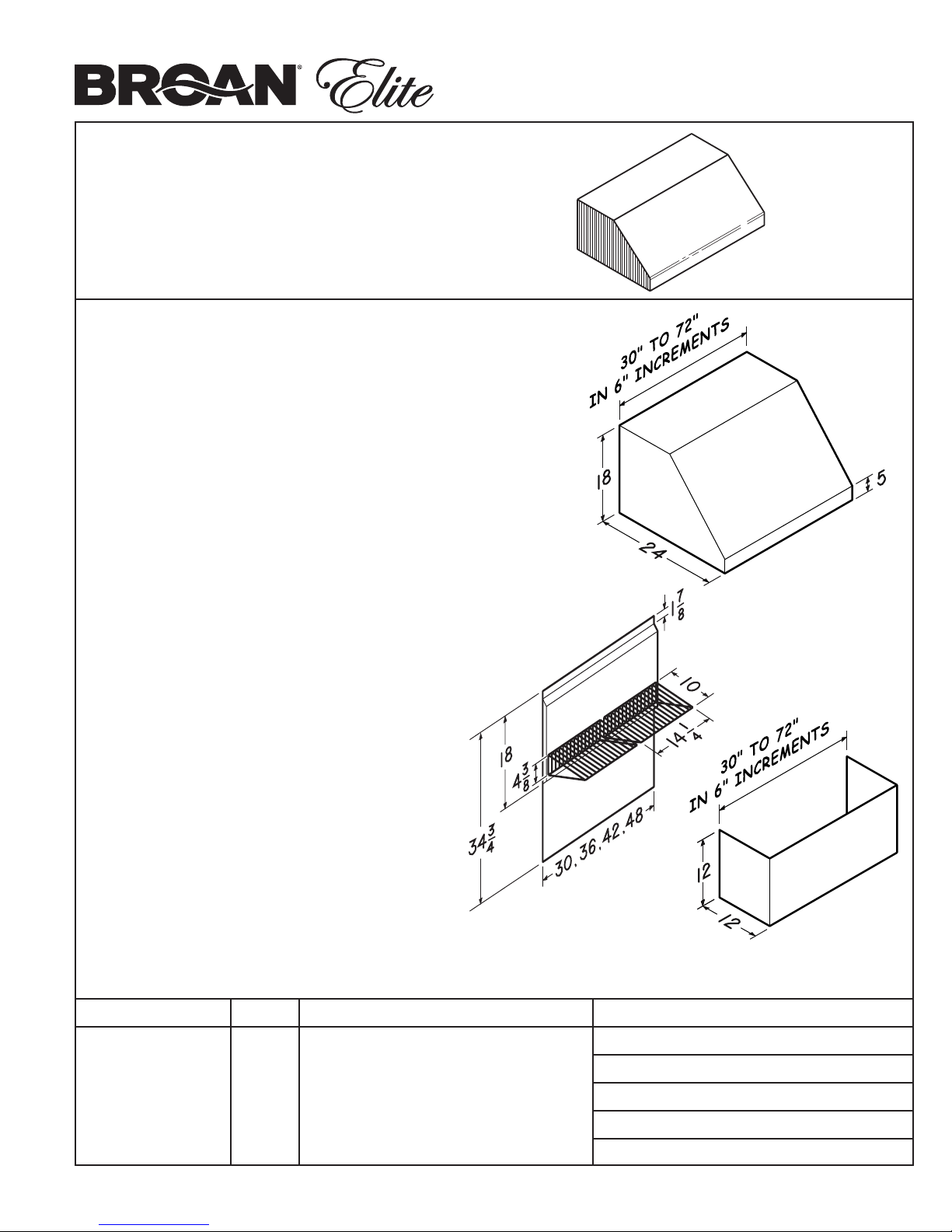

RMP SERIES BACKSPLASH

(Stainless steel wall covering

with warming shelves. Optional)

Model 415

(7” round adjustable elbow)

Model 427

” x 18

”

to 10” Round,

6” high - lateral

Model 423

” x 18

” to

10” Round - vertical

Model 424

” x 18

” to

10” Round - horiz.

front/rear

Model 454

” x 18

”

to 10” Round -

horiz. /right

Model 453

” x 18

”

to 10” Round -

horiz. /left

RM60000

SERIES HOOD

(Canopy with

blower controls

& lighting.

Required for all

installations.)

OPTIONAL

SOFFIT CHIMNEY

RMN SERIES

-RM60000 SERIES RANGE HOOD SYSTEM -

INTERNAL BLOWERS

Model 437

(High capacity roof cap)

Model 441

(10’’ Round wall cap)

Model 634 or 644

(roof cap)

Model 647

(7” Round wall cap)

Model 407

(7” round duct—2 ft. sections)

Model 410

(10” round duct—2 ft. sections)

MODEL RM325H

BLOWER/ROUGH-IN KIT

(600 cfm interior blower &

rough-in plate)

MODEL RM326H

BLOWER/ROUGH-IN KIT

(1200 cfm interior blower

& rough-in plate)

Model 418

(10” round adjustable elbow)

OPTIONAL

BAFFLE FILTERS

RBF SERIES

NOTE: In addition to the blower models shown, the

RM60000 Series Hood is also compatible with older

internal blowers Models 325H & 326H. Discard the

installation instructions for those blowers, and contact

Technical Support to obtain replacement instructions.

- 5 -

HL0076

RMP SERIES

BACKSPLASH

(Stainless steel wall

covering with warming

shelves. Optional.)

-RM60000 SERIES RANGE HOOD SYSTEM -

EXTERNAL BLOWERS

332KR in-line and exterior blower

rough-in kit - Purchase separately.

Model 418

10” Round

adjustable elbow

(optional)

Model HLB3 (280 cfm)

in-line blower

(includes one 8” to 10”

round transition)

Model 331H (600 cfm)

or 332H (900 cfm)

exterior blower

Model 335 (1200 cfm)

or 336 (1500 cfm)

exterior blower

Model 441

(10” Round

wall cap)

Model 437

(High capacity roof cap)

Model 441

(10” Round wall cap)

Model 421

(10” Round vert.

in-line damper)

Recommended

for use with

exterior blowers

Model 410

(10” Round duct

—2ft. sections)

Model HLB6 (600 cfm)

in-line blower

(includes two 4½” x 18½”

to 10’’ round transitions)

Model HLB9 (800 cfm)

or HLB11 (1100 cfm)

in-line blower

(includes two 8” x 12” to

10’’ round transitions)

RM60000

SERIES HOOD

(Canopy with

blower controls

& lighting.

required for all

installations.)

OPTIONAL

SOFFIT CHIMNEY

RMN SERIES

OPTIONAL

BAFFLE FILTERS

RBF SERIES
