WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1.
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in
the warranty.
2.
Before servicing or cleaning unit, switch power off at service panel and lock the service disconnect-ing means to prevent power from being switched on
accidentally. When the service disconnect-ing means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
3.
It is recommended to wear safety glasses and gloves during installation.
4.
Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-
rated construction codes and standards.
5.
Sufficient air is needed for proper combus-tion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Condi-tioning Engineers (ASHRAE), and the local code
authorities.
6.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
7.
Ducted fans must always be vented to the out-doors.
8.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit
Interrupter) - protected branch circuit.
9.
Never place a switch where it can be reached from a tub or shower.
10. This unit must be grounded.
11.
Monitor your fan for unusual sounds, smells and smoke. If any appear, turn off the fan immediately and replace it.
FAN/LIGHT/SPEAKER VENTILATOR
SPK80L & SPK80NL
READ AND SAVE
THESE INSTRUCTIONS
2
TYPICAL INSTALLATIONS
All additional framings must be 2x6 minimum
HOUSING
CEILING JOIST
MOUNTING TABS
GRILL
CEILING MATERIAL
POWER CABLE
"I" JOIST
ADDITIONAL FRAMING*
POWER CABLE MOUNTING TABS
HOUSING
GRILL
CEILING MATERIAL
4" ROUND DUCT
CEILING JOIST
MOUNTING TABS
CEILING MATERIAL
POWER CABLE
HOUSING
ADDITIONAL FRAMING*
GRILL
ADDITIONAL FRAMING*
2 x 4 CEILING JOIST or TRUSS
POWER CABLE
MOUNTING TABS
HOUSING
GRILL
CEILING MATERIAL
HOUSING MOUNTED DIRECTLY TO JOIST 2x6 (or larger)
Discharge parallel to joists
HOUSING MOUNTED TO “I” JOIST
*Requires additional framing for mounting tabs. Discharge parallel to joists. HOUSING MOUNTED TO ADDITIONAL FRAMING
Discharge 900to joists.
HOUSING MOUNTED TO 2x4 TRUSS
*Requires additional framing for mounting tabs. Discharge parallel to joists.
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
2.
This product is designed for ceiling installation only. This product is designed for installation in ceilings up to a 12/12 pitch. Ductwork must point up.
DO NOT MOUNT THIS PRODUCT IN A WALL.
3.
To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4.
Please read specification label on product for further information and requirements.
Installer: Leave this manual with the homeowner. Homeowner: Use and Care information on page 6.
!
INSTALL THE HOUSING
- PLEASE NOTE -
THE FOLLOWING INSTALLATION ILLUSTRATIONS SHOW 2 X 6 JOISTS. IF YOU HAVE A TRUSS OR “I”-JOIST INSTALLATION, MOUNT THE VENTI-
LATOR TO THE ADDITIONAL FRAMING IN THE SAME MANNER. (Additional framing must be a 2x6 (minimum height).
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45o45o
NOT FOR USE IN
A COOKING AREA.
SUSPENDED CEILING MATERIAL
HOUSING
POWER CABLE
GRILL
4" ROUND DUCT
MOUNTING TABS
SUSPENDED CEILINGS
Housing hung with wires - 3-point mount.
"I" JOIST
ADDITIONAL FRAMING*
POWER CABLE MOUNTING TABS
HOUSING
GRILL
CEILING MATERIAL
4" ROUND DUCT
HOUSING MOUNTED TO “I” JOIST
*Requires additional framing for mounting tabs. Discharge 900to joists.
4" ROUND DUCT
MOUNTING TABS
CEILING MATERIAL
POWER CABLE
HOUSING
ADDITIONAL FRAMING*
GRILL
2 x 4 CEILING JOIST or TRUSS
HOUSING MOUNTED TO 2x4 TRUSS
*Requires additional framing for mounting tabs. Discharge 900to joists.
TYPICAL INSTALLATIONS
All additional framings must be 2x6 minimum
1. Choose the location for your fan/light/speaker in the ceiling. For best possible performance, use the shortest possible duct run and a minimum number
of elbows.
2. In attic, position mounting brackets against joist. Trace outline of housing on ceiling mate-rial. (A)
3. Set housing aside and cut ceiling opening slightly larger than marked. (B)
4. Place housing in opening so that its bottom edge is flush with finished ceiling. Nail to joist through keyhole on both sides.(C) To ensure a
noise-free installation, drive another nail through the top hole of each mounting bracket.
5. Additional mounting holes are provided for installations where access from above is in-convenient or not possible.(D) Nail or screw housing
directly to joists or framing.
Existing Construction
ADDITIONAL MOUNTING HOLES
ABC D
1. Choose the location for your fan in the ceiling. For best possible performance, use the shortest pos-sible duct run and a minimum number of elbows.
2. Position mounting brackets against joist so that bottom edge of housing will be flush with finished ceiling.
Additional positioning feature for 5/8”, 1”, & 1-1/4” thick ceiling material:
Holes in corners of housing are labeled with various ceiling material thicknesses. Position housing so bottom edge of joist is visible through a matched set of holes.
The housing is now in the proper position for that ceiling material thickness. Additional positioning feature for 1/2” thick ceiling material:
Bend two tabs, on side of housing, 900outward. Lift housing until tabs contact underside of joist.
Mark the keyhole slot on both mounting brackets.(A)
3. Set housing aside and drive nails partially into joist at the top of both keyhole marks.(B)
4. Hang housing from nails and pound nails tight. (C) To ensure a noise-free mount, pound another nail through the top hole of each mounting tab.
New Construction
5/8
1
1-1/4
TAB
HOLES
BOTTOM EDGE OF JOIST
A
BC

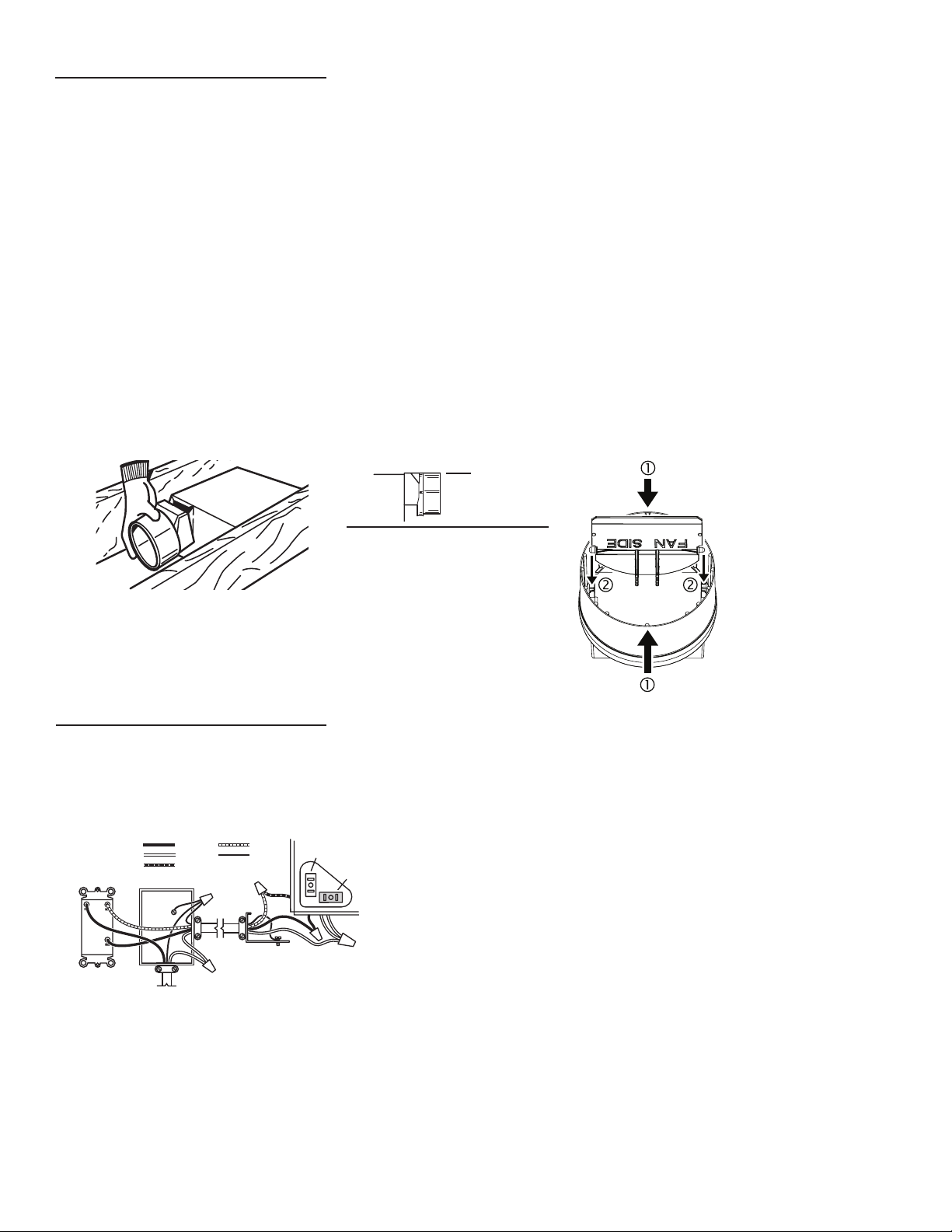

CONNECT THE WIRING
1. Wire unit following diagram. Run electrical cable as direct as possible to unit. Do not allow cable to touch sides or top of unit after instal-lation is
complete.
SWITCH BOX
LIGHT
FAN
DUAL CONTROL
(purchase separately)
WHITE
BLACK RED
GROUND
(bare)
WIRING
PLATE
120 VAC
LINE IN
BLUE BLACK
RECEPTACLE
(FAN)
WHITE
RECEPTACLE
(LIGHT/SPEAKER)
INSTALL THE DUCTWORK
NOTE: The duct connector has a counter-balanced damper flap. The flap will be “open” approx. 1” when duct connector is attached to housing. This design
permits insulation to be in direct contact with fan/light housing per UL (Underwriters Laboratories) standards. The slightest backdraft, however, will close the damper
flap,preventingairfromenteringunitorfinishedspace.
1. Snap the damper/duct connector onto housing.
Make sure that tabs on the connector lock into slots in housing. Top of damper/duct connector should be flush with top of housing.
NOTE: Make sure damper flap is in place inside of
duct connector. If it is not:
Squeeze top and bottom of connector to
snap flap back into place.
2. Connect 4” round duct to damper/duct connector
and extend duct to outside through a roof or wall cap. Check damper to make sure that it opens freely. Tape all duct connections to make them secure
and air tight.
FLUSH
USE AND CARE
CONNECTING TO BLUETOOTH®
SPEAKER
Turn on the light, access the Bluetooth®settings on your smart device, locate and select “Fan Speaker” in the list of available devices.
LIGHTING ELEMENT REPLACEMENT
The lighting element is not serviceable. Do not remove or disassemble the light/speaker module.
MOTOR LUBRICATION
The motor is permanently lubricated. Do not oil or disassemble motor.
CLEANING
PREVENTATIVE MAINTENANCE
For quiet and efficient operation, long life and attractive appearance, regularly clean the grille and interior of unit.
WARNING: DISCONNECT ELECTRICAL POWER SUPPLYAND LOCKOUT SERVICE PANELBEFORE CLEANING OR SERVICING THIS UNIT.
TO CLEAN LENS AND GRILLE:
CAUTION: Unplug light from WHITE receptacle. Plastic parts can be cleaned with mild, soapy water (use a mild detergent, such as
dishwash-ing liquid) and dried with a soft cloth. Do not use abrasive cloth, steel wool pads, or scouring powders.
TO CLEAN FAN ASSEMBLY:
Unplug fan assembly (BLACK receptacle). To remove motor plate: Find the single tab on the motor plate (located next to the receptacles). Push up near
motor plate tab while pushing out on side of housing. Or insert a straight-blade screwdriver into slot in housing (next to tab) and twist screwdriver. Gently
vacuum fan, motorandinteriorofhousing
withadustingbrush at-tachment
.METALANDELECTRICAL PARTS SHOULDNEV ER BE IMMERSED IN WATER.
ATTACH THE GRILLE
The grille is attached using springs.
1. Attach one spring and plug the grille connector into the white receptacle.
2. Attach the second spring and push the grille up to the ceiling.
When it comes to quality home ventilations, Broan-NuTone is the brand you can depend on.
