NSA SFDC-30128RC Manual de usuario
Dual Power COOL
12"/30 cm Stand Fan
SFDC-30128RC
User manual
www.nsauk.com
with DC Motor
Welcome
With a clear focus on new technologies, innovation and design, NSAUK has
played a leading role in the Air Improvement industry for over 20 years.
NSAUK
energy saving DC motors and cordless rechargeability at the forefront.
Boasting 8 Quiet Mark accreditations, NSAUK are the leading brand for
build quality & exceptionally quiet performance.
www.nsauk.com
3
Contents
Introduction
Box contents
Parts description
Assembly
Operation guide
Remote Operation
Cleaning & Care
Maintenance & Storage
Recycling & Disposal
Troubleshooting
Safety
Technical Data
4
5
6
8
11
20
22
23
24
25
26
28
with lots of new features and new technologies. This elegant, height adjustable
(when
compared to traditional 12”/ 30cm pedestal fan with AC motor).
Keep safe for future reference.
4
Introduction
Mains Power IN USB Power IN
• Cord-Free Portability / Dual Power w. 3-pin adapter
• Energy Saving DC Motor
• Ultra-Quiet 7-Blade 12”/30cm Stand Fan
• Remote Control w. 3V battery (CR2032)
• Multi position tilt – Vertical to Horizontal
• Oscillation - 30° / 60° / 90° / 120° (not available when using a USB power pack)
• 32 Speeds
• 3 Modes w. 5 Speed Levels
• 1 to 15 hr Timer (Off)
• 1 to 15 hr Timer (On)
• Carry Handle
5
What’s included
Unpack all items from the box, assemble the fan according to the sequence
detailed on pages 8 - 10 and page 21 (Remote Control).
1
2 3
5
1. Stand Fan (see page 6 for details)
2. Power Adapter & Cord
3. USB Cable
4. Remote Control
5. User Guide
6. CR2032 Cell Battery for Remote Control
6
4
11
12.

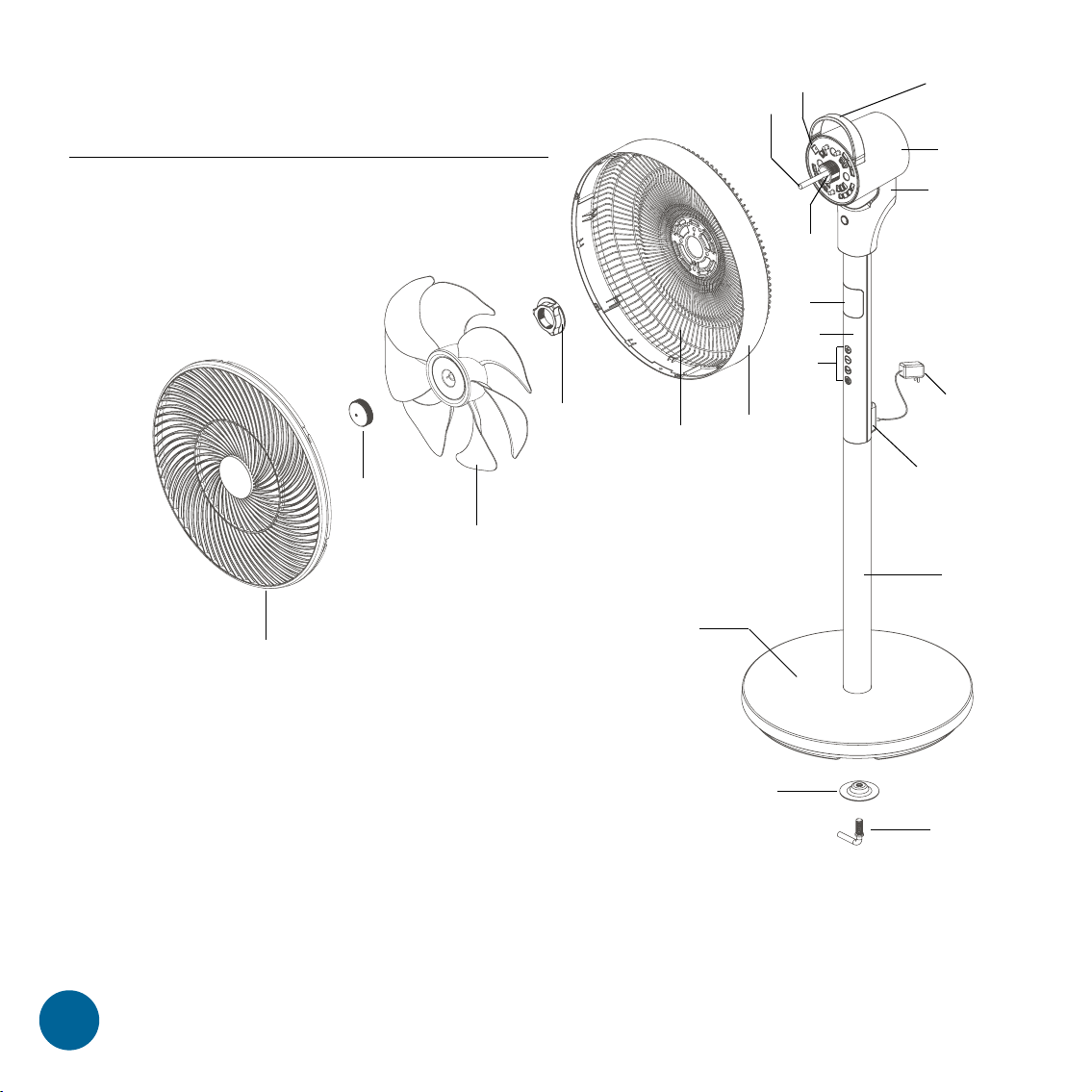

Parts Description
1.
2.
3.
4. 6.
5.
15.
14.
7.
9.
8. 10.
16.
18.
19.
20.
21.
13.
17.
1. Front Grille
2. Blade Cap
3. Fan Blade
4. Clamping Nut
5. Rear Grill
6. Guard Ring
7. Axle Pin
8. Motor Shaft
9. Motor Shell
18. Riser Pipe
19. Weighted Fan Base
20. Large Washer
21. “L” Bolt
10. Carry Handle
11. Motor Casing
12. Tilt Point
13. Display Panel
14. Function Icons (OSC, Modes,Timer)
15. Manual Control Buttons
16. Power Adaptor w. 3-pin Plug
17. Power “IN” Toggle Switch (Page 4)
6
6
7
8
9
Remote control
1. Digital Display
2. Oscillation Icons (30° / 60° / 90° / 120°)
3. “+” / “–” Speed / Timer
4. Oscillation control
5. On / Off
6. Timer/Pre-set Timer Icon
7. Eco/AI Mode Icon
8. Sleep Mode Icon
9. Natural Breeze Mode Icon
10.On / Off
11.Decrease – Speed / Timer
12.Timer / Pre-Set Timer
13.Oscillation
14.Increase – Speed / Timer
15.Mode – Breeze / Sleep / Eco-AI
Manual controls & Icons
10. 13.
11. 14.
12. 15.
2
3
4
5
1
7
Controls
Assembly
Please assemble correctly according to the following sequence.
Refer to parts description on page 6.
Please keep the original packaging for future storage.
• Unscrew the L-shaped bolt and metal washer from
the riser pipe.
• Insert the vertical pipe into the center hole of the
foot plate assembly.
• Then secure in place with L-shaped screw and
• Loosen the screw at the back of the riser pipe.
• Connect the upper fan body to the riser pipe and
8
• Before installing the rear grille – remove the blade
cap turning clockwise (as indicated).
• Remove the protective plastic tube from the motor
shaft. This tube is to prevent motor shaft from rusting
during storage – so retain for future use if dismantling
your fan for winter storage or discard.
• Remove the grille clamping nut, turning
anti-clockwise.
• Align the rear grille with the two lugs at
the top of the motor housing (close to
carry handle) and the single lug at the
bottom.
•
the clamping nut rotating it clockwise.
Do not over-tighten.
NOTE: The clamping nut should move freely
- if there is any resistance, make a half-turn
anti-clockwise to realign the thread, then
9
• Place fan blade on the motor shaft and align the
axle pin with the recess on the reverse side of the
fan blade.
• Turn the spinner to the left, so that there is no
fan blade recess.
• NOTE: Don’t forget to remove protective tube
before attaching the grilles & fan blade.
• Secure in place with the blade cap turning anti-
clockwise (as indicated).
NOTE: The blade cap should move freely - if there is
any resistance, make a half-turn clockwise to realign
in place.
• Loosen the screw on the guard ring closest to
you. If possible, do not remove completely.
•
the notches into the recesses along the
edges, twist to secure in place as indicated
by the arrows on the fan grille.
•
Guard Ring
Fixing Screw
10
