North Star M1146E Manual de usuario

M1146F

4-Way Wedge Systems

1146, 1147, 1148

Purpose: Parts for building own 4-way log splitter.

4-Way Wedge System Assembly

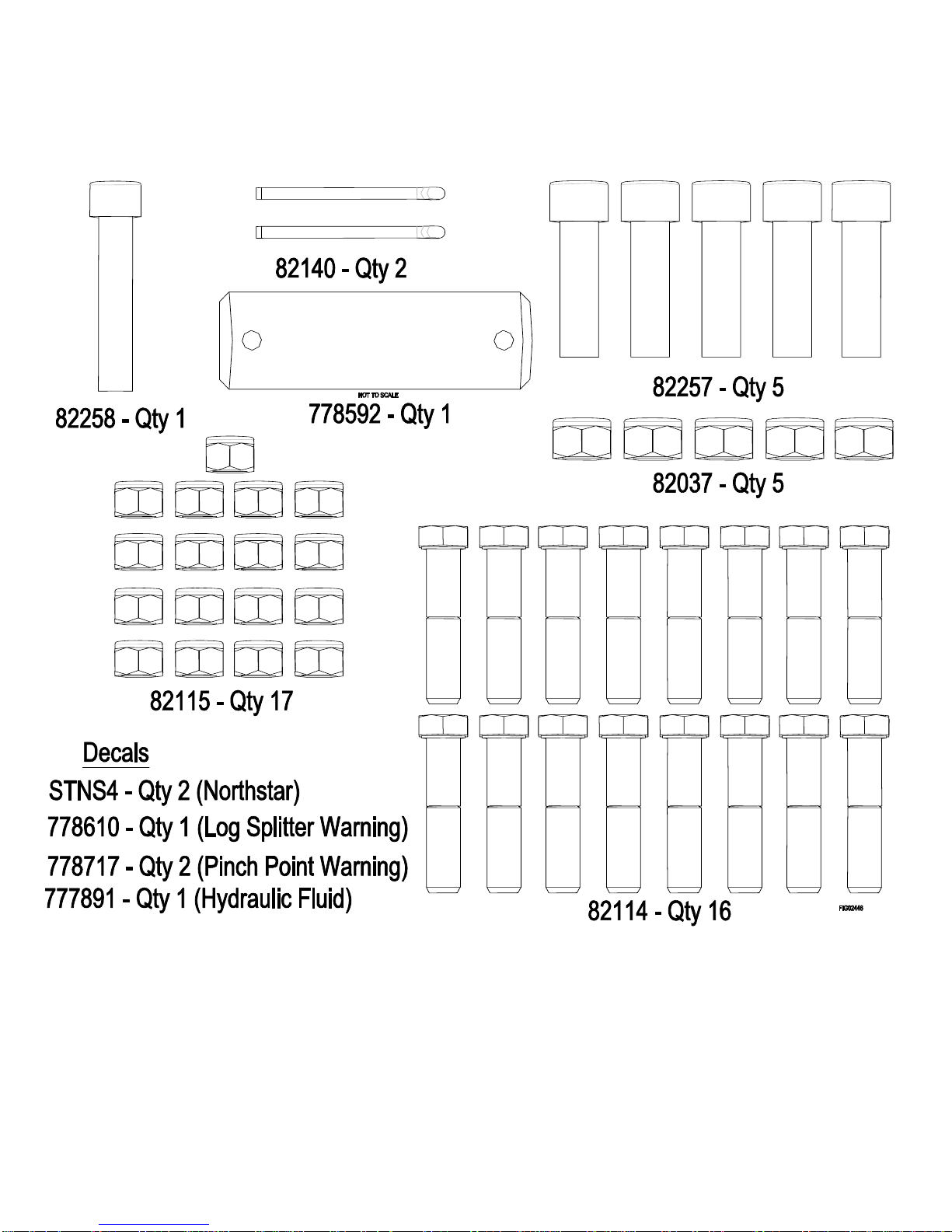

1. Unbox and identify all parts.

Parts List

Item Part Number Description Qty

1 82140 Cotter Pin 2

2 783967 Wedge 1

3 784029 Right Wing 1

4 784030 Left Wing 1

781151 4” Cylinder for 1146 1

781152 4.5” Cylinder for 1147 1

5 781153 5” Cylinder for 1148 1

6 783969 Left Keeper 1

7 778433 Anchor Block 1

8 778592 Pin, Cylinder to Anchor 1

9 778610 LS Warning Decal 1

10 778717 Log Stripper Decal 2

11 783968 Right Keeper 1

779138 Log Stripper wldt for 1146 1

779137 Log Stripper wldt for 1147 1

12 779136 Log Stripper wldt for 1148 1

13 STNS4 4” x 9” NorthStar Decal 2

14 777891 Decal, Hydraulic Fluid 1

Any Questions, Comments, Problems, or Parts Orders

Call NorthStar Product Support 1-800-270-0810

2. Requirements: 6” x 25 lb x 66.25” I-beam

3. Kit will be assembled as shown below.

4. Weld the anchor block onto the I-beam. Anchor block must be centered

on beam and completely welded.

5. Install cylinder onto anchor block with the supplied pin and cotter pins.

6. Log stripper weldment can be welded to the beam or bolted to a 10-gauge

(0.1345” thick) plate, which is welded to the beam. If welded to the

beam, a 10-gauge spacer must be placed between the log stripper

weldment and the beam to get the proper vertical height for the log

stripper weldment. The log stripper weldment must rest against the

cylinder face to operate properly, as shown below.

7. Install the wedge on the beam by inserting eight, hex head bolts, 82114,

through the wedge and the right keeper, as shown below. Tighten with

82115 (7/16” Nyloc nuts) to 70 ft-lbs. Repeat for the left side.

8. Hook up hydraulics and extend the cylinder out. Connect the cylinder to

the wedge using 82258 (7/16 x 2 ¼” SHCS bolt) and 82115 (7/16” Nyloc

nut).

9. If 4-way splitting is desired wings can be installed as shown above. Insert

five 82237 (1/2” nyloc nut) nuts into the hex cutout on the right wing.

Place the right wing on wedge. Insert 5 bolts, 82257 (1/2 x 2” SHCS

bolts) into left wing and through wedge. Tighten the bolts and nuts to 70

ft-lbs.

10.Install decals where shown on page 1.
